TECHNICAL CHARACTERISTICS
MATERIAL
INSULATOR: NYLON 66
FLAMABILITY RATING: UL94-V0
COLOR: WHITE
CONTACT MATERIAL: COPPER ALLOY
CONTACT TYPE: STAMPED
CONTACT PLATING: TIN
QUALITY CLASS: 25 MATING CYCLES
PITCH: 4.20MM
ENVIRONMENTAL
OPERATING TEMPERATURE: -40 UP TO 105°C
COMPLIANCE: LEAD FREE AND ROHS
ELECTRICAL
CURRENT RATING: 6 TO 9A
NB CIRCUITS
AMPERES
2-3
9
4-6
8
7-10
7
12-24
6
A
WORKING VOLTAGE: 600V AC
INSULATOR RESISTANCE: >1000 MOHM
DIELECTRIC WITHSTANDING VOLTAGE: 1500V AC/MN
CONTACT RESISTANCE: 10 mOHM MAX
STANDARD
CERTIFIED: E323964
SOLDERING
WAVE PROCESS ONLY

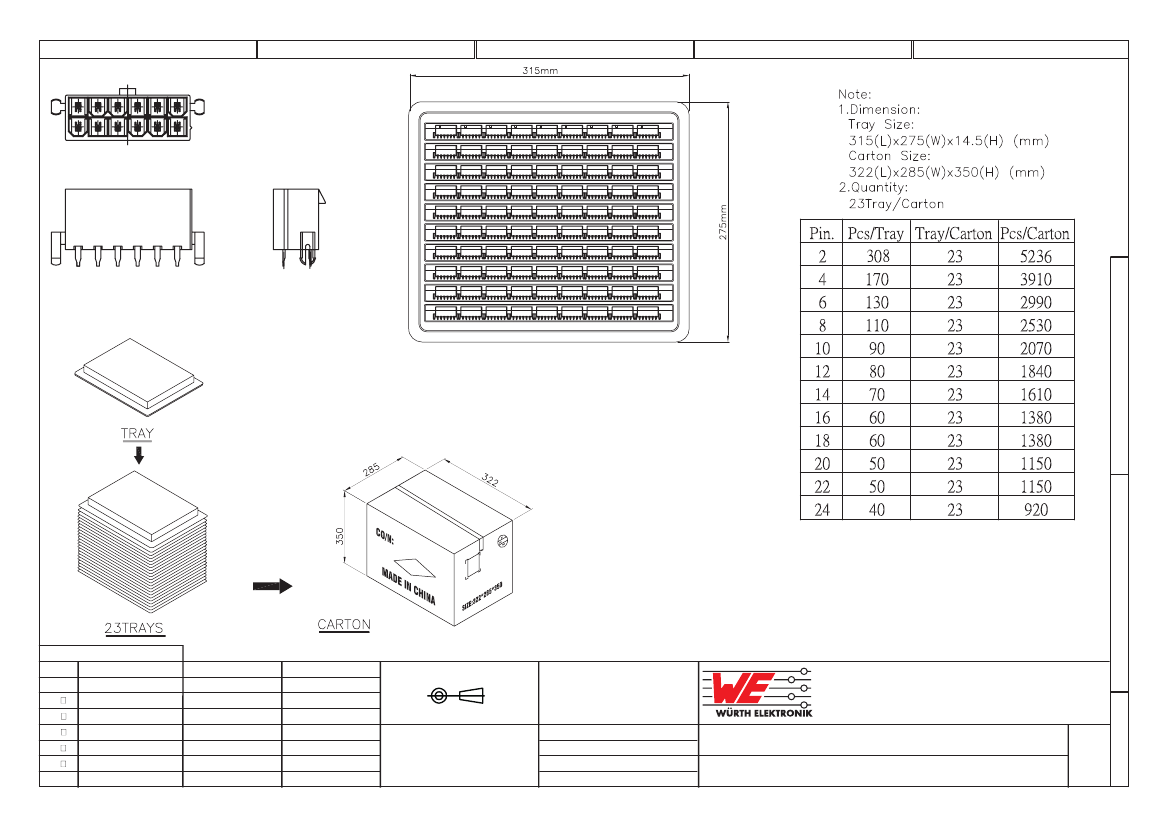

PACKAGING
TRAY

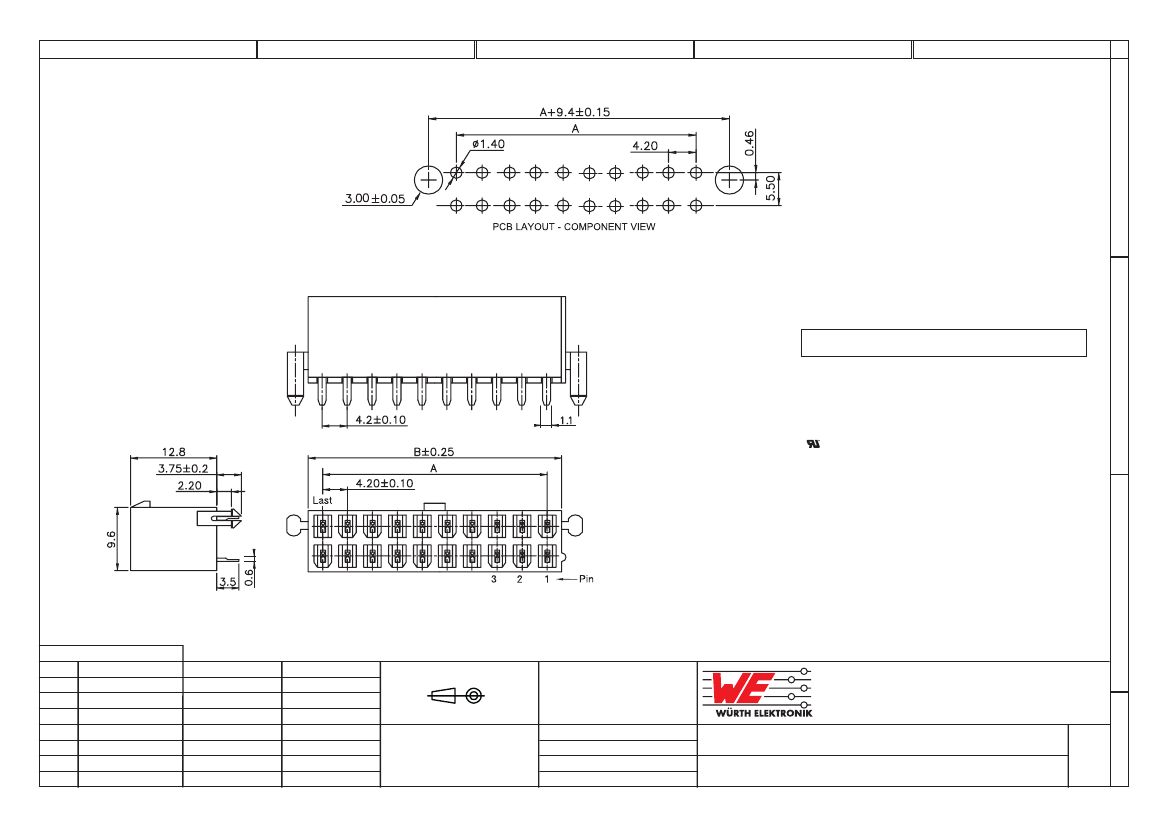

DIMENSION
A = 4.20 x (NB. PIN / 2 - 1)
B = 4.20 x (NB. PIN / 2) + 1.30
B
C
RoHS Compliant
G
F
E
D
C
B
A
REV
13-FEB-14
18-NOV-09
23-AVR-09
DATE
CORRECTIONS
STANDARD
PACKAGING
FILE
QL
JP
JC
BY
APPROVAL: RJ
SCALE:
SHEET: 1/2
DRAW: CEL KING
PROJECTION:
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
UNIT: MM
DESCRIPTION: 4.20MM MALE DUAL ROW VERTICAL HEADER WITH
MOUNTING PEGS
WERI PART NO: 649 0xx 221 732
SIZE
A4
D
