TECHNICAL CHARACTERISTICS
MATERIAL
INSULATOR: PA 66
FLAMMABILITY RATING: UL94-V0
COLOR: GREEN
METAL HOUSING: BRASS (CuZn)
TERMINAL SCREW: STEEL ZINC PLATING "-" SLOT TYPE
WIRE GUARD: PhBz TIN PLATED
ENVIRONMENTAL
OPERATING TEMPERATURE: -40 UP TO 105°C
COMPLIANCE: LEAD FREE AND ROHS
ELECTRICAL
CURRENT RATING:
WORKING VOLTAGE:
WITHSTANDING VOLTAGE:
CONTACT RESISTANCE:
STANDARD
c
us
CERTIFIED E315414
CERTIFIED 40023195
MECHANICAL
SOLID WIRE:
STRANDED WIRE:
TORQUE:
WIRE STRIPE LENGTH: 7-8 MM
SCREW: M3
PITCH: 5.08 MM
PACKAGING
BOX

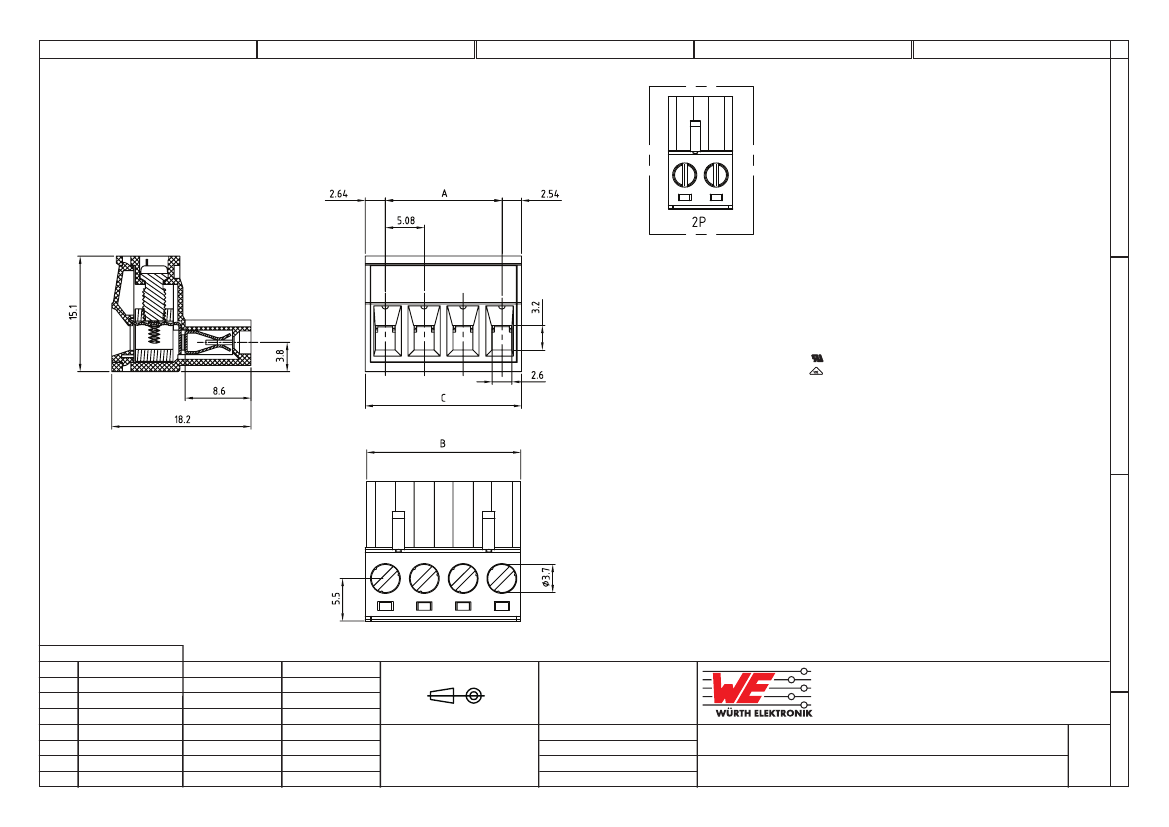

DIMENSION
A = (NB. PINS -1) x PITCH
B = NB. PINS x PITCH
C = (NB. PINS x PITCH) +0,1
24-12 AWG / 0.205-3.31 MM²
24-12 AWG / 0.205-3.31 MM²
5 Lb.In / 0.5 Nm
cULus
VDE
20 A
20 A
300 VAC
300 VAC
1.6 KV
2.5 KV
20 mOhm MAX
A
B
C
RoHS Compliant
G
F
E
D
C
B
A
REV
PROJECTION:
22-APR-16
16-OCT-15
05-NOV-12
13-OCT-09
29-OCT-08
31-OCT-07
DATE
DRAWING
CURRENT cULus
V-UL
STANDARD
CHARACTERISTICS
PDF
FILE
AK
AK
GG
JP
JP
EC
BY
APPROVAL: FBr
SCALE:
SHEET: 1/2
DRAW: MARVIN
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
UNIT: MM
DESCRIPTION: SERIE 351 - 5.08MM VERTICAL CABLE ENTRY PLUG
- WR-TBL
WERI PART NO: 691 351 500 0xx
SIZE
A4
D
1
2
3
4
5
Cautions and Warnings:
This electronic component is designed and developed with the intention for use
in general electronics equipments.
Before incorporating the components into any equipments in the field such as aerospace, aviation,
nuclear control, submarine, transportation, (automotive control, train control, ship control),
transportation signal, disaster prevention, medical, public information network etc. where higher safety
and reliability are especially required or if there is possibility of direct damage or injury to human body,
Wurth Elektronik must be asked for a written approval.
In addition, even electronic component in general electronic equipments, when used in electrical circuits
that require high safety, reliability functions or performance, the sufficient reliability evaluation-check
for the safety must be performed before by the user before usage.
A
B
C
RoHS Compliant
G
F
E
D
C
B
A
REV
10-SEP-14
DATE
PDF
FILE
QL
BY
APPROVAL: JC
SCALE:
SHEET: 2/2
DRAW: QL
WERI PART NO: DISCLAIMER
PROJECTION:
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
UNIT: MM
DESCRIPTION: DISCLAIMER
SIZE
A4
