Part Number:
Status:
Overview:
Description:
0436500603
Active
microfit_30
3.00mm (.118") Pitch Micro-Fit 3.0™ Header, Surface Mount Compatible, Single Row,
Right Angle, with Press-fit Metal Retention Clip, 6 Circuits, Tin (Sn) Plating, Glow Wire
Compatible
Documents:
3D Model
Packaging Specification (PDF)

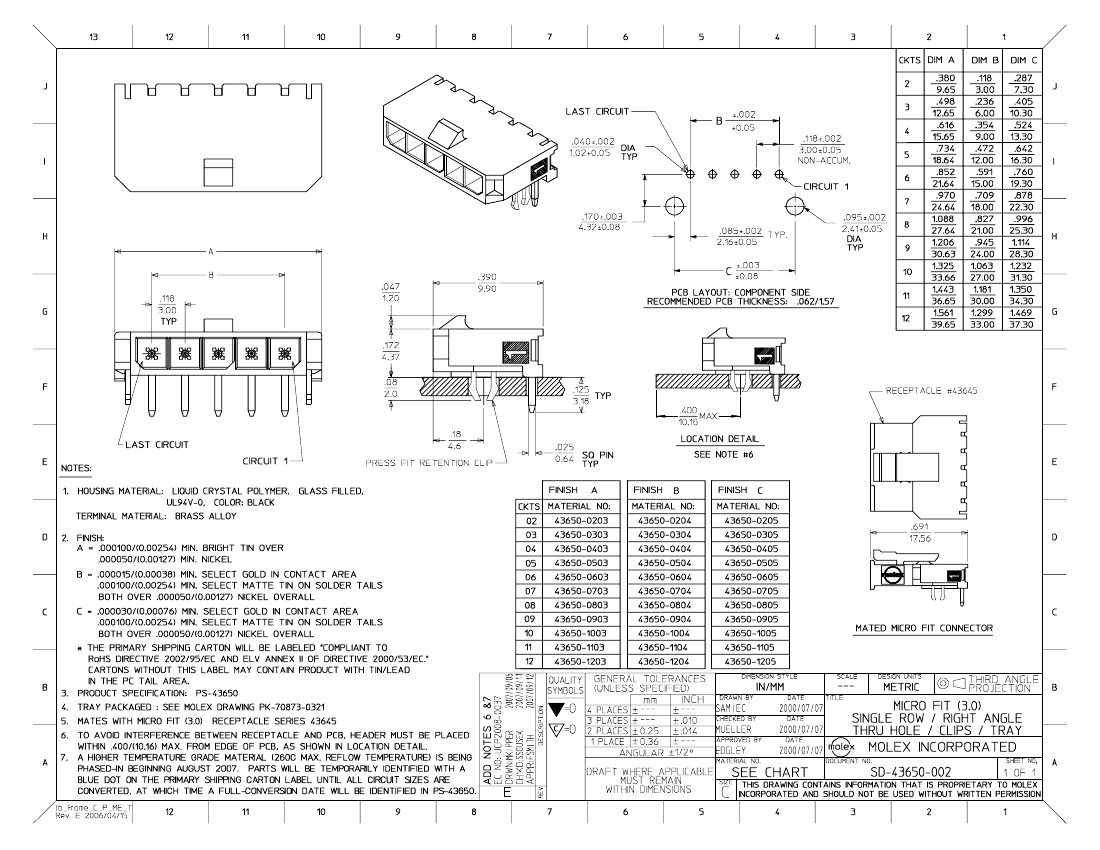

Drawing (PDF)
Product Specification PS-43650 (PDF)
RoHS Certificate of Compliance (PDF)
image - Reference only
Series
Agency Certification
CSA
TUV
UL
LR19980
R72081037
E29179
General
Product Family
Series
Application
Comments
Overview
Product Literature Order No
Product Name
PCB Headers
43650
Wire-to-Board
High Temperature|Square Pin|Solder Type
microfit_30
USA-106
Micro-Fit 3.0™
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Flammability
Glow-Wire Compliant
Mated Height (in)
Mated Height (mm)
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to PCB
Shrouded
Stackable
No
6
6
Black
30
94V-0
Yes
0.275 In
6.98 mm
Brass
Tin
Tin
High Temperature Thermoplastic
1
Right Angle
Yes
Yes
0.062 In
1.60 mm
Tray
0.118 In
3.00 mm
100
2.50
100
2.50
Yes
Fully
No
Search Parts in this Series
43650Series
Mates With
43645 Micro-Fit 3.0™ Receptacle Housing
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Yes
-40°C to +105°C
Through Hole
Electrical
Current - Maximum per Contact
Voltage - Maximum
5A
250V
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
30
SMC & Wave Capable (TH only)
3
260
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
PK-70873-0321
PS-43650
SD-43650-002
