ULTRA MINIATURE CERAMIC SMD CRYSTAL
ABM13
FEATURES:
• Suitable for RoHS reflow profile
• Available tight tolerance and stability
• Electron beam sealed ceramic package assures
high precision and reliability
• Smallest package size in industry1.2x1.0x0.3mm
Moisture
Sensitivity Level (MSL) – This product is Hermetically
Sealed and not
Moisture
Sensitive -
MSL
= N/A: Not Applicable
Pb
RoHS
Compliant
1.2 x 1.0 x 0.3mm
APPLICATIONS:
• Mobile phone, W-LAN, Bluetooth, Tuner Module
• Computers, Modems, Microprocessors
• Communication, Test equipment
• High density applications
• PCMCIA
• Portable radios and MP3 players
Samples Available!!
December 2013
STANDARD SPECIFICATIONS:
Parameters
Frequency Range
Standard Frequency
Operation Mode
Operating Temperature
Storage Temperature
Frequency Tolerance
@+25°C
Frequency Stability over the Operating
Temperature
(
ref. to +25°C)
Equivalent Series Resistance
Load capacitance
(CL)
Drive Level
0
-40
-50
-50
7
10
100
Minimum
36.000
37.200, 37.400, 48.000
Fundamental
+50
+85
+50
+50
200
ºC
ºC
ppm
ppm
Ω
pF
µW
Standard
(See
options if
other than STD)
Typical
Maximum
80.000
Units
MHz
MHz
Notes
See options
See options
See options
OPTIONS & PART IDENTIFICATION:
(Left blank if standard)
ABM13
-
Frequency in MHz
Please specify the
frequency in
MHz.
e.g. 40.000MHz
Load Capacitance
Blank: 7pF
5: 5pF
6: 6pF
Contact
Abracon
for other values
MHz
-
-R
-
-
Packaging
Blank: Bulk
T: 3000pcs/Reel
Freq. Stability
Blank: ± 50
ppm
U: ±
10 ppm
G: ± 15
ppm
X: ±
20 ppm
Y: ± 30
ppm
Custom ESR if
other than standard
R□
□: Specify a value in
Ω
(e.g.:
R40)
Operating Temp.
(See Table 1 for details)
Blank:
0°C
~ +50°C
A:
-10°C
~ +60°C
B:
-20°C
~ +70°C
D: -40°C
~ +85°C
Freq. Tolerance
(See Table 1 for details)
Blank: ± 50
ppm
1: ±
10 ppm
2:
±
20 ppm
4: ± 30
ppm
Note: See Table 1 for the availability of Operating Temp. and Freq. Stability combinations.
Table 1 Available Combinations of Operating Temp. and Freq. Stability
Operating Temp.
Std: 0°C ~ +50°C
A: -10°C ~ +60°C
B: -20°C ~ +70°C
D: -40°C ~ +85°C
ABRACON IS
ISO9001:2008
CE RTIFIED
Freq. Stability
U:±10ppm
√
G:±15ppm
√
√
X:±20ppm
√
√
√
Y:±30ppm
√
√
√
√
Std:±50ppm
√
√
√
√
Revised: 01.03.13
30332
Esperanza, Rancho Santa
Margarita,
California 92688
tel 949-546-8000
|
fax 949-546-8001
|
www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
ULTRA MINIATURE CERAMIC SMD CRYSTAL
ABM13

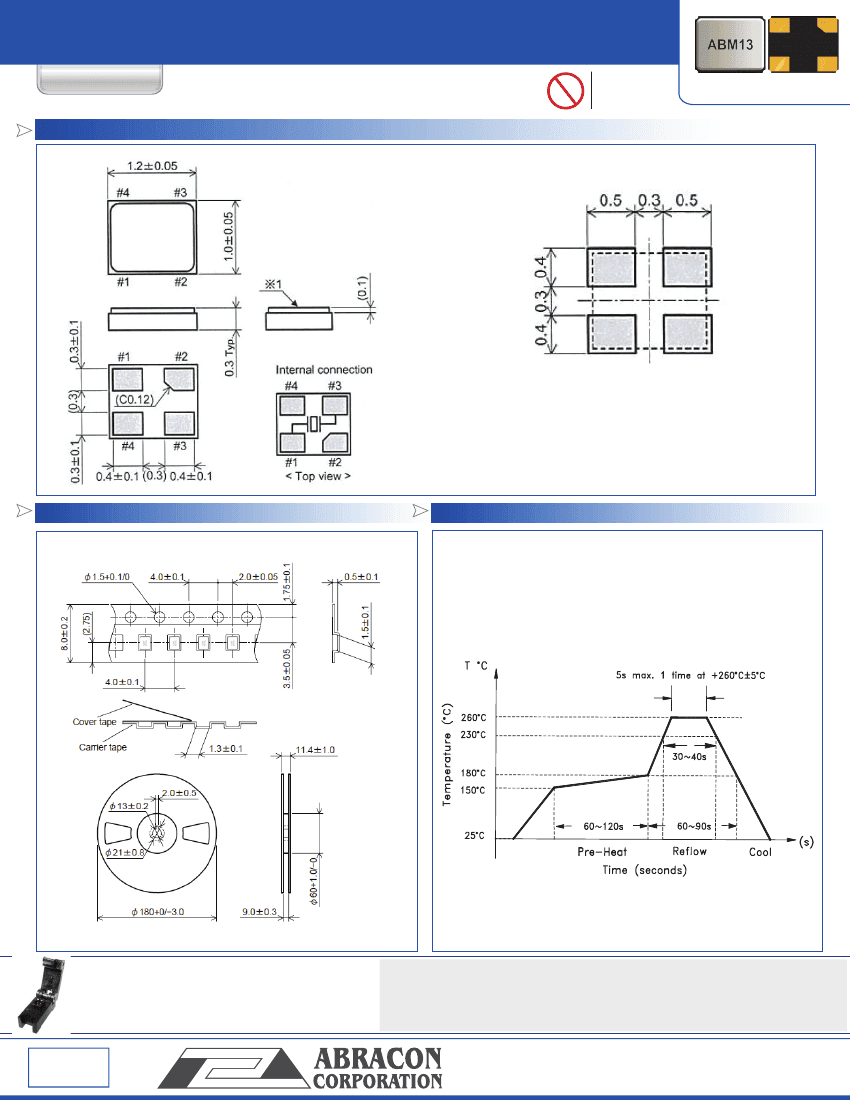

OUTLINE DRAWING:
Recommended Land Pattern
Pb
RoHS
Compliant
1.2 x 1.0 x 0.3mm
Note:
Pin 2 is connected to the metal lid.
(Please connect to GND)
Pin 4: No connection
Dimensions: mm
TAPE & REEL:
T: 3000pcs/reel
REFLOW PROFILE:
Dimensions: mm
Need a test socket for the ABM12 Series? To view
compatible
PRECISION TEST & BURN-IN SOCKETS
for these parts,
click here. P/N AXS-1612-04-01C
ABRACON IS
ISO9001:2008
CE RTIFIED
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commer -
cial, Industrial and, where designated, Automotive Applications. Abracon’s products are not specifically designed for
Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where
component failure could result in loss of life and/or property. For applications requiring high reliability and/or
presenting an extreme operating environment, written consent and authorization from Abracon Corporation is
required. Please contact Abracon Corporation for more information.
ABRACON IS
ISO 9001 / QS 9000
CE RTIFIED
Revised: 01.03.13
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
