0438600015

Description
Modular Jack, Right Angle, Low Profile, Inverted, Shielded, Offset Panel Grounding Tabs, 6/4
File Size660KB,7 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet View All

0438600015 Overview

Modular Jack, Right Angle, Low Profile, Inverted, Shielded, Offset Panel Grounding Tabs, 6/4

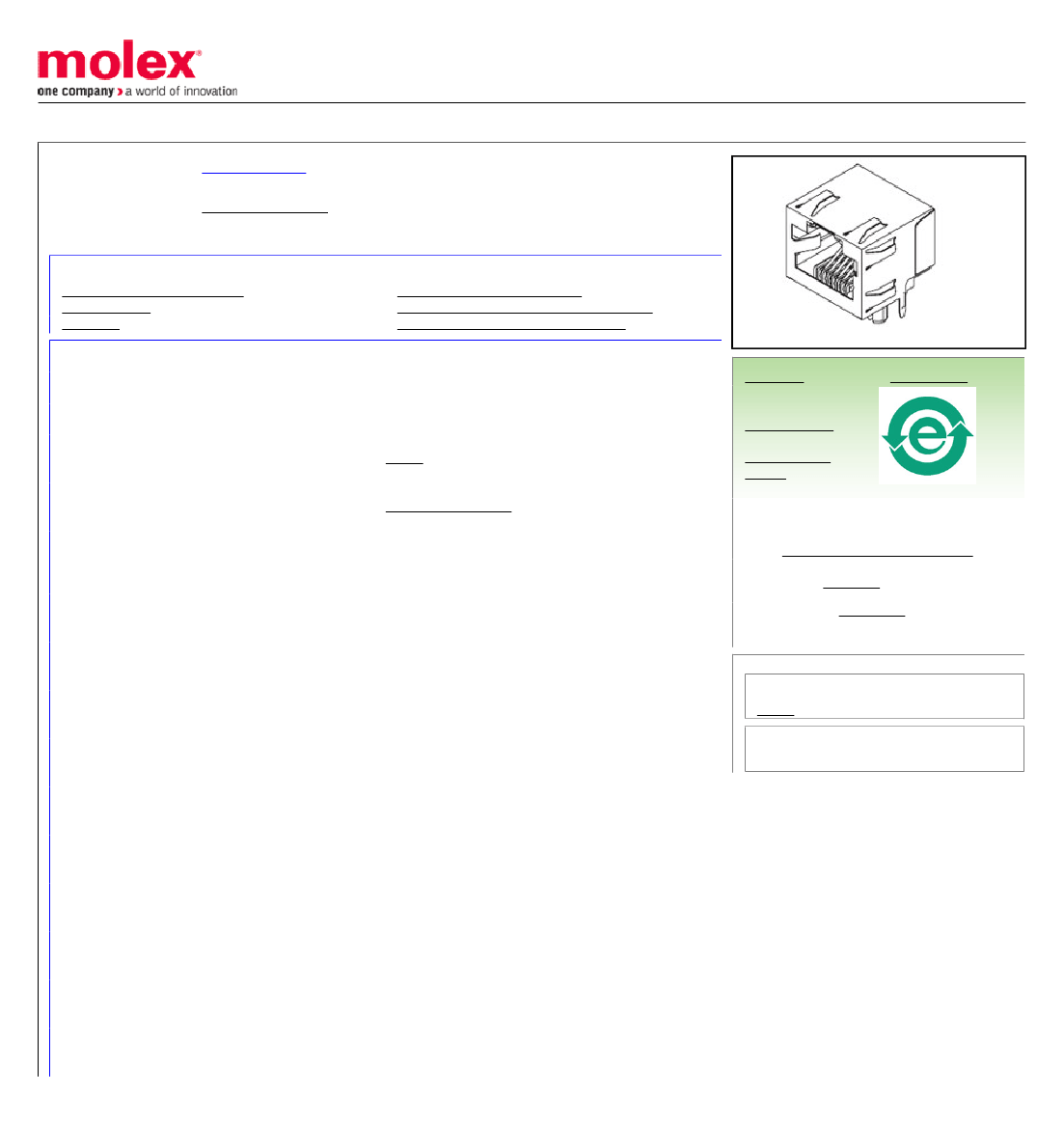

This document was generated on 06/07/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0438600015
Active
modular_plugs_jacks
Modular Jack, Right Angle, Low Profile, Inverted, Shielded, Offset Panel Grounding
Tabs, 6/4
Documents:
Packaging Specification (PDF)

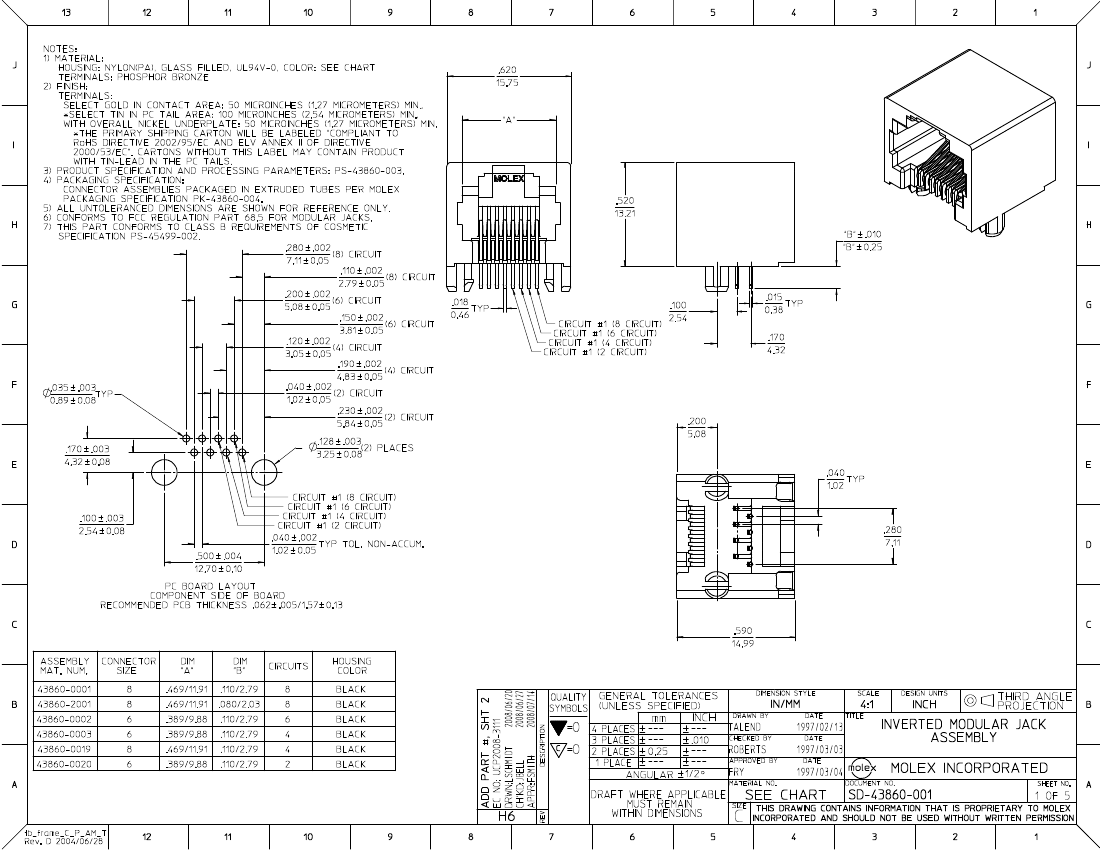

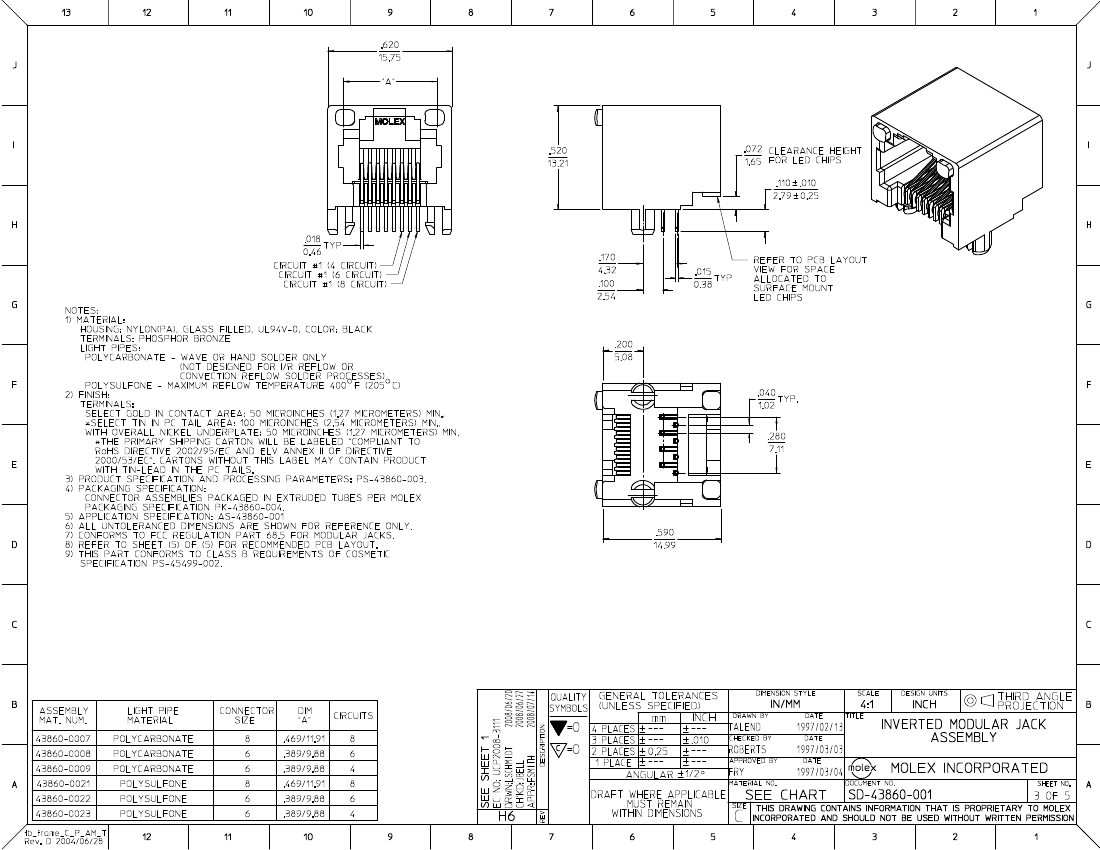

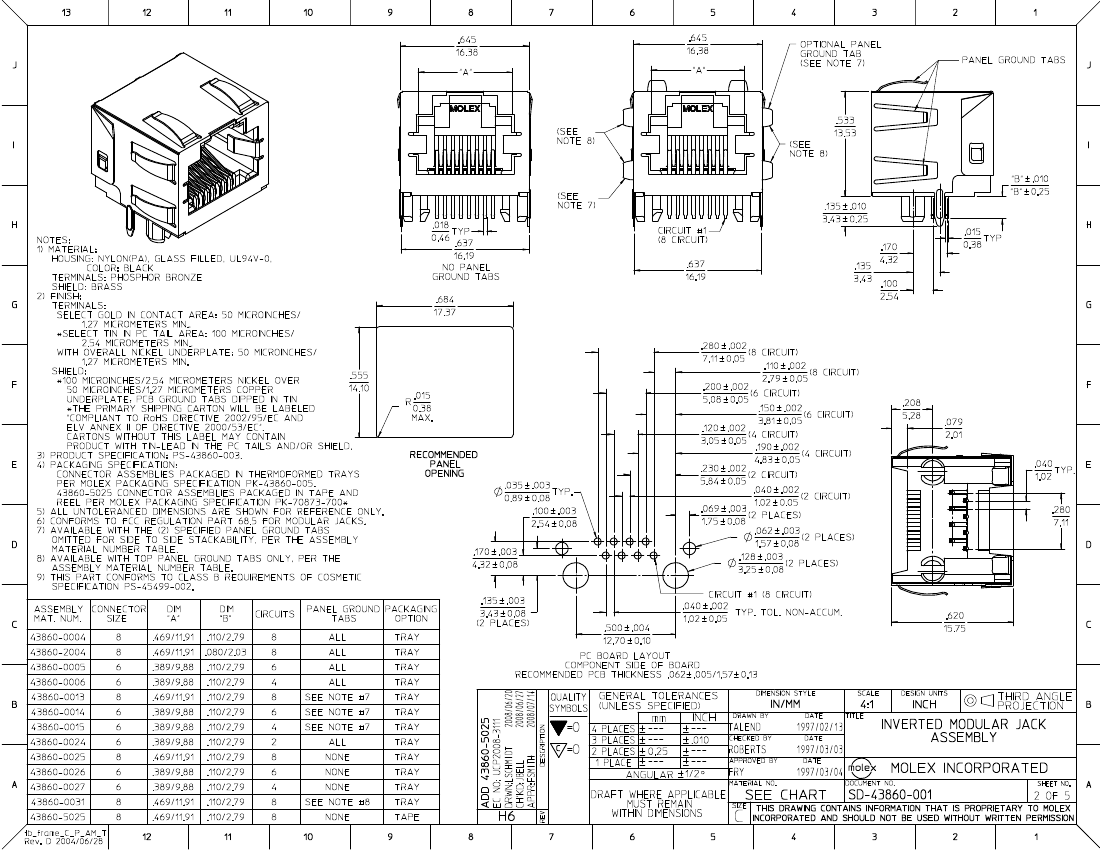

Drawing (PDF)
3D Model
Application Specification (PDF)
Product Specification PS-43860-003 (PDF)
RoHS Certificate of Compliance (PDF)
image - Reference only
Series
Agency Certification
CSA
UL
LR19980
E107635
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Component Type
Magnetic
Overview
Performance Category
Power over Ethernet (PoE)
Product Name
Modular Jacks/Plugs
43860
PCB Jack
No
modular_plugs_jacks
3
N/A
RJ11
Physical
Boot Color
Color - Resin
Durability (mating cycles max)
Flammability
Inverted / Top Latch
Lightpipes/LEDs
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Orientation
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Ports
Positions / Loaded Contacts
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Waterproof / Dustproof
Wire/Cable Type
N/A
Black
500
94V-0
Yes
None
Brass, Phosphor Bronze
Gold
Tin
High Temperature Thermoplastic
Right Angle (Side Entry)
Yes
Yes
0.062 In
1.60 mm
Tray
With Flange
0.040 In
1.02 mm
50
1.25
100
2.5
1
6/4
No
-40°C to +85°C
Through Hole
No
N/A
Search Parts in this Series
43860Series
Mates With
FCC 68 Plugs
