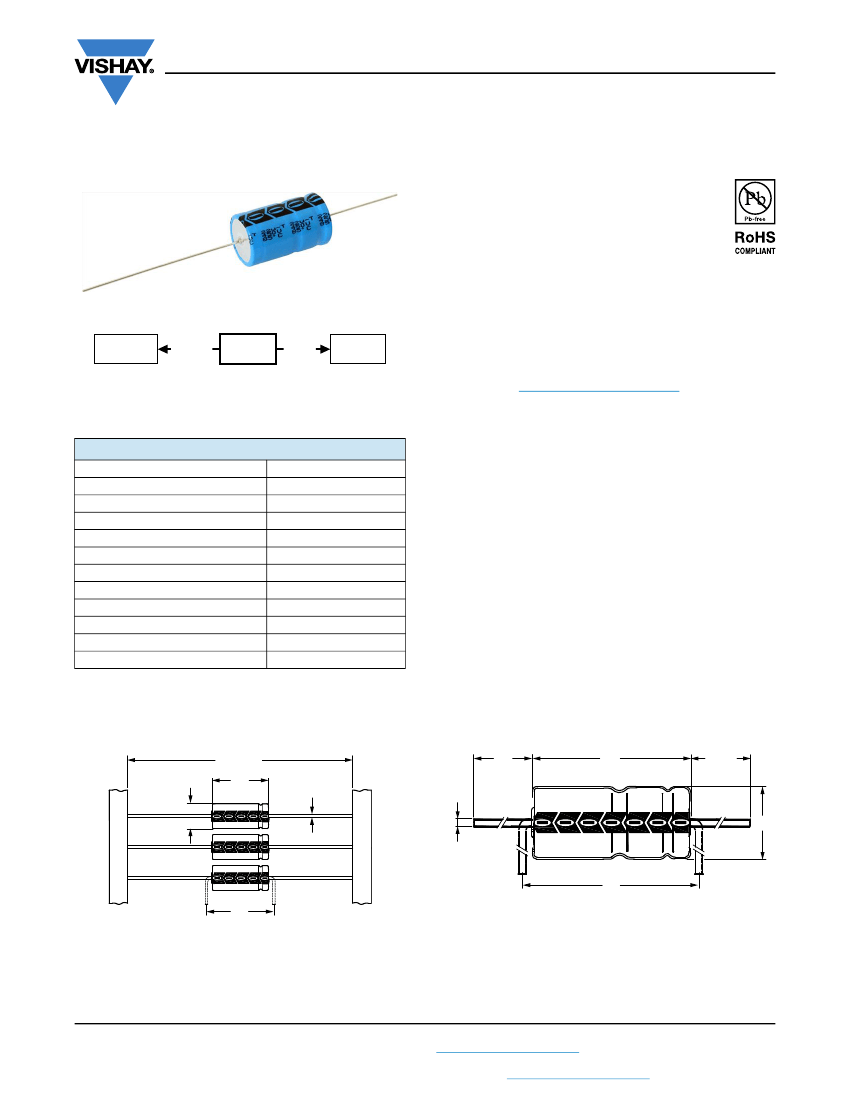

• Axial leads, cylindrical aluminum case, insulated with a
blue sleeve
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
041-043 ASH
standard
HV
042/043
AMH-ELB
105 °C
042/043
AHH-ELB
Fig. 1
APPLICATIONS
QUICK REFERENCE DATA
DESCRIPTION
Nominal case sizes (Ø D x L in mm)
Rated capacitance range, C
R
Tolerance on C
R
Rated voltage, U
R
Category temperature range
Endurance test at 85 °C
Useful life at 85 °C
Useful life at 70 °C, I
R
applied
Shelf life at 0 V, 85 °C
Based on sectional specification
Climatic category IEC 60068
VALUE
12.5 x 30 to 18 x 38
6.8 μF to 33 μF
-10 % to +50 %
450 V
-25 °C to +85 °C
8000 h
20 000 h
100 000 h
500 h
IEC 60384-4 / EN 130300
25 / 085 / 56
• Electronic lighting ballast, power supply
• Smoothing, filtering, buffering at high voltages
• Boards with restricted mounting height, vibration, and
shock resistant
MARKING
The capacitors are marked (where possible) with the
following information:
• Rated capacitance (in μF)
• Tolerance on rated capacitance, code letter in accordance
with IEC 60062 (T for -10 % to +50 %)
• Rated voltage (in V)
• Upper category temperature (85 °C)
• Date code in accordance with IEC 60062
• Code for factory of origin
• Name of manufacturer
• Negative terminal identification
• Series number (042 or 043)
DIMENSIONS
in millimeters
AND AVAILABLE FORMS
73 ± 1.6
ØD
L
Ød
Ød
ØD
I
L
33 ± 1
F
F
Form BR:
Taped on reel
Case Ø D x L = 6.5 mm x 18 mm to 15 mm x 30 mm
Form AA:
Axial in box
Case Ø D x L = 10 mm x 30 mm to 21 mm x 38 mm
Fig. 2 -
Form BR
Fig. 3 -
Form AA
Revision: 09-Jan-17
Document Number: 28330
1
For technical questions, contact:
aluminumcaps1@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
042 AMH-ELB, 043 AMH-ELB
www.vishay.com
Table 1
Vishay BCcomponents
AXIAL; DIMENSIONS
in millimeters,
MASS AND PACKAGING QUANTITIES
NOMINAL
CASE SIZE
ØDxL
(mm)
12.5 x 30
15 x 30
18 x 30
18 x 38
AXIAL: FORM AA AND BR
CASE
CODE
01
02
03
04
Ød
0.8
0.8
0.8
0.8
l
55 ± 1
55 ± 1
55 ± 1
34 ± 1
Ø D
max.
13.0
15.5
18.5
18.5
L
max.
30.5
30.5
30.5
39.5
F
min.
35
35
35
44
MASS
(g)
6.1
8.3
11.6
16.0
PACKAGING QUANTITIES
FORM
AA
260
200
120
125
FORM
BR
400
250
-
-
Note
• For detailed tape dimensions please refer to packaging information:
www.vishay.com/doc?28361
ELECTRICAL DATA
SYMBOL
C
R
I
R
I
L5
ESR
Z
DESCRIPTION
Rated capacitance at 100 Hz,
tolerance -10 % to +50 %
Rated RMS ripple current at 10 kHz, 85 °C
Max. leakage current after 5 min at U
R
Typ. / max. equivalent series resistance at 100 Hz
Typ. / max. impedance at 10 kHz
ORDERING EXAMPLE
Electrolytic capacitor 042 series
10 μF / 450 V; -10 % / +50 %
Nominal case size: Ø 12.5 mm x 30 mm; Form BR
Ordering code: MAL204282109E3
Former 12NC: 2222 042 82109
Note
• Unless otherwise specified, all electrical values in Table 2 apply
at T
amb
= 20 °C, P = 86 kPa to 106 kPa, RH = 45 % to 75 %.
Table 2
ELECTRICAL DATA AND ORDERING INFORMATION
U
R
(V)
C
R
100 Hz
(μF)
6.8
10
15
22
33
NOMINAL
CASE SIZE
ØDxL
(mm)
12.5 x 30
12.5 x 30
15 x 30
18 x 30
18 x 38
I
R
10 kHz
85 °C
(mA)
540
710
910
1 190
1 610
I
L5
5 min
(μA)
106
110
115
120
130
ESR
TYP.
100 Hz
()
3.8
2.6
1.7
1.1
0.8
ESR
MAX.
100 Hz
()
8.3
5.6
3.7
2.4
1.7
Z
TYP.
10 kHz
()
2.8
1.8
1.2
0.9
0.6
Z
MAX.
10 kHz
()
4.8
3.1
2.1
1.4
1.0
ORDERING CODE MAL2..........
AXIAL
IN BOX
TAPED ON REEL
FORM AA
FORM BR
04281688E3
04282688E3
04281109E3
04282109E3
04281159E3
04282159E3
04281229E3
-
04381339E3
-
450
ADDITIONAL ELECTRICAL DATA
PARAMETER
Voltage
Surge voltage
Overvoltage test
Reverse voltage
Current
Leakage current
Inductance
Case Ø D x L in mm:
12.5 x 30
15 x 30
18 x 30
18 x 38
Typ. 46 nH
Typ. 48 nH
Typ. 50 nH
Typ. 54 nH
CONDITIONS
U
R
= 450 V
24 h at 85 °C
VALUE
U
s
550 V
550 V
(1)
U
rev
1 V
I
L1
0.009 x C
R
x U
R
+ 200 μA
I
L5
0.002 x C
R
x U
R
+ 100 μA
After 1 min
After 5 min
Equivalent series inductance
Note
(1)
Test conditions on request.
Revision: 09-Jan-17
Document Number: 28330
2
For technical questions, contact:
aluminumcaps1@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
042 AMH-ELB, 043 AMH-ELB
www.vishay.com

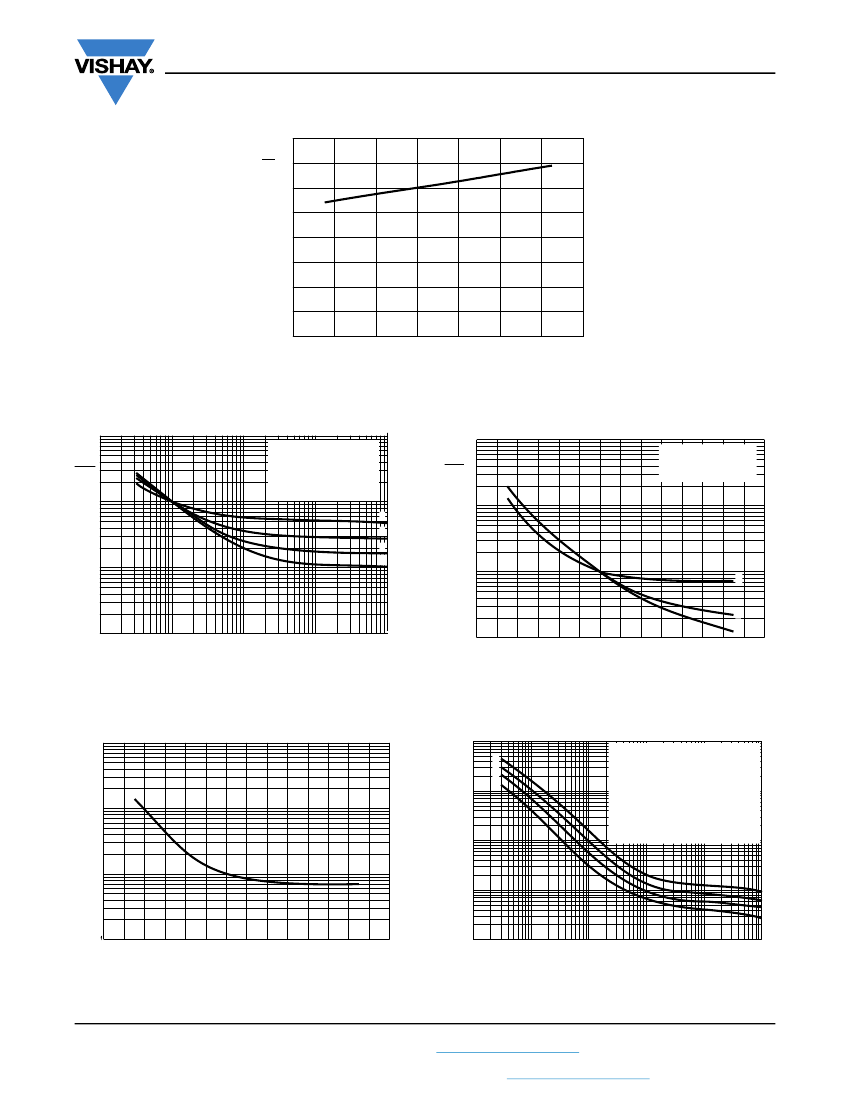

CAPACITANCE (C)
1.1
C
C
0
1.0
Vishay BCcomponents
0.9
0.8
0.7
- 40
- 20
0
20
40
60
80
100
C
0
= Capacitance at 20 °C, 100 Hz
T
amb
= 20 °C
Fig. 4 - Typical multiplier of capacitance as a function
of ambient temperature
EQUIVALENT SERIES RESISTANCE (ESR)
10
ESR
ESR
0
1
1
2
3
10
-1
4
1
1
Curve 1: T
amb
= 20 °C
Curve 2: T
amb
= 40 °C
Curve 3: T
amb
= 60 °C
Curve 4: T
amb
= 85 °C
10
2
ESR
ESR
0
10
Curve 1: f = 100 kHz
Curve 2: f = 1 kHz
Curve 3: f = 10 kHz
2
10
-2
10
10
10
2
10
3
10
4
f (Hz)
10
5
-1
3
- 20
0
20
40
60
80
100
- 40
ESR
0
= Typical at 20 °C, 100 Hz
ESR
0
= Typical at 20 °C, 100 Hz
T
amb
(°C)
Fig. 5 - Typical multiplier of ESR as a function of frequency
at different ambient temperatures
Fig. 6 - Typical multiplier of ESR as a function of
ambient temperature at different frequencies
10
3
Z
(
Ω
)
10
2
1
2
3
4
Curve 1: 10 μF,
case Ø D x L = 12.5 mm x 30 mm
Curve 2: 15 μF,
case Ø D x L = 15 mm x 30 mm
Curve 3: 22 μF,
case Ø D x L = 18 mm x 30 mm
Curve 4: 33 μF,
case Ø D x L = 18 mm x 38 mm
IMPEDANCE (Z)
10
2
10
10
1
1
10
-1
10
−1
- 20
0
20
40
60
80
100
120
10
10
2
10
3
10
4
10
5
6
f (Hz) 10
- 40
Z
0
= Impedance at 20 °C, 10 Hz
T
amb
(°C)
T
amb
= 20 °C
Fig. 7 - Typical multiplier of impedance as a function
of ambient temperature
Revision: 09-Jan-17
Fig. 8 - Typical impedance as a function of frequency
Document Number: 28330
3
For technical questions, contact:
aluminumcaps1@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
042 AMH-ELB, 043 AMH-ELB
www.vishay.com
RIPPLE CURRENT AND USEFUL LIFE
Table 3
Vishay BCcomponents
ENDURANCE TEST DURATION AND USEFUL LIFE
ENDURANCE AT 105 °C (h)
8000
Note
• Multiplier of useful life code: CCB886
USEFUL LIFE AT 105 °C (h)
20 000
3.0
I
A
I
R
2.0
Lifetime multiplier
CCB886
1.0
2.0
5.0
10
1.0
(1)
0.0
40
50
60
70
80
90
100
I
A
= Actual ripple current at 10 kHz
I
R
= Rated ripple current at 10 kHz, 85 °C
(1)
T
amb
= 20 °C
Useful life at 85 °C and I
R
applied: 20 000 h
Fig. 9 - Multiplier of useful life as a function of ambient temperature
and ripple current load
Table 4
MULTIPLIER OF RIPPLE CURRENT (I
R
) AS A FUNCTION OF FREQUENCY
FREQUENCY (Hz)
50
100
300
I
R
MULTIPLIER
0.22
Note
• Formula (1) should be used to calculate the actual ripple current at 10 kHz (see Fig. 9) when multiple frequencies are present. For an example
of the values 100 Hz and 50 kHz:
I
100 Hz
2
I
50 kHz
2
(1)
I
A
=
--------------------------
+
--------------------------
-
-
0.30
1.0
0.30
0.49
0.72
0.89
1.00
1000
3000
10 000
Revision: 09-Jan-17
Document Number: 28330
4
For technical questions, contact:
aluminumcaps1@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
042 AMH-ELB, 043 AMH-ELB
www.vishay.com
Table 5
Vishay BCcomponents
TEST PROCEDURES AND REQUIREMENTS
TEST
NAME OF TEST
REFERENCE
IEC 60384-4 /
EN 130300
subclause 4.13
PROCEDURE
(quick reference)
T
amb
= 85 °C; U
R
applied;
8000 h
REQUIREMENTS
C/C:
± 10 %
tan
1.3 x spec. limit
Z
2 x spec. limit
I
L5
spec. limit
C/C:
± 30 %
tan
3 x spec. limit
Z
3 x spec. limit
I
L5
spec. limit
No short or open circuit
Total failure percentage:
3
%
C/C,
tan
,
Z:
for requirements
see “Endurance test” above
I
L5
2 x spec. limit
Endurance
Useful life
CECC 30301
subclause 1.8.1
T
amb
= 85 °C; U
R
and I
R
applied;
20 000 h
Shelf life
(storage at high
temperature)
IEC 60384-4 /
EN 130300
subclause 4.17
T
amb
= 85 °C; no voltage applied;
500 h
After test: U
R
to be applied for 30 min,
24 h to 48 h before measurement
Statements about product lifetime are based on calculations and internal testing. They should only be interpreted as estimations. Also due to external factors, the
lifetime in the field application may deviate from the calculated lifetime. In general, nothing stated herein shall be construed as a guarantee of durability.
