0447691201: Description12 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE; CategoryThe connector The connector; File Size145KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

0447691201 Overview

12 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE

0447691201 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LOW HALOGEN, ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
Is Samacsys	N
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	3 mm
Termination type	SOLDER
Total number of contacts	12
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 05/21/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0447691201

Active

microfit_30

3.00mm (.118") Pitch Micro-Fit 3.0, BMI™ Receptacle Header, Dual Row, Vertical, with

Press-fit Plastic Pegs, 2.54µm (100µ") Tin (Sn), 12 Circuits

Documents:

3D Model

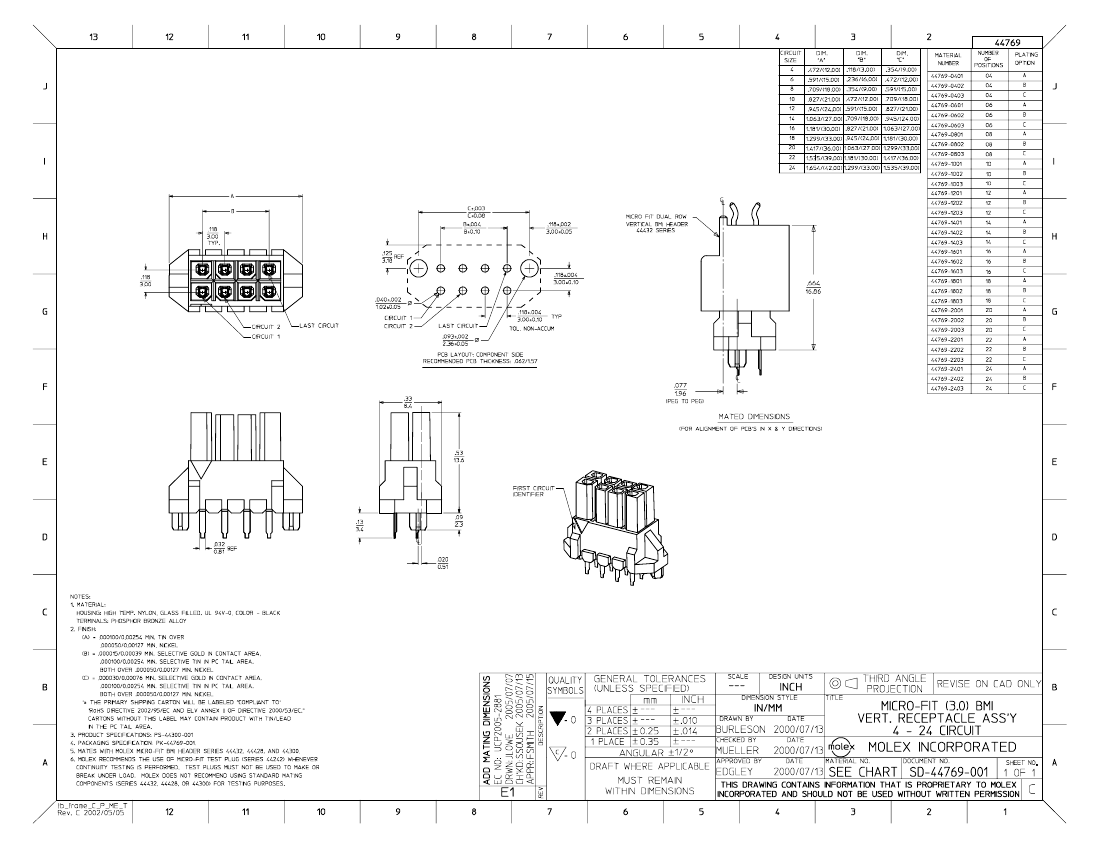

Drawing (PDF)

Product Specification PS-44300-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

LR19980

R72081037

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

TUV

General

Product Family

Series

Application

Overview

Product Literature Order No

Product Name

PCB Receptacles

44769

Board-to-Board, Wire-to-Board

microfit_30

USA-106

Micro-Fit 3.0 BMI™

Physical

Circuits (Loaded)

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Material - Metal

Material - Plating Mating

Material - Plating Termination

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to PCB

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

94V-0

Phosphor Bronze

Tin

Vertical

Yes

0.062 In

1.60 mm

Tray

0.118 In

3.00 mm

100

2.5

100

2.5

Yes

-40°C to +105°C

Through Hole

Search Parts in this Series

44769Series

Mates With

44428 , 44300 , 44432

Electrical

Current - Maximum per Contact

Voltage - Maximum

250V

Solder Process Data

Duration at Max. Process Temperature (seconds)

Lead-free Process Capability

Max. Cycles at Max. Process Temperature

Wave Capable (TH only)
