0457190007

Description
4 CONTACT(S), FEMALE, POWER CONNECTOR, SOLDER
CategoryThe connector    The connector
File Size243KB,5 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

0457190007 Overview

4 CONTACT(S), FEMALE, POWER CONNECTOR, SOLDER

0457190007 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
package instructionROHS AND REACH COMPIANT
Reach Compliance Codecompliant
Is SamacsysN
Connector typeRECTANGULAR POWER CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Mixed contactsNO
Installation typeBOARD
OptionsGENERAL PURPOSE
Shell materialPOLYETHYLENE
Termination typeSOLDER
Total number of contacts4
UL Flammability Code94V-0
Base Number Matches1

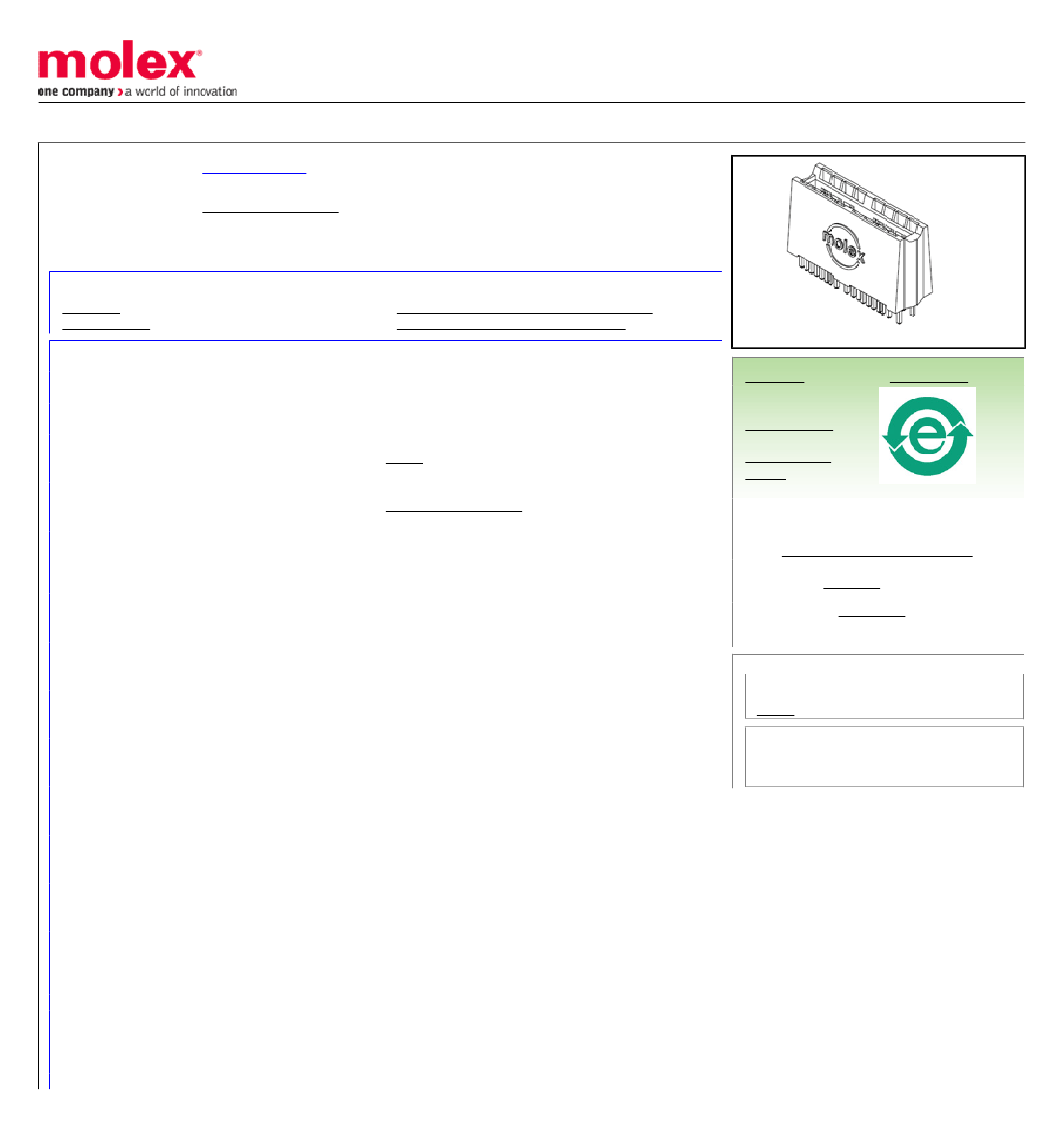

This document was generated on 06/04/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0457190007
Active
edge_card_connectors
12.90mm (.508") Pitch EXTreme PowerEdge™, Connector, 2 Segments (4 Total
Contacts), Through Hole Solder for 1.57mm (.062") Thick PC Board, Mates to a
1.57mm (.062") Thick Card Edge or Bus Bar Tab
Documents:
3D Model

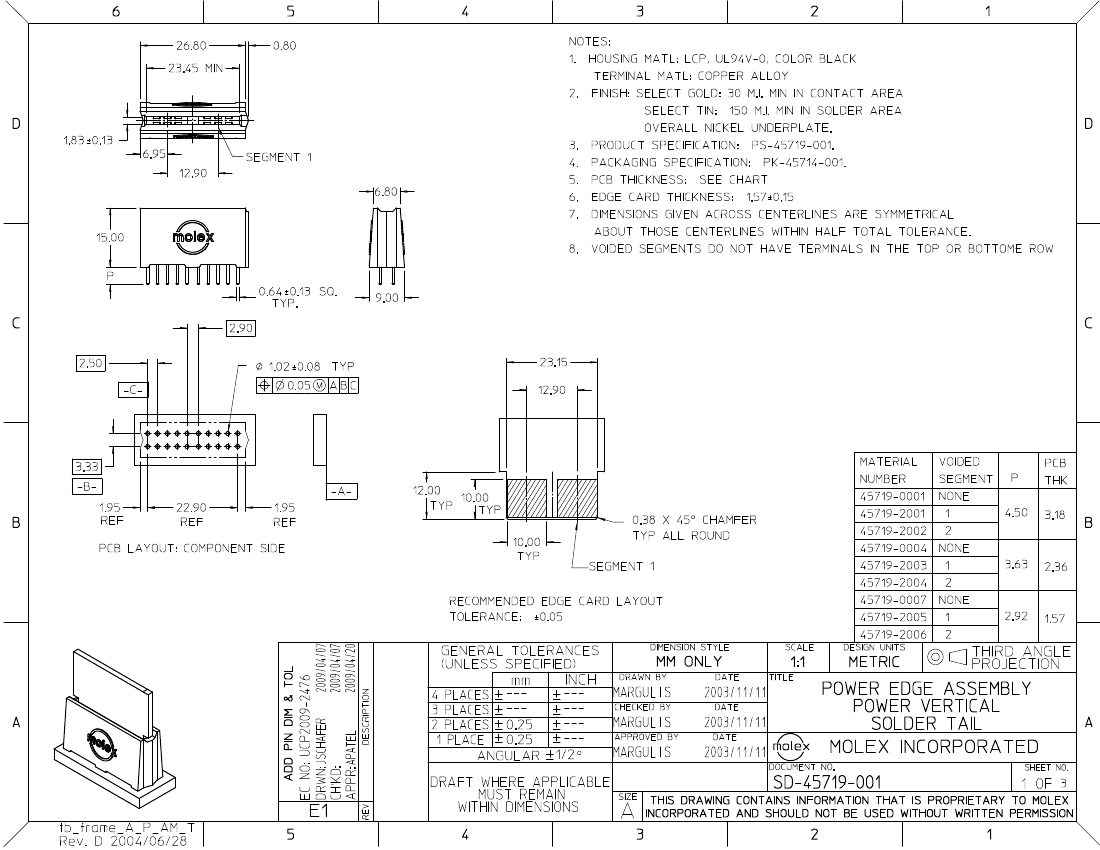

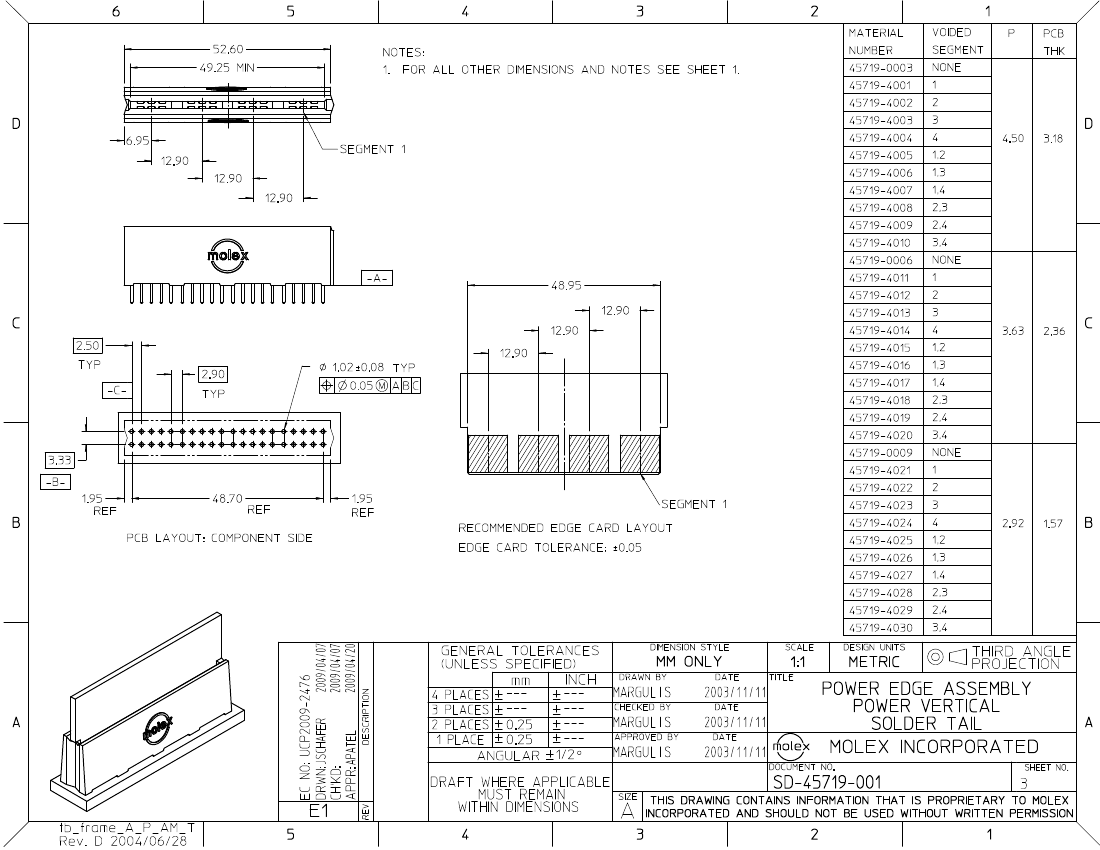

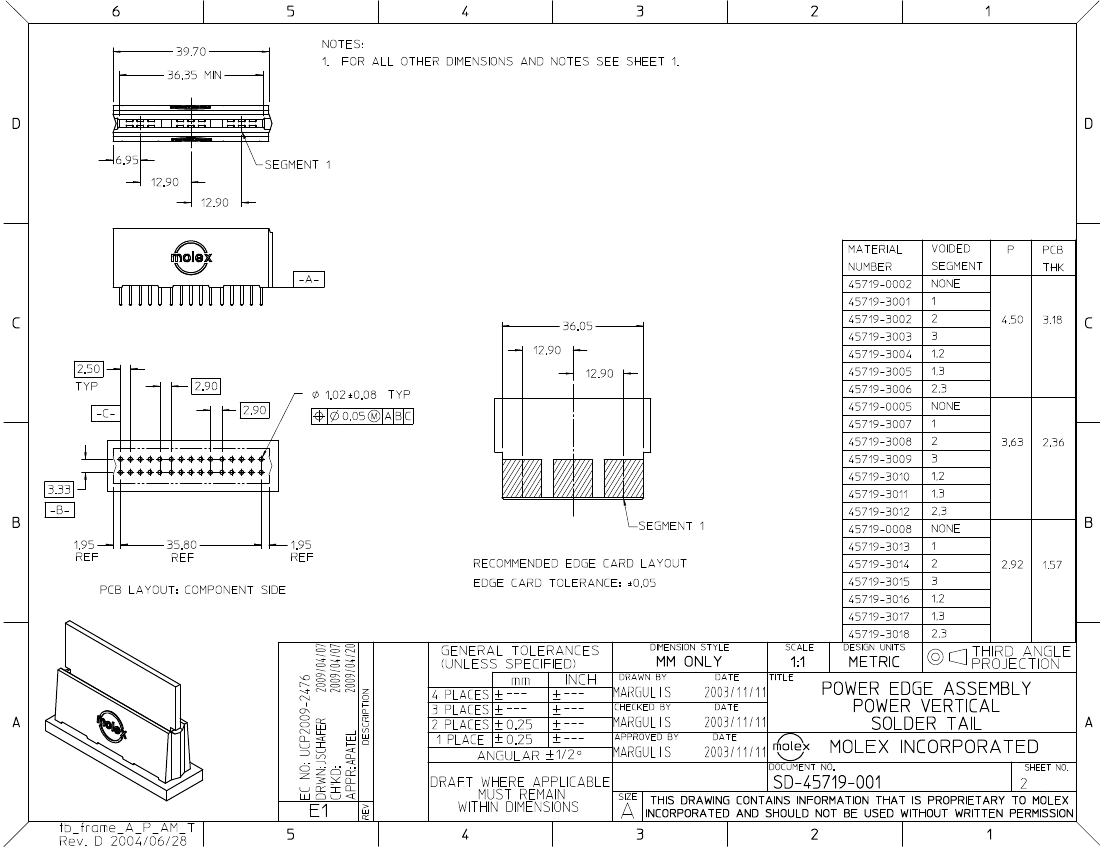

Drawing (PDF)
Product Specification PS-45719-001 (PDF)
RoHS Certificate of Compliance (PDF)
image - Reference only
Series
Agency Certification
CSA
TUV
LR19980
R72090228
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Component Type
MolexKits
Overview
Product Name
Edge Card Connectors
45719
Edgecard to PCB
Yes
edge_card_connectors
Bus Bar Socket, EXTreme PowerEdge™
Physical
Circuits (Loaded)
Circuits (maximum)
Circuits Detail
Color - Resin
Durability (mating cycles max)
Entry Angle
Flammability
Keying to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
PC Tail Length (in)
PC Tail Length (mm)
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Temperature Range - Operating
Termination Interface: Style
4
4
All Power
Black
200
Vertical (Top Entry)
94V-0
N/A
High Performance Alloy (HPA)
Gold
Tin
High Temperature Thermoplastic
0.115 In
2.92 mm
0.062 In
1.60 mm
Tray
0.508 In
12.90 mm
30
0.75
150
3.75
-40°C to +105°C
Through Hole
Search Parts in this Series
45719Series
Mates With
1.58mm (.062") double sided card edge or
bus bar tab
Electrical
Current - Maximum per Contact
Voltage - Maximum
40A
250V
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
5
Wave Capable (TH only)
