0459841362

Description
42 CONTACT(S), FEMALE, POWER CONNECTOR, SOLDER, RECEPTACLE
CategoryThe connector    The connector
File Size454KB,7 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

0459841362 Overview

42 CONTACT(S), FEMALE, POWER CONNECTOR, SOLDER, RECEPTACLE

0459841362 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
package instructionLOW HALOGEN, ROHS AND REACH COMPLIANT
Reach Compliance Codecompliant
Factory Lead Time7 weeks
Is SamacsysN
Other featuresPOLARIZED
Body/casing typeRECEPTACLE
Connector typeRECTANGULAR POWER CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsYES
Installation typeBOARD
OptionsGENERAL PURPOSE
Shell materialPOLYETHYLENE
Termination typeSOLDER
Total number of contacts42
UL Flammability Code94V-0
Base Number Matches1
This document was generated on 05/21/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0459841362
Active
extreme_lphpower
1.27mm (.050"), 12.00mm (.472") Pitch, EXTreme LPHPower™ Receptacle Header,
Right Angle, 10 Power Contacts, 32 Signal Contacts, Select Gold (Au) Plating, for
2.36mm (.093") Thick PC Board, with Press-fit Plastic Pegs
Documents:
3D Model

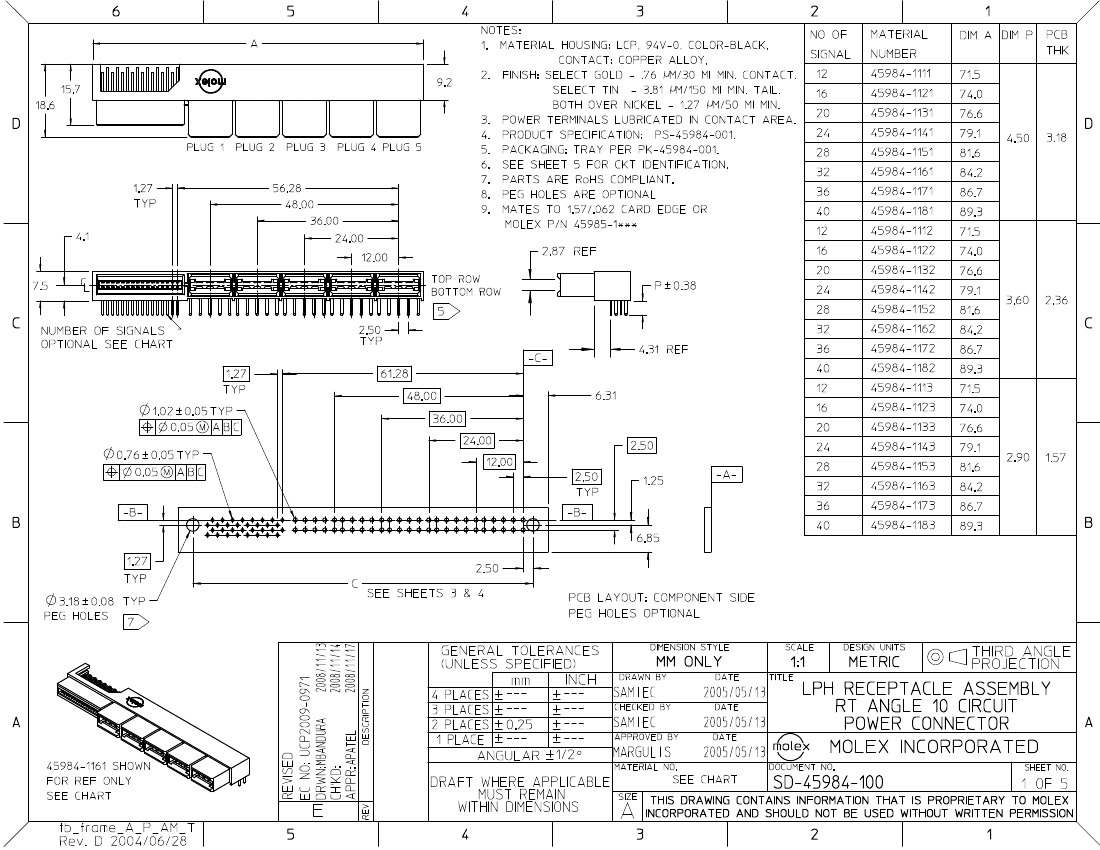

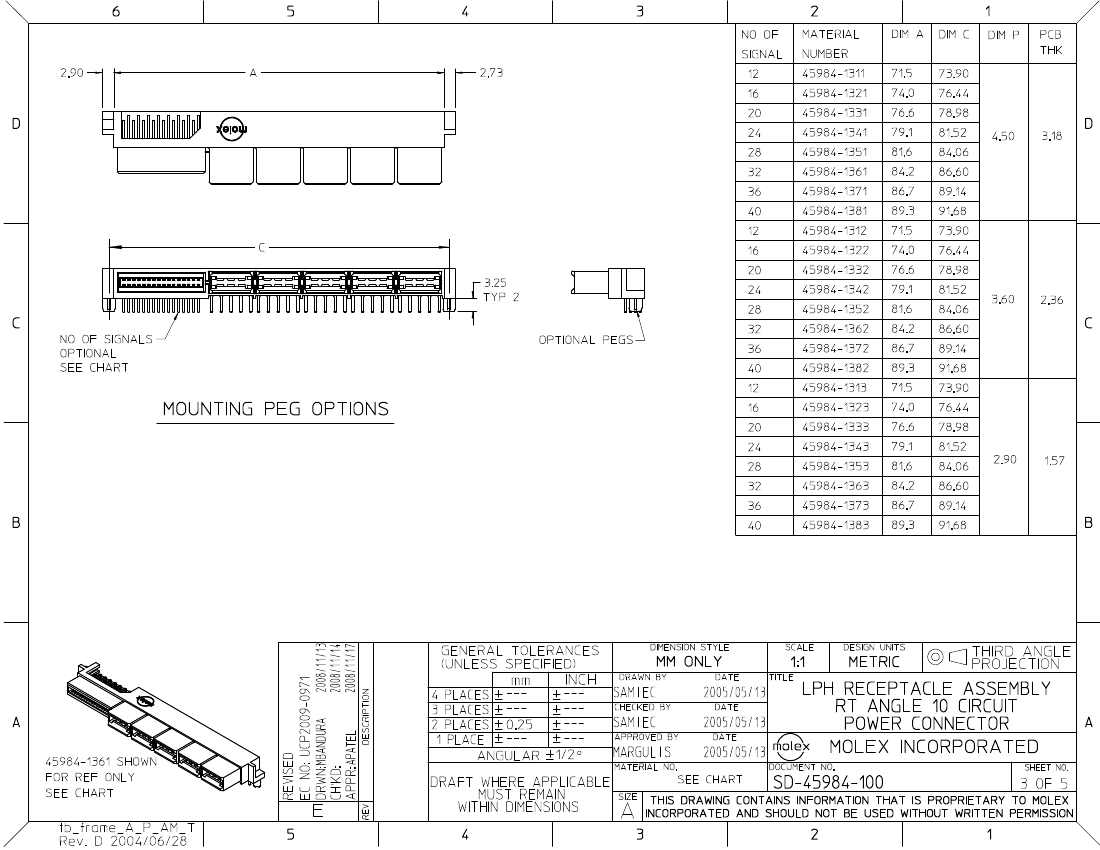

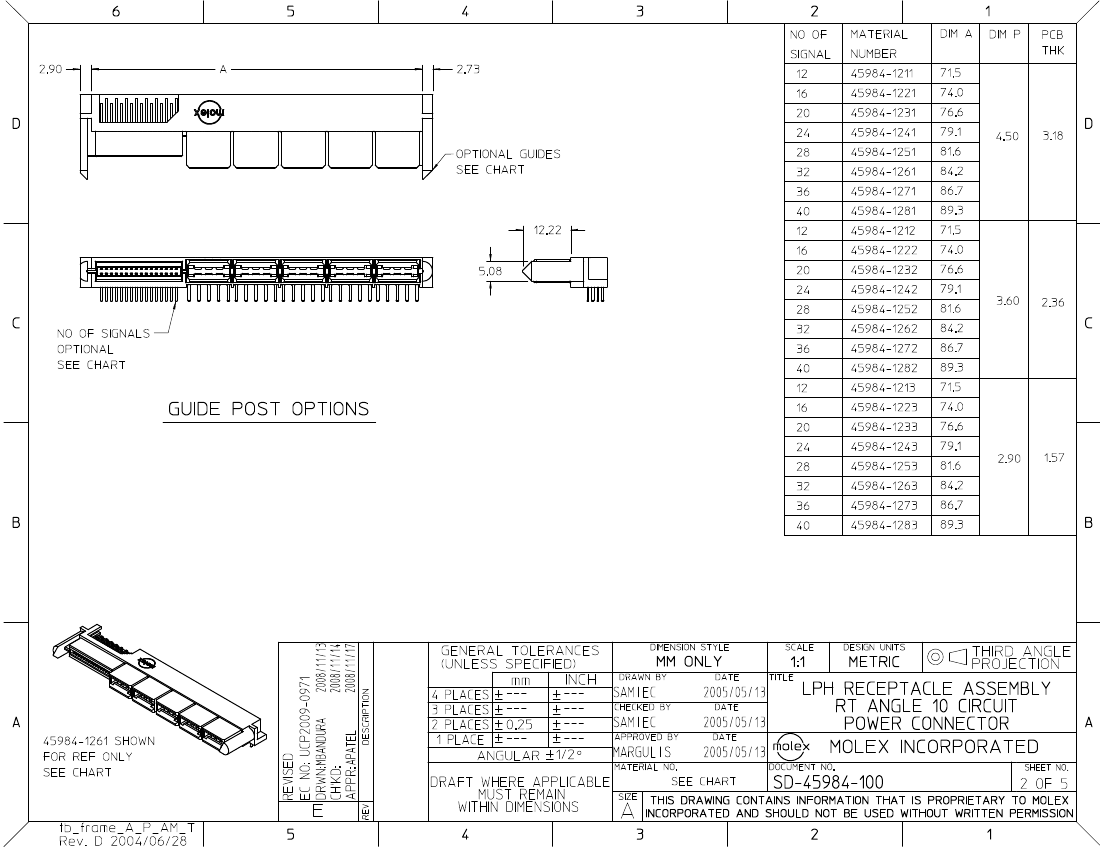

Drawing (PDF)
Product Specification PS-45984-001 (PDF)
RoHS Certificate of Compliance (PDF)
image - Reference only
Series
Agency Certification
CSA
UL
LR 19980
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Overview
Product Name
PCB Receptacles
45984
Board-to-Board
extreme_lphpower
EXTreme LPHPower™
Physical
Circuits (Loaded)
Circuits (maximum)
Circuits Detail
Color - Resin
Durability (mating cycles max)
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Stackable
Surface Mount Compatible (SMC)
42
42
10 Power, 32 Signal
Black
250
94V-0
No
No
Yes
No
High Performance Alloy (HPA), Phosphor Bronze
Gold
Tin
High Temperature Thermoplastic
2
Right Angle
0.142 In
3.60 mm
Yes
Yes
0.093 In
2.36 mm
Tray
0.050 In, 0.472 In
1.27 mm, 12.00 mm
30
0.75
150, 75
1.875, 3.75
Yes
Yes
No
Yes
Search Parts in this Series
45984Series
Mates With
45985 EXTreme LPHPower™ Headers,
1.57mm (.062") Card Edge
