0459841413 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 0459841413

0459841413: Description22 CONTACT(S), FEMALE, POWER CONNECTOR, SOLDER, RECEPTACLE; CategoryThe connector The connector; File Size454KB，7 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

0459841413 Overview

22 CONTACT(S), FEMALE, POWER CONNECTOR, SOLDER, RECEPTACLE

0459841413 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LOW HALOGEN, ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	7 weeks
Is Samacsys	N
Other features	POLARIZED
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	POLYETHYLENE
Termination type	SOLDER
Total number of contacts	22
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 05/21/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0459841413

Active

extreme_lphpower

1.27mm (.050"), 12.00mm (.472") Pitch, EXTreme LPHPower™ Receptacle Header,

Right Angle, 10 Power Contacts, 12 Signal Contacts, Select Gold (Au) Plating, for

1.57mm (.062") Thick PC Board, with Guide Posts, with Press-fit Plastic Pegs

Documents:

3D Model

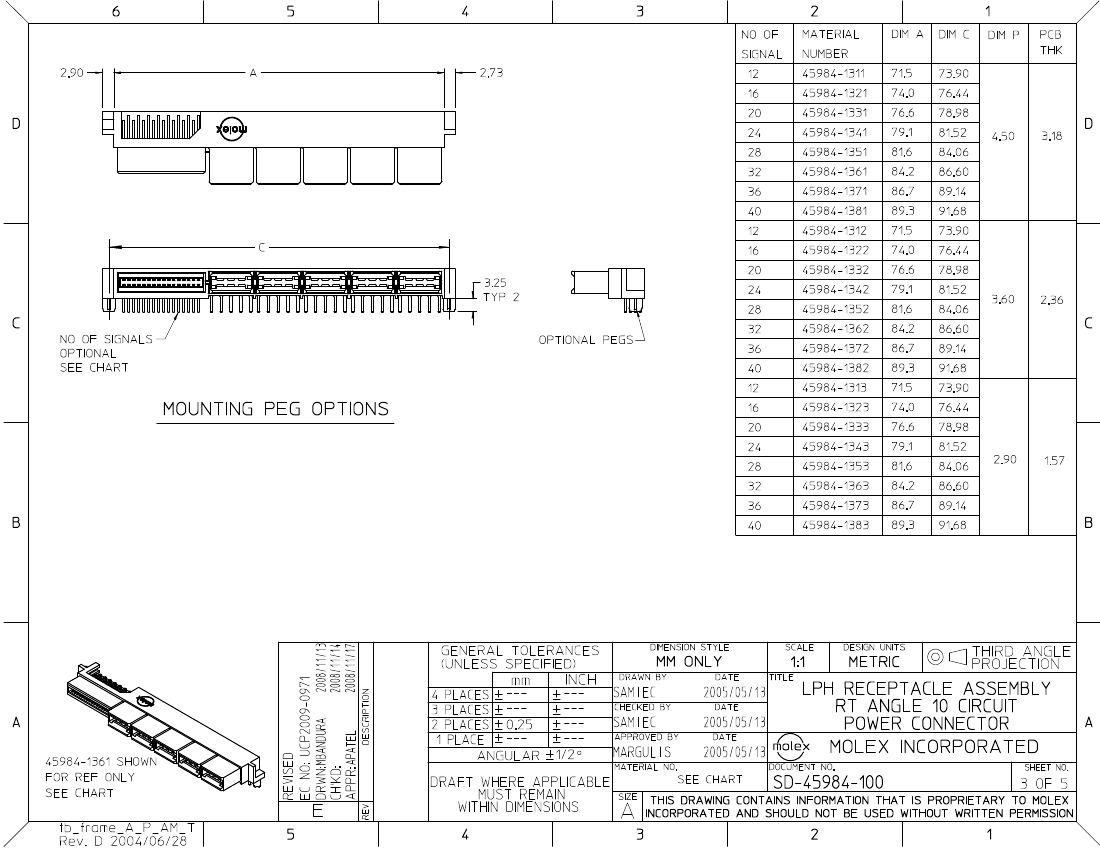

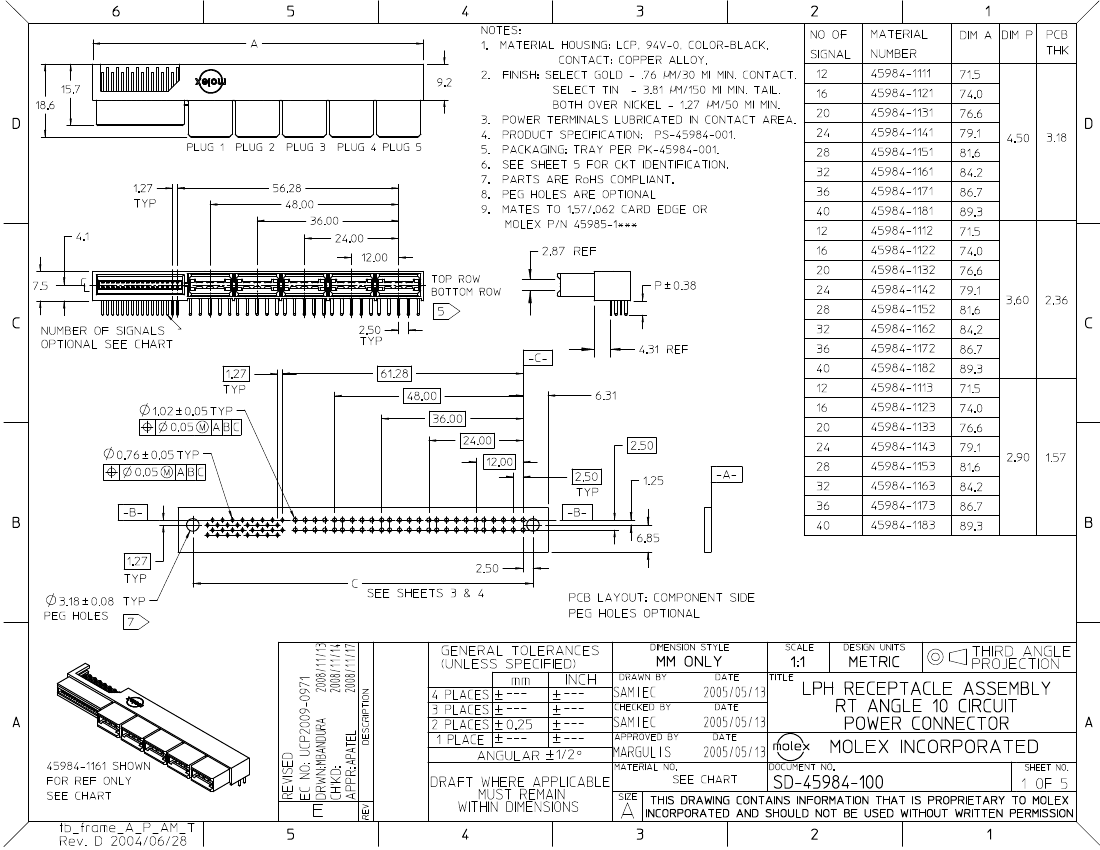

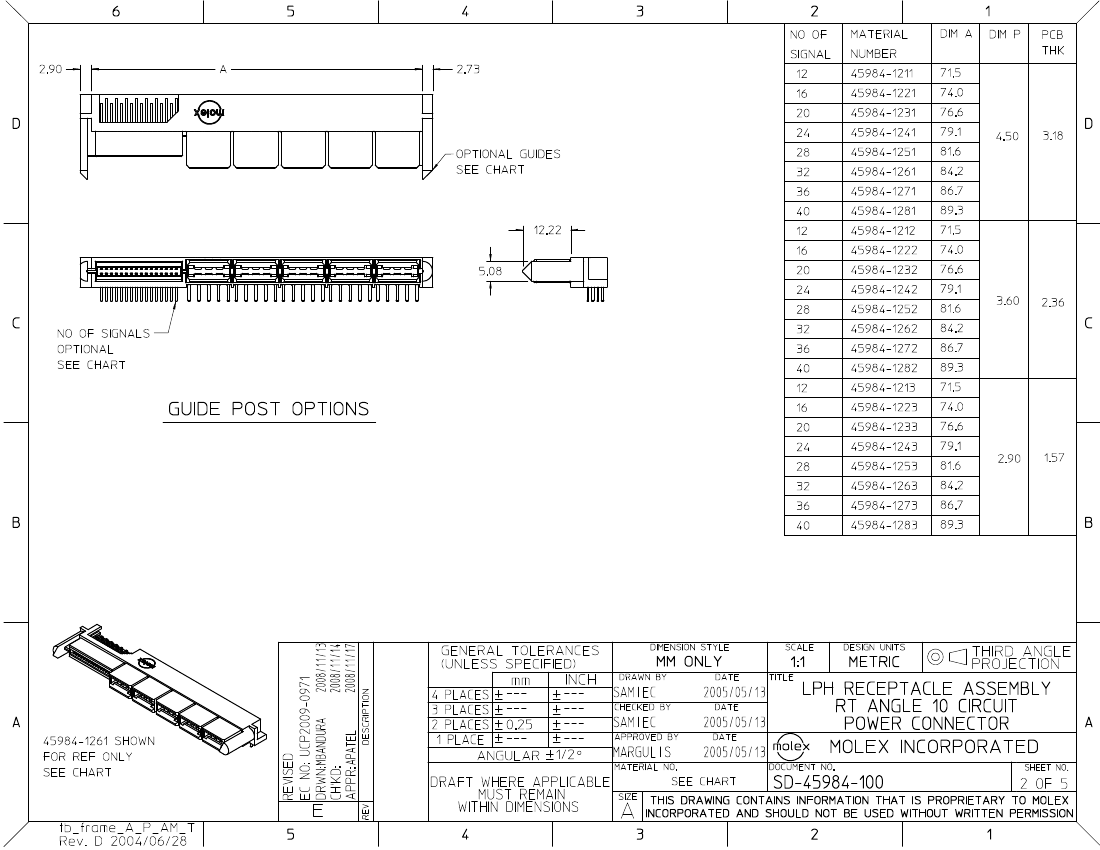

Drawing (PDF)

Product Specification PS-45984-001 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

Series

Agency Certification

CSA

LR 19980

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Overview

Product Name

PCB Receptacles

45984

Board-to-Board

extreme_lphpower

EXTreme LPHPower™

Physical

Circuits (Loaded)

Circuits (maximum)

Circuits Detail

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Stackable

Surface Mount Compatible (SMC)

10 Power, 12 Signal

Black

250

94V-0

Yes

High Performance Alloy (HPA), Phosphor Bronze

Gold

Tin

High Temperature Thermoplastic

Right Angle

0.114 In

2.90 mm

Yes

0.062 In

1.57 mm

Tray

0.050 In, 0.472 In

1.27 mm, 12.00 mm

0.75

150, 75

1.875, 3.75

Yes

Search Parts in this Series

45984Series

Mates With

45985 EXTreme LPHPower™ Headers,

1.57mm (.062") Card Edge

Recommended Resources
