DIP Type
Rectifier Diodes
1N5400 ~ 1N5408
DO-27
Diodes
■
Features
●
Low coat construction
●
Low forward voltage drop
●
Low reverse leakage
●
High forward surge current capability
0.220 (5.6)
0.197(5.0)
DIA.
1.0 (25.4)
MIN.
0.375(9.5)
0.285(7.2)
1.0 (25.4)
MIN.
0.052 (1.3)
0.048 (1.2)
DIA.
Dimensions in inches and (millimeters)
■
Absolute Maximum Ratings Ta = 25℃
Parameter
Repetitive Peak Reverse Voltage
RMS Voltage
Maximum DC Blocking Voltage
Forward Voltage @ 3A
Averaged Forward Current.Ta=75℃
Peak Forward Surge Current @ 8.3ms
Maximum DC Reverse Current Ta=25℃
Ta=150℃
Maximum Full Load Reverse Current ,full Cycle
Average 0.375" Lead Length @T
L
=75℃
Typical Junction Capacitance
Typical thermal resistance
Junction Temperature
Storage Temperature
(Note.1)
Symbol
V
RRM
V
RMS
V
DC
V
F
I
FAV
I
FSM
I
R
1N
5400
50
35
50
1N
5401
100
70
100
1N
5402
200
140
200
1N
5404
400
280
400
1.2
3
125
5
500
500
40
30
150
-55 to 150
pF
℃/W
℃
μA
A
1N
5406
600
420
600
1N
5407
800
560
800
1N
5408
1000
700
1000
V
Unit
I
R(AV)
C
J
R
θJA
Tj
Tstg
Note.1: Measured at 1MHz and applied reverse voltage of 4V D.C
www.kexin.com.cn
1
DIP Type
Rectifier Diodes
1N5400 ~ 1N5408
■

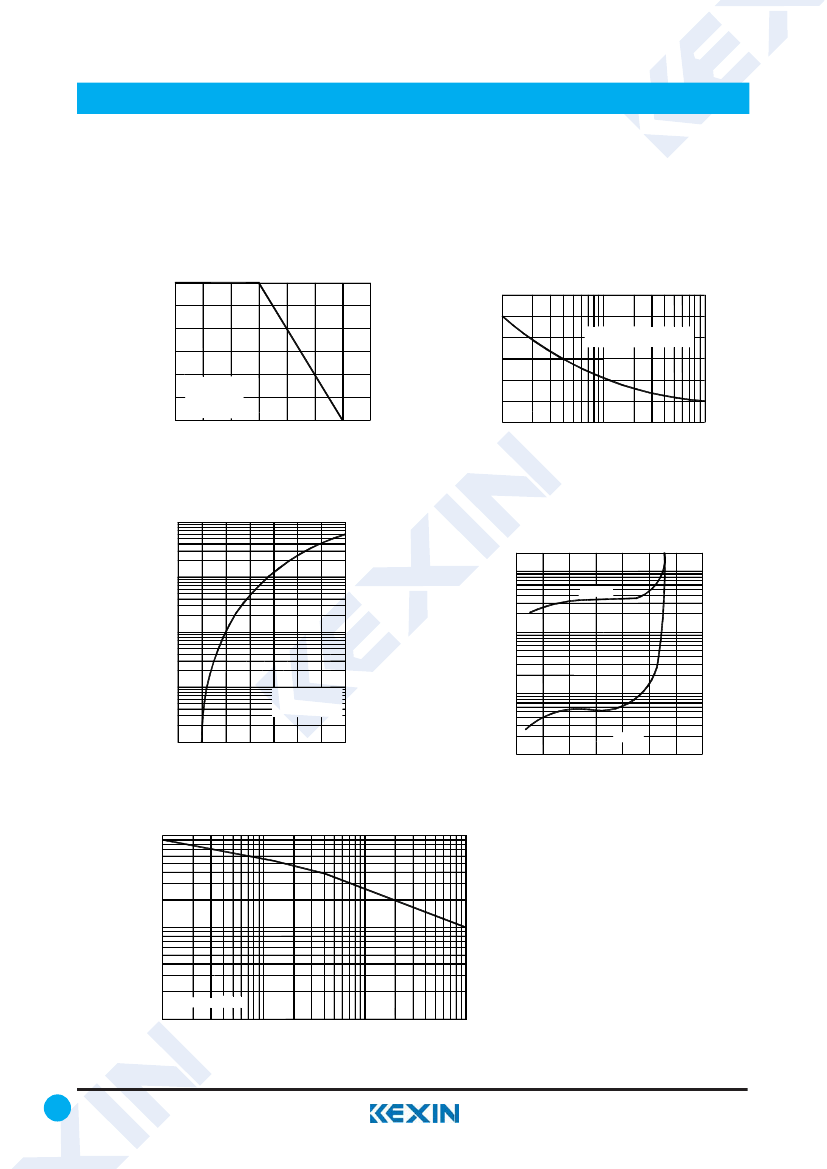

Typical Characterisitics
FIG.1-TYPICAL FORWARD CURRENT
DERATING CURVE
3.0
Diodes
FIG.2-MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
150
AVERAGE FORWARD CURRENT,
PEAK FORWARD SURGE
2.5
2.0
1.5
125
CURRENT, (A)
100
75
50
25
0
8.3ms Single Half Sine-Wave
(JEDEC Method) =T T
j
jmax
(A)
1.0
0.5
0
0
Single Phase
Half Wave 60Hz
Resistive or
Inductive Load
25
50
70 75
100
125
150
175
1
2
5
8
10
20
50
100
AMBIENT TEMPERATURE, (°
C)
NUMBER OF CYCLES AT 60 Hz
FIG.3-TYPICAL INSTANTANEOUS
100
FORWARD CHARACTERISTICS
FIG.4-TYPICAL REVERSE
CHARACTERISTICS
20
10
10
INSTANTANEOUS FORWARD CURRENT,
INSTANTANEOUS REVERSE CURRENT,
T
j
=100°
C
1
1.0
0.1
T
j
=25°C
Pulse Width=300us
1% Duty Cycle
(mA)
(A)
0.1
0.01
T
j
=25°C
0.01
0
20
60
80
100
120
140
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
INSTANTANEOUS FORWARD VOLTAGE,(V)
40
PERCENT OF RATED PEAK
REVERSE VOLTAGE,(%)
FIG.5-TYPICAL JUNCTION CAPACITANCE
100
CAPACITANCE,(pF)
10
TJ=25° F=1MHz
C
10
0.1
1.0
4.0
10.0
100
REVERSE VOLTAGE,(VOLTS)
2
www.kexin.com.cn
