4606X-101-505 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 4606X-101-505

4606X-101-505: DescriptionRESISTOR, NETWORK, FILM, BUSSED, 0.75W, THROUGH HOLE MOUNT, SIP; CategoryPassive components The resistor; File Size142KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet Parametric View All

4606X-101-505 Overview

RESISTOR, NETWORK, FILM, BUSSED, 0.75W, THROUGH HOLE MOUNT, SIP

4606X-101-505 Parametric

Parameter Name	Attribute value
Maker	Bourns
package instruction	SIP
Reach Compliance Code	unknow
ECCN code	EAR99
Component power consumption	0.2 W
The first element resistor	5000000 Ω
Manufacturer's serial number	4606X
Installation features	THROUGH HOLE MOUNT
Network Type	BUSSED
Number of components	5
Number of functions	1
Number of terminals	6
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	AMMO PACK; BULK
Rated power dissipation(P)	0.75 W
Rated temperature	70 °C
Resistor type	ARRAY/NETWORK RESISTOR
surface mount	NO
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	250 ppm/°C
Temperature coefficient tracking	50 ppm/°C
Terminal shape	FLAT
Tolerance	2%
Operating Voltage	100 V

Preview

Download Datasheet

View All

Features

Low profile is compatible with DIPs

Wide assortment of pin packages

enhances design flexibility

Ammo-pak packaging available

Recommended for rosin flux and solvent

clean or no clean flux processes

Marking on contrasting background for

permanent identification

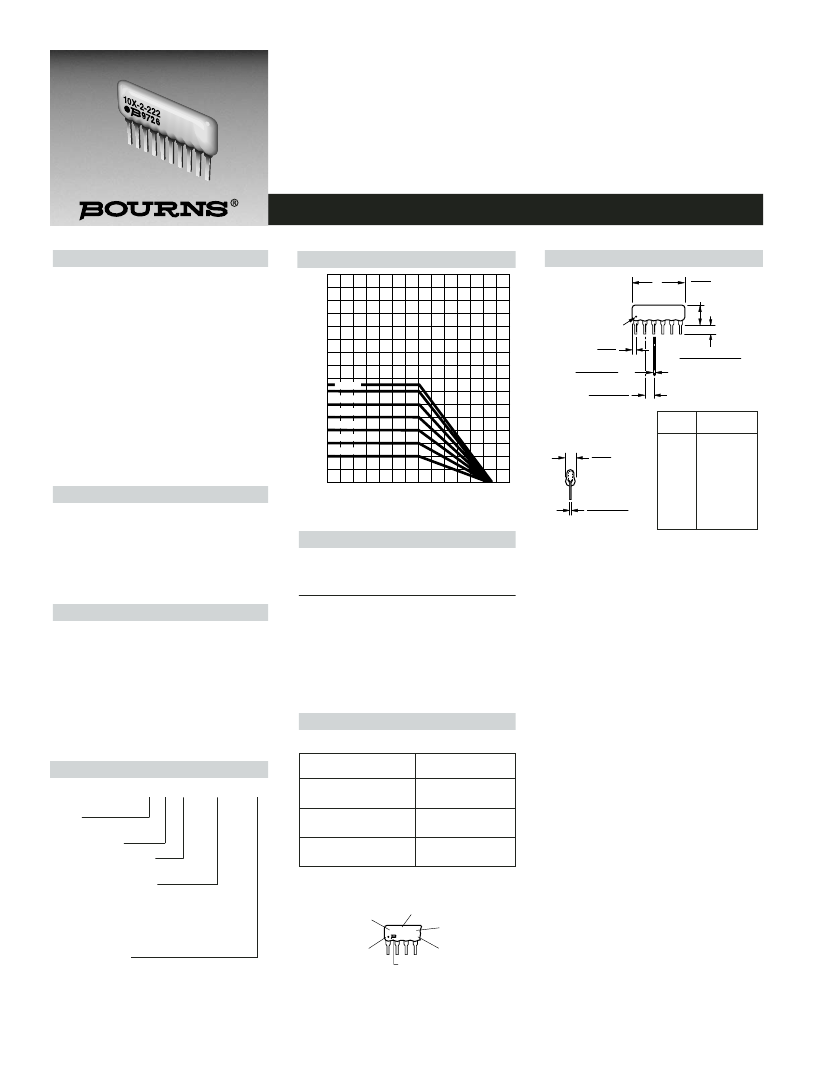

4600X Series - Thick Film Conformal SIPs

Product Characteristics

Resistance Range

......................10 ohms to 10 megohms

Maximum Operating Voltage..........100 V

Temperature Coefficient of Resistance

Ω

to 2.2 MΩ................±100 ppm/°C

below 50

Ω

......................±250 ppm/°C

above 2.2 MΩ..................±250 ppm/°C

TCR Tracking .........................50 ppm/°C

maximum; equal values

Resistor Tolerance ................See circuits

Insulation Resistance

..................10,000 megohms minimum

Dielectric Withstanding Voltage

.............................................200 VRMS

Operating Temperature

.................................-55 °C to +125 °C

Environmental Characteristics

TESTS PER MIL-STD-202.........∆R MAX.

Short Time Overload..................±0.25 %

Load Life ....................................±1.00 %

Moisture Resistance ..................±0.50 %

Resistance to Soldering Heat ....±0.25 %

Terminal Strength.......................±0.25 %

Thermal Shock...........................±0.25 %

Physical Characteristics

Flammability .........Conforms to UL94V-0

Body Material........................Epoxy resin

Standard Packaging

....................Bulk, Ammo-pak available

Package Power Temp. Derating Curve

Product Dimensions

MAXIMUM

3.50

3.00

2.50

2.00

4614X

1.50

1.00

.50

4612X

4610X

4608X

4606X

4604X

5.08

(.200)

MAX.

PIN #1

REF.

MAX. 1.24

BOTH ENDS (.049)

.508

.050

TYP.

(.020

.002)

2.54

.07

(.100

.003*)

TYP.

NON-ACCUM.

WATTS

3.43 +.38/ -.508

(.135 +.015/ -.020)

2.49

MAX.

(.098)

125

AMBIENT TEMPERATURE (

C )

.254

.050

MAX.

(.010

.002)

Count

A Maximum

mm (Inches)

10.11 (.398)

12.65 (.498)

15.19 (.598)

17.73 (.698)

20.27 (.798)

22.81 (.898)

25.35 (.998)

27.89 (1.098)

30.43 (1.198)

32.97 (1.298)

35.51 (1.398)

Package Power Ratings (Watts)

Ambient

Temperature

70 °C

Pkg.

0.50

0.63

0.75

0.88

1.00

1.13

4610X

4611X

4612X

4613X

4614X

Ambient

Temperature

70 °C

1.25

1.38

1.50

1.63

1.75

Maximum package length is equal to 2.54mm (.100") times the

number of pins, less .005mm (.002").

Governing dimensions are in metric. Dimensions in parentheses

are inches and are approximate.

*Terminal centerline to centerline measurements made at point of

emergence of the lead from the body.

Pkg.

4604X

4605X

4606X

4607X

4608X

4609X

Typical Part Marking

Represents total content. Layout may vary.

How To Order

Part Number

6X-1-RC

8X-2-RC

10X-4-RC/RC

46 06 X - 101 - 222

Model

(46 = Conformal SIP)

Number of Pins

Physical Configuration

(X = Thick Film Low Profile)

Electrical Configuration

• 101 = Bussed

• 102 = Isolated

• 104 = Dual Terminator

• AP1 = Bussed Ammo*

• AP2 = Isolated Ammo*

• AP4 = Dual Ammo*

Resistance Code

• First 2 digits are significant

• Third digit represents the number of

zeros to follow.

Consult factory for other available options.

*Available for packages with 10 pins or less.

4606X-101-RC

4608X-102-RC

4610X-104-RC/RC

RC = ohmic value, 3-digit resistance code.

NUMBER OF PINS

CIRCUIT

6X-2-222

YYWW

PIN ONE

INDICATOR

RESISTANCE

CODE

DATE CODE

MANUFACTURER'S

TRADEMARK

Specifications are subject to change without notice.

Customers should verify actual device performance in their specific applications.
