7010-1RC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 7010-1RC

7010-1RC: DescriptionGeneral Purpose Inductor, 250uH, 15%, 1 Element, ROHS COMPLIANT; CategoryPassive components inductor; File Size110KB，1 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric View All

7010-1RC Overview

General Purpose Inductor, 250uH, 15%, 1 Element, ROHS COMPLIANT

7010-1RC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Bourns
Reach Compliance Code	compli
ECCN code	EAR99
DC Resistance	0.47 Ω
Nominal inductance(L)	250 µH
Inductor Applications	HIGH CURRENT INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	7000
Number of functions	1
Number of terminals	4
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Maximum rated current	1.5 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	NO
Terminal location	DUAL IN-LINE
Terminal shape	WIRE
Test frequency	0.001 MHz
Tolerance	15%

Preview

Download Datasheet

View All

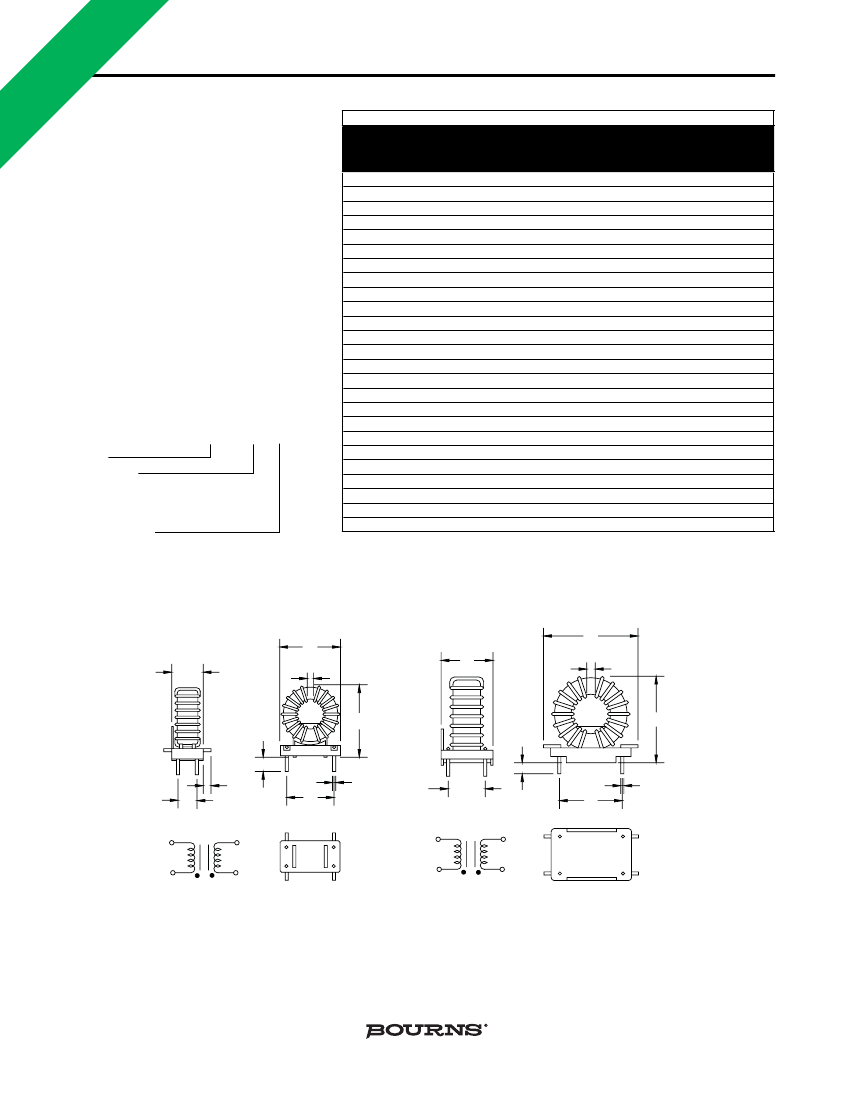

Dual-Line Toroid Inductors

L (µH)

±15 %

@ 1 KHz

2.5

6.0

31.25

68.75

112.5

6.25

18.75

100

200

250

12.5

37.5

175

312.5

400

31.25

125

275

562.5

1125

62.5

225

450

1000

2000

†

Special Features

• Dual winding

• Low radiation

• High current capacity

• High inductance

• Dielectric strength 1000 Vrms

• Mounted on UL 94V-0 rated header

(optional)

• Fixed pins for easy PCB insertion

• Operating temperature -55 to +105 °C

† RoHS Directive 2002/95/EC Jan 27, 2003

including Annex.

Part

Number

7001-RC

7002-RC

7003-RC

7004-RC

7005-RC

7006-RC

7007-RC

7008-RC

7009-RC

7010-RC

7011-RC

7012-RC

7013-RC

7014-RC

7015-RC

7016-RC

7017-RC

7018-RC

7019-RC

7020-RC

7021-RC

7022-RC

7023-RC

7024-RC

7025-RC

Idc

(A)

11.0

5.50

2.75

2.00

1.50

9.00

5.00

2.25

1.75

1.50

9.50

4.75

2.25

1.75

1.50

7.75

4.00

2.50

1.75

1.25

8.00

3.75

2.50

1.75

1.00

7000 Series

L (µH)

DCR

Dim.

±15 %

Ω

@ I rated Max. Max.

1.25

3.0

17.5

37.5

62.5

3.75

56.25

118.75

143.75

6.25

21.25

100

187.5

237.5

16.25

68.75

162.5

281.25

562.5

31.75

125

250

525

1125

0.004

0.007

0.060

0.120

0.245

0.006

0.020

0.165

0.320

0.470

0.006

0.023

0.210

0.430

0.640

0.016

0.075

0.165

0.460

1.320

0.021

0.088

0.240

0.580

1.670

0.875

1.125

1.25

1.812

2.125

Dim.

Max.

0.425

0.600

0.800

0.900

1.10

Dim.

±0.015

0.600

0.800

0.900

1.20

1.50

Dim.

±0.015

0.250

0.400

0.600

0.700

0.900

Dim.

Max.

1.00

1.25

1.375

1.95

2.25

How to Order

7001 - ___ RC

Model

Conﬁguration

Blank = With mounting header

1 = Without mounting header

(with vertical coil, 2-inch self-lead

length, non-tinned)

RoHS Compliant

“-RC” suﬃx indicates RoHS compliance.

0.032 Min.

0.09

0.040 ± 0.005

0.15

0.050 ± 0.006

0.20

7006-7025

7001-7005

Dimensions: Inches

Tel. (877) 426-8767 • Fax (951) 781-5006

REV. 02/11

www.bourns.com

23.13
