This document was generated on 05/26/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0470380041
Active
pogo_pins
4.00mm (.157") Pitch Pogo Speaker Connector, Height: 2.20mm (.087"), Overall 1.0µm
(40µ") Gold over 3-5µm Nickel Plating, 2 Circuits
Documents:
3D Model

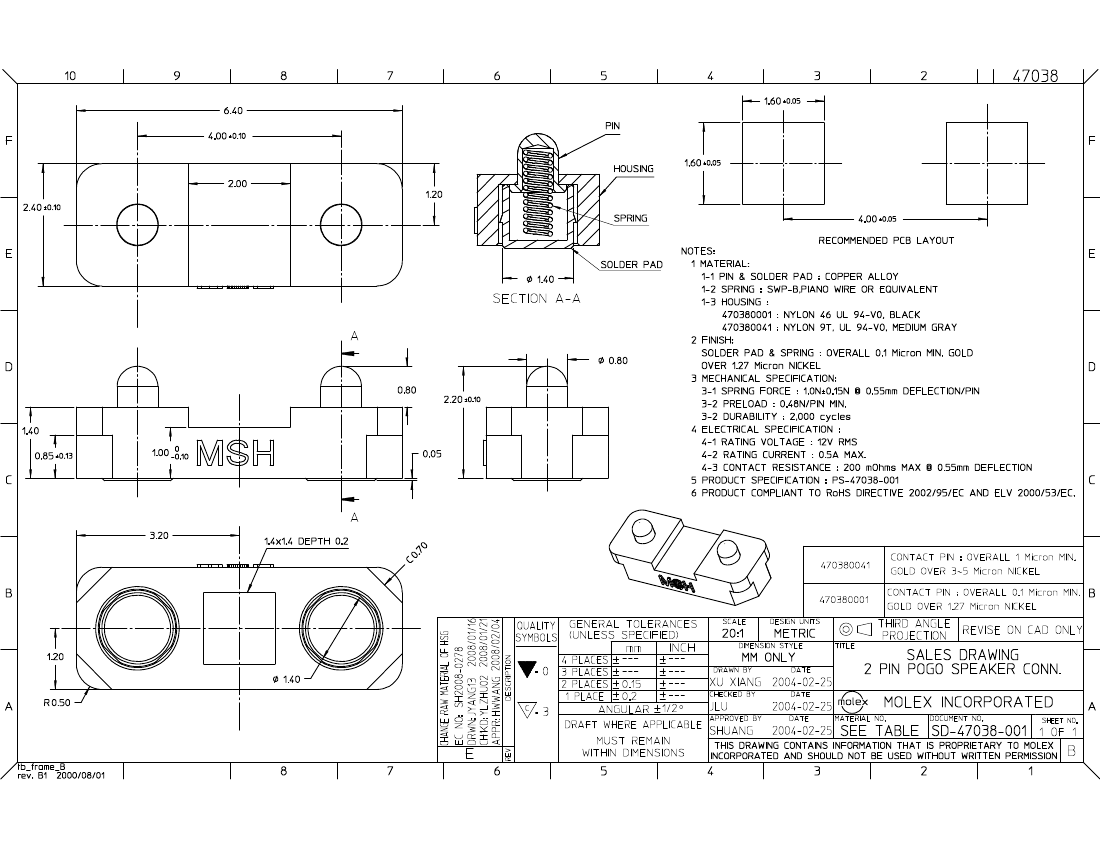

Drawing (PDF)
Product Specification PS-47038-001 (PDF)
RoHS Certificate of Compliance (PDF)
image - Reference only
Series
General
Product Family
Series
Application
Comments
Overview
Product Name
PCB Headers
47038
Board-to-Board
Action Height: 1.65mm (.065")
pogo_pins
PoGo Pin
EU RoHS
China RoHS
RoHS Compliant by
Exemption
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Durability (mating cycles max)
First Mate / Last Break
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Mated Height (in)
Mated Height (mm)
Material - Plating Mating
Material - Plating Termination
Number of Rows
Orientation
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
No
2
2
2,000
No
No
Yes
None
None
0.079 In
2.00 mm
Gold
Gold
1
Vertical
No
Yes
Embossed Tape on Reel
0.157 In
4.00 mm
0.157 In
4.00 mm
40
1
80
2
No
No
No
No
No
-40°C to +85°C
Surface Mount
Search Parts in this Series
47038Series
Electrical
Current - Maximum per Contact
Voltage - Maximum
0.5A
12V DC
