0471510121 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 0471510121

0471510121: Description19 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SURFACE MOUNT, RECEPTACLE; CategoryThe connector The connector; File Size709KB，10 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

0471510121 Overview

19 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SURFACE MOUNT, RECEPTACLE

0471510121 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	POLARIZED, SHIELDED
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	TIN BISMUTH (39) OVER NICKEL (50)
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GALSS FILLED THERMOPLASTIC
JESD-609 code	e6
MIL compliance	NO
Manufacturer's serial number	47151
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	GOLD
Shell material	COPPER ALLOY
Termination type	SURFACE MOUNT
Total number of contacts	19
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

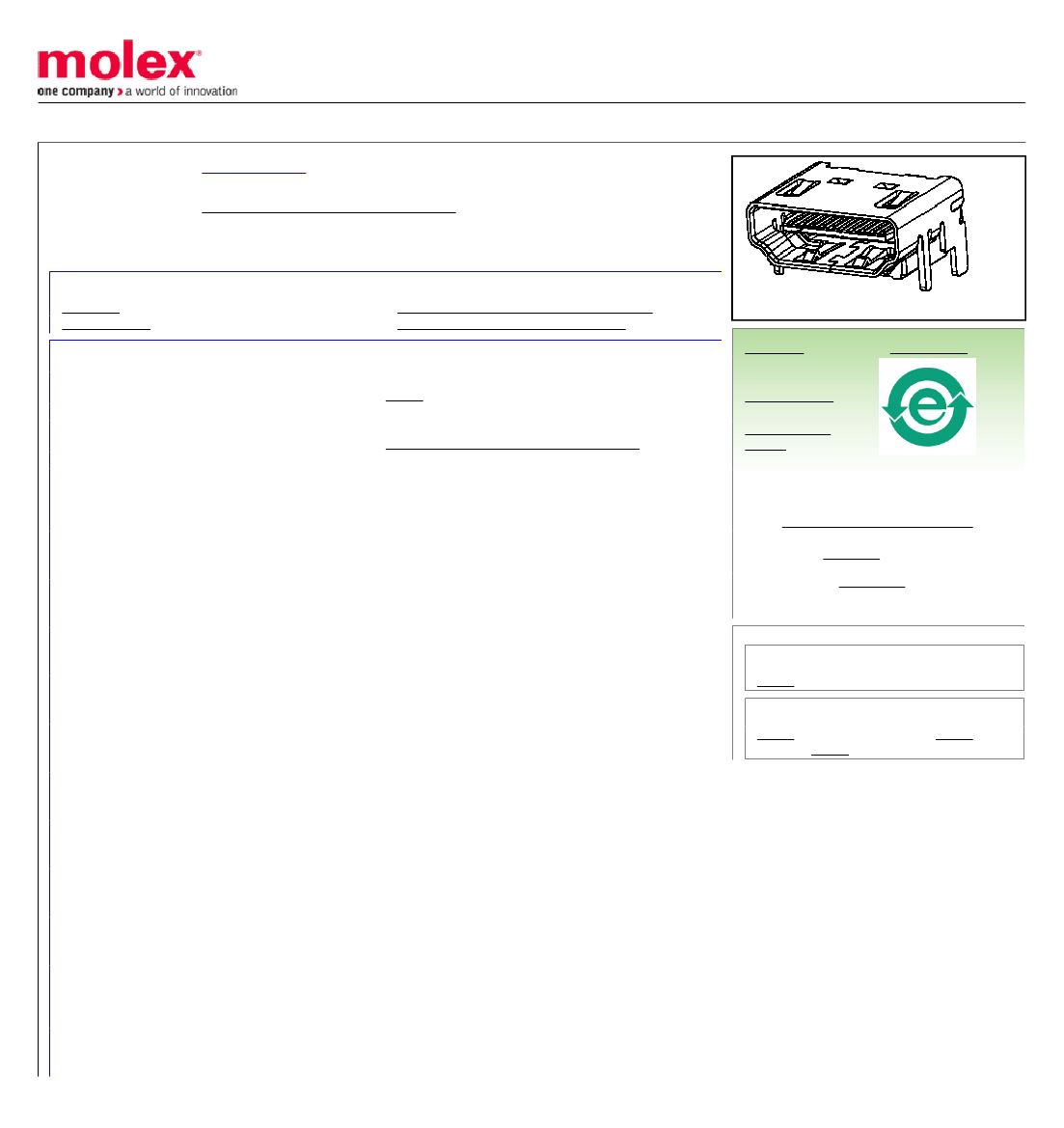

This document was generated on 05/27/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0471510121

Active

high_definition_multimedia_interface_hdmi

0.50mm (.020") Pitch HDMI* Receptacle, Right Angle, Front Solder Tab Length

1.45mm (.057"), Shell Gold (Au) Plated, without Back Cover, Black Housing, Tape and

Reel Package, 19 Circuits, Lead Free

Series

Product Specification PS-47152-001 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Documents:

3D Model

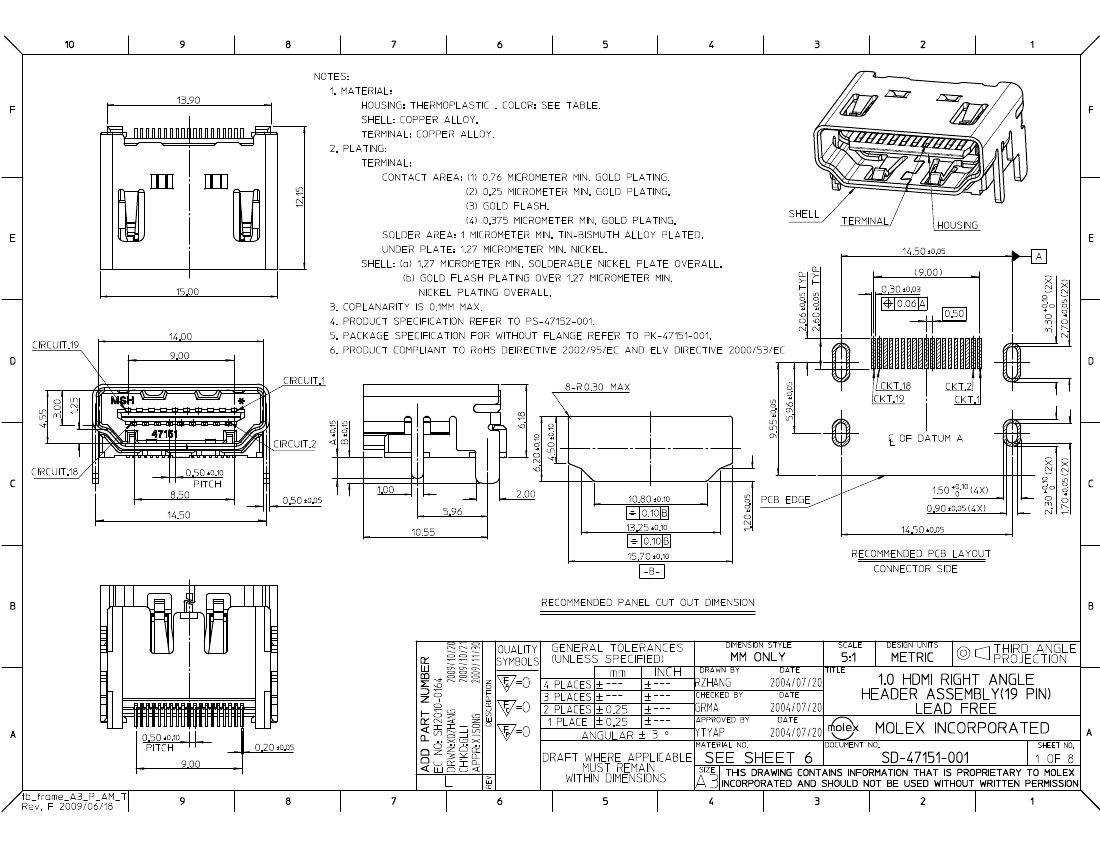

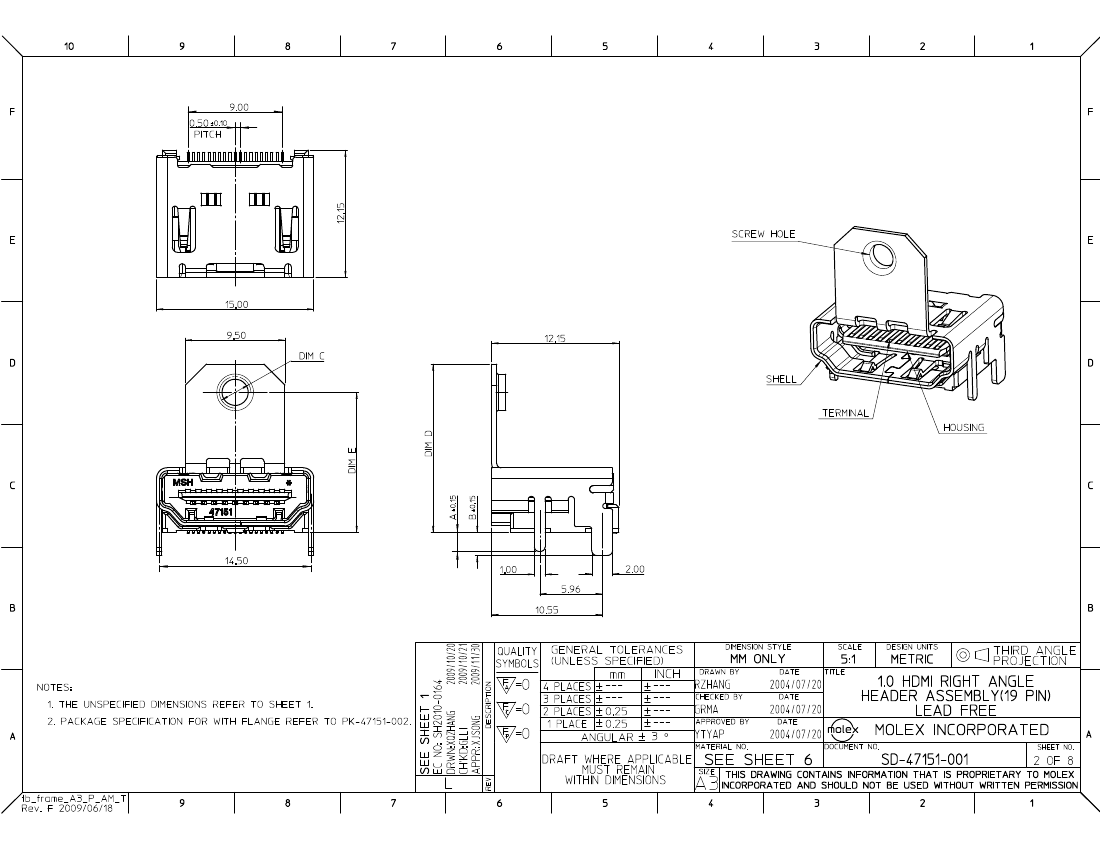

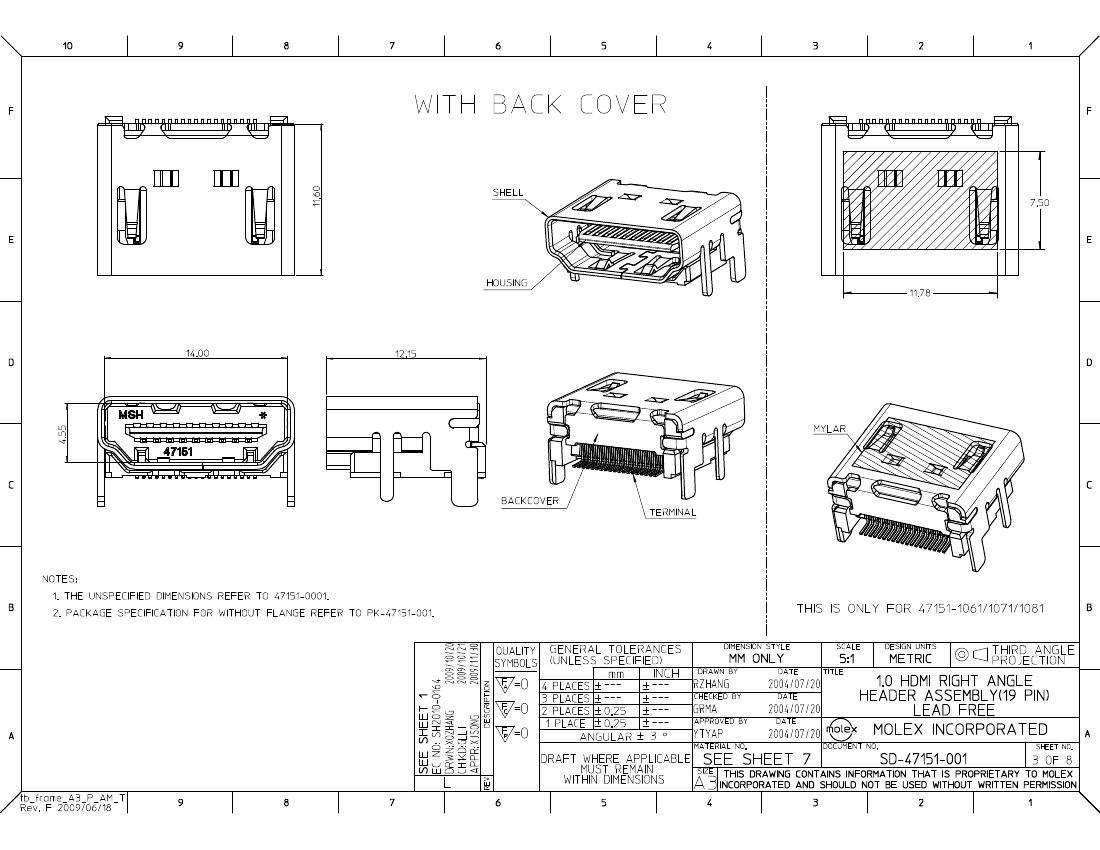

Drawing (PDF)

General

Product Family

Series

Application

Component Type

Overview

Product Name

Type

I/O Connectors

47151

Wire-to-Board

Receptacle

high_definition_multimedia_interface_hdmi

HDMI

N/A

Physical

Boot Color

Circuits (Loaded)

Color - Resin

Gender

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Ports

Temperature Range - Operating

Termination Interface: Style

Waterproof / Dustproof

Wire Size AWG

N/A

Black

Male

Yes

Copper Alloy

Gold

Tin-Bismuth

Right Angle

Yes

Embossed Tape on Reel

Without Flange

0.020 In

0.50 mm

0.020 In

0.50 mm

0.76

Yes

-20°C to +85°C

Surface Mount

N/A

Search Parts in this Series

47151Series

Mates With

88768 HDMI cable assembly, 88764 HDMI

Adapter, 88767 HDMI Adapter

Electrical

Current - Maximum per Contact

Shielded

Voltage - Maximum

.5A

Yes

40V DC
