570-2431-03-21-00 datasheet, PDF

Datasheet> All Categories > The connector> 570-2431-03-21-00

570-2431-03-21-00: DescriptionPCB Terminal; CategoryThe connector; File Size168KB，1 Pages; ManufacturerCambion Electronics Ltd.; Websitehttp://www.cambion.com/

Download Datasheet Parametric View All

570-2431-03-21-00 Overview

PCB Terminal

570-2431-03-21-00 Parametric

Parameter Name	Attribute value
Maker	Cambion Electronics Ltd.
Reach Compliance Code	unknow
ECCN code	EAR99
Manufacturer's serial number	570-2
Terminal and terminal strip types	PCB TERMINAL

Preview

Download Datasheet

View All

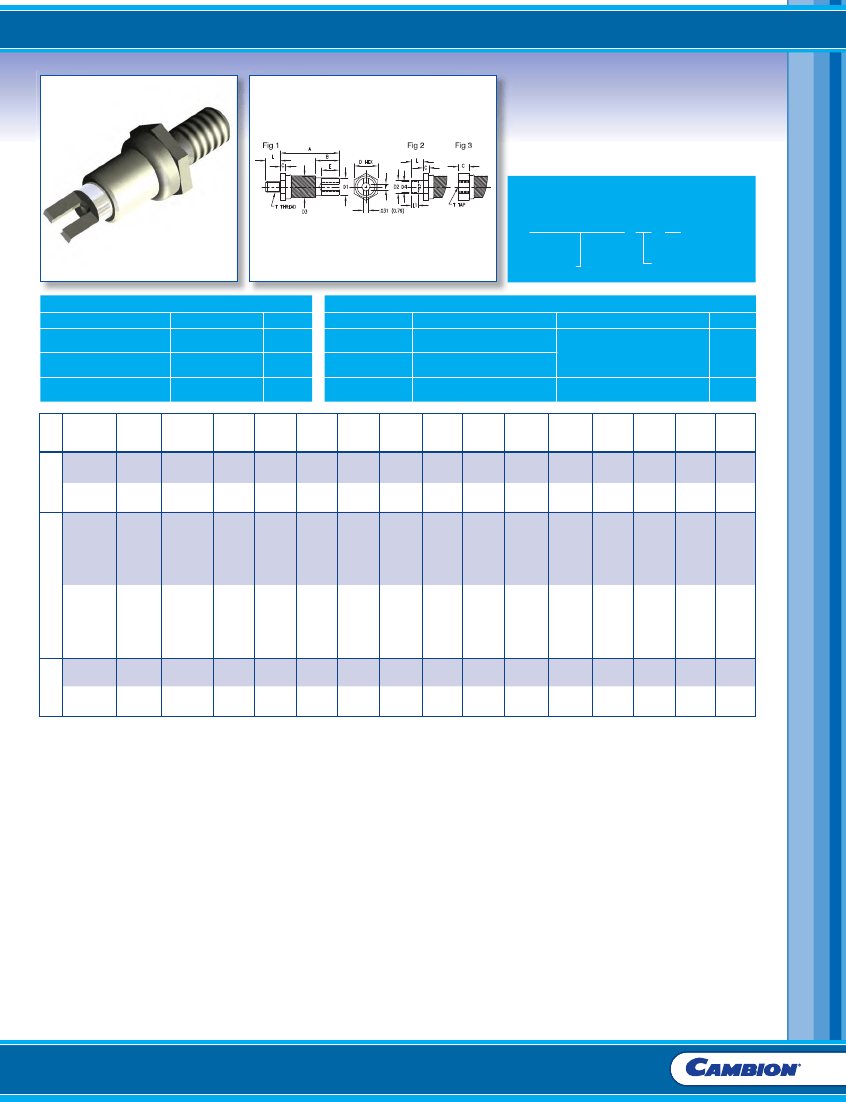

SOLDER TERMINALS - CERAMIC INSULATED, STAND OFF

Dimensions in inches (mm)

See page 94 for recommended Anvil and Punch

How to order code

570 - 2XXX - XX - XX - 00

Basic Part No.

Terminal Finish

Material Code Table

Component

Insulator

Mounting Stud

Terminal

Fig. Basic Part

No.

570-2430 -01

-02

570-2382 -01

-02

570-2431 -01

-02

-03

-04

-05

570-2383 -01

-02

-03

-04

-05

570-2432 -01

-02

570-2384 -01

-02

.250 (6.35)

.375 (9.53)

.250 (6.35)

.375 (9.53)

.062 (1.57)

.094 (2.39)

.105 (2.67)

.125 (3.18)

.156 (3.96)

.062 (1.57)

.094 (2.39)

.105 (2.67)

.125 (3.18)

.156 (3.96)

Material

Ceramic

Brass

Board

Thickness

.031 (0.79)

.062 (1.57)

.078 (1.98)

.094 (2.39)

.125 (3.18)

.031 (0.79)

.062 (1.57)

.078 (1.98)

.094 (2.39)

.125 (3.18)

RoHS

✓

Finish Code Table

Dash No.

-01

-05

-21

Terminal Finish

Silver

Electro-Solder

Silver

.187 (4.75)

.245 (6.22)

Mtg. Stud Finish

Cadmium

Nickel

4-40

6-32

RoHS

✓

(VRMS)

2500

4000

2500

.522 (13.26) .192 (4.88) .046 (1.17) .250 (6.35) .141 (3.58)

.561 (14.25) .218 (5.54) .062 (1.57) .312 (7.92) .156 (3.96)

.130 (3.30) .046 (1.17)

.156 (3.96) .040 (1.02)

.522 (13.26) .192 (4.88) .046 (1.17) .250 (6.35) .141 (3.58) .141 (3.58) .187 (4.75) .116 (2.95)

.130 (3.30) .046 (1.17) .062 (1.57)

.062 (1.57)

.093 (2.36)

.109 (2.77)

.561 (14.25) .218 (5.54) .062 (1.57) .312 (7.92) .156 (3.96) .187 (4.75) .245 (6.22) .154 (3.91) .156 (3.96) .040 (1.02) .062 (1.57)

.062 (1.57)

.093 (2.36)

.109 (2.77)

.601 (15.27) .192 (4.88) .125 (3.18) .250 (6.35) .141 (3.58)

.187 (4.75)

.130 (3.30) .046 (1.17)

.624 (15.85) .218 (5.54) .062 (1.57) .312 (7.92) .156 (3.96)

.245 (6.22)

.156 (3.96) .040 (1.02)

4000

4-40

6-32

4-40

6-32

2500

4000

Call our dedicated order line on

+44 (0) 1433 621555

or visit

www.cambion.com
