Part Number:
Status:
Description:
0474350219
Active
1.25mm (.049") Pitch Wire-to-Board Header, Single Row, Right Angle, Surface Mount,
2 Circuits, Lead-free
Documents:
3D Model
Drawing (PDF)
Product Specification PS-47434-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series

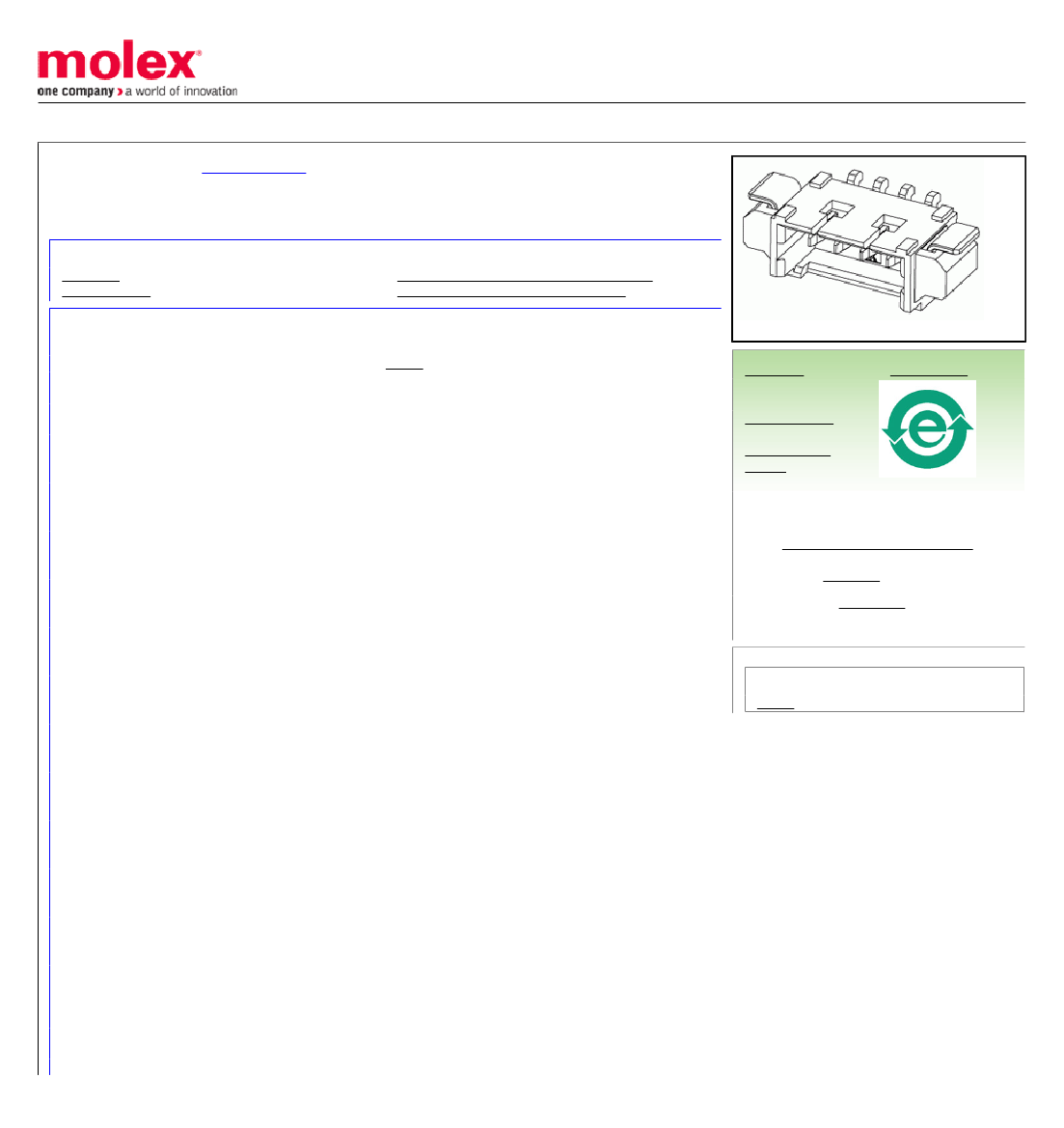

image - Reference only
PCB Headers
47435
Wire-to-Board
N/A
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Product Name
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Mated Height (in)
Mated Height (mm)
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
No
2
2
Natural
30
No
No
No
None
Yes
0.134 In
3.40 mm
Phosphor Bronze
Tin
Tin
High Temperature Thermoplastic
1
Right Angle
No
Yes
Embossed Tape on Reel
0.049 In
1.25 mm
40
1
40
1
Yes
No
Fully
No
-40°C to +85°C
Surface Mount
Search Parts in this Series
47435Series
Electrical
Current - Maximum per Contact
Voltage - Maximum
1A
125V
Solder Process Data
Duration at Max. Process Temperature (seconds)
48
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
Reflow Capable (SMT only)
2
250
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification

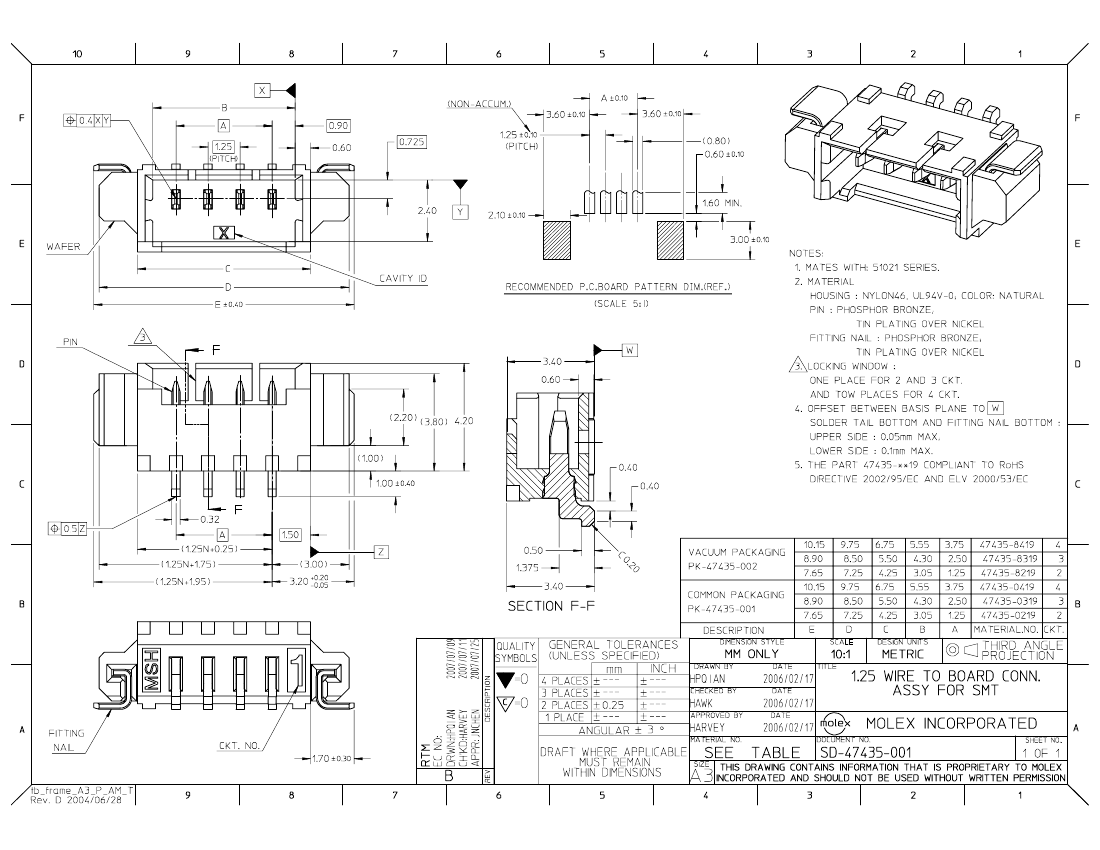

Sales Drawing
Test Summary
PK-47435-001
PS-47434-001
SD-47435-001
TS-47435-001
