0496231895: Description18 CONTACT(S), MALE, POWER CONNECTOR, CRIMP; CategoryThe connector The connector; File Size139KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

0496231895 Overview

18 CONTACT(S), MALE, POWER CONNECTOR, CRIMP

0496231895 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	25 weeks 5 days
Is Samacsys	N
Other features	POLARIZED
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	49623
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell material	POLYAMIDE
Termination type	CRIMP
Total number of contacts	18
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

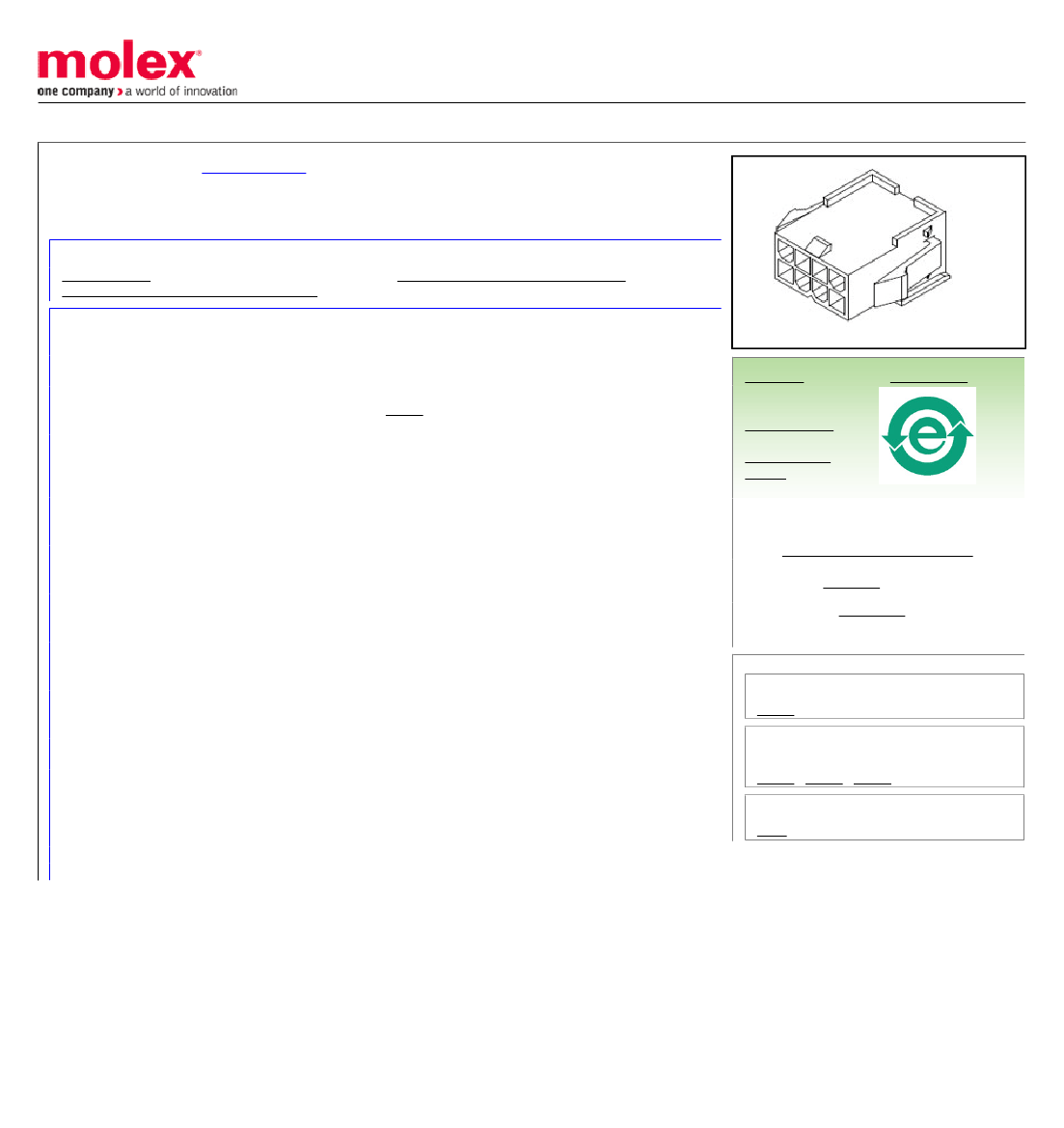

This document was generated on 04/23/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0496231895

Active

4.20mm (.165") Wire-to-Wire TPA™ Connector for Male Housing, 18 Circuits, UL94V-0,

Ivory

Documents:

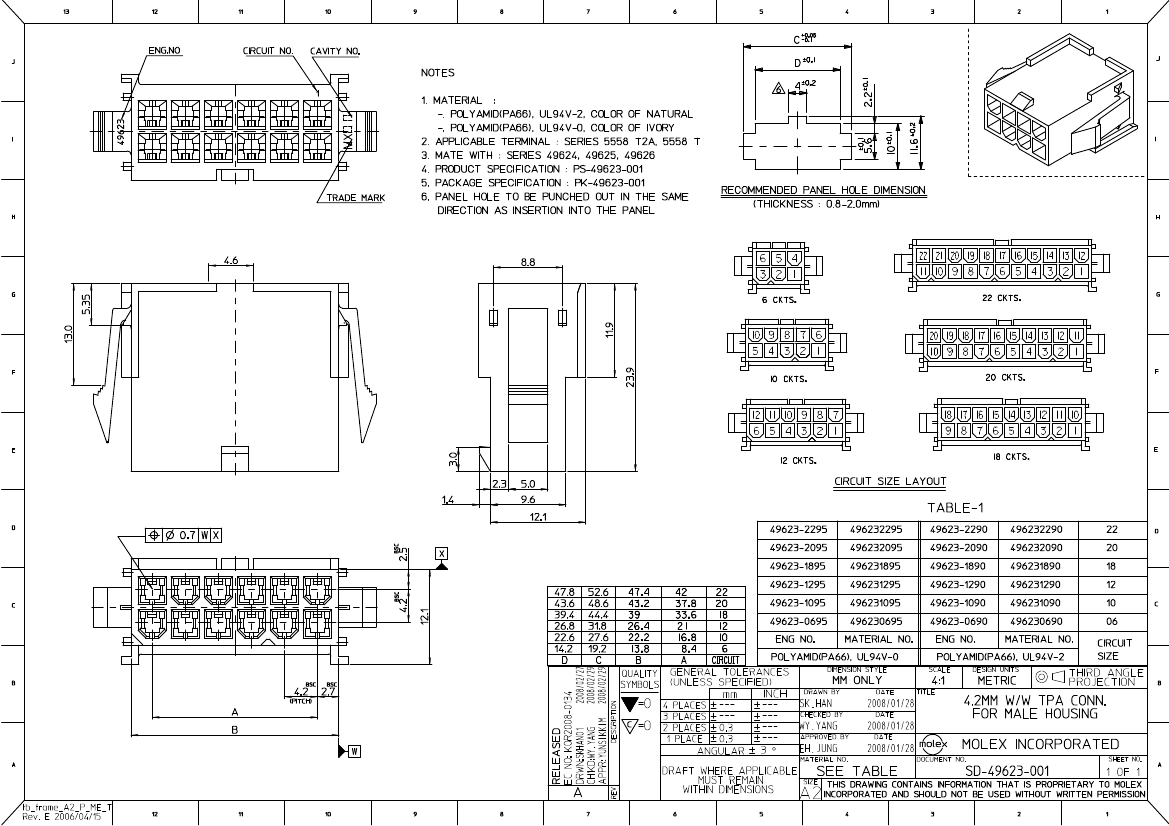

Drawing (PDF)

Product Specification PS-49623-001 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

UL

E29179

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Product Name

Crimp Housings

49623

N/A

Physical

Circuits (maximum)

Circuits Detail

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Stackable

Temperature Range - Operating

18

Ivory

94V-0

Male

No

None

Yes

Nylon

2

Bag

Yes

0.165 In

4.20 mm

Yes

No

-40°C to +105°C

Search Parts in this Series

49623Series

Mates With

4.20mm (.165") Wire-to-Wire Female TPA™

49624 , 49625 , 49626

Use With

5558 Mini-Fit® Crimp Terminal

Electrical

Current - Maximum per Contact

6A

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-49623-001

SD-49623-001

This document was generated on 04/23/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
