Part Number

Search

0504547325

Description
Circuit Breaker Terminal for 250-300MCM AWG, Closed Uninsulated Brazed BarrelStud Size M10, Oxygen-Free Copper, Length 61.30mm
CategoryThe connector    terminals
File Size80KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

0504547325 Overview

Circuit Breaker Terminal for 250-300MCM AWG, Closed Uninsulated Brazed BarrelStud Size M10, Oxygen-Free Copper, Length 61.30mm

0504547325 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
package instructionROHS COMPLIANT
Reach Compliance Codeunknown
ECCN codeEAR99
Is SamacsysN
Manufacturer's serial number50454
Terminal and terminal strip typesRING TERMINAL
Conductor cross section152.05 mm2
Wire gauge250 AWG
Base Number Matches1
This document was generated on 03/19/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0504547325
Active
Circuit Breaker Terminal for 250-300MCM AWG, Closed Uninsulated Brazed Barrel,
Stud Size M10, Oxygen-Free Copper, Length 61.30mm (2.413")
Documents:
Drawing (PDF)
Product Specification PS-50449-002 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
UL
E134962
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Crimp Quality Equipment
Mil-Spec
Product Name
Type
Ring and Spade Terminals
50454
Yes
N/A
CB (Circuit Breaker)
Rectangular
Physical
Barrel Type
Insulation
Material - Plating Mating
Packaging Type
Stud Size
Termination Interface: Style
Wire Size AWG
Wire Size mm²
Closed - Brazed
None
Tin
Bag
M10
Crimp or Compression
250MCM, 300MCM
117.2 - 152.05
Material Info
Reference - Drawing Numbers
Product Specification

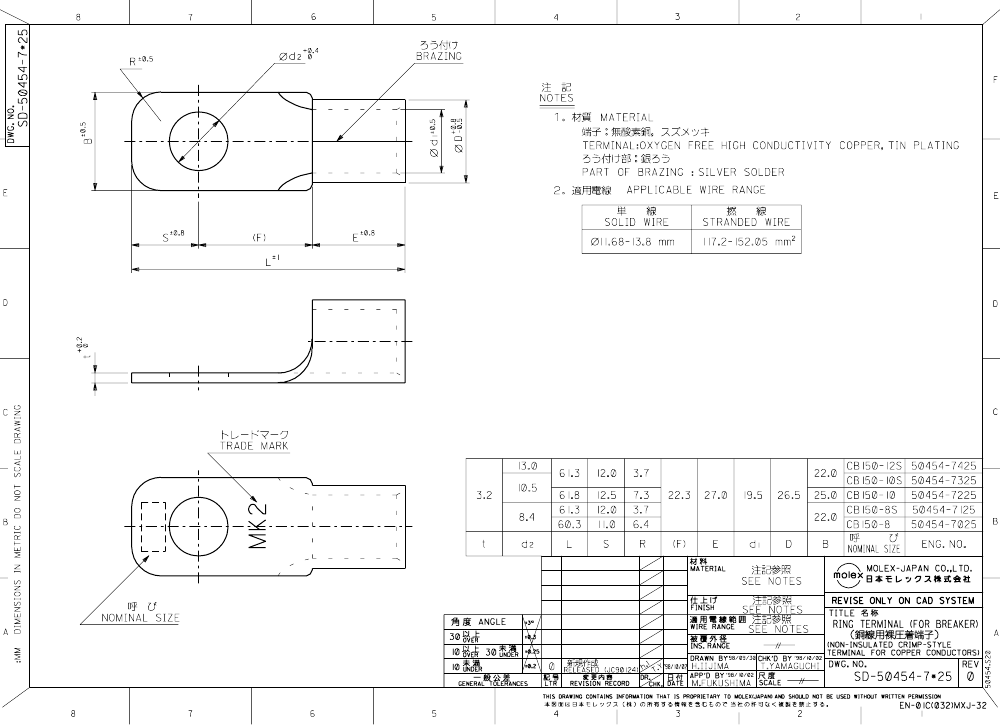

Sales Drawing
PS-50449-002
SD-50454-7*25
Search Parts in this Series
50454Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Japan
Description
Product #
Tool Kit For
0573439001
57343-9012
Battery Type Hand 0573439004
Crimper For JIS
Terminal
This document was generated on 03/19/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
