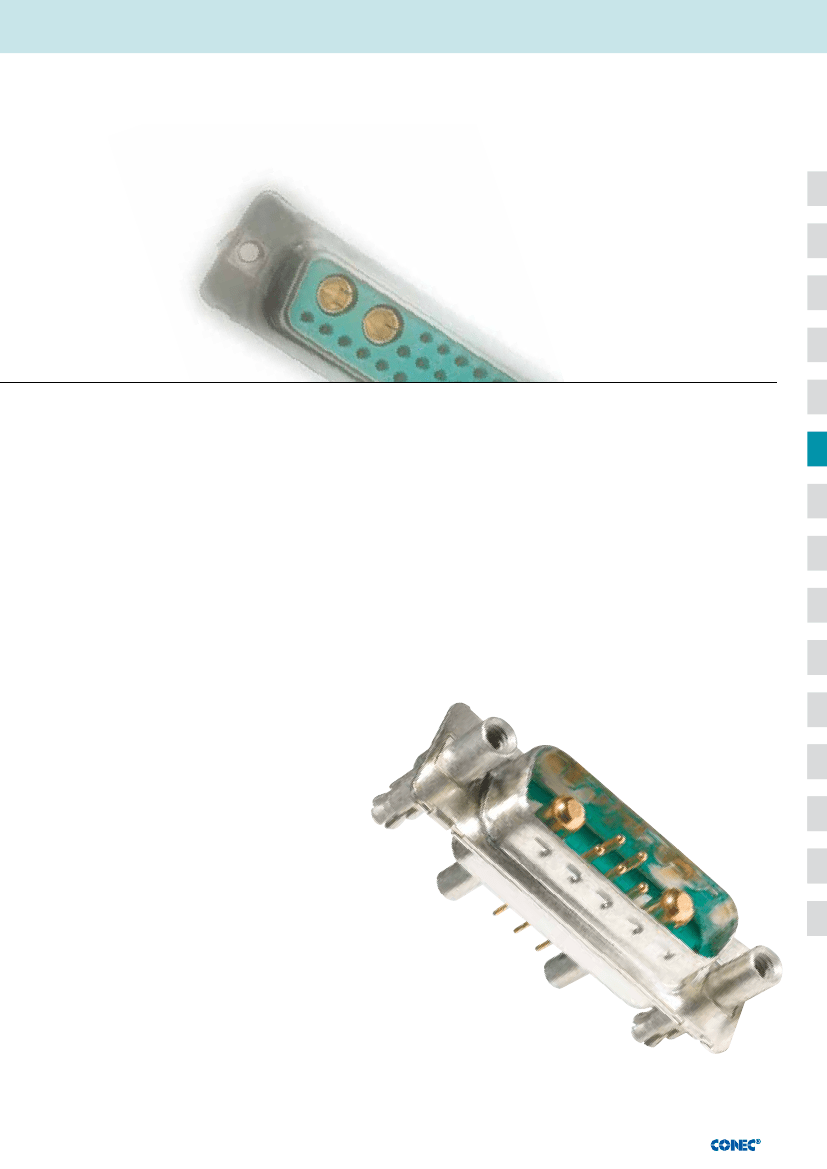

Co mbin at ion D -SUB C onne c t or s
Part Number Creator
3 003W3 S X X 6 1 A 1 O X
Product Line
3
= Shell steel tin plated
1
= Brass tin plated*
A
= Stainless steel*
Shell size and design
1
= 5W1, 2W2C
2
= 3W3, 7W2, 11W1, 3W3C
3
= 5W5, 9W4, 13W3, 17W2, 21W1
4
= 8W8, 13W6, 17W5, 21WA4, 25W3, 27W2
5
= 24W7, 36W4, 43W2, 47W1
Contact type
P
= Plug connector
S
= Socket connector
Oberfläche Quality class for signal contacts
A
= Quality class 3 = 50 mating cycles
B
= Quality class 2 = 200 mating cycles
C
= Quality class 1 = 500 mating cycles
J
= Special application = > 500 mating cycles (on request)
X
= Crimp and 3W3, 5W5, 8W8, 2W2C, 3W3C (no contacts are supplied with the connector)
Termination only for signal contacts
K
= Crimp without contacts
M
= Solder cup
N
= Wire wrap, .500“ 12.7 mm
P
= Press fit
R
= Solder pin, straight, .220" 5.6 mm
T
= Solder pin, angled, .280“ 7.19 mm

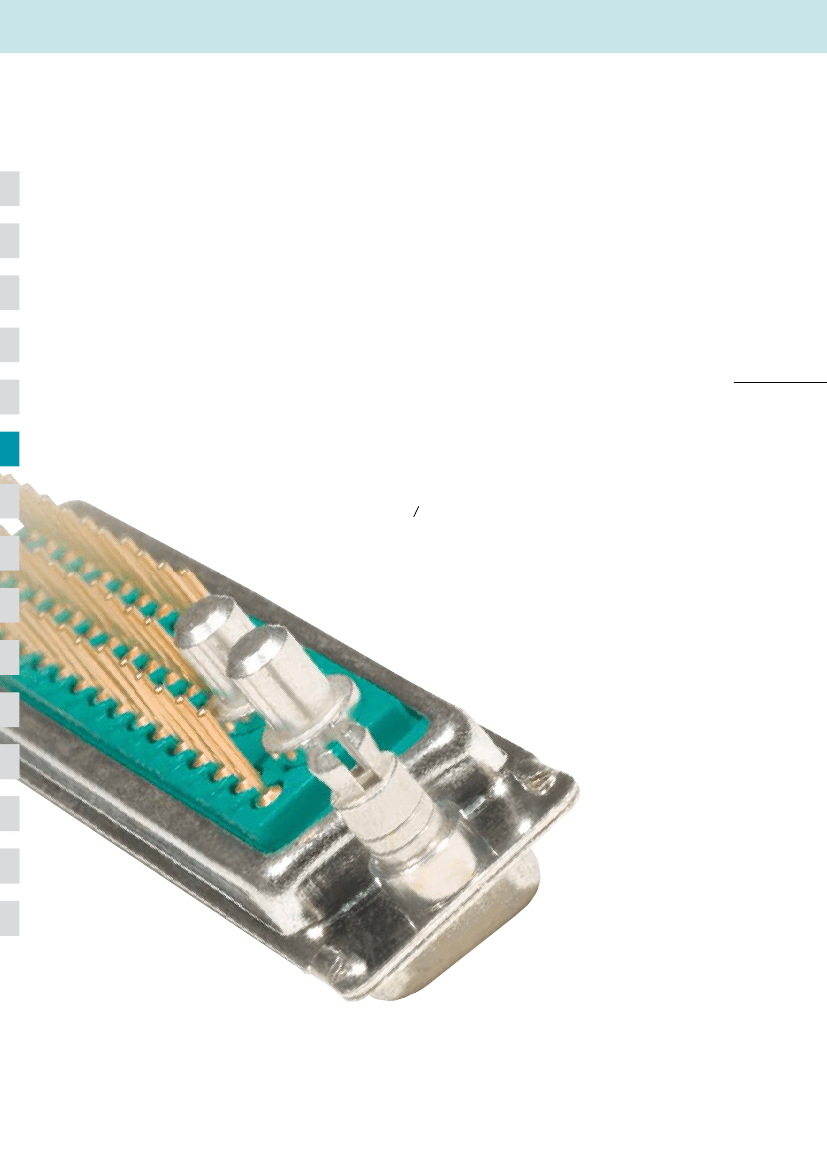

Termination for high power or coaxial contacts
C1
= Solder Crimp angled 10 A
C2
= Solder Crimp angled 20 A
C3
= Solder Crimp angled 30 A
C4
= Solder Crimp angled 40 A
61 41 = Solder cup 10 A
62 42 = Solder cup 20 A
63 43 = Solder cup 30 A
64 44 = Solder cup 40 A
68 48 = Solder pin, straight 20 A, D= .077“ 1.95 mm
69 49 = Solder pin, straight 20 A, D= .102“ 2.60 mm
70 50 = Solder pin, straight 20 A, D= .110“ 2.85 mm
71 51 = Solder pin, straight 30 A, D= .130“ 3.18 mm
72 52 = Solder pin, straight 40 A, D= .150“ 3.75 mm
59 55 = Solder pin, angled 15 A
73 56 = Solder pin, angled 20 A
74 57 = Solder pin, angled 30 A

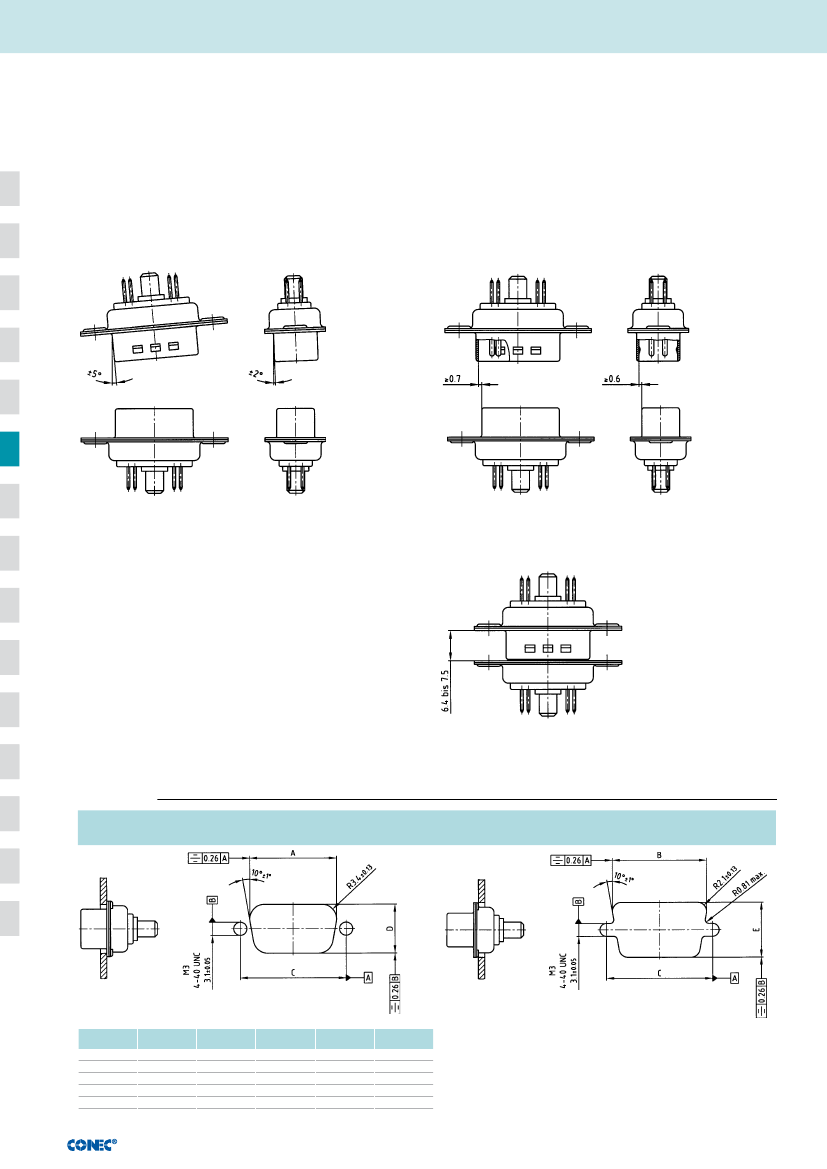

Mounting style
A1
= Riveted
A2
= M3 threaded insert
A3
= 4-40 UNC threaded insert
A4
= M3 threaded rear spacer
A5
= 4-40 UNC threaded rear spacer
A6
= Float fastening
A7
= Threaded rear spacer for M3 press fit
A8
= Threaded rear spacer for 4-40 UNC press fit
C1
= M3 threaded rear spacer with PCB clip, PCB .063“ 1.60 mm
C2
= 4-40 UNC threaded rear spacer with PCB clip, PCB .063“ 1.60 mm
C3
= M3 threaded rear spacer with PCB clip, PCB .091“ 2.30 mm
C4
= 4-40 UNC threaded rear spacer with PCB clip, PCB .091“ 2.30 mm
C5
= M3 threaded rear spacer with PCB clip, PCB .126“ 3.20 mm
C6
= 4-40 UNC Threaded rear spacer with PCB clip, PCB .126“ 3.20 mm
D1
= M3 clip and threaded rear spacer with PCB clip, PCB .063“ 1.60 mm
D2
= 4-40 UNC clip and threaded rear spacer with PCB clip, PCB .063“ 1.60 mm
D3
= M3 clip and threaded rear spacer with PCB clip, PCB .091“ 2.30 mm
D4
= 4-40 UNC clip and threaded rear spacer clip, PCB .091“ 2.30 mm
D5
= M3 clip and threaded rear spacer with PCB clip, PCB .126“ 3.20 mm
D6
= 4-40 UNC clip and threaded rear spacer with PCB clip, PCB .126“ 3.20 mm
E1
= M3 threaded rear spacer with PCB clip, PCB .063“ 1.60 mm
E2
= 4-40 UNC threaded rear spacer with PCB clip, PCB .063“ 1.60 mm
E3
= M3 threaded rear spacer with PCB clip, PCB .091“ 2.30 mm
E4
= 4-40 UNC threaded rear spacer with PCB clip, PCB .091“ 2.30 mm
E5
= M3 threaded rear spacer with PCB clip, PCB .126“ 3.20 mm
OX = Standard
U
W*
X
Z*
*
= Solder pin, angled, .370“ 9.40 mm
= Solder pin, angled, .450“ 11.43 mm
= 3W3, 5W5, 8W8, 2W2C, 3W3C
= Solder pin, angled, .540“ 13.84 mm
= please contact us
*on request
Empty positions ADD „0“ = 003W3
75 58 = Solder pin, angled 40 A
77 60 = Solder pin, angled 40 A
85 65 = Solder pin, angled 30 A
81 66 = Solder pin, angled 20 A
82 67 = Solder pin, angled 30 A
G7 76 = 3 Solder pins Straight 50 Ω
G9 78 = 3 Solder pins angled 50 Ω
H1 79 = 3 Solder pins angled 50 Ω
H4 80 = 5 Solder pins angled 50 Ω
G8 86 = 3 Solder pins Straight 75 Ω
H2 88 = 3 Solder pins angled 75 Ω
H3 89 = 3 Solder pins angled 75 Ω
H5 90 = 5 Solder pins angled 75 Ω
91
= Screw termination 20 A
99
= no high power, coax or crimp contacts loaded
Coaxial contacts with cable termination must be ordered separately.
E6
F1
F2
F3
F4
F5
F6
G1
G2
G3
G4
H1
H2
H3
H4
N1
N2
N3
N4
P1
P2
P3
P4
W1
W2
= 4-40 UNC threaded rear spacer with PCB clip, PCB .126“ 3.20 mm
= M3 clip and threaded rear spacer with PCB clip, PCB .063“ 1.60 mm
= 4-40 UNC clip and threaded rear spacer with PCB clip, PCB .063“ 1.60 mm
= M3 clip and threaded rear spacer with PCB clip, PCB .091“ 2.30 mm
= 4-40 UNC clip and threaded rear spacer with PCB clip, PCB .091“ 2.30 mm
= M3 clip and threaded rear spacer with PCB clip, PCB .126“ 3.20 mm
= 4-40 UNC clip and threaded rear spacer with PCB clip, PCB .126“ 3.20 mm
= Metal bracket, M3 threaded insert for .370“ 9.40 mm
= Metal bracket, 4-40 UNC threaded insert for .370“ 9.40 mm
= Metal bracket, M3 threaded insert and clip for .370“ 9.40 mm
= Metal bracket, 4-40 UNC threaded insert and clip for .370“ 9.40 mm
= Metal bracket, M3 threaded lock for .370“ 9.40 mm
= Metal bracket, 4-40 UNC threaded lock for .370“ 9.40 mm
= Metal bracket, M3 threaded lock and clip for .370“ 9.40 mm
= Metal bracket, 4-40 UNC threaded lock and clip for .370“ 9.40 mm
= Metal bracket, M3 threaded insert for .280“ 7.19 mm
= Metal bracket, 4-40 UNC threaded insert for .280“ 7.19 mm
= Metal bracket, M3 threaded insert and clip for .280“ 7.19 mm
= Metal bracket, 4-40 UNC threaded insert and clip for .280“ 7.19 mm
= Metal bracket, M3 threaded lock for .280“ 7.19 mm
= Metal bracket, 4-40 UNC threaded lock for .280“ 7.19 mm
= Metal bracket, M3 threaded lock and clip for .280“ 7.19 mm
= Metal bracket, 4-40 UNC threaded lock and clip for .280“ 7.19 mm
= Threaded rear spacer with M3 press in pin
= Threaded rear spacer with 4-40 UNC press in pin
6| 3
