0511460700 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 0511460700

0511460700: Description7 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, CRIMP, RECEPTACLE; CategoryThe connector The connector; File Size131KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

0511460700 Overview

7 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, CRIMP, RECEPTACLE

0511460700 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	10 weeks
Is Samacsys	N
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Options	GENERAL PURPOSE
Termination type	CRIMP
Total number of contacts	7
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 06/01/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0511460700

Active

panelmate_125mm_049_pitch_ultra_lowprofile

1.25mm (.049") Pitch PanelMate™ Wire-to-Board Receptacle Housing, Ultra Low

Profile, 7 Circuits

Documents:

3D Model

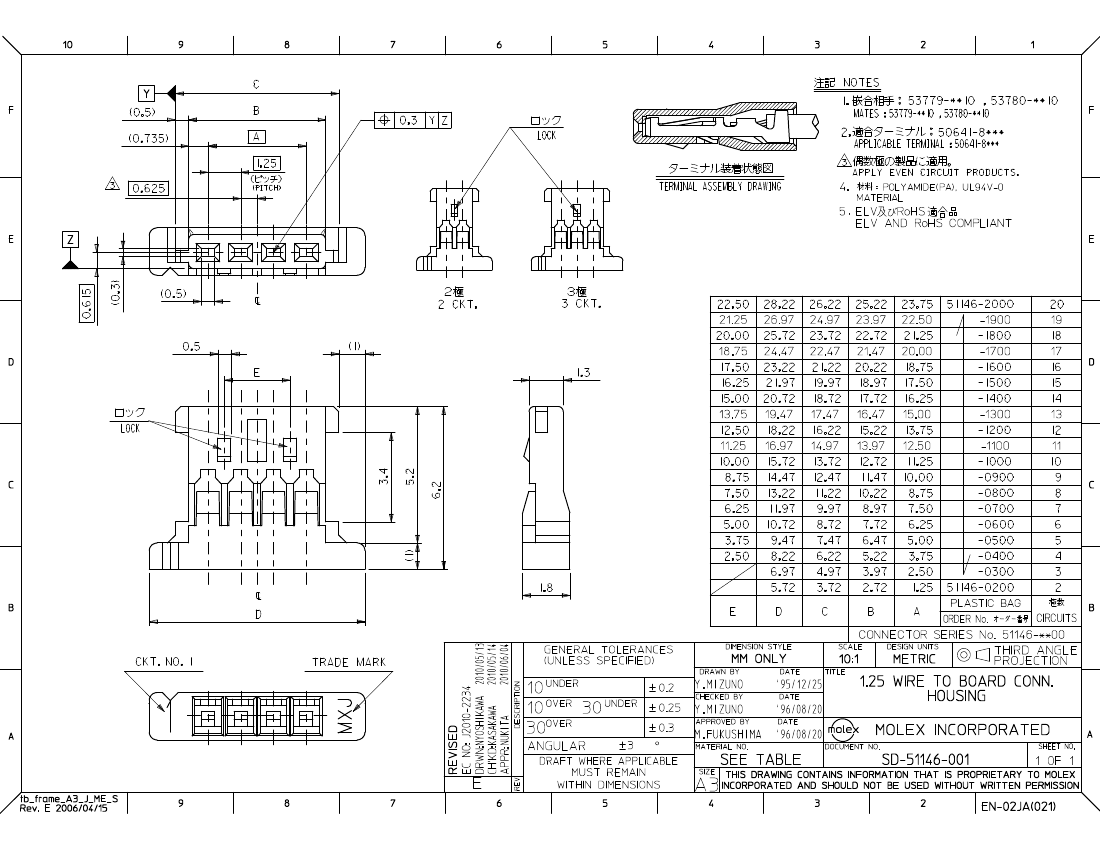

Drawing (PDF)

Product Specification PS-51146-001 (PDF)

Product Specification PS-51146-006 (PDF)

Product Specification PS-51146-008 (PDF)

Product Specification PS-51146-010 (PDF)

Product Specification PS-51146-012 (PDF)

RoHS Certificate of Compliance (PDF)

Series

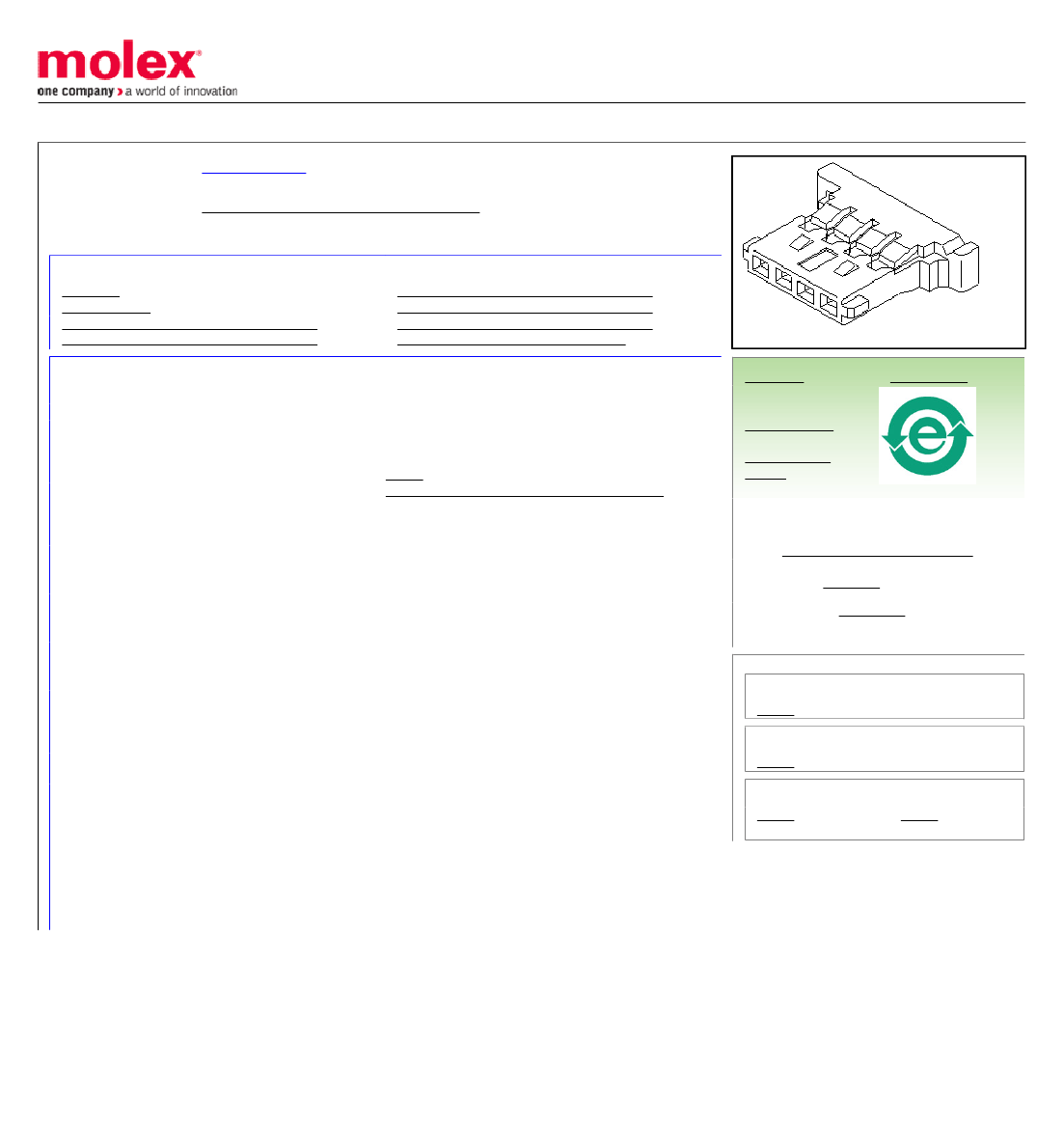

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

LR19980

E107635

General

Product Family

Series

Overview

Product Name

Crimp Housings

51146

panelmate_125mm_049_pitch_ultra_lowprofile

PanelMate™

Physical

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Temperature Range - Operating

Natural

94V-0

Female

Bag

0.049 In

1.25 mm

-40°C to +85°C

Search Parts in this Series

51146Series

Mates With

53780

Material Info

Reference - Drawing Numbers

Product Specification

PS-51146-001, PS-51146-006, PS-51146-008,

PS-51146-010, PS-51146-012, RPS-51146-003,

RPS-51146-004, RPS-51146-007, RPS-51146-008,

RPS-51146-009, RPS-51146-011, RPS-51146-013,

RPS-51146-015, RPS-51146-017, RPS-51146-019,

RPS-51146-020, RPS-51146-022, RPS-51146-023,

RPS-51146-025, RPS-51146-026, RPS-51146-027,

RPS-51146-028, RPS-51146-029

SD-51146-001

Use With

50641 Crimp Terminal . 50753 Crimp

Terminal

Sales Drawing

This document was generated on 06/01/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
