Part Number:
Status:
Description:
Documents:
3D Model

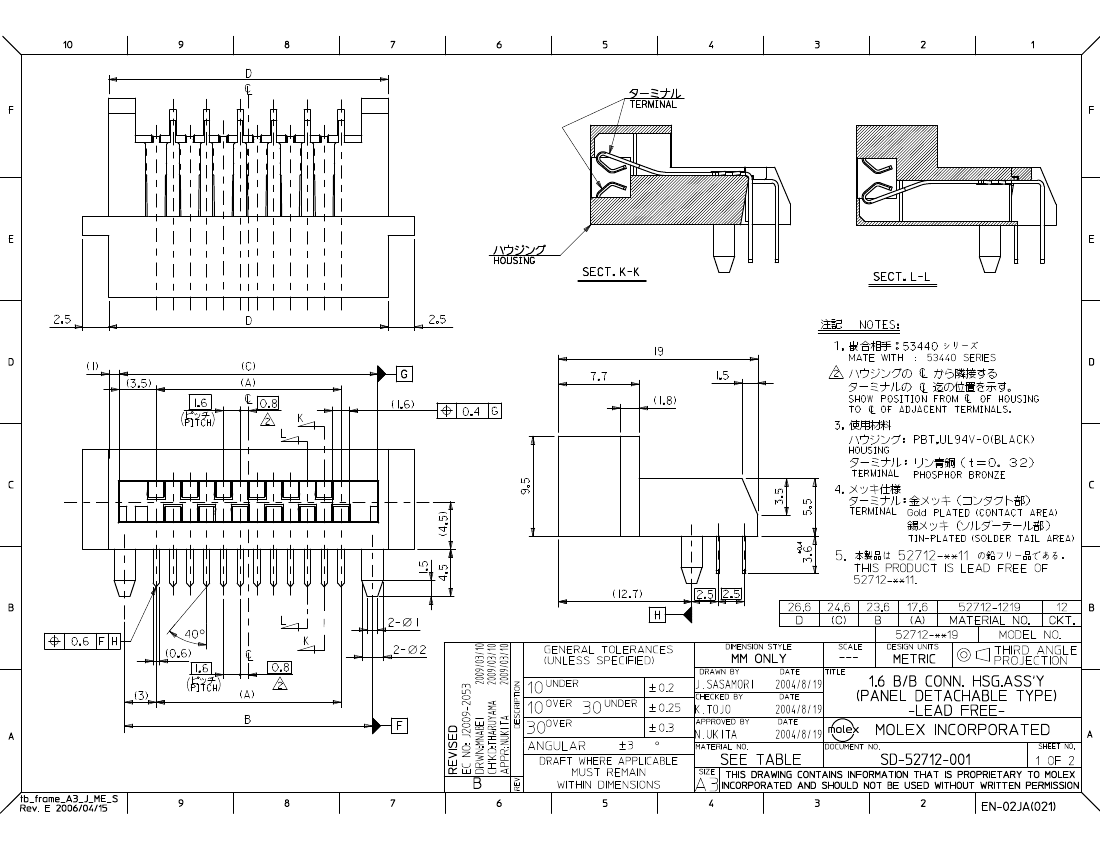

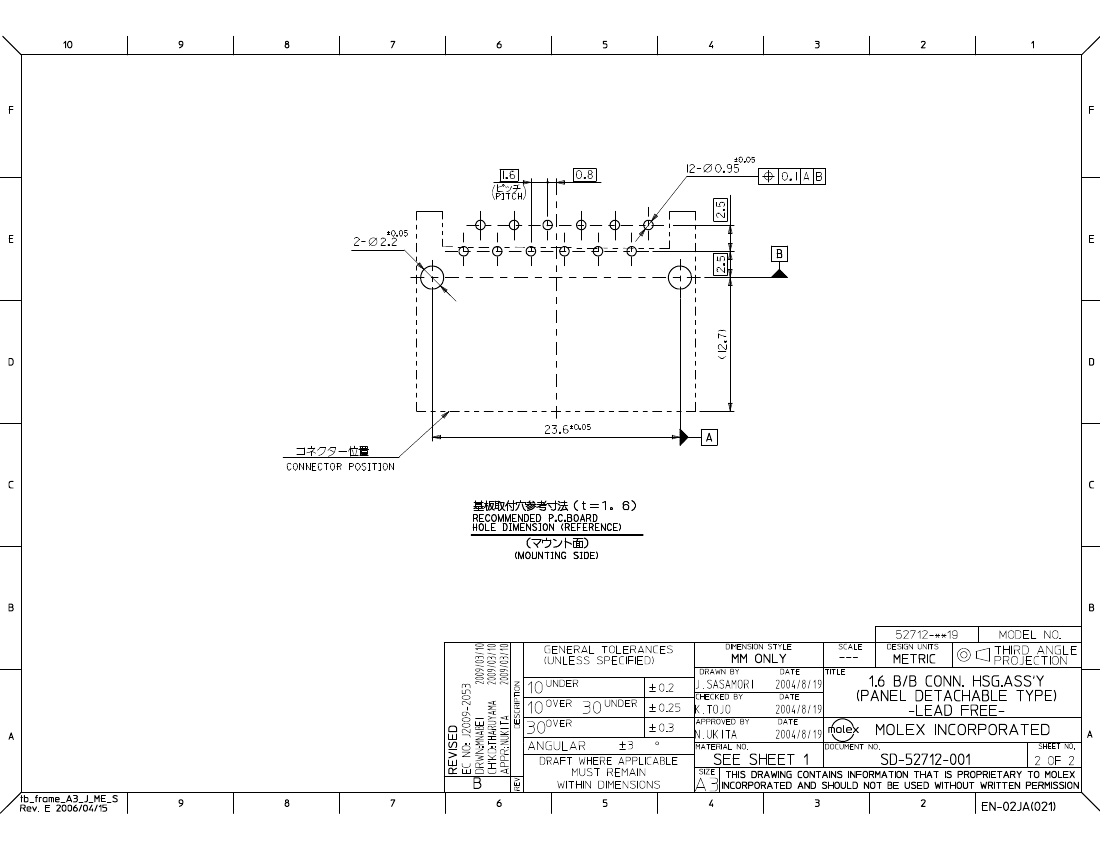

Drawing (PDF)
0527121219
Active
1.60mm (.063") Pitch Board-to-Board Receptacle, Right Angle, Detachable, Lead Free
Product Specification PS-52712-003 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Product Name
PCB Receptacles
52712
Board-to-Board
N/A
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Series
Physical
Circuits (Loaded)
Color - Resin
Durability (mating cycles max)
Glow-Wire Compliant
Material - Metal
Material - Plating Mating
Material - Plating Termination
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to PCB
Temperature Range - Operating
Termination Interface: Style
12
Black
10,000
No
Phosphor Bronze
Gold
Tin
2
Right Angle
0.142 In
3.60 mm
Yes
None
0.063 In
1.60 mm
Tray
0.063 In
1.60 mm
Yes
-40°C to +105°C
Through Hole
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
52712Series
Mates With
53440
Electrical
Current - Maximum per Contact
Voltage - Maximum
1A
125V
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-52712-003
SD-52712-001
