0528306642: DescriptionModular Jack, Right Angle, 6/6 Circuits, 1.3Î¼m (50Î¼ ") Gold (Au) Selective Plating, withBeveled Metal Pins, Tray Packaging, Lead-free; File Size123KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet View All

0528306642 Overview

Modular Jack, Right Angle, 6/6 Circuits, 1.3Î¼m (50Î¼ ") Gold (Au) Selective Plating, withBeveled Metal Pins, Tray Packaging, Lead-free

Preview

Download Datasheet

View All

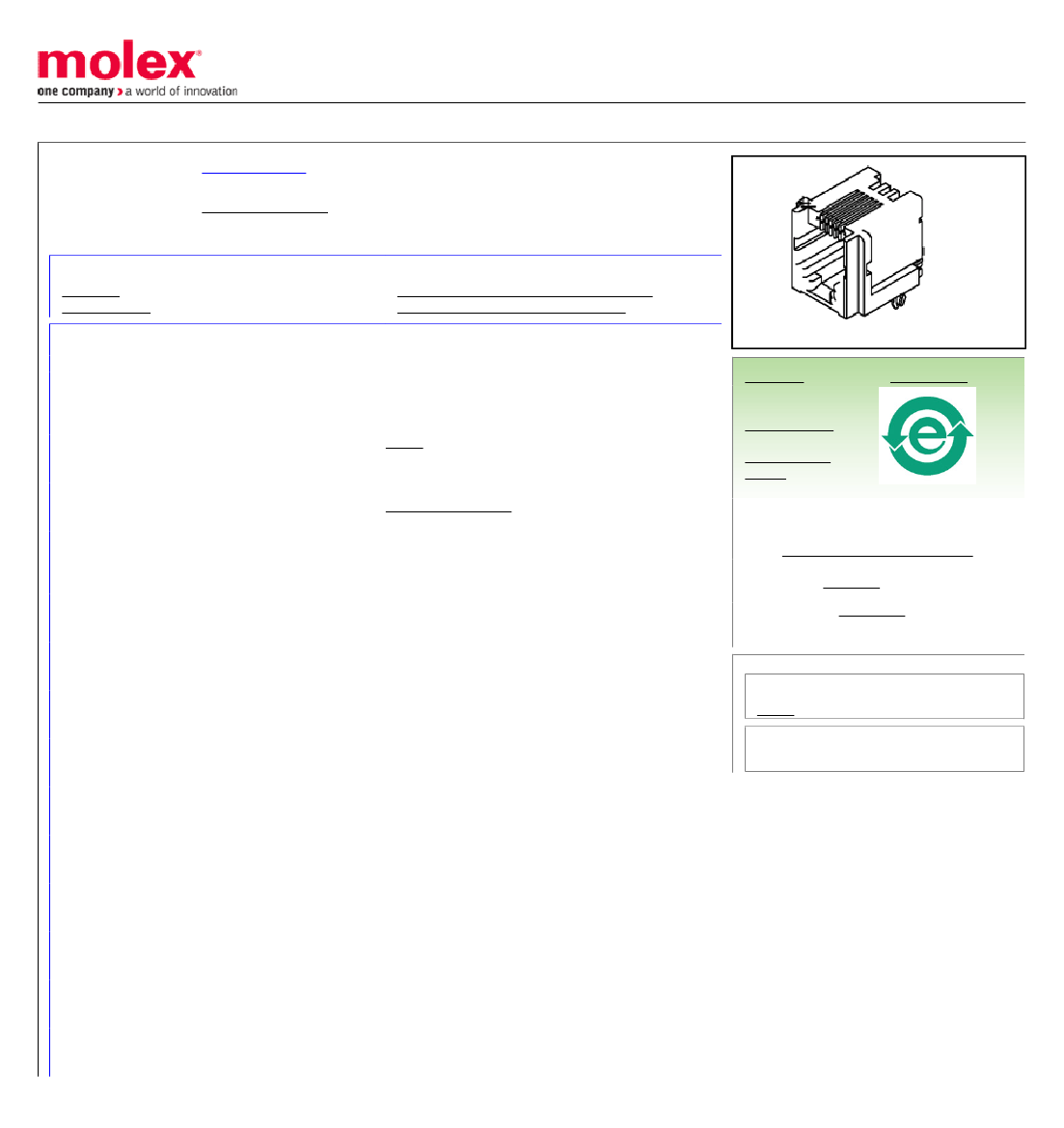

This document was generated on 06/07/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0528306642

Active

modular_plugs_jacks

Modular Jack, Right Angle, 6/6 Circuits, 1.3µm (50µ ") Gold (Au) Selective Plating, with

Beveled Metal Pins, Tray Packaging, Lead-free

Documents:

3D Model

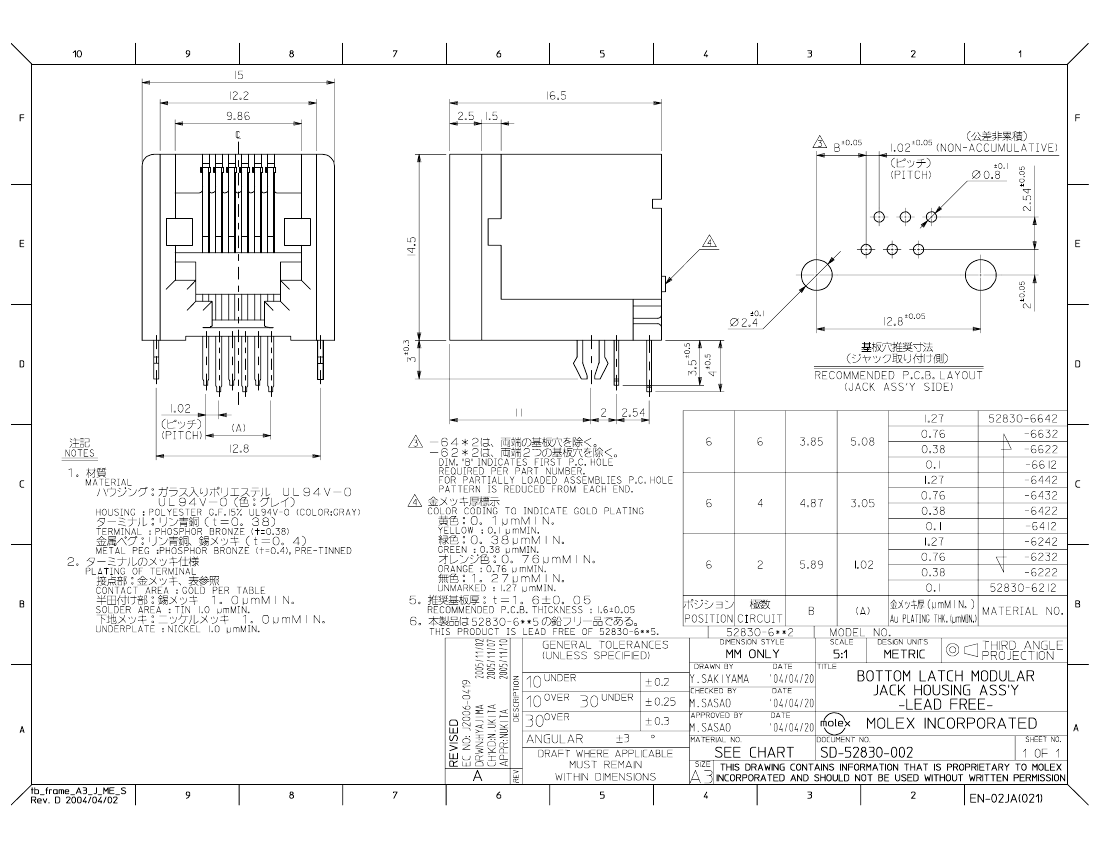

Drawing (PDF)

Product Specification PS-52830-002 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

LR19980

E107635

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

General

Product Family

Series

Comments

Component Type

Magnetic

Overview

Performance Category

Power over Ethernet (PoE)

Product Name

Modular Jacks/Plugs

52830

Beveled Metal Pins

PCB Jack

modular_plugs_jacks

N/A

RJ11

Physical

Boot Color

Color - Resin

Durability (mating cycles max)

Flammability

Inverted / Top Latch

Lightpipes/LEDs

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Orientation

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Ports

Positions / Loaded Contacts

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Waterproof / Dustproof

N/A

Gray

200

94V-0

None

Phosphor Bronze

Gold

Tin

Polyester

Right Angle (Side Entry)

Yes

0.063 In

1.60 mm

Tray

0.040 In

1.02 mm

0.040 In

1.02 mm

36, 50.8

0.90, 1.27

36, 40

0.90, 1

6/6

-40°C to +80°C

Through Hole

Search Parts in this Series

52830Series

Mates With

FCC 68 Plugs
