RMCP1210JT2M70 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> RMCP1210JT2M70

RMCP1210JT2M70: DescriptionFixed Resistor, Metal Glaze/thick Film, 0.5W, 2700000ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 1210, CHIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size181KB，3 Pages; ManufacturerSEI(Stackpole Electronics Inc.); Websitehttps://www.seielect.com/; Environmental Compliance

Download Datasheet Parametric View All

RMCP1210JT2M70 Overview

Fixed Resistor, Metal Glaze/thick Film, 0.5W, 2700000ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 1210, CHIP, ROHS COMPLIANT

RMCP1210JT2M70 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SEI(Stackpole Electronics Inc.)
package instruction	SMT, 1210
Reach Compliance Code	compli
ECCN code	EAR99
structure	Chi
JESD-609 code	e3
Manufacturer's serial number	RMCP
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C

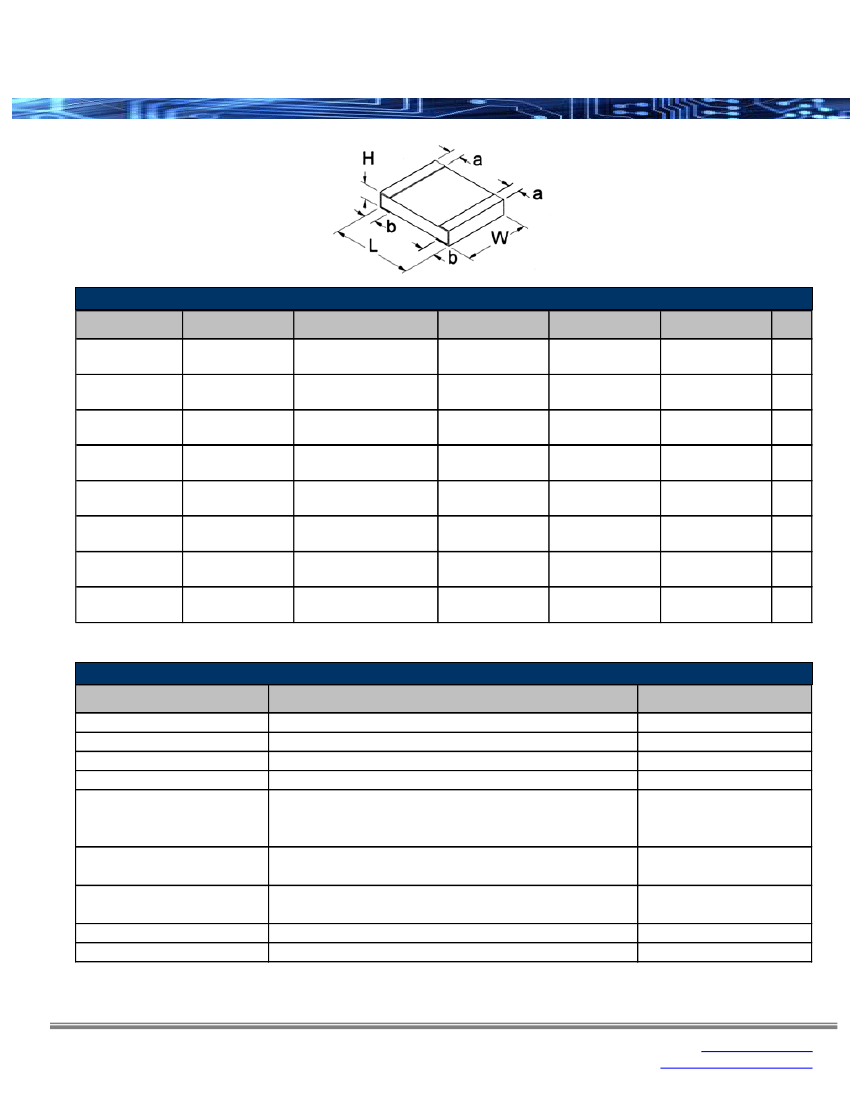

Package height	0.55 mm
Package length	3.2 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	2.5 mm
method of packing	TR, PAPER, 7 INCH
Rated power dissipation(P)	0.5 W
Rated temperature	70 °C
resistance	2700000 Ω
Resistor type	FIXED RESISTOR
series	RMCP
size code	1210
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	200 ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrie
Terminal shape	WRAPAROUND
Tolerance	5%
Operating Voltage	200 V

Preview

Download Datasheet

View All

RMCF/RMCP Series

General Purpose Thick Film Standard Power

and High Power Chip Resistor

Stackpole Electronics, Inc.

Resistive Product Solutions

Features:

•

RMCF – standard power ratings

RMCP – high power ratings

Nickel Barrier terminations standard

Power derating from 100% at 70ºC to zero at +155ºC

RoHS compliant

Electrical Specifications

Type / Code

RMCF0201

Power Rating

Old Type Code

(Watts) @

70ºC

1/20

0.05W

Maximum

Working

Voltage (1)

25V

Maximum

Overload

Voltage

50V

Maximum

Current

1 Amp

Resistance

Temperature

Coefficient

± 400 ppm/ºC

± 200 ppm/ºC

± 300 ppm/ºC

± 200 ppm/ºC

± 100 ppm/ºC

± 200 ppm/ºC

± 600 ppm/ºC

± 200 ppm/ºC

± 100 ppm/ºC

± 200 ppm/ºC

± 100 ppm/ºC

± 200 ppm/ºC

± 100 ppm/ºC

± 200 ppm/ºC

± 400 ppm/ºC

± 200 ppm/ºC

± 100 ppm/ºC

± 200 ppm/ºC

± 400 ppm/ºC

± 200 ppm/ºC

± 100 ppm/ºC

± 200 ppm/ºC

± 400 ppm/ºC

± 200 ppm/ºC

± 100 ppm/ºC

± 200 ppm/ºC

± 100 ppm/ºC

± 200 ppm/ºC

± 100 ppm/ºC

± 200 ppm/ºC

± 100 ppm/ºC

± 200 ppm/ºC

± 100 ppm/ºC

± 200 ppm/ºC

± 100 ppm/ºC

± 200 ppm/ºC

± 100 ppm/ºC

± 200 ppm/ºC

± 100 ppm/ºC

± 200 ppm/ºC

Ohmic Range ( ) and Tolerance (2)

0.2

0.604

1.02M

0.1

1.02M

0.1

1.02M

0.1

1.02M

0.1

1.02M

9.76

10M

0.59

9.76

10M

0.976

9.76

10M

9.76

10M

9.76

10M

0.976

9.76

10M

0.976

9.76

10M

0.976

9.76

10M

9.76

10M

9.76

10M

9.76

10M

9.76

10M

9.76

10M

9.76

10M

9.76

10M

0.1 -

1 -

10 -

0.1 -

1 -

10 -

0.1 -

1 -

10 -

1 -

10 -

1.02M -

1 -

10 -

1.02M -

1 -

10 -

1.02M -

1 -

10 -

1.02M -

1 -

10 -

1.02M -

1 -

10 -

1.02M -

1 -

10 -

1.02M -

0.2

0.62

1.1M

0.1

9.1

10M

0.56

9.1

20M

0.91

20M

RMCF0402

1/16S

0.063W

50V

100V

1 Amp

RMCF0603

1/16

0.1W

50V

100V

1 Amp

20M

RMCF0805

1/10

0.125W

150V

300V

2 Amp

20M

RMCF1206

1/8

0.25W

200V

400V

2 Amp

RMCF1210

1/4

0.33W(3)

200V

400V

3 Amp

0.91

9.1

20M

0.91

9.1

10M

0.91

9.1

10M

9.76

10M

9.76

10M

9.76

10M

9.76

10M

9.76

10M

9.76

10M

9.76

10M

RMCF2010

1/2

0.75W

200V

400V

3 Amp

RMCF2512

200V

400V

3 Amp

RMCP0402

1/16S

0.1W

50V

100V

1 Amp

RMCP0603

1/16

0.125W

50V

100V

1 Amp

RMCP0805

1/10

0.25W

150V

300V

2 Amp

RMCP1206

1/8

0.33W

200V

400V

2 Amp

RMCP1210

1/4

0.5W

200V

400V

3 Amp

RMCP2010

1/2

200V

400V

3 Amp

RMCP2512

200V

400V

3 Amp

(1) Lesser of

√PR

or maximum working voltage.

(2) Contact factory for extended ohmic values.

(3) Power rating is 0.5W for ohmic values below 1

Rev Date: 11/07/2012

This specification may be changed at any time without prior notice

Please confirm technical specifications before you order and/or use.

www.seielect.com
