PD Series Parabolic Dish Antennas
For 2.4–2.5 GHz and 5.7–5.875 GHz
T
he PD Series parabolic dish antennas
are a commercial grade series for wireless
LAN and other IP-based services, over
2.4 and 5.8 GHz frequency ranges.
The rugged aluminum reflector and prime focus
T-feed offer exceptional reliability at a low cost.
The antenna’s optimized dipole feed delivers
superior pattern performance. The antennas
are available in 16” and 24” sizes. The 2.4 GHz
antenna is packaged with an external subreflector.
The 5.8 GHz antenna has the subreflector built
into the feed.
!
ew ize
N S
4”
2
Features
•
Commercial grade durability—
ensures installation longevity
•
Lightweight construction and integrated
design—minimizes installation time
•
Exceptional pattern performance—
ensures optimized link budgets
•
Antenna blends into the horizon
5.8 GHz
2.4 GHz
Model is shown with the optional DGS-1000 mount.
Rugged aluminum reflector and prime
focus T-feed offer outstanding reliability
at an exceptionally low price.
Connecting the Wireless World
product specifications
Specifications for PD Series Parabolic Dish Antennas
Electrical
19T-2440
21T-2441
23T-5800
28T-5801
Frequency,
MHz
. . . . . . . . . . . . . . . . . . . . . . . . . . .2400–2500 . . . . . . . . . . . . . . .2400–2500 . . . . . . . . . . . . . . .5700–5875 . . . . . . . . . . . . . . .5700–5875
Gain,
dBi
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
+/-1
. . . . . . . . . . . . . . . . .21
+/-1
. . . . . . . . . . . . . . . . .23
+/-1
. . . . . . . . . . . . . . . . .27
+/-1
Polarization isolation,
db
. . . . . . . . . . . . . . . . . . . . .>25 . . . . . . . . . . . . . . . . . . . .>25 . . . . . . . . . . . . . . . . . . . .>25 . . . . . . . . . . . . . . . . . . . .>25
Sidelobe suppression,
dB
. . . . . . . . . . . . . . . . . . . .>14 . . . . . . . . . . . . . . . . . . . .>14 . . . . . . . . . . . . . . . . . . . .>18 . . . . . . . . . . . . . . . . . . . .>18
-3 dB Beamwidth,
degree
. . . . . . . . . . . . . . . . . . . . .16 . . . . . . . . . . . . . . . . . . . . . .10 . . . . . . . . . . . . . . . . . . . . . .7 . . . . . . . . . . . . . . . . . . . . . . .4
-10 dB Beamwidth,
degree
. . . . . . . . . . . . . . . . . . . .28 . . . . . . . . . . . . . . . . . . . . . .18 . . . . . . . . . . . . . . . . . . . . . .13 . . . . . . . . . . . . . . . . . . . . . .8
Front/back ratio,
dB
. . . . . . . . . . . . . . . . . . . . . . . . .>20 . . . . . . . . . . . . . . . . . . . .>24 . . . . . . . . . . . . . . . . . . . .>30 . . . . . . . . . . . . . . . . . . . .>30
VSWR typical
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.7:1 . . . . . . . . . . . . . . . . . . . .1.7:1 . . . . . . . . . . . . . . . . . . . .1.8:1 . . . . . . . . . . . . . . . . . . . .1.8:1
Pigtail extension
. . . . . . . . . . . . . . . . . . . . . . . . . . .RG8
13”
. . . . . . . . . . . . . . . . .RG8
13”
. . . . . . . . . . . . . . . . .RG8
13”
. . . . . . . . . . . . . . . . .RG8
13”
Mechanical
19T-2440
21T-2441
23T-5800
28T-5801
Output connector*
. . . . . . . . . . . . . . . . . . . .“N”
type male/female
. . . . . . . .“N”
type male/female
. . . . . . . .“N”
type male/female
. . . . . . . .“N”
type male/female
Mounting O.D. Pipe,
in (mm)
. . . . . . . . . . . .1.25–2.375
(32–60)
. . . . . . . . .1.25–2.375
(32–60)
. . . . . . . . .1.25–2.375
(32–60)
. . . . . . . . .1.25–2.375
(32–60)
Vertical tilt
Top pole mount,
degree
. . . . . . . . . . . . . . . . . . . .0–66 . . . . . . . . . . . . . . . . . . . .0–66 . . . . . . . . . . . . . . . . . . . .0–66 . . . . . . . . . . . . . . . . . . . .0–66
Side pole mount,
degree
. . . . . . . . . . . . . . . . . . .0–22 . . . . . . . . . . . . . . . . . . . .0–22 . . . . . . . . . . . . . . . . . . . .0–22 . . . . . . . . . . . . . . . . . . . .0–22
Wind load @ -30º F
Operational,
mph, lb (kg)
. . . . . . . . . . . . . . .80,
43.4 (19.7)
. . . . . . . . . . . .80,
97.3 (44.2)
. . . . . . . . . . . .80,
43.4 (19.7)
. . . . . . . . . . . .80,
97.3 (44.2)
Survivable,
mph, lb (kg)
. . . . . . . . . . . . . . . .140,
133 (60.5)
. . . . . . . . . . .140,
298.3 (135.6)
. . . . . . . . . . .140,
133 (60.5)
. . . . . . . . . . .140,
298.3 (135.6)
Reflector type
. . . . . . . . . . . . . . . . . . . . . . .Spun
aluminum parabolic
. . . . .Spun
aluminum parabolic
. . . . .Spun
aluminum parabolic
. . . . .Spun
aluminum parabolic
Reflector material
. . . . . . . . . . . . . . . . . . .Powder
coated aluminum
. . . . .Powder
coated aluminum
. . . . .Powder
coated aluminum
. . . . .Powder
coated aluminum
Reflector color
. . . . . . . . . . . . . . . . . . . . . . . . . . . .Light
gray
. . . . . . . . . . . . . . . .Light
gray
. . . . . . . . . . . . . . . .Light
gray
. . . . . . . . . . . . . . . .Light
gray
Dimensions,
in (m)
. . . . . . . . . . . . . . . . . . . . .16
x 10 (.406 x .254)
. . . . . . . .24
x 12 (.604 x .254)
. . . . . . . .16
x 10 (.406 x .254)
. . . . . . . .24
x 12 (.604 x .254)
Weight – antenna,
lb (kg)
. . . . . . . . . . . . . . . . . . .1.8
(.81)
. . . . . . . . . . . . . . . .3.86
(1.75)
. . . . . . . . . . . . . . . .1.8
(.81)
. . . . . . . . . . . . . . . .3.86
(1.75)
Weight – mount,
lb (kg)
. . . . . . . . . . . . . . . . . . . . .1.5
(.68)
. . . . . . . . . . . . . . . . .1.5
(.68)
. . . . . . . . . . . . . . . . .1.5
(.68)
. . . . . . . . . . . . . . . . .1.5
(.68)
Ordering Information
Frequency band,
MHz
Gain,
dBi
Single pack type
2400–2500
. . . . . . . . . . . . . . . . . . . . . . . . . . . .19 . . . . . . . . . . . . . . . . . . . . . . .19T-2440-1
21
. . . . . . . . . . . . . . . . . . . . . . .21T-2441-1
5700–5875
. . . . . . . . . . . . . . . . . . . . . . . . . . . .23 . . . . . . . . . . . . . . . . . . . . . . .23T-5800-1
27
. . . . . . . . . . . . . . . . . . . . . . .28T-5801-1
*N male connector standard; N female available by adding “F” (i.e. 23T-5800F-1)
Note:
PD Series antenna available in 2150–2700 MHz. Please contact Andrew Sales for information.
number
Bulk pack type number
. . . . . . . . . . . . . . . . . . . . . .19T-2440-6
(6 per)
. . . . . . . . . . . . . . . . . . . . . .21T-2441-5
(5 per)
. . . . . . . . . . . . . . . . . . . . . .23T-5800-6
(6 per)
. . . . . . . . . . . . . . . . . . . . . .28T-5801-5
(5 per)

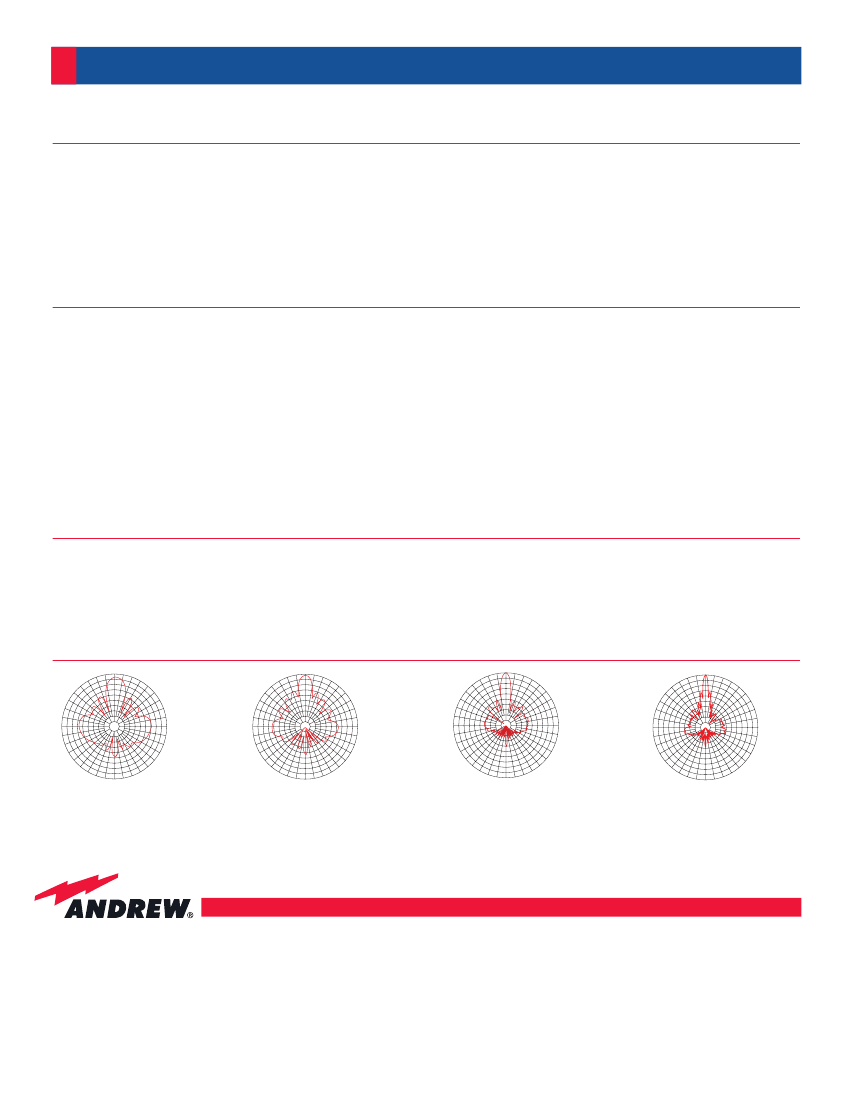

Pattern Performance
0
330
30
2.4 GHz Patterns
60
300
0
330
30
330
0
30
5.8 GHz Patterns
60
300
0
330
30
300
60
300
60
270
-40
-30
-20
-10
0
90
270
-40
-30
-20
-10
0
90
270
-40
-30
-20
-10
0
90
270
-40
-30
-20
-10
0
90
240
120
240
120
240
120
240
120
210
180
150
210
180
150
210
180
150
210
180
150
19T-2440
Gain = 18.77 dBi
Frequency = 2.5 GHz
10 dB BW = 28.3º
3 dB BW = 16.1º
21T-2441
Gain = 21.45 dBi
Frequency = 2.4 GHz
10 dB BW = 18.9º
3 dB BW = 10.7º
23T-5800
Gain = 23.62 dBi
Frequency = 5.8 GHz
10 dB BW = 13.3º
3 dB BW = 7.1º
28T-5801
Gain = 27.3 dBi
Frequency = 5.8 GHz
10 dB BW = 8º
3 dB BW = 4º
Connecting the Wireless World
Andrew Corporation
10500 W. 153rd Street
Orland Park, IL 60462 USA
Customer Support Center
From North America:
Telephone: 1-800-255-1479
Fax: 1-800-349-5444
International:
Telephone: +1-708-873-2307
Fax: +1-708-349-5444
Internet
www.andrew.com
All designs, specifications and availabilities of
products and services presented in this bulletin
are subject to change without notice.
Bulletin 10438F (6/02) Copyright © 2002
Andrew Corporation, Orland Park, IL 60462 USA
Printed in USA
Fax-On-Demand
From North America:
1-800-861-1700
International:
+1-708-873-3614
