This document was generated on 04/19/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
Documents:
3D Model
Drawing (PDF)
0548611270
Active
2.00mm (.079") Pitch HIC/LCD Pin Connector, Vertical, SMT, 12 Circuits, Lead Free
Product Specification PS-54861-005 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Component Type
Product Name
Other Sockets
54861
Socket
N/A

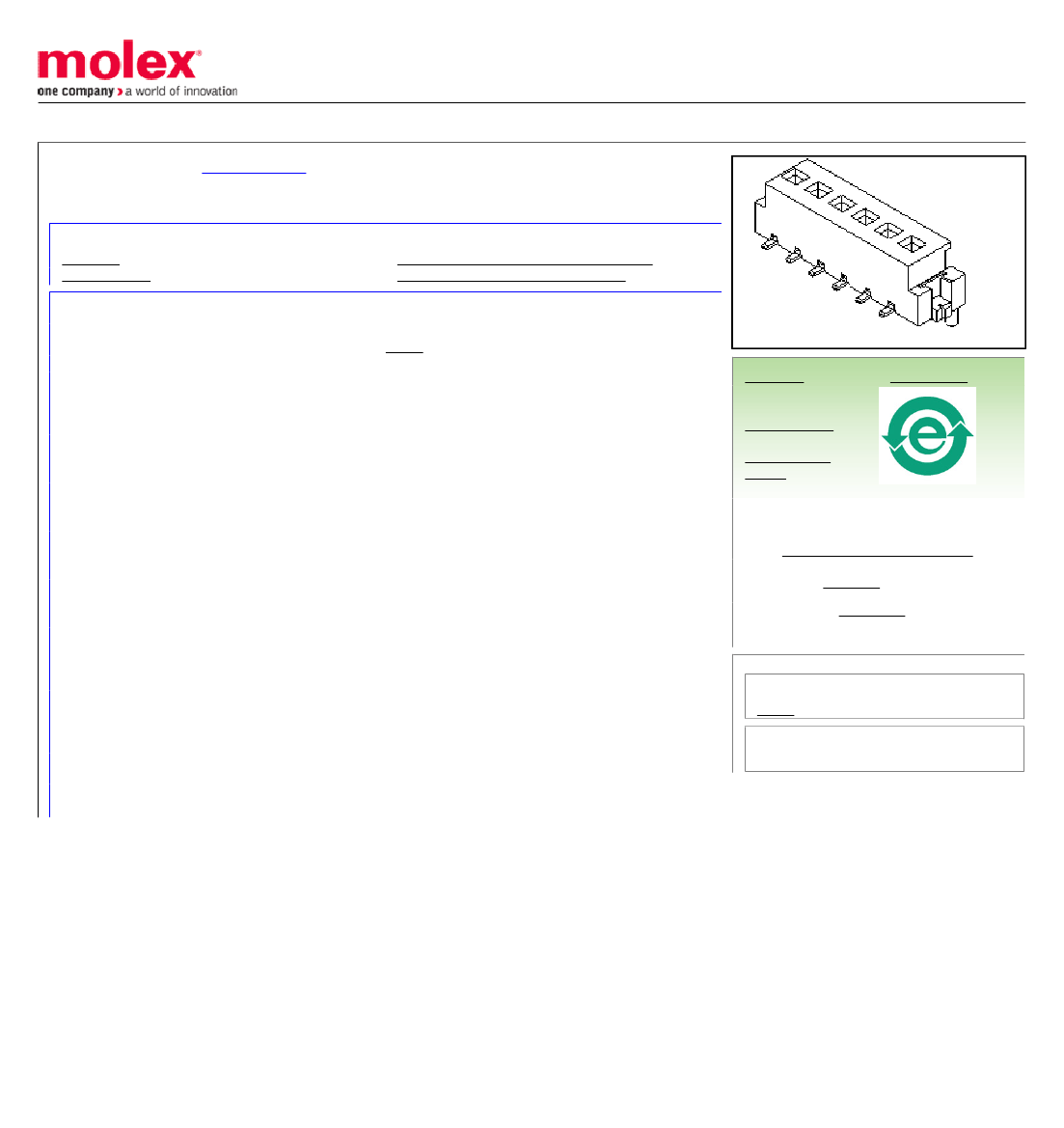

image - Reference only
Series
Physical
Circuits (Loaded)
Color - Resin
Durability (mating cycles max)
Entry Angle
Keying to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Temperature Range - Operating
Termination Interface: Style
12
Natural
10
Vertical
N/A
Phosphor Bronze
Tin
Tin
Yes
Yes
Embossed Tape on Reel
0.079 In
2.00 mm
-40°C to +105°C
Surface Mount
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Electrical
Current - Maximum per Contact
Voltage - Maximum
1A
125V AC (RMS)/DC
Search Parts in this Series
54861Series
Mates With
LCD Pin|HIC Pin
Material Info
Reference - Drawing Numbers
Product Specification

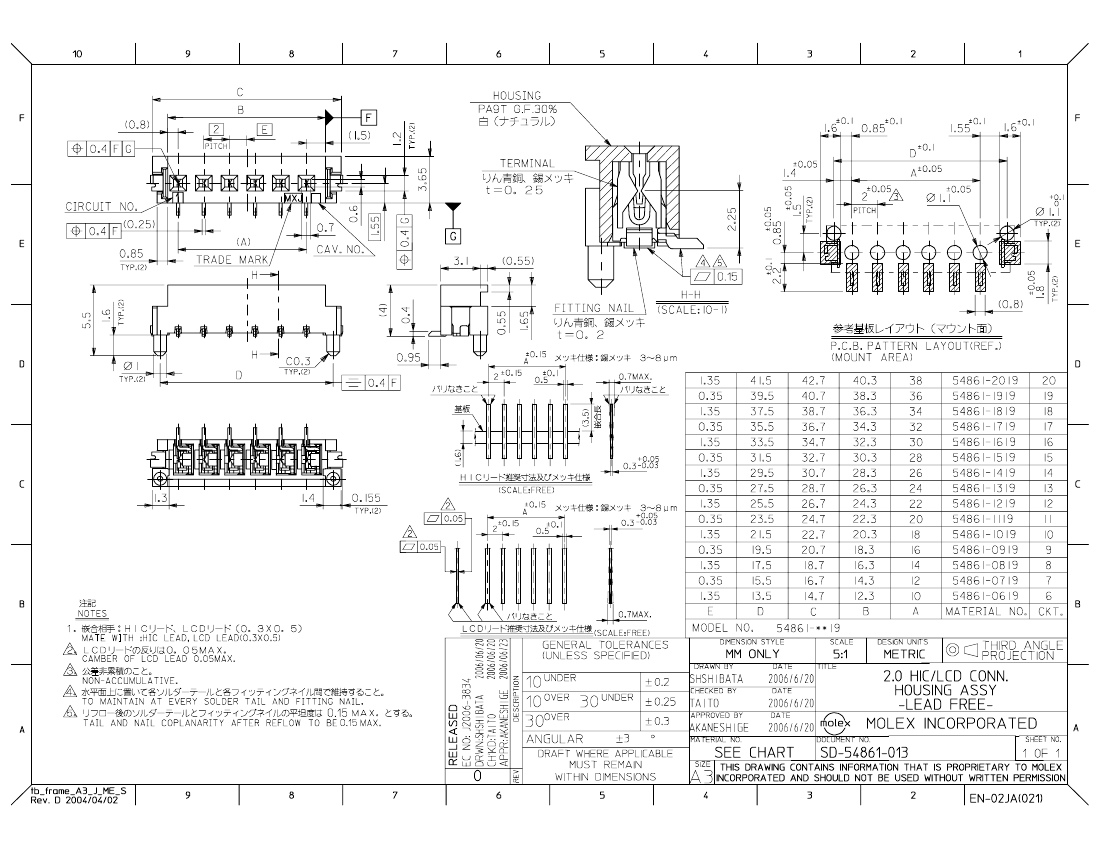

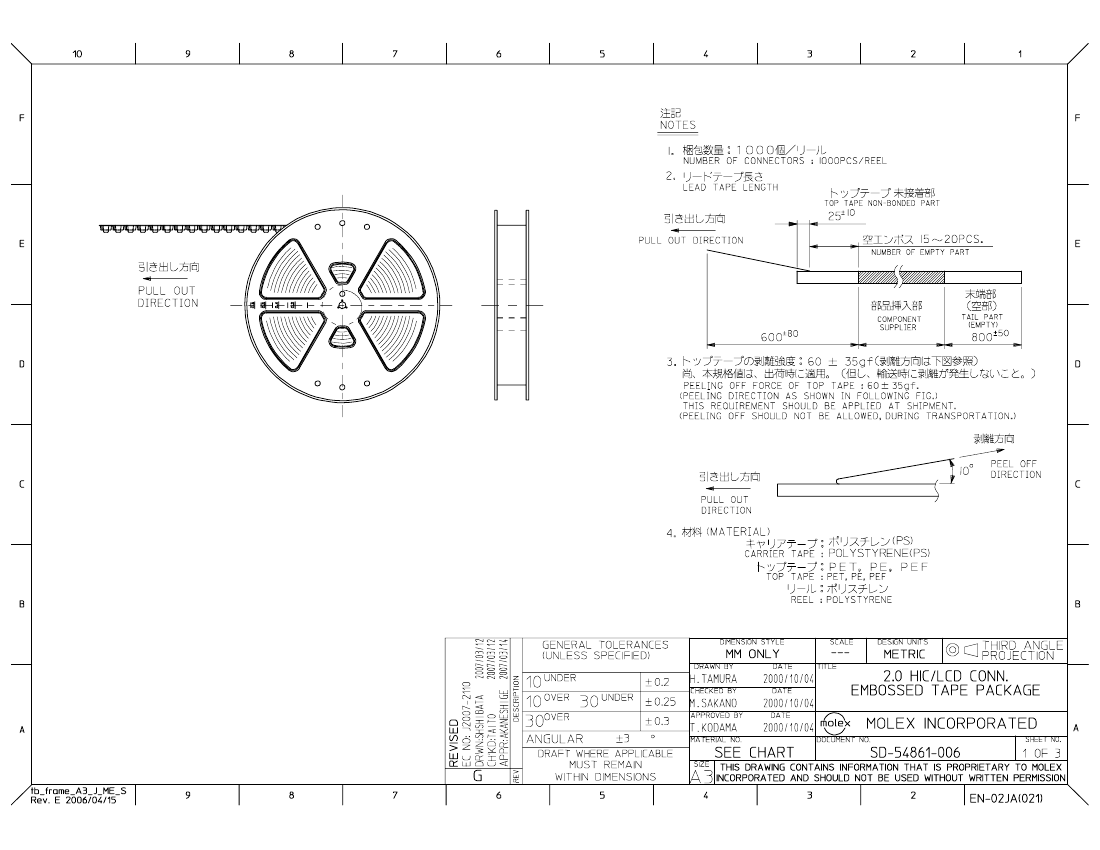

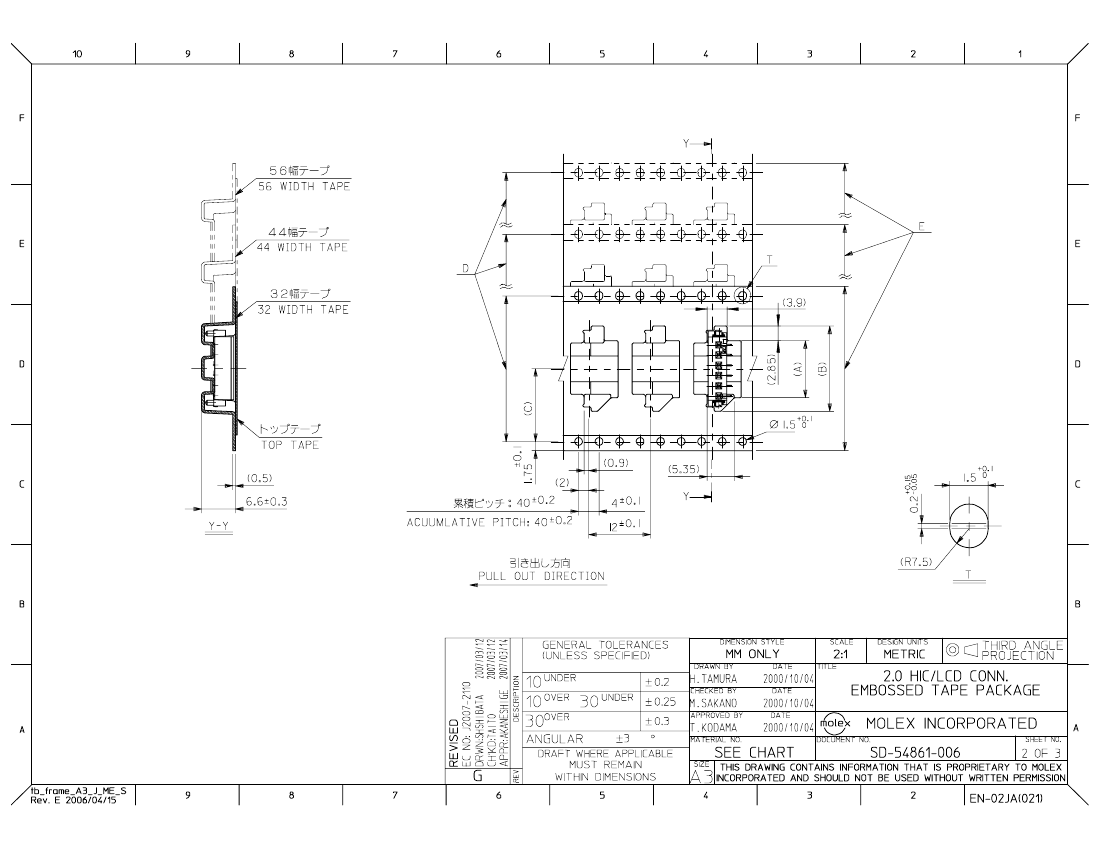

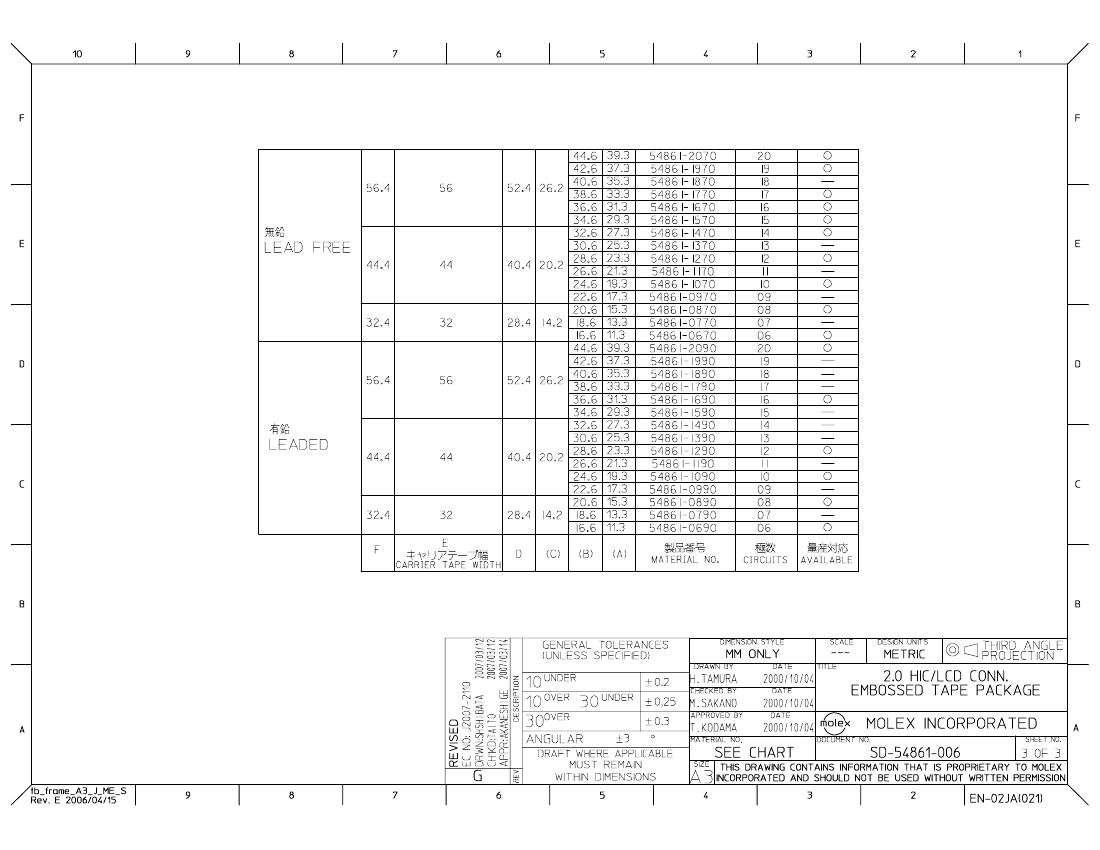

Sales Drawing
PS-54861-005, RPS-54861-005, RPS-54861-014
SD-54861-006, SD-54861-013
