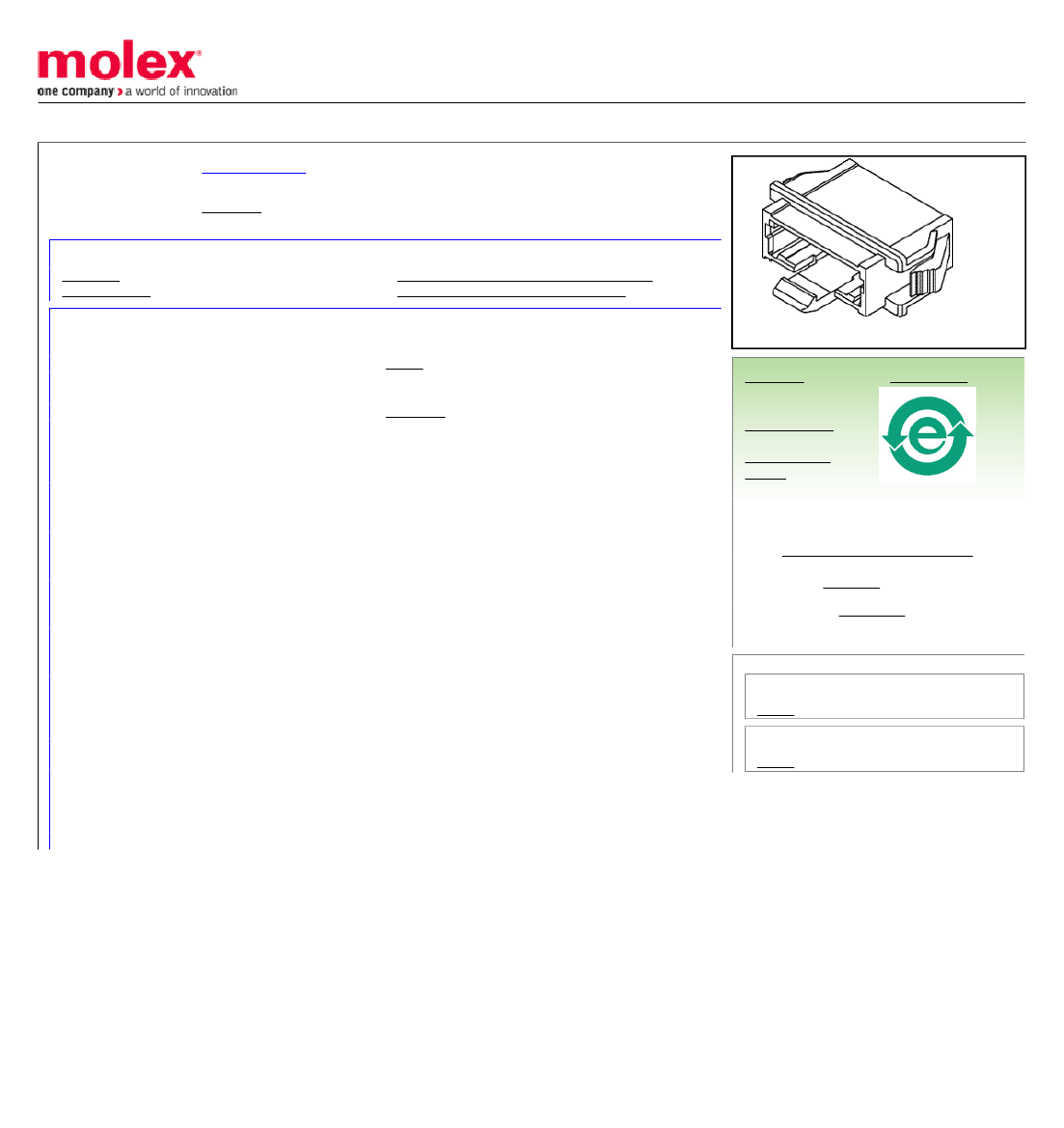

This document was generated on 06/02/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
Documents:
3D Model
Drawing (PDF)
0554821519
Active
mini_mi_ii
1.25mm (.049") Pitch Mini Mi II™ Wire-to-Wire Adapter, 15 Circuits, Lead-free
Product Specification PS-55482-006 (PDF)
RoHS Certificate of Compliance (PDF)
Series
Accessories
55482
For Panel Mounting
Adapter
mini_mi_ii
Mini Mi II™
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Comments
Component Type
Overview
Product Name
Physical
Circuits (Loaded)
Color - Resin
Gender
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Temperature Range - Operating
15
Natural
Male
Brass
Tin
Tin
Nylon
1
Bag
40
1.00
40
1.00
-20°C to +80°C
Electrical
Current - Maximum per Contact
1.5A
Search Parts in this Series
55482Series
Use With
54596
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification

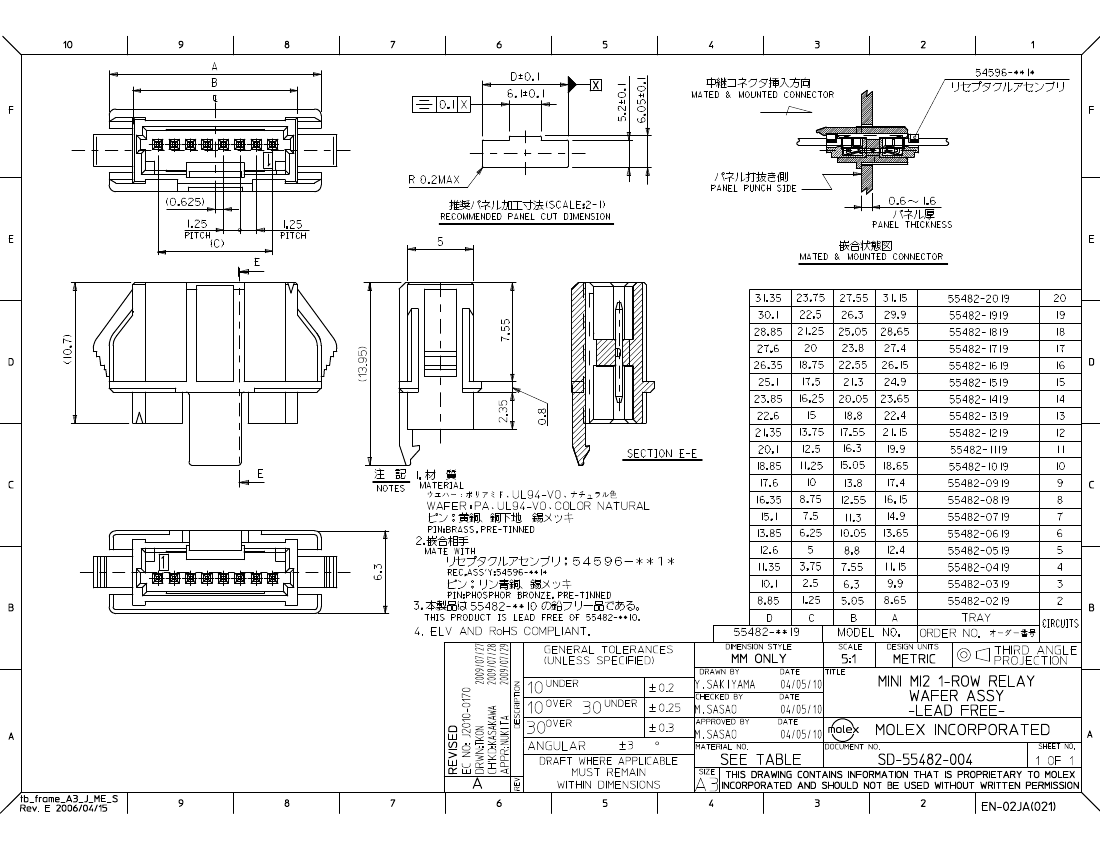

Sales Drawing
SPK-55482-001
PS-55482-006
SD-55482-004
This document was generated on 06/02/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
