This document was generated on 04/19/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
Documents:
3D Model

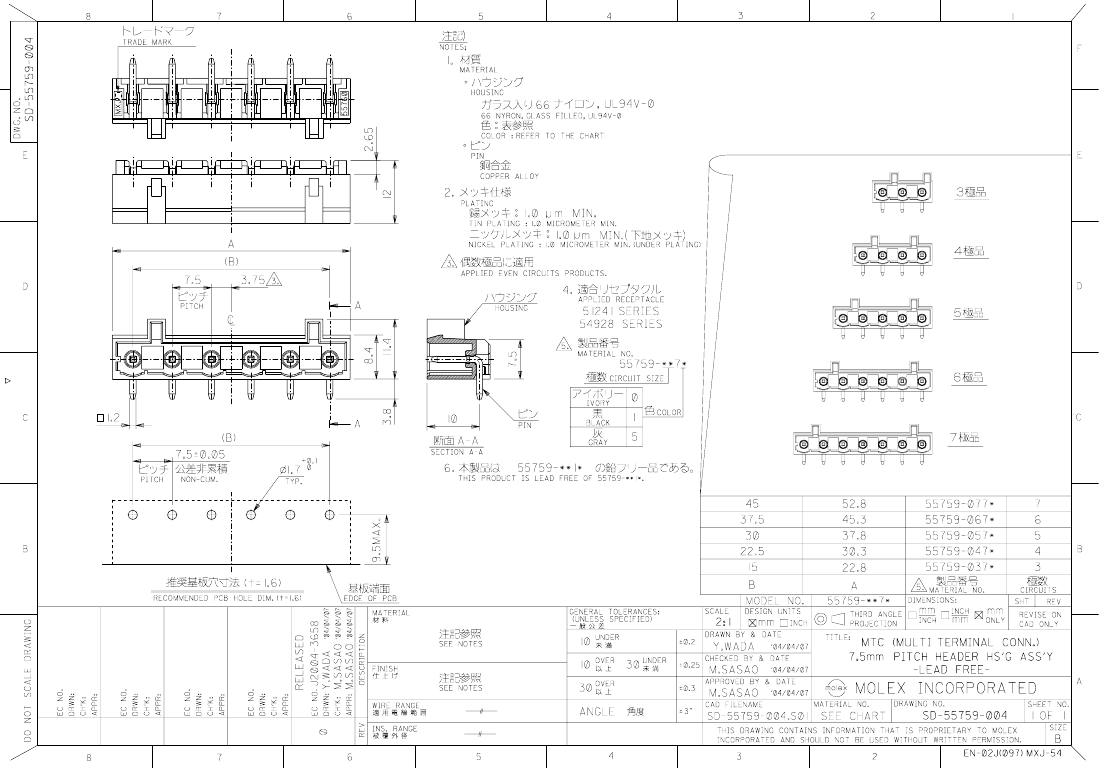

Drawing (PDF)
0557590670
Active
7.50mm (.295") Pitch MTC™ Right Angle PCB Header, 6 Circuits Version, White Color
Product Specification PS-51241-005 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR19980
E29179
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Series
General
Product Family
Series
Application
Component Type
Product Name
Type
Terminal Blocks
55759
Wire-to-Board
PCB Header
MTC™
Euro Block
Physical
Circuits (Loaded)
Color - Resin
Entry Angle
Flammability
Lock to Mating Part
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
Wire Size AWG
6
Natural
N/A
94V-0
Yes
Tin
Tin
Nylon
1
Right Angle
0.149 In
3.80 mm
0.062 In
1.60 mm
No
0.295 In
7.50 mm
120
3
120
3
Yes
Closed Ends
No
-30°C to +85°C
Through Hole
N/A
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
55759Series
Mates With
51241 , 54928
Electrical
Current - Maximum per Contact
Voltage - Maximum
16A
400V
Material Info
Reference - Drawing Numbers
Product Specification
PS-51241-005
