Type DL

AC Rated 100 ºC Dry HID Lighting Capacitors

Round Plastic Case, Insulated Stranded Wire Leads, Metallized Polypropylene

Type DL dry capacitors are ideal for lighting applications. The

dry construction eliminates the possibility of any oil leaking

from the capacitor. Type DL is a 60,000 hour life capacitor

packaged in a round plastic case with long insulated stranded

wire leads for easy connection. Mounting hardware is available

to give the user flexibility in mounting or placing the units in

confined quarters.

Highlights:

Dry construction- UL94V0 dry resin filled

60,000 hours life

Inherently safe - self healing metallized film

UL recognized under E71645 (construction only - unprotect-

ed)

Mounting hardware available

94V0 plastic case and insulated stranded wire leads

No exposed live parts

No grounding required

No clearance requirements

Supplied with or without internal resistor

Specifica-

Capacitance Range:

Voltage Range:

Capacitance Tolerance:

Temperature Range:

Operating Frequency:

5.0 µF to 75 µF

120, 170, 200, 240, 280, 300, 360, 400 Vac

±3%

–25 ºC to +100 ºC

50/60 Hz

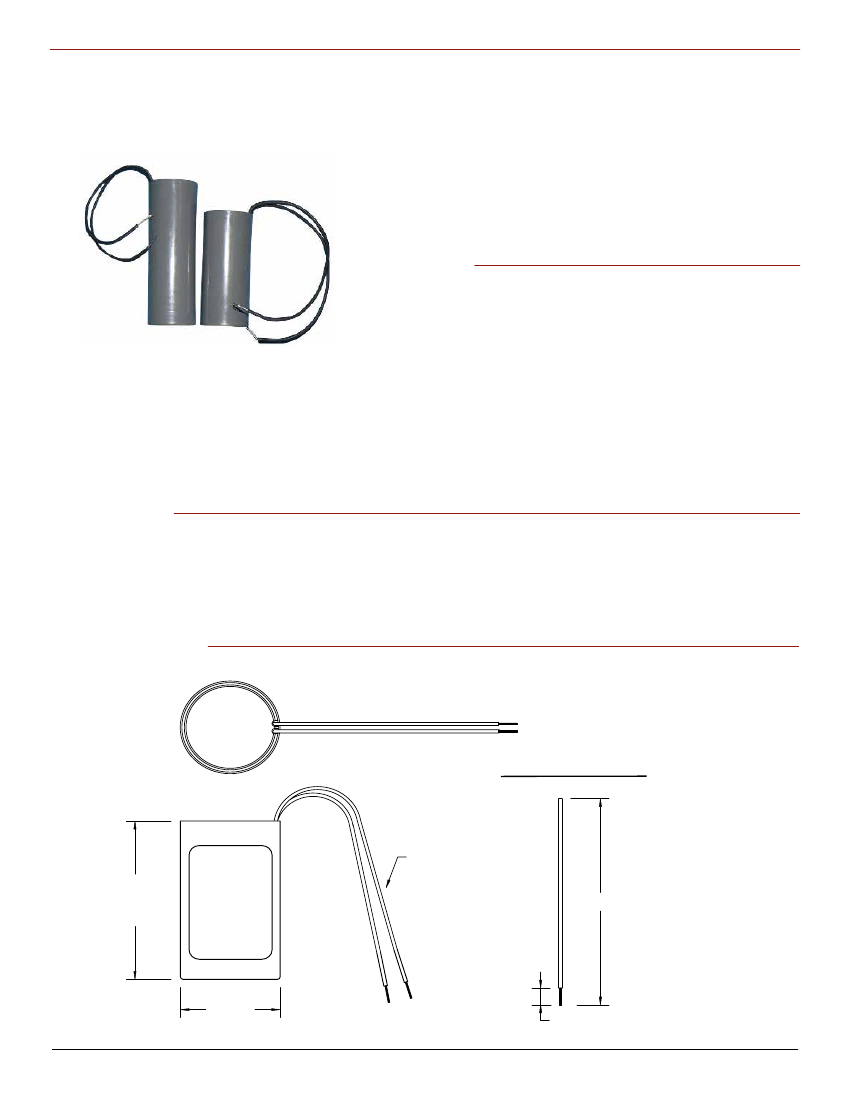

Outline Drawing

Wire Lead Dimensions

18 AWG Flexible Wire

150 ºC, UL and CSA Approved

H

+0.040"

-0.020"

1.0mm/-0.5mm)

2 @ 8.00"

D

+0.020"

-0.0"

(+0.5mm

-0 0mm)

0.375"

Nominal

CDE Cornell Dubilier

•

1605 E. Rodney French Blvd.

•

New Bedford, MA 02744

•

Phone: (508)996-8561

•

Fax: (508)996-3830

•

www.cde.com

Type DL

AC Rated 100 ºC Dry HID Lighting Capacitors

Part Numbering System

DL

Type

DL

BB

24

P

Case Material

P

= Plastic case, no cover

X

= Other case types

5

Cap

5

= 5.0 µF

20

= 20 µF

L

Tol.

L

= ±3%

55

Height

55

= 55 mm

68

= 68 mm

92

= 92mm

W

Terminals

W

= Insulated wire leads

WR

= Insulated wire leads

with internal resistor

with ¼" terminals

Z

= Customer Specified

Base Type Rated AC Voltage

AA

= 30 mm

BB

= 40 mm

CC =

45 mm

DD =

50 mm

12

= 120 Vac

17

= 170 Vac

20

= 200 Vac

24

= 240 Vac

28

= 280 Vac

30

= 300 Vac

36

= 360 Vac

40

= 400 Vac

Q

= Plastic case, plastic cover

18.5

= 18.5 µF

X

= Other

117

= 117 mm

WT

= Insulated wire leads

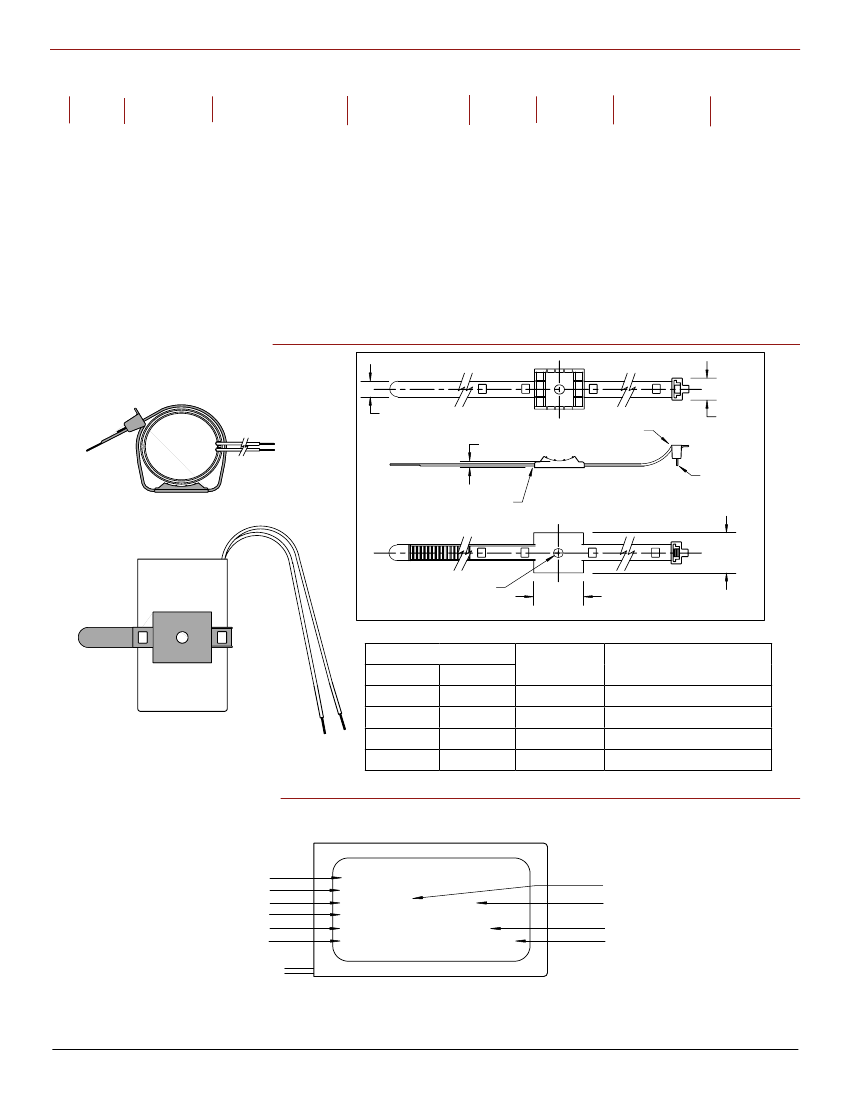

HID Mounting Hardware

0.5"

(12.7mm)

0.18"

(4.6mm)

Finger Grip

0.65"

(16.5mm)

Release

Tab

Typical Release

Tab Location

1.10"

(2.79mm)

Ø0.203"

(5.1mm)

1.10"

(2.79mm)

Capacitor Diameter

(in)

1.18

1.58

1.77

1.97

(mm)

30

40

45

50

Base Code

AA

BB

CC

DD

Bracket Part Number

PDUMS2445

PDUMS3245

Marking Requirements

Rated and maximum temperature rating

Protective device identification

Country of origin

Manufacturers' name or symbol

Manufacturers' part number

Nominal capacitance in microfarads

CDE

XXXXXXXXXXXXXX

XX µF XX Vac 50/60Hz

XX°C XXX°C MAX

Not Protected No PCB'S

Made In XXXXXX Date Code

Rated voltage (RMS)

Rated operating frequency

Non PCB identification

Manufacturing date code identification

CDE Cornell Dubilier

•

1605 E. Rodney French Blvd.

•

New Bedford, MA 02744

•

Phone: (508)996-8561

•

Fax: (508)996-3830

•

www.cde.com

Type DL

AC Rated 100 ºC Dry HID Lighting Capacitors

Ratings

120 Vac

Cap

(µF)

5

6

7

8

8.4

10

11

12

13

14

15

16

17

17.5

18

18.5

20

20.5

21

22

22.5

24

24.5

25

25.5

26

26.5

28

30

32

34

35

36

40

45

48

50

52

55

56

60

62

64

65

70

75

Catalog

Part Number

DLAA12P5L68W

DLAA12P6L68W

DLAA12P7L68W

DLAA12P8L68W

DLAA12P8.4L68W

DLAA12P10L68W

DLAA12P11L68W

DLAA12P12L68W

DLAA12P13L68W

DLAA12P14L68W

DLAA12P15L68W

DLBB12P16L68W

DLBB12P17L68W

DLBB12P18L68W

DLBB12P20L68W

DLBB12P21L68W

DLBB12P22L68W

DLBB12P24L68W

DLBB12P25L68W

DLBB12P26L68W

DLBB12P28L68W

DLBB12P30L68W

DLBB12P32L68W

DLCC12P34L68W

DLCC12P35L68W

DLCC12P36L68W

DLCC12P40L68W

DLDD12P45L68W

DLDD12P48L68W

DLDD12P50L68W

DLDD12P52L68W

DLDD12P55L68W

DLDD12P56L68W

DLCC12P60L92W

DLDD12P62L92W

DLDD12P64L92W

DLDD12P65L92W

DLDD12P70L92W

DLDD12P75L92W

Dia.

Ht.

Catalog

Part Number

DLAA20P5L68W

DLAA20P6L68W

DLAA20P7L68W

DLAA20P8L68W

DLAA20P8.4L68W

DLAA20P10L68W

DLAA20P11L68W

DLAA20P12L68W

DLAA20P13L68W

DLAA20P14L68W

DLBB20P15L68W

DLBB20P16L68W

DLBB20P17L68W

DLBB20P18L68W

DLBB20P20L68W

DLBB20P21L68W

DLBB20P22L68W

DLBB20P24L68W

DLBB20P25L68W

DLBB20P26L68W

DLBB20P28L68W

DLBB20P30L68W

DLBB20P32L68W

DLCC20P34L68W

DLCC20P35L68W

DLCC20P36L68W

DLCC20P40L68W

DLDD20P45L68W

DLDD20P48L68W

DLDD20P50L68W

DLDD20P52L68W

DLDD20P55L68W

DLDD20P56L68W

DLCC20P60L92W

DLDD20P62L92W

DLDD20P64L92W

DLDD20P65L92W

DLDD20P70L92W

DLDD20P75L92W

in (mm) in (mm)

1.18 (30) 2.68 (68)

1.58 (40) 2.68 (68)

1.77 (45) 2.68 (68)

1.97 (50) 2.68 (68)

1.77 (45) 3.62 (92)

1.97 (50) 3.62 (92)

200 Vac

Dia.

Ht.

Catalog

Part Number

DLAA24P5L68W

DLAA24P6L68W

DLAA24P7L68W

DLAA24P8L68W

DLAA24P8.4L68W

DLAA24P10L68W

DLBB24P11L68W

DLBB24P12L68W

DLBB24P13L68W

DLBB24P14L68W

DLBB24P15L68W

DLBB24P16L68W

DLBB24P17L68W

DLBB24P18L68W

DLBB24P20L68W

DLBB24P21L68W

DLBB24P22L68W

DLCC24P24L68W

DLCC24P25L68W

DLCC24P26L68W

DLCC24P28L68W

DLCC24P30L68W

DLDD24P32L68W

DLCC24P34L68W

DLDD24P35L68W

DLDD24P36L68W

DLDD24P40L68W

DLDD24P45L92W

DLDD24P48L92W

DLDD24P50L92W

DLDD24P52L92W

DLCC24P55L117W

DLCC24P56L117W

DLDD24P60L117W

DLDD24P62L117W

DLDD24P64L117W

DLDD24P65L117W

DLDD24P70L117W

—

in (mm) in (mm)

1.18 (30) 2.68 (68)

1.58 (40) 2.68 (68)

1.77 (45) 2.68 (68)

1.97 (50) 2.68 (68)

1.77 (45) 3.62 (92)

1.97 (50) 3.62 (92)

240 Vac

Dia.

Ht.

in (mm) in (mm)

1.18 (30) 2.68 (68)

1.58 (40) 2.68 (68)

1.77 (45) 2.68 (68)

1.97 (50) 2.68 (68)

1.77 (45) 2.68 (68)

1.97 (50) 2.68 (68)

1.97 (50) 3.62 (92)

1.77 (45) 4.61 (117)

1.97 (50) 4.61 (117)

—

DLBB12P17.5L68W 1.58 (40) 2.68 (68)

DLBB12P18.5L68W 1.58 (40) 2.68 (68)

DLBB12P20.5L68W 1.58 (40) 2.68 (68)

DLBB20P17.5L68W 1.58 (40) 2.68 (68)

DLBB20P18.5L68W 1.58 (40) 2.68 (68)

DLBB20P20.5L68W 1.58 (40) 2.68 (68)

DLBB24P17.5L68W 1.58 (40) 2.68 (68)

DLBB24P18.5L68W 1.58 (40) 2.68 (68)

DLBB24P20.5L68W 1.58 (40) 2.68 (68)

DLBB12P22.5L68W 1.58 (40) 2.68 (68)

DLBB12P24.5L68W 1.58 (40) 2.68 (68)

DLBB12P25.5L68W 1.58 (40) 2.68 (68)

DLBB12P26.5L68W 1.58 (40) 2.68 (68)

DLBB20P22.5L68W 1.58 (40) 2.68 (68)

DLBB20P24.5L68W 1.58 (40) 2.68 (68)

DLBB20P25.5L68W 1.58 (40) 2.68 (68)

DLBB20P26.5L68W 1.58 (40) 2.68 (68)

DLBB24P22.5L68W 1.58 (40) 2.68 (68)

DLCC24P24.5L68W 1.77 (45) 2.68 (68)

DLCC24P25.5L68W 1.77 (45) 2.68 (68)

DLCC24P26.5L68W 1.77 (45) 2.68 (68)

CDE Cornell Dubilier

•

1605 E. Rodney French Blvd.

•

New Bedford, MA 02744

•

Phone: (508)996-8561

•

Fax: (508)996-3830

•

www.cde.com

Type DL

AC Rated 100 ºC Dry HID Lighting Capacitors

Ratings

360 Vac

Capacitance

(µF)

5

6

7

8

8.4

10

11

12

13

14

15

16

17

17.5

18

18.5

20

20.5

21

22

22.5

24

24.5

25

25.5

26

26.5

28

30

32

34

35

36

40

Catalog

Part Number

DLBB36P5L68W

DLBB36P6L68W

DLBB36P7L68W

DLBB36P8L68W

DLBB36P8.4L68W

DLBB36P10L68W

DLBB36P11L68W

DLBB36P12L68W

DLCC36P13L68W

DLCC36P14L68W

DLCC36P15L68W

DLCC36P16L68W

DLCC36P17L68W

DLDD36P18L68W

DLDD36P20L68W

DLDD36P21L68W

DLDD36P22L68W

DLDD36P24L92W

DLDD36P25L92W

DLDD36P26L92W

DLDD36P28L92W

DLDD36P30L92W

DLCC36P32L117W

DLDD36P34L117W

DLDD36P35L117W

DLDD36P36L117W

DLDD36P40L117W

Dia.

in (mm)

Ht.

in (mm)

Catalog

Part Number

DLBB40P5L68W

DLBB40P6L68W

DLBB40P7L68W

DLBB40P8L68W

DLBB40P8.4L68W

DLCC40P10L68W

DLCC40P11L68W

DLDD40P12L68W

DLDD40P13L68W

DLDD40P14L68W

DLCC40P15L68W

DLCC40P16L92W

DLDD40P17L92W

DLDD40P17.5L92W

DLDD40P18L92W

DLDD40P18.5L92W

DLDD40P20L92W

DLDD40P20.5L92W

DLDD40P21L92W

DLCC40P22L117W

DLDD40P24L117W

DLDD40P25L117W

DLDD40P26L117W

DLDD40P28L117W

DLDD40P30L117W

—

400 Vac

Dia.

in (mm)

Ht.

in (mm)

1.58 (40) 2.68 (68)

1.77 (45) 2.68 (68)

1.97 (50) 2.68 (68)

1.97 (50) 3.62 (92)

1.77 (45) 4.61 (117)

1.97 (50) 4.61 (117)

1.58 (40) 2.68 (68)

1.77 (45) 2.68 (68)

1.97 (50) 2.68 (68)

1.77 (45) 3.62 (92)

1.97 (50) 3.62 (92)

1.77 (45) 4.61 (117)

1.97 (50) 4.61 (117)

—

DLDD36P17.5L68W 1.97 (50) 2.68 (68)

DLDD36P18.5L68W 1.97 (50) 2.68 (68)

DLDD36P20.5L68W 1.97 (50) 2.68 (68)

DLCC36P22.5L92W 1.77 (45) 3.62 (92)

DLDD36P24.5L92W 1.97 (50) 3.62 (92)

DLDD36P25.5L92W 1.97 (50) 3.62 (92)

DLDD36P26.5L92W 1.97 (50) 3.62 (92)

DLCC40P22.5L117W 1.77 (45) 4.61 (117)

DLDD40P24.5L117W 1.97 (50) 4.61 (117)

DLDD40P25.5L117W 1.97 (50) 4.61 (117)

DLDD40P26.5L117W 1.97 (50) 4.61 (117)

CDE Cornell Dubilier

•

1605 E. Rodney French Blvd.

•

New Bedford, MA 02744

•

Phone: (508)996-8561

•

Fax: (508)996-3830

•

www.cde.com

Type DL

AC Rated 100 ºC Dry HID Lighting Capacitors

Notice and Disclaimer:

All product drawings, descriptions, specifications, statements, information and

data (collectively, the “Information”) in this datasheet or other publication are subject to change. The

customer is responsible for checking, confirming and verifying the extent to which the Information con-

tained in this datasheet or other publication is applicable to an order at the time the order is placed. All

Information given herein is believed to be accurate and reliable, but it is presented without any guaran-

tee, warranty, representation or responsibility of any kind, expressed or implied. Statements of suitability

for certain applications are based on the knowledge that the Cornell Dubilier company providing such

statements (“Cornell Dubilier”) has of operating conditions that such Cornell Dubilier company regards

as typical for such applications, but are not intended to constitute any guarantee, warranty or representa-

tion regarding any such matter – and Cornell Dubilier specifically and expressly disclaims any guarantee,

warranty or representation concerning the suitability for a specific customer application, use, storage,

transportation, or operating environment. The Information is intended for use only by customers who

have the requisite experience and capability to determine the correct products for their application. Any

technical advice inferred from this Information or otherwise provided by Cornell Dubilier with reference

to the use of any Cornell Dubilier products is given gratis (unless otherwise specified by Cornell Dubilier),

and Cornell Dubilier assumes no obligation or liability for the advice given or results obtained. Although

Cornell Dubilier strives to apply the most stringent quality and safety standards regarding the design

and manufacturing of its products, in light of the current state of the art, isolated component failures may

still occur. Accordingly, customer applications which require a high degree of reliability or safety should

employ suitable designs or other safeguards (such as installation of protective circuitry or redundancies

or other appropriate protective measures) in order to ensure that the failure of an electrical component

does not result in a risk of personal injury or property damage. Although all product-related warnings,

cautions and notes must be observed, the customer should not assume that all safety measures are indi-

cated in such warnings, cautions and notes, or that other safety measures may not be required.

CDE Cornell Dubilier

•

1605 E. Rodney French Blvd.

•

New Bedford, MA 02744

•

Phone: (508)996-8561

•

Fax: (508)996-3830

•

www.cde.com

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CDE [ CORNELL DUBILIER ELECTRONICS ]
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
Other features	RATED AC VOLTAGE (V):200
capacitance	8.4 µF
Capacitor type	FILM CAPACITOR
diameter	30 mm
dielectric materials	POLYPROPYLENE
JESD-609 code	e3
length	68 mm
Manufacturer's serial number	DL
Installation features	CHASSIS MOUNT
negative tolerance	3%
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-25 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
positive tolerance	3%
Rated (AC) voltage (URac)	200 V
series	DL
surface mount	NO
Terminal surface	Tin (Sn)
Terminal shape	FLEXIBLE WIRE

DLAA20P8.4L68W

DLAA20P8.4L68W Overview

DLAA20P8.4L68W Parametric

Preview

Recommended Resources
