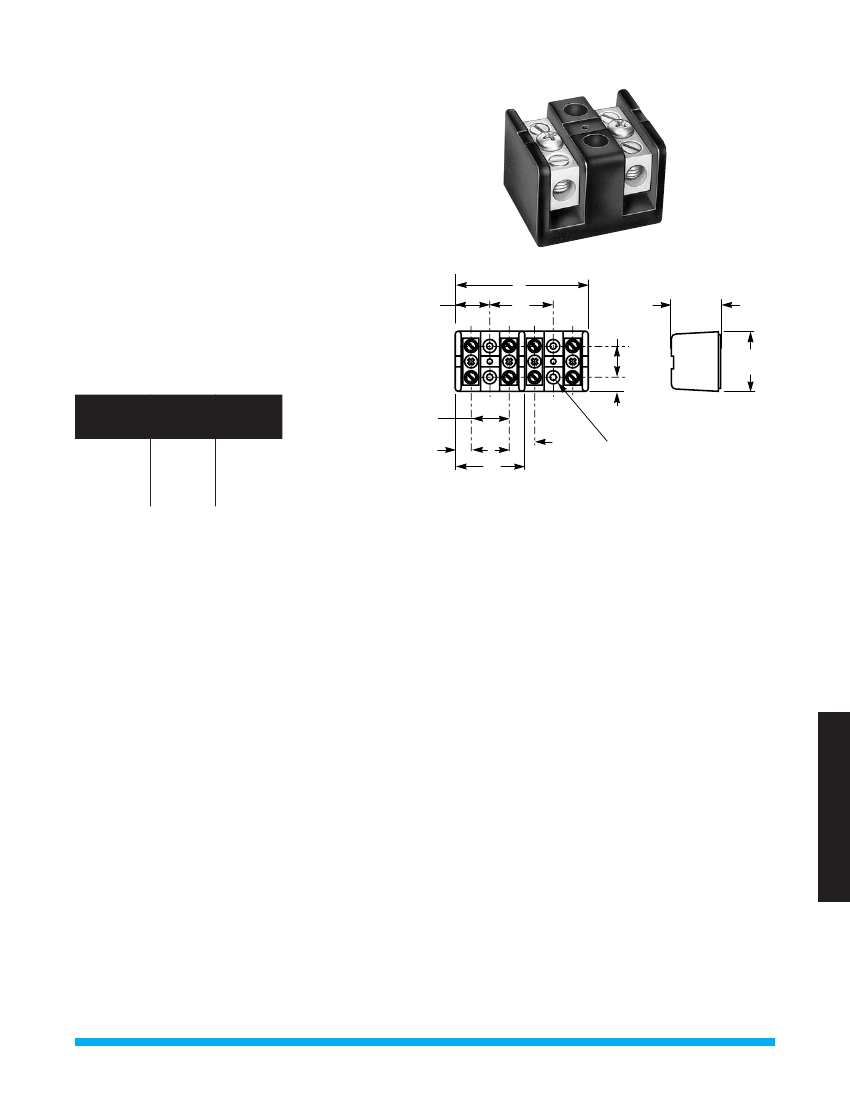

Series 14002
Barrier Terminal Blocks
Single & Double Row
Filtered Connectors
SPECIFICATIONS
Rating:
115A, 600V
Poles:
2-6 poles
Wire Range:
#2-14 AWG CU / #2-8 AWG AL
Torque Rating:
40-50 in-lb.
Operating Temperature:
150°C
Marking:
Marking strip optional, consult factory.
Options:
CP = pressure plate, rated 60A, 600V
Q = quick-connect, rated 50A, 600V
To order options, enter letter code in front of
Part No.: ie; CP14002-2
Breakdown Voltage:
Agency Information:
UL/CSA; CE Certified
Part
Number
14002-2
14002-3
14002-4
14002-5
14002-6
A
.87
(22.1)
B
.75
(19.1)
1.25
(31.8)
1.50
(38.1)
Euro-MAG Series
PCB – Spring Clamp
A
1.75
2.37
3.34
3.96
4.59
B
–
–
1.59
2.21
2.84
.96
(24.38)
.39
(9.90)
A*
.62
(15.74)
.37
(9.4)
.17 (4.3) dia. holes
with .34 (8.6) dia. x
.75 (19.1) deep c'bore
* Dimensions in inches. To convert to millimeters, multiply by 25.4.
Note: “A” dimension for 14002-2 & 14002-3 only. (14002-2 &
14002-3 have only two mounting holes.)
Base & Rail Mount
Connectors
Series 14004
Dead Front Terminal Blocks
SPECIFICATIONS
Rating:
90A, 600V
Poles:
2 to 12 poles
Wire Range:
#4-14 AWG CU / #4-8 AWG AL
Torque Rating:
4-6AWG 35 in-lb., 8AWG 25 in-lb., 10-14AWG 20 in-lb.
Operating Temperature:
75°C
Marking:
Marking strip optional, consult factory.
Agency Information:
UL/CSA; CE Certified
Part
Number
14004-2
14004-3
14004-4
14004-5
14004-6
14004-7
14004-8
14004-9
14004-10
14004-11
14004-12
Power Distribution Blocks
A
1.81
2.31
2.81
3.31
3.81
4.31
4.81
5.31
5.81
6.31
6.81
B
1.43
1.93
2.43
2.93
3.43
3.93
4.43
4.93
5.43
5.93
6.43
.65
(16.5)
.50
(12.7)
.21 (5.3)
dia. holes
1.50
(38.1)
.50
(12.7)
.18
(4.8)
B
A
.75
(19.1)
1.12
(28.4)
WIRE MANAGEMENT PRODUCTS
* Dimensions in inches. To convert to millimeters, multiply by 25.4.
