170M3922 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 170M3922

170M3922: DescriptionElectric Fuse, 63A, 1000VAC, 150000A (IR), Inline/holder; CategoryCircuit protection Circuit protection; File Size328KB，4 Pages; ManufacturerCooper Industries; Environmental Compliance

Download Datasheet Parametric View All

170M3922 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	170M3922	-	-	View	Buy Now

170M3922 Overview

Electric Fuse, 63A, 1000VAC, 150000A (IR), Inline/holder

170M3922 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Cooper Industries
Reach Compliance Code	unknow
body width	43 mm
body height	61 mm
Body length or diameter	72.5 mm
Built-in features	INDICATOR
Circuit protection type	ELECTRIC FUSE
Joule integral nominal	215 J
Manufacturer's serial number	170M
Installation features	INLINE/HOLDER
physical size	72.5mm x 43mm x 61mm
Rated breaking capacity	150000 A
Rated current	63 A
Rated voltage (AC)	1000 V
Guideline	CE; IEC; UL
surface mount	NO

Preview

Download Datasheet

View All

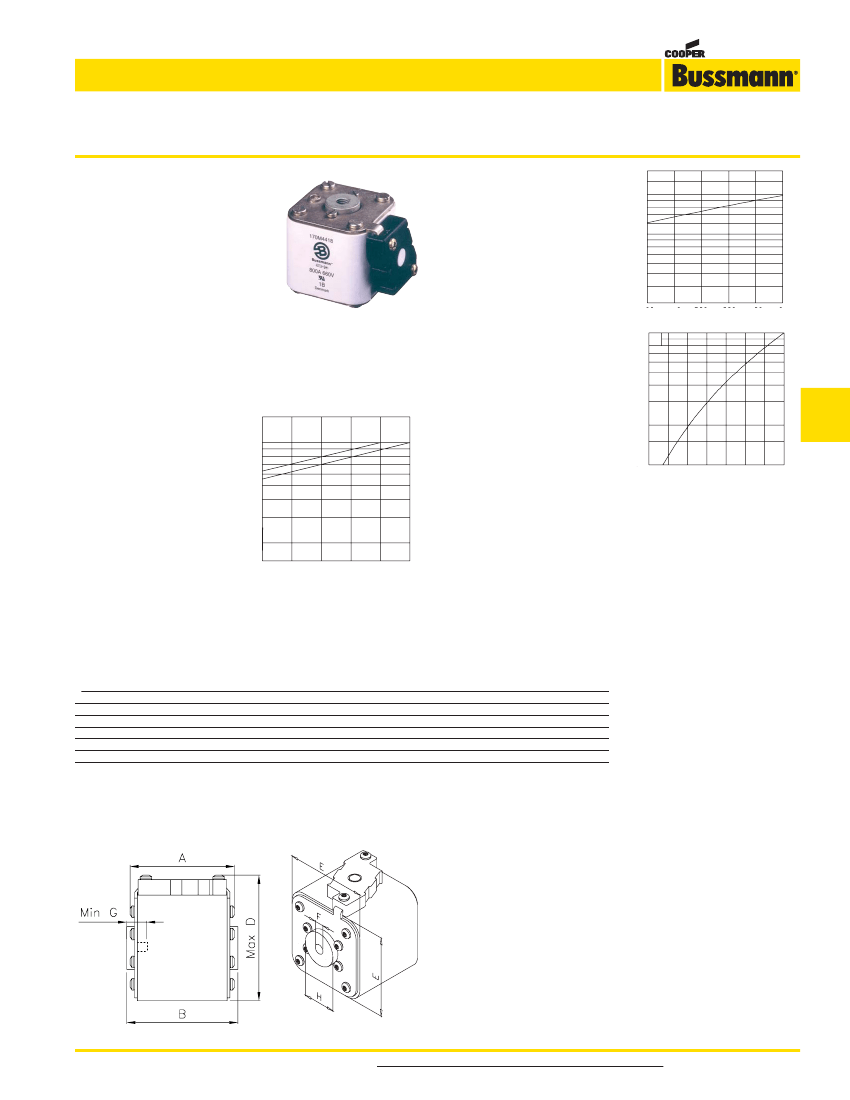

High Speed Fuses

Square body flush end contact — 1000V (IEC): 50–1400A

1000V (IEC) 50–1400A

Specifications

Description:

Square body flush

end contact high speed fuses.

Dimensions:

See dimensions

illustration.

Ratings:

Volts: — 1000Vac.

Amps: — 50-1400A

IR: — 150kA (Est.300kA) RMS Sym.

Agency Information:

CE, Designed and tested to IEC

60269: Part 4, UL Recognized.

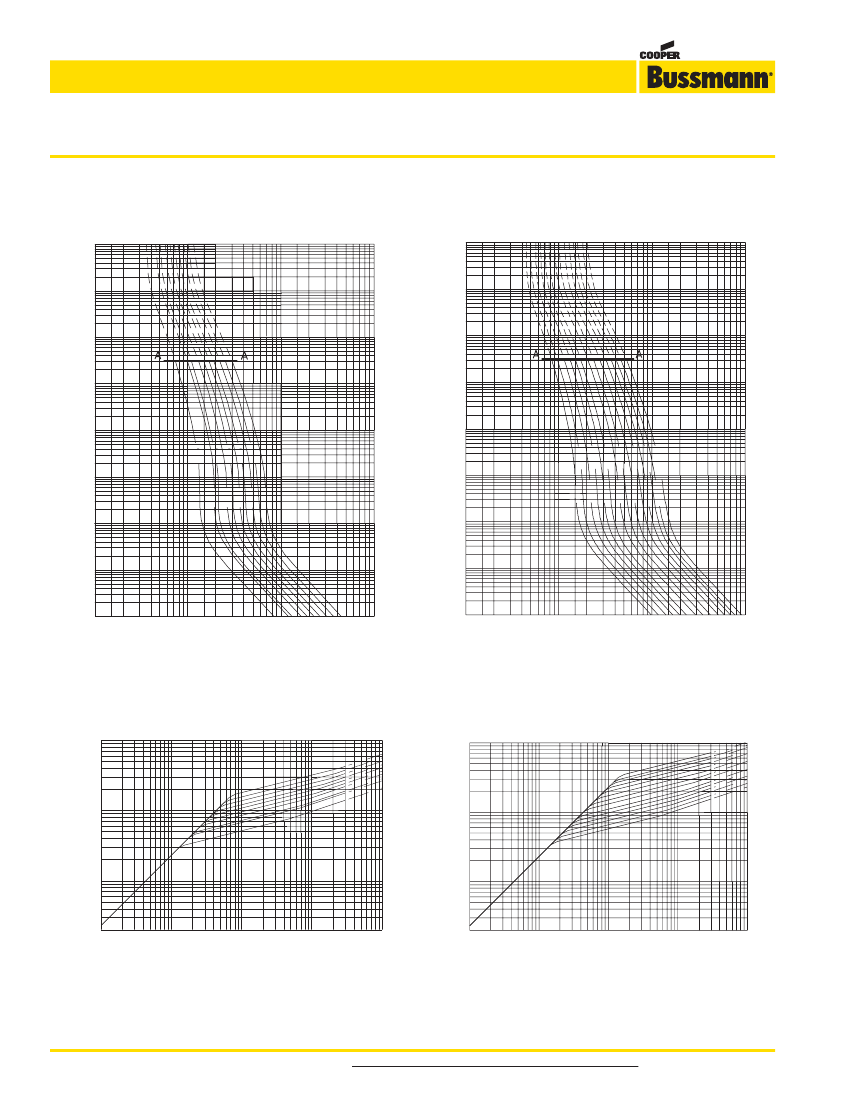

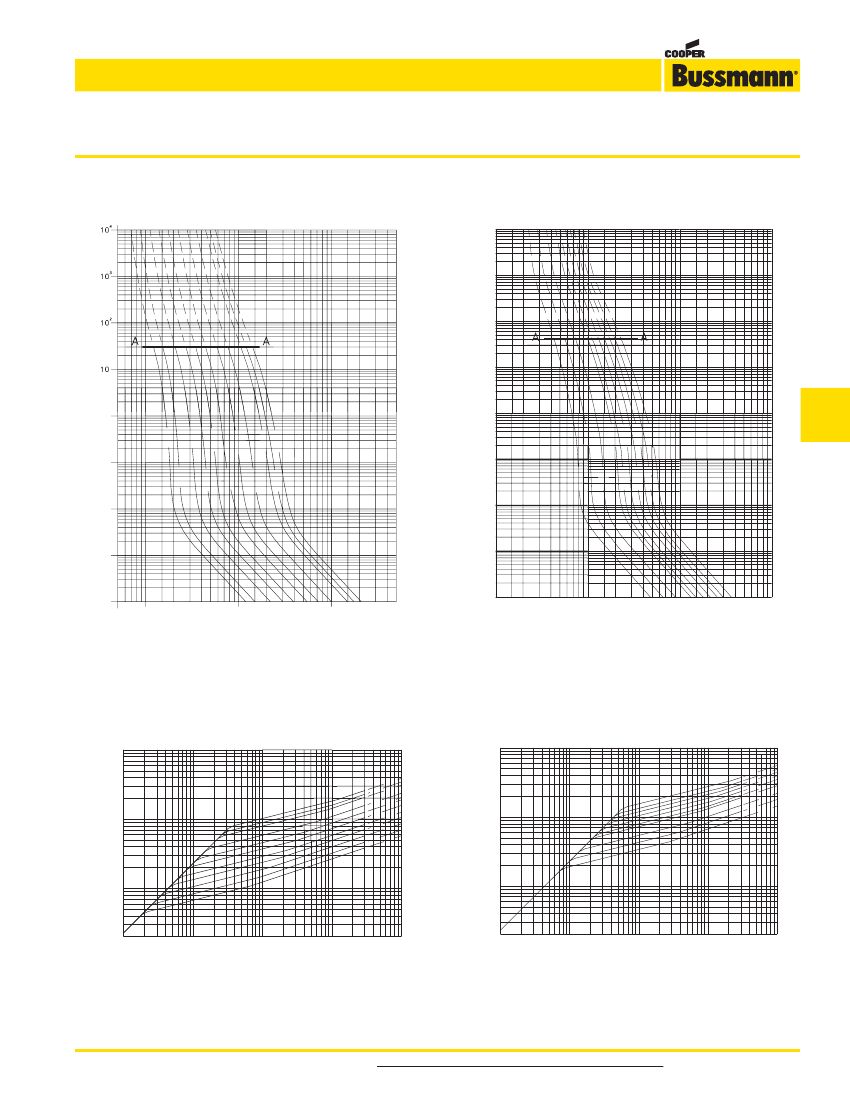

Electrical Characteristics

Total clearing I

The total clearing I t at

rated voltage and at power

factor of 15% are given

in the electrical

characteristics. For other

voltages, the clearing I

t is

found by multiplying by

correction factor, K, given

as a function of applied

working voltage, Eg, (rms).

Arc Voltage

This curve gives the peak

arc voltage, UL, which may

appear across the fuse

during its operation as a

function of the applied

working voltage Eg, (rms)

at a power factor of 15%.

Power Losses

Watts loss at rated current

is given in the electrical

characteristics. The curve

allows the calculation of

the power losses at load

currents lower than the

rated current. The

correction factor, Kp, is

given as a function of the

RMS load current, Ib, in %

of the rated current.

2,5

1,8

1,6

1,4

1,2

500

1,0

0,8

0,7

0,6

0,5

0,4

0,3

0,2

0,15

0,1

600

700

800

900

1000

High Speed

Fuses

1,5

1,0

90 100%

0,5

0,4

0,3

0,2

500

600

700

800

900

1000

Features and Benefits

• Excellent dc performance

• Low arc voltage and low energy let-through (I

• Low watts loss

• Superior cycling capability

Typical Applications

• DC common bus

• DC drives

• Power converters/rectifiers

• Reduced voltage starters

*Rated voltage 900V

Dimensions (mm)

Type –BKN/- and –GKN/-

Size

BKN/75+GKN/75

72.5

BKN/75+GKN/75

73.2

BKN/75+GKN/75

73.2

BKN/75+GKN/75

73.3

BKN/90+GKN/90

80.3

** Valid for fuses type –GKN/-.

1mm = 0.0394” / 1” = 25.4mm

74.4

75.4

91.4

Max D

M10

M12

F** (in)

⁄

” – 18 UNC-2B

⁄

” – 18 UNC-2B

⁄

” – 16 UNC-2B

⁄

” – 13 UNC-2B

⁄

” – 13 UNC-2B

Min G

ø17.5

ø20

ø24

ø30

For product data sheets, visit www.cooperbussmann.com/products/datasheet.asp
