B067-1131-706-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> B067-1131-706-Z

B067-1131-706-Z: DescriptionBoard Connector, 11 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug; CategoryThe connector The connector; File Size406KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric Compare View All

B067-1131-706-Z Overview

Board Connector, 11 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug

B067-1131-706-Z Parametric

Parameter Name	Attribute value
Maker	SMP Technology Inc.
Reach Compliance Code	unknow
Other features	ROHS COMPLIANT
body width	0.094 inch
subject depth	0.177 inch
body length	0.866 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
Manufacturer's serial number	B067
Plug contact pitch	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	3.429 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	3.9878 mm
Termination type	SURFACE MOUNT
Total number of contacts	11

Preview

Download Datasheet

View All

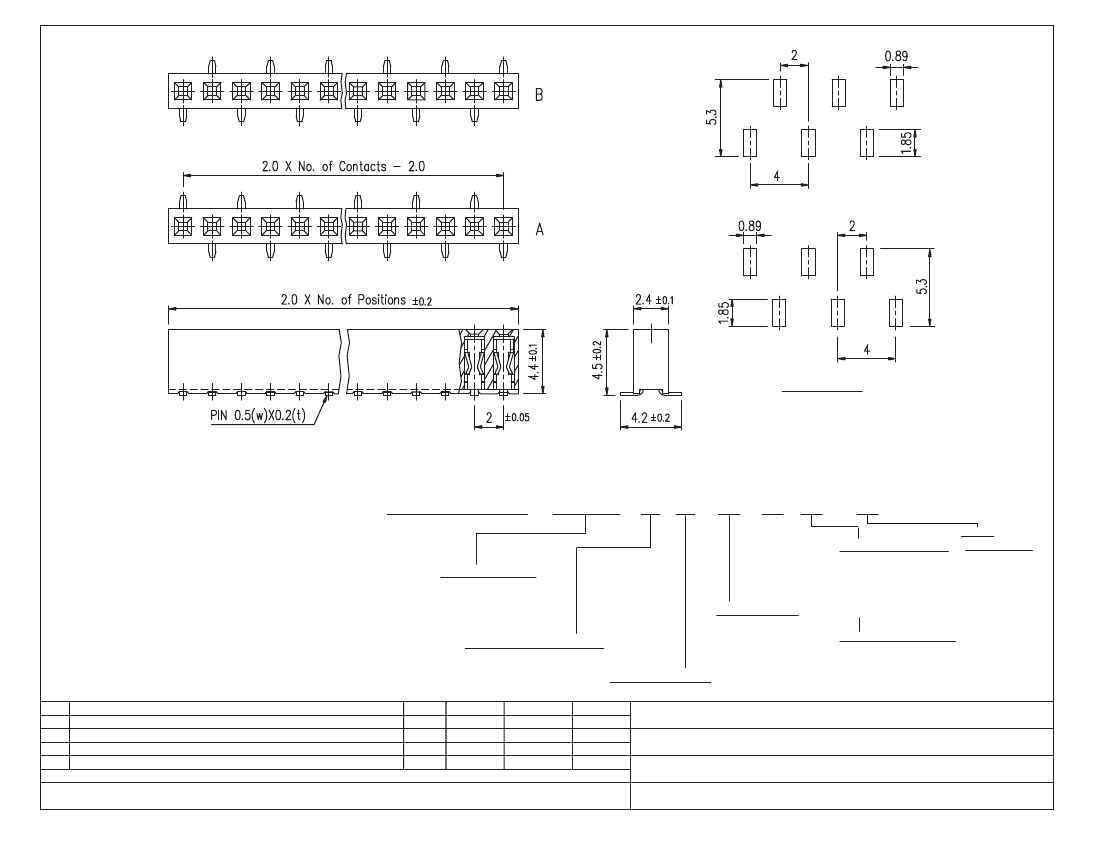

P.C.B LAYOUT

HOW TO ORDER:

ELECTRICAL:

CURRENT: 1A

CONTACT RESISTANCE: 20mΩ Max.

# OF CONTACTS:

INSULATOR RESISTANCE: 5000MΩ Min.

04 thru 40

DIELECTRIC WITHSTANDING VOLTAGE: 500VAC For 1 MIN.

OPERATING TEMPERATURE: -40°C to +105°C

MAX PROCESSING TEMPERATURE: 230° For 30 ~ 60 Sec. (260° For 10 Sec.)

BODY HEIGHT:

7 - 4.4mm

PLATING OVERALL:

0 - FULL TIN

1 - FULL Au FLASH

3 - 10u" Au

4 - 15u" Au

5 - 30u" Au

RoHS

COMPLIANT

MATERIAL:

INSULATOR: Polyester, UL 94V-0 ; Nylon-6T

CONTACT: Phosphor Bronze

CONTACT PLATING: Full Gold, Full Tin, Selective Plating

Rev

Issued

A Revised for RoHS Compliance

SCALE:n/a

TOL. DEC.

.X +/- 0.35

.XX +/- 0.25

.XXX +/- 0.15

CONTACT TAIL OPTIONS:

3 - SURFACE MOUNT w/OUT POST

HOUSING OPTION:

1 - SINGLE ROW TOP ENTRY

SELECTIVE PLATING:

6 - Au FLASH CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

Drawn Checked

S.M.

A.M.

B.S.

S.M.

Appproved

Date

S.M.

08/07/03

S.M.

12/15/06

SMP TECHNOLOGY, INC.

Receptacle Assembly, 2.00mm Pitch, Single Row, Surface Mount

Top Entry, Short Body, 4.4mm Height

ANGLE +/- 5°

UNIT: mm

SERIES: B067

Pg: 1

B067-1131-706-Z Related Products

	B067-1131-706-Z	B067-0631-706-Z	B067-1331-706-Z
Description	Board Connector, 11 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug	Board Connector, 6 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug	Board Connector, 13 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug
Maker	SMP Technology Inc.	SMP Technology Inc.	SMP Technology Inc.
Reach Compliance Code	unknow	unknown	unknow
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.094 inch	0.094 inch	0.094 inch
subject depth	0.177 inch	0.177 inch	0.177 inch
body length	0.866 inch	0.472 inch	1.024 inch
Body/casing type	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	AU	AU
Contact completed and terminated	TIN	TIN	TIN
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω
Manufacturer's serial number	B067	B067	B067
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	2	2	2
Number of rows loaded	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	3.429 mm	3.429 mm	3.429 mm
Plating thickness	FLASH inch	FLASH inch	FLASH inch
Rated current (signal)	1 A	1 A	1 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	3.9878 mm	3.9878 mm	3.9878 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	11	6	13
