B067-1337-507-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> B067-1337-507-Z

B067-1337-507-Z: DescriptionBoard Connector, 13 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug; CategoryThe connector The connector; File Size435KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

B067-1337-507-Z Overview

Board Connector, 13 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug

B067-1337-507-Z Parametric

Parameter Name	Attribute value
Maker	SMP Technology Inc.
Reach Compliance Code	unknow
Other features	ROHS COMPLIANT
body width	0.079 inch
subject depth	0.169 inch
body length	1.043 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
Manufacturer's serial number	B067
Plug contact pitch	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.794 mm
Plating thickness	10u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	3.9878 mm
Termination type	SURFACE MOUNT
Total number of contacts	13

Preview

Download Datasheet

View All

HOW TO ORDER:

ELECTRICAL:

# OF CONTACTS:

CURRENT: 1A

04 thru 84

CONTACT RESISTANCE: 20mΩ Max.

INSULATOR RESISTANCE: 5000MΩ Min.

CONTACT TAIL OPTIONS:

DIELECTRIC WITHSTANDING VOLTAGE: 500VAC For 1 MIN.

3 - SURFACE MOUNT w/OUT POST

OPERATING TEMPERATURE: -40°C to +105°C

MAX PROCESSING TEMPERATURE: 230° For 30 ~ 60 Sec. (260° For 10 Sec.)

BODY HEIGHT:

5 - 4.0mm

RoHS

PLATING OVERALL:

COMPLIANT

0 - FULL TIN

1 - FULL Au FLASH

3 - 10u" Au

4 - 15u" Au

5 - 30u" Au

SELECTIVE PLATING:

6 - Au FLASH CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

MATERIAL:

INSULATOR: Polyester, UL 94V-0 ; Nylon-6T

CONTACT: Phosphor Bronze

CONTACT PLATING: Full Gold, Full Tin, Selective Plating

Rev

Issued

Revised for RoHS Compliance

SCALE:n/a

TOL. DEC.

.X +/- 0.35

.XX +/- 0.25

.XXX +/- 0.15

ANGLE +/- 5°

UNIT: mm

Drawn Checked

S.M.

A.M.

B.S.

S.M.

HOUSING OPTION:

7 - SINGLE ROW TOP ENTRY

(LONG BODY)

Appproved

Date

S.M.

08/08/03

S.M.

12/15/06

SMP TECHNOLOGY, INC.

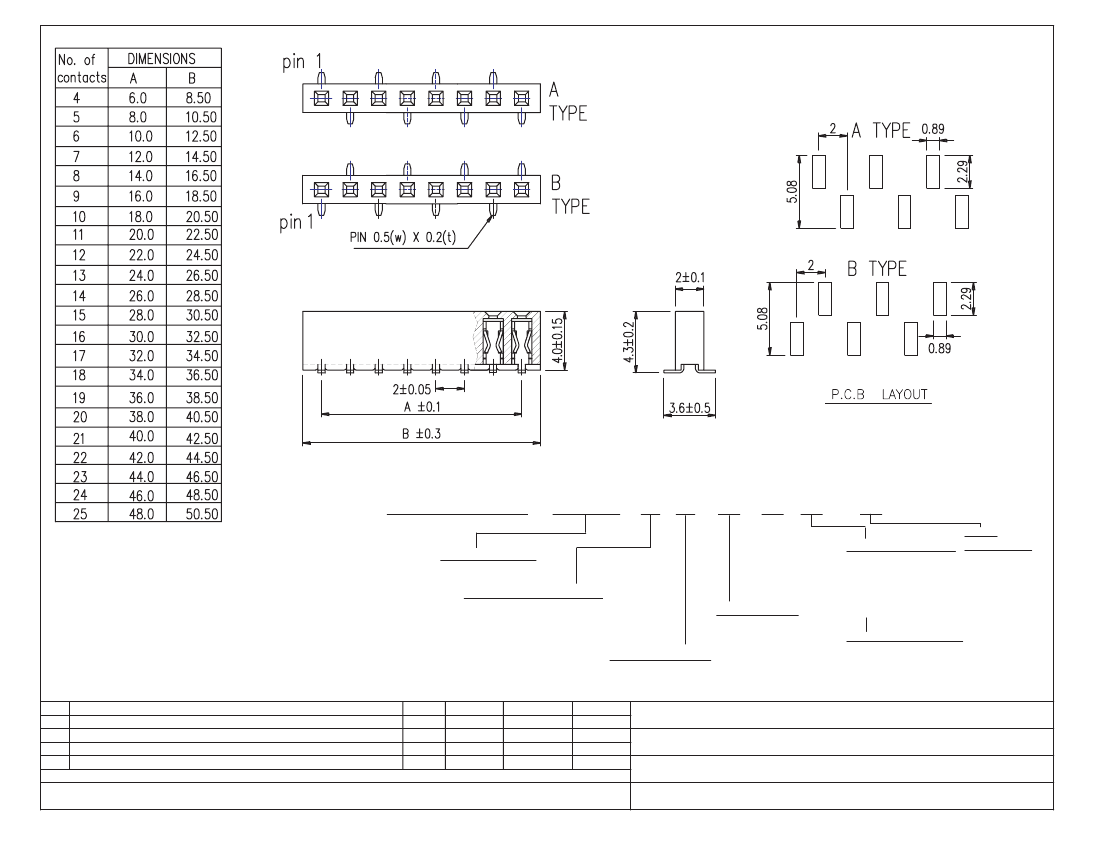

Receptacle Assembly, 2.00mm Pitch, Single Row, Surface Mount

Top Entry, Without Mounting Post, 4.0mm Height

SERIES: B067

Pg: 1
