CLSW-145121332

Description
Switch, 1520nm Min, 1580nm Max, 1X4 Port, FC/PC Connector, Through Hole Mount, 53.50 X 38.30 MM, 8.50 MM HEIGHT, PACKAGE-8
CategoryWireless rf/communication    Optical fiber
File Size246KB,3 Pages
ManufacturerLaser Components USA Inc.
Environmental Compliance
Download Datasheet Parametric View All

CLSW-145121332 Overview

Switch, 1520nm Min, 1580nm Max, 1X4 Port, FC/PC Connector, Through Hole Mount, 53.50 X 38.30 MM, 8.50 MM HEIGHT, PACKAGE-8

CLSW-145121332 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerLaser Components USA Inc.
Reach Compliance Codeunknow
Other features-40 DEGREE CENTIGRADE MIN TEMPERATURE VERSION ALSO AVAILABLE
body width38.3 mm
body height8.5 mm
Body length or diameter53.5 mm
Connection TypeFC/PC CONNECTOR
Crosstalk45 dB
Fiber optic equipment typesSWITCH
Fiber type900, SMF-28
Installation featuresTHROUGH HOLE MOUNT
Maximum operating temperature70 °C
Minimum operating temperature-5 °C
Maximum operating wavelength1580 nm
Minimum operating wavelength1520 nm
Nominal operating wavelength1550 nm
Port configuration1X4
surface mountNO
Switch actionLATCHING
switching speed0.05 ms
switching voltage2.5 V
CrystaLatch
TM
1x3,1x4
Solid State Fiberoptic Switch
(Protected by U.S. patents 7224860,6757101,6577430 and pending patents)
Features
Solid-State High Speed
Non-Mechanical
Ultra-High Reliability
Fail-Safe Latching
Low Insertion Loss
Direct Low Voltage Drive
Compact
Low Cost
The CL Series 1x3,1x4 fiber optical switch connects optical channels by
redirecting an incoming optical signal into a selected output fiber. This
is achieved using patented non-mechanical configurations and activated
via an electrical control signal. Latching operation preserves the
selected optical path after the drive signal has been removed. The all
solid sate CL 1x3,1x4 fiberoptic switch features low insertion loss, high
extinction ratio, high channel isolation, and extremely high reliability
and repeatability. It is designed to meet
the most demanding switching
requirements of continuous operation
without failure, longevity, operation
under shock/vibration environment and
large temperature variations, and fast
response time.
.
The switch also has build-in circulator
and isolator functions. Electronic driver
is available for this series of switches.
Product Description
Performance Specifications
CL Series 1x3, 1x4 Switch
Operation Wavelength
2
1
Applications
Optical Signal Routing
Network Protection/
Restoration
Burst Switching
Configurable Add/Drop
Signal Monitoring
Instrumentation
Insertion Loss
Polarization Dependent Loss
Cross Talk
Polarization Mode Dispersion
Return Loss
2
Switch Time (Rise, Fall)
Repetition Rate
Operating Temperature
Drive Current(2.5V)
Current Pulse Duration
Optical Power
Storage Temperature
Switch type
Fiber Type
Package Dimension
Min
1
520
1295
0.8
40
50
20
-5
3
±120
0.1
Typical
1550
1310
1.3
0.1
45
0.1
50
5K
Max
1580
1325
1.5
0.25
55
0.2
200
Unit
nm
nm
dB
dB
dB
ps
dB
µs
Hz
o
C
mA
ms
mW
o
C
70
±140
±250
1
100
300
500
4
-40
85
Solid-Status Latching
Corning SMF28

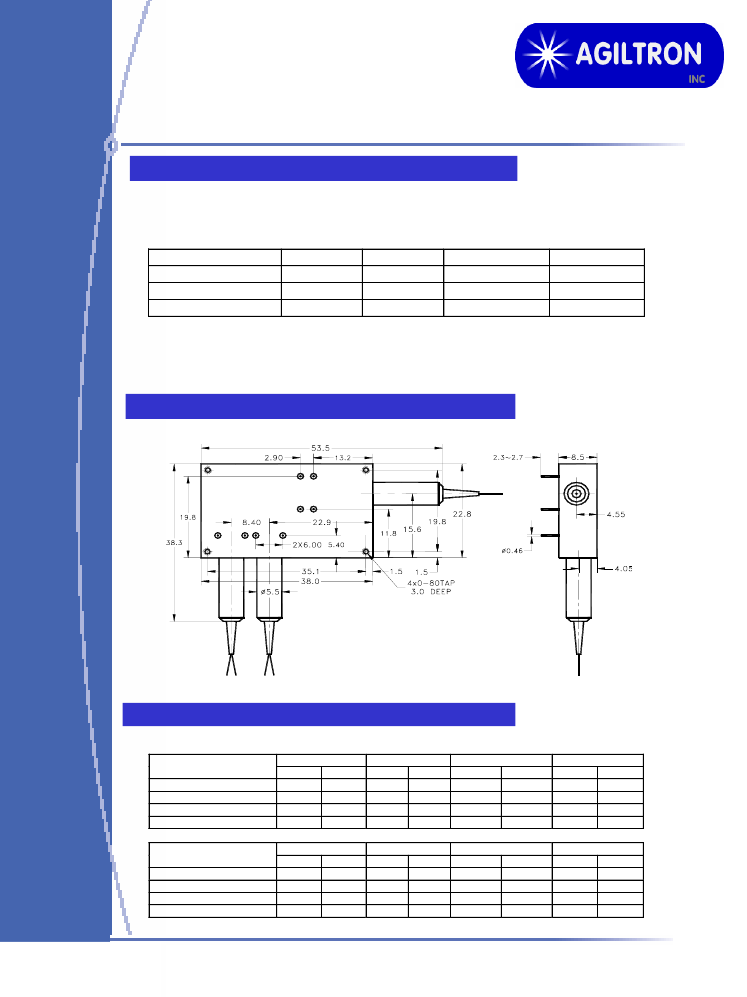

53.5L x 38.3W x 8.5H
mm
1.Agiltron can achieve same SPEC at L band
2.Exclude connectors
3. -40
o
C version is also available .
4. High power version available.
15 Cabot Road, Woburn, MA 01801 Tel: (781) 9351200 Fax: (781) 935-2040
LASER COMPONENTS GmbH
www.agiltron.com
Werner-von-Siemens-Str. 15, 82140 Olching, Germany, Phone: +49 8142 2864 0, Fax: +49 8142 2864 11, info@lasercomponents.com
