5-146205-1 datasheet, PDF - EEWORLD Datasheet

5-146205-1: DescriptionCONNECTOR, 30 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, ROHS COMPLIANT; CategoryThe connector The connector; File Size203KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

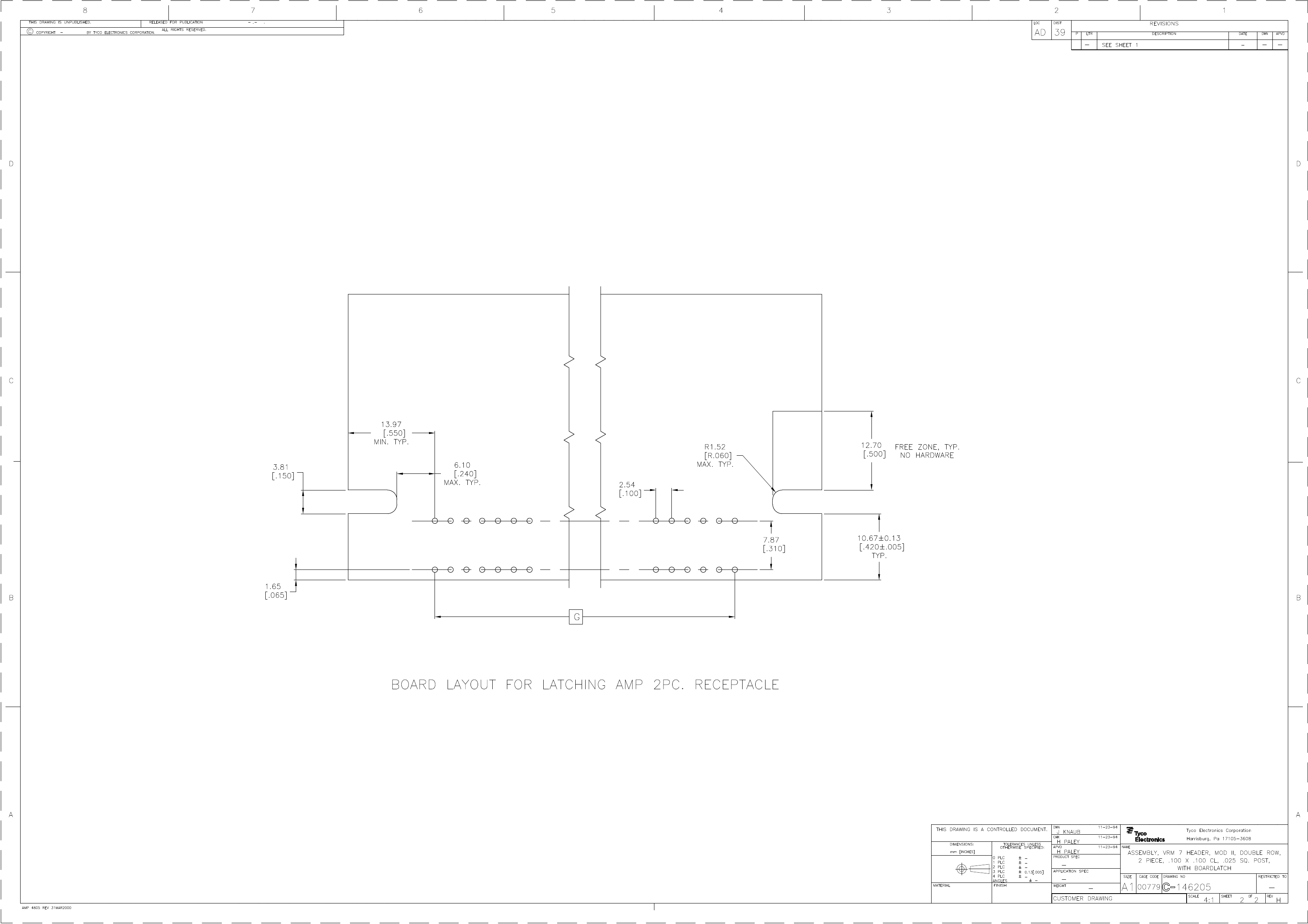

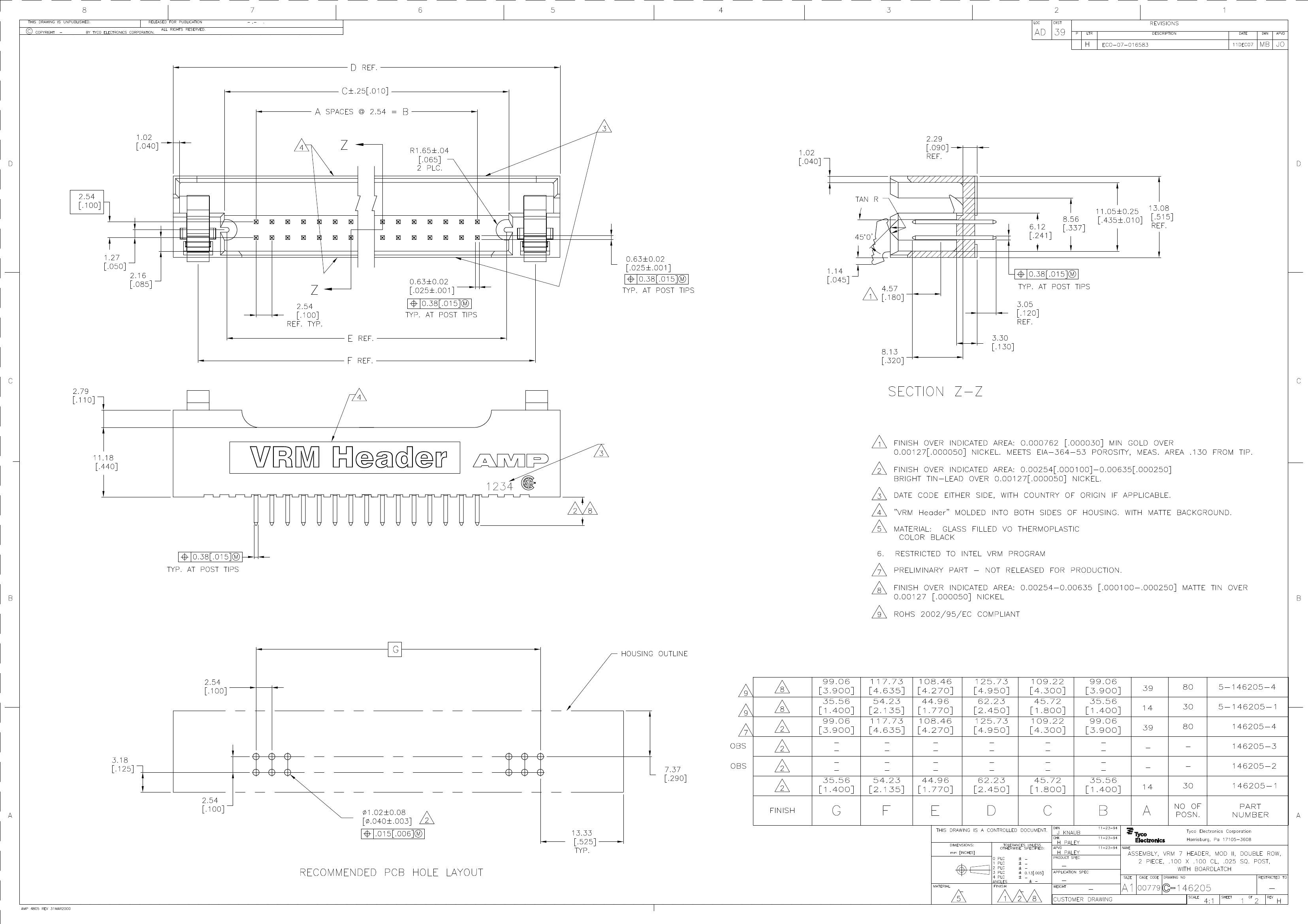

5-146205-1 Overview

CONNECTOR, 30 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, ROHS COMPLIANT

Parameter Name	Attribute value
Maker	TE Connectivity
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
Other features	LATCHED
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	MATTE TIN (250) OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	146205
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	30
UL Flammability Code	94V-0
Base Number Matches	1

	5-146205-1	146205-4	5-146205-4	146205-3	146205-2
Description	CONNECTOR, 30 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, ROHS COMPLIANT	80 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	80 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, ROHS COMPLIANT	MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
Reach Compliance Code	unknow	unknow	unknown	unknown	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	146205	146205	146205	146205	146205
Mixed contacts	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Contact completed and terminated	MATTE TIN (250) OVER NICKEL	TIN LEAD (250) OVER NICKEL	-	TIN LEAD (250) OVER NICKEL	TIN LEAD (250) OVER NICKEL
JESD-609 code	e3	e0	-	e0	e0
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	-	-
Total number of contacts	30	80	80	-	-
Objectid	-	-	1467203841	1467203763	1467203762
