1041-6-06-2-4: DescriptionBoard Connector, 6 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking; CategoryThe connector The connector; File Size226KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

1041-6-06-2-4 Overview

Board Connector, 6 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking

1041-6-06-2-4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknow
Board mount options	PEG
body width	0.098 inch
subject depth	0.083 inch
body length	0.138 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Durability	50 Cycles
maximum insertion force	.973 N
Insulation resistance	1000000000 Ω
Manufacturer's serial number	1041
Plug contact pitch	0.039 inch
Match contact row spacing	0.039 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.429 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.9906 mm
Termination type	SURFACE MOUNT
Total number of contacts	6
Evacuation force-minimum value	.0973 N

Preview

Download Datasheet

View All

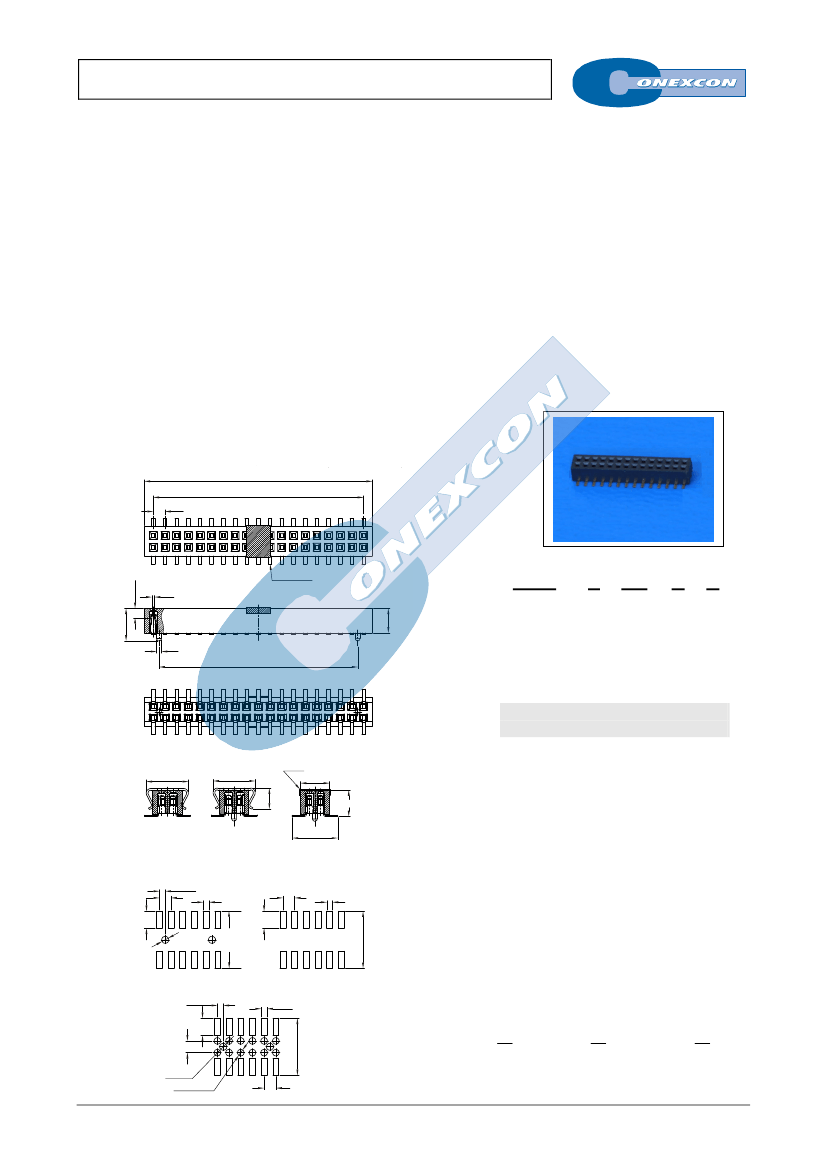

DUAL ROW VERTICAL SMT SOCKET

1041 SERIES.

1.00 X 1.00 mm. (0.039 X 0.039”) Pitch.

General Features

Electrical Features







Available in 4 through 80 circuits

Mates with pin header 1.00 mm pitch 1042 and

1049 series

With/Without fixing post on PCB

Dual bean contact with different plating



Voltage rating: < 10V

Current rating: < 1 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 300 V AC/minute

Insulation resistance: >1000 MΩ

Capacitance: < 2 pF at 1 KHz

Materials

Mechanical features

Insertion force receptacle/plug: < 0,10 Kgf/pin

Unmating force receptacle/plug: > 0,01 Kgf/pin

Contact retention force to housing: > 0,10 Kgf/pin

Durability: 50 cycles



Insulator: Polyester LCP UL 94 V-0

Contact: Phosphor bronze

Operating temperature: -40ºC to +105ºC

RoHS compliant

Dimension Information

B

±0.25

A

±0.15

1.00

±0.08

1.30x0.10

0.80

0.22

2.10

1041 -

1

T- XX- P

2

3

4

E

5

2.80

ø0.40

±0.05

1. Connector Serie

C

±0.15

2. (T) Contacts Plating



2.25

±0.20

3.90

±0.25

RECOMMENDED HOLE PATTERN

With Pegs

0.50

1.00

1.47

T =

2.

Tin-plated.

T =

3.

Gold flash over Ni.

RECOMMENDED FINISH

T =

5.

0.38 µ Gold over Ni.

T =

6.

0.75 µ Gold over Ni.

W/O Pegs

3.60

With Pegs

3.60

1.80

Cover

2.50

3. (XX) Number of circuits



Available in 2 through 20 circuits

4. (P) Pegs Options

W/O Pegs

0.50

1.85



0.50

P =

1.

Without fixing post

P =

2.

whit fixing post

1.00

5. (E) Packing Options

4.90

ø0.60



4.90

E =

3.

Tube+ Film

E =

4.

Reel+ Film

E =

5.

Tube+ metalic cover

E =

6.

Reel+ metalic cover

W/O Pegs botton entry

0.50

1.47

0.50

DIMENSIONS

A

½

1.00



1.00

ø0.60

ø0.56

±0.05

1.00

4.90



XX



2



1







B

½

1.00





XX







0.5





2



C

½

1.00





XX



2



2







(XX) = Number of circuits

A-XX
