1337-2680 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1337-2680

1337-2680: DescriptionBoard Connector, 68 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size35KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric Compare View All

1337-2680 Overview

Board Connector, 68 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Receptacle

1337-2680 Parametric

Parameter Name	Attribute value
Maker	Conexcon Group
Reach Compliance Code	unknow
Board mount options	PEG
body width	0.283 inch
subject depth	0.323 inch
body length	1.897 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Manufacturer's serial number	1337
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.5118 mm
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	68

Preview

Download Datasheet

View All

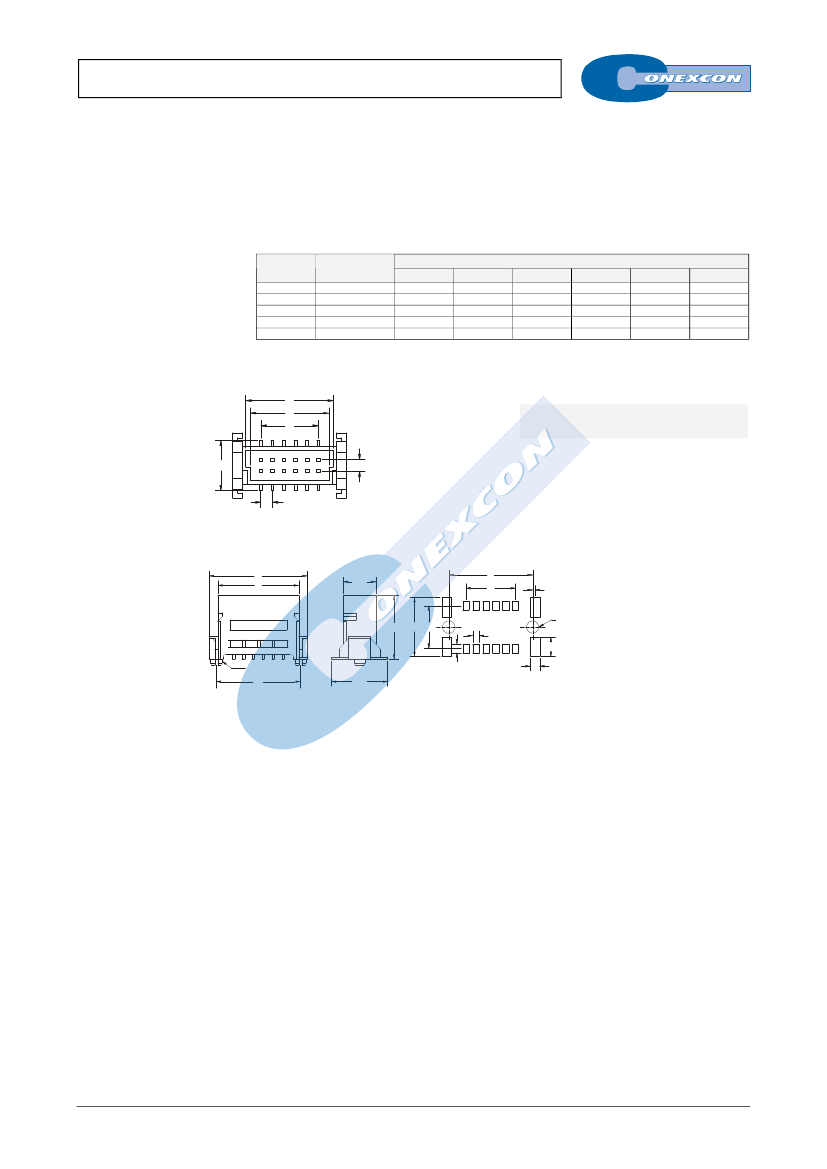

MALE STRAIGHT POLARISED HEADER SMT

1337 SERIE.

1.27 x 1.27 mm. (0.050 x 0.050”).

Features



Available in 12, 26, 50, 68 and 80 circuits

Mates with male headers 1.27 x 1.27 mm 1335 serie

Insulator material: glass filled UL 94V-0



Phosphor bronze terminal

Available in different plating

Completely protected and polarised

Ordering and dimensional information:

Dimensional information:

Circuit Size

Part Number

1337 –

T120

1337 -

T260

1337 -

T500

1337 –

T680

1337 –

T800

Dimensions

9.68 (0.381)

18.57 (0.731)

33.81 (1.331)

45.24 (1.781)

52.86 (2.081)

8.70 (0.342)

17.59 (0.692)

32.83 (1.292)

44.26 (1.742)

51.88 (2.042)

6.35 (0.250)

15.24 (0.600)

30.48 (1.200)

41.91 (1.650)

49.53 (1.950)

12.60 (0.496)

21.60 (0.850)

36.80 (1.448)

48.20 (1.897)

55.80 (2.196)

10.40 (0.409)

19.29 (0.759)

34.53 (1.359)

45.96 (1.809)

53.58 (2.109)

10.77 (0.424)

19.66 (0.774)

34.90 (1.374)

46.33 (1.824)

49.53 (1.950)

T = Contact Plating



T =

Tin plated

T =

Gold flash over 50µ” nickel.

Recommended Finish

T =

15µ” gold over 50µ” nickel

T =

30µ” gold over 50µ” nickel

5.6

1.27

4.2

0.3

ø 1.6

8.2

7.6 5.5

0.8

2.5

R 0.73

7.2

1.1

1.2

H-12

FULL LINE CATALOGUE

1337-2680 Related Products

	1337-2680	1337-3500	1337-3680	1337-2800	1337-3120	1337-3800	1337-3260	1337-2120	1337-2260	1337-2500
Description	Board Connector, 68 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Receptacle	Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Receptacle	Board Connector, 68 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Receptacle	Board Connector, 80 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Receptacle	Board Connector, 12 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Receptacle	Board Connector, 80 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Receptacle	Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Receptacle	Board Connector, 12 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Receptacle	Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Receptacle	Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Receptacle
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow
Board mount options	PEG	PEG	PEG	PEG	PEG	PEG	PEG	PEG	PEG	PEG
body width	0.283 inch	0.283 inch	0.283 inch	0.283 inch	0.283 inch	0.283 inch	0.283 inch	0.283 inch	0.283 inch	0.283 inch
subject depth	0.323 inch	0.323 inch	0.323 inch	0.323 inch	0.323 inch	0.323 inch	0.323 inch	0.323 inch	0.323 inch	0.323 inch
body length	1.897 inch	1.448 inch	1.897 inch	2.196 inch	0.496 inch	2.196 inch	0.85 inch	0.496 inch	0.85 inch	1.448 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN	AU ON NI	AU ON NI	SN	AU ON NI	AU ON NI	AU ON NI	SN	SN	SN
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Manufacturer's serial number	1337	1337	1337	1337	1337	1337	1337	1337	1337	1337
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Match contact row spacing	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2	2	2	2
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	5.5118 mm	5.5118 mm	5.5118 mm	5.5118 mm	5.5118 mm	5.5118 mm	5.5118 mm	5.5118 mm	5.5118 mm	5.5118 mm
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	68	50	68	80	12	80	26	12	26	50
Base Number Matches	-	1	1	1	1	1	1	-	-	-
