2412-2131

Description
Board Connector, 13 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, Plug
CategoryThe connector    The connector
File Size86KB，1 Pages
ManufacturerConexcon Group
Environmental Compliance
Download Datasheet Parametric Compare View All

2412-2131 Overview

Board Connector, 13 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, Plug

2412-2131 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerConexcon Group
Reach Compliance Codeunknow
body width0.134 inch
subject depth0.236 inch
body length1.307 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contactor designPREASSEM CONN
Contact point genderFEMALE
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage800VAC V
Durability25 Cycles
maximum insertion force6.672 N
Insulation resistance1000000000 Ω
insulator materialNYLON
Manufacturer's serial number2412
Plug contact pitch0.098 inch
Installation option 1LOCKING
Installation typeCABLE
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
polarization keyPOLARIZED HOUSING
Rated current (signal)2.5 A
GuidelineUL
reliabilityCOMMERCIAL
Termination typeCRIMP
Total number of contacts13
Evacuation force-minimum value1.4734 N

Preview

Download Datasheet

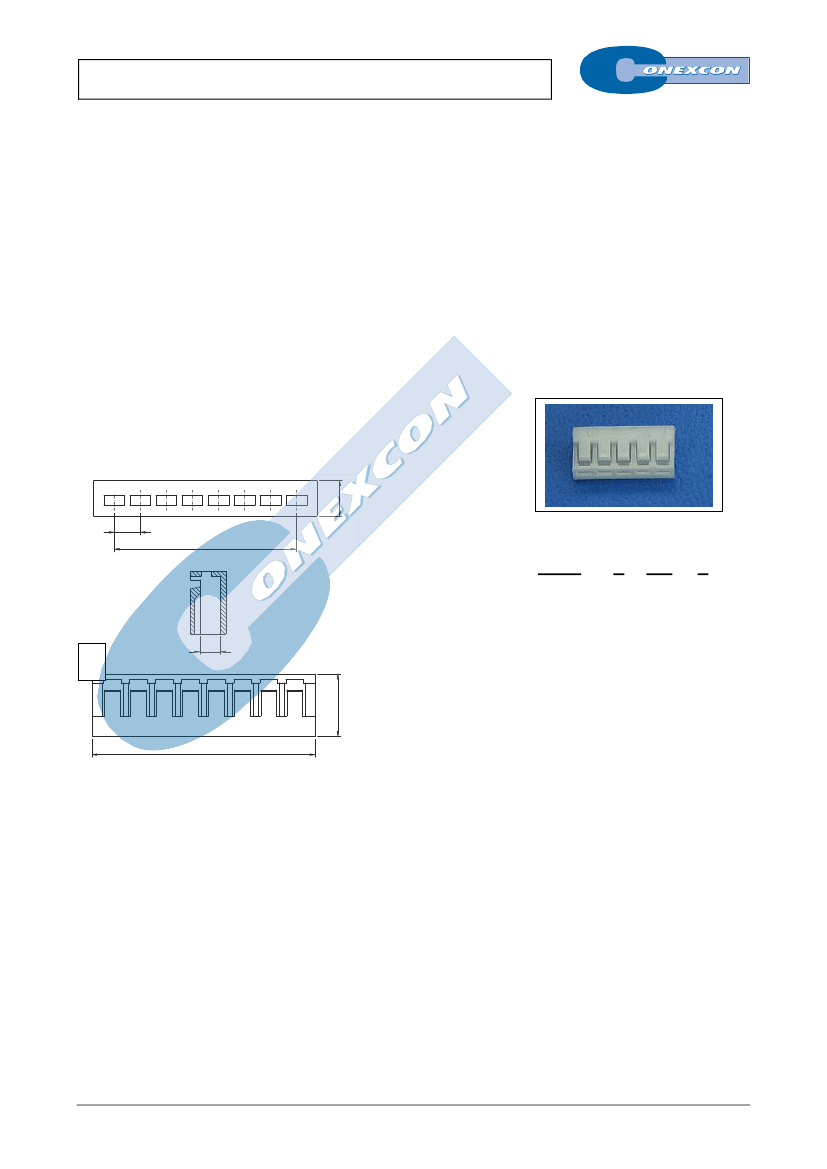

BOARD IN CRIMP CONNECTOR HOUSING
2412 SERIES.
2.50 mm. (0.098”) Pitch.
General Features
Electrical Features
Available in 2 through 15 circuits
Used to solder wires in PCB 1,60 mm thickness
Low profile
Use crimp terminal 2413
Voltage Rating: < 250 V
Current Rating: < 2.5 A
Contact resistance: < 20 mΩ
Dielectric withstanding voltage: 800 V AC/minute
Insulation resistance: >1000 MΩ
Materials
Mechanical Features
Contact retention force to the housing: > 1.0 Kgf
Insertion force to header: < 0.70 Kgf/pin
Withdraval force from header: < 0.15 Kgf/pin
Durability: 25 cycles
Insulator: Nylon 6/6 UL 94 V-0
Operating temperature. -40ºC to + 85ºC
RoHS compliant
Dimensional Information
2.50
.098
TYP.
A
3.40
.134
1
2412 -
1
2- XX- 1
2
3
1. Connector Serie
2.10
.083
3. (XX) Number of circuits
.236
Available in 2 through 15 circuits
Dimensions:
(in mm.)
6.0
B
A
= 2.50 x (XX*-1)
B
= 2.50 x (XX*)+0.70
*XX (Number of circuits)
D-XX
FULL LINE CATALOGUE

2412-2131 Related Products

2412-2131 2412-2071 2412-2021 2412-2031 2412-2061 2412-2121 2412-2041 2412-2111 2412-2101 2412-2141
Description Board Connector, 13 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, Plug Board Connector, 7 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, Plug Board Connector, 2 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, Plug Board Connector, 3 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, Plug Board Connector, 6 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, Plug Board Connector, 12 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, Plug Board Connector, 4 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, Plug Board Connector, 11 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, Plug Board Connector, 10 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, Plug Board Connector, 14 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, Plug
Is it Rohs certified? conform to conform to conform to conform to conform to conform to conform to conform to conform to conform to
Reach Compliance Code unknow unknow unknow unknow unknow unknow unknow unknow unknow unknow
body width 0.134 inch 0.134 inch 0.134 inch 0.134 inch 0.134 inch 0.134 inch 0.134 inch 0.134 inch 0.134 inch 0.134 inch
subject depth 0.236 inch 0.236 inch 0.236 inch 0.236 inch 0.236 inch 0.236 inch 0.236 inch 0.236 inch 0.236 inch 0.236 inch
body length 1.307 inch 0.717 inch 0.224 inch 0.323 inch 0.618 inch 1.209 inch 0.421 inch 1.11 inch 1.012 inch 1.406 inch
Body/casing type PLUG PLUG PLUG PLUG PLUG PLUG PLUG PLUG PLUG PLUG
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contactor design PREASSEM CONN PREASSEM CONN PREASSEM CONN PREASSEM CONN PREASSEM CONN PREASSEM CONN PREASSEM CONN PREASSEM CONN PREASSEM CONN PREASSEM CONN
Contact point gender FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE
contact mode RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Contact resistance 20 mΩ 20 mΩ 20 mΩ 20 mΩ 20 mΩ 20 mΩ 20 mΩ 20 mΩ 20 mΩ 20 mΩ
Contact style SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT
Dielectric withstand voltage 800VAC V 800VAC V 800VAC V 800VAC V 800VAC V 800VAC V 800VAC V 800VAC V 800VAC V 800VAC V
Durability 25 Cycles 25 Cycles 25 Cycles 25 Cycles 25 Cycles 25 Cycles 25 Cycles 25 Cycles 25 Cycles 25 Cycles
maximum insertion force 6.672 N 6.672 N 6.672 N 6.672 N 6.672 N 6.672 N 6.672 N 6.672 N 6.672 N 6.672 N
Insulation resistance 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω
insulator material NYLON NYLON NYLON NYLON NYLON NYLON NYLON NYLON NYLON NYLON
Manufacturer's serial number 2412 2412 2412 2412 2412 2412 2412 2412 2412 2412
Plug contact pitch 0.098 inch 0.098 inch 0.098 inch 0.098 inch 0.098 inch 0.098 inch 0.098 inch 0.098 inch 0.098 inch 0.098 inch
Installation option 1 LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING
Installation type CABLE CABLE CABLE CABLE CABLE CABLE CABLE CABLE CABLE CABLE
Number of rows loaded 1 1 1 1 1 1 1 1 1 1
Maximum operating temperature 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C
polarization key POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING
Rated current (signal) 2.5 A 2.5 A 2.5 A 2.5 A 2.5 A 2.5 A 2.5 A 2.5 A 2.5 A 2.5 A
Guideline UL UL UL UL UL UL UL UL UL UL
reliability COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Termination type CRIMP CRIMP CRIMP CRIMP CRIMP CRIMP CRIMP CRIMP CRIMP CRIMP
Total number of contacts 13 7 2 3 6 12 4 11 10 14
Evacuation force-minimum value 1.4734 N 1.4734 N 1.4734 N 1.4734 N 1.4734 N 1.4734 N 1.4734 N 1.4734 N 1.4734 N 1.4734 N
Maker Conexcon Group - Conexcon Group Conexcon Group Conexcon Group Conexcon Group Conexcon Group Conexcon Group Conexcon Group Conexcon Group
