2631-2-20-2-2-1: DescriptionBoard Connector, 20 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, Crimp Terminal, Locking; CategoryThe connector The connector; File Size88KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

2631-2-20-2-2-1 Overview

Board Connector, 20 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, Crimp Terminal, Locking

2631-2-20-2-2-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknow
Other features	END CONNECTOR
body width	0.358 inch
subject depth	0.725 inch
body length	3.141 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Durability	25 Cycles
maximum insertion force	19.5712 N
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	2631
Plug contact pitch	0.156 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	20
Maximum wire diameter	20 AWG
Minimum wire diameter	20 AWG
Evacuation force-minimum value	4.8928 N

Preview

Download Datasheet

View All

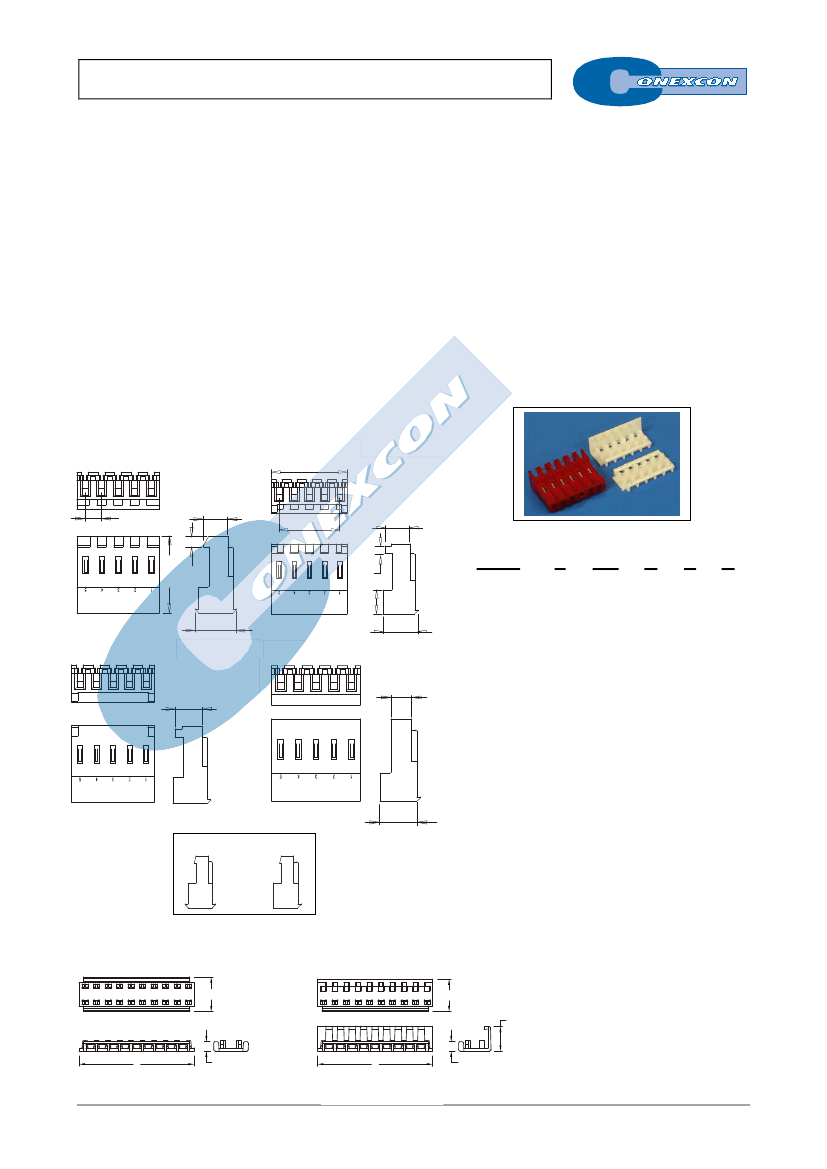

SINGLE ROW CRIMP CONNECTOR HOUSING

2631 SERIES.

3.96 mm (0.156”) pitch.

General Features

Electrical Features



Available in 2, through 24 circuits



Mates with 3.96 mm pitch 3963, 3966 and 3968 headers

and 1,14 mm square/round pin headers 3917, 3918,

3919, 3920, 3986, 3987 and 3988 Series



Polarised with locking ramp



Use crimp terminal 3979 and 3932

Materials



Voltage rating: < 250V

Current rating: < 5 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 1500 V AC/minute

Insulation resistance: >1000 MΩ

Mechanical Features



Insulator: Nylon 66 UL 94 V-0



Operating temperature: -40ºC to +105ºC



RoHS compliant

Dimension Information

L = 2 Version

B±04



Contact retention force to the housing: > 2.00 Kgf

Insertion force to header: < 2.00 Kgf/pin

Withdrawal force from header: < 0.50 Kgf/pin

Durability: 25 cycles

L = 1 Version

3.96±0.10

5.84

A

6.56

18.42

2.54

2631 -

1

2-

2

XX- P-

3

4

L- E

5

6

6.22

1. Connector Series

9.10

9.78

2. Contact Plating



Tin plated.

3. (XX) Number of Circuits

L = 3 Version

L = 4 Versión

4.57

6.56



Available in 2 through 24 circuits

4. (P) AWG Cable



P =

1.

18 AWG



P =

2.

20 AWG



P =

3.

22 AWG



P =

4.

24 AWG



P =

5.

26 AWG

5. (L) Polarization Options



L =

1.

With lock ramp / W/O polariz.



L =

2.

With lock ramp / With polariz.



L =

3.

W/O lock ramp / With polariz.



L =

4.

W/O lock ramp / W/O polariz.

8.26

THROUGH

CONNECTOR

END

CONNECTOR

Optional Cover:

THROUGH

END

6. (E)Connector Type

TAPA FINAL

TAPA PASANTE



E =

1.

End connector



E =

2.

Through connector

11.18

11.94

Dimensions:

(In mm.)

8.51

A

= 3.96 x (XX*-1)

B

= 3.96 x (XX)+0.58

* XX

(Number of circuits)

A

3.23

A

3.23

P/ Number:

2631-00NN

NN = nº of circuits

P/ Number:

2631-01NN

NN = nº de of circuits

E-XX
