3971-2-0911: DescriptionBoard Connector, 9 Contact(s), 1 Row(s), Female, Right Angle, 0.156 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size80KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric Compare View All

3971-2-0911 Overview

Board Connector, 9 Contact(s), 1 Row(s), Female, Right Angle, 0.156 inch Pitch, Solder Terminal, Locking, Receptacle

3971-2-0911 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknow
body width	0.46 inch
subject depth	0.448 inch
body length	1.403 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Durability	25 Cycles
maximum insertion force	9.7856 N
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	3971
Plug contact pitch	0.156 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.165 inch
Terminal pitch	3.9624 mm
Termination type	SOLDER
Total number of contacts	9
Evacuation force-minimum value	1.4734 N

Preview

Download Datasheet

View All

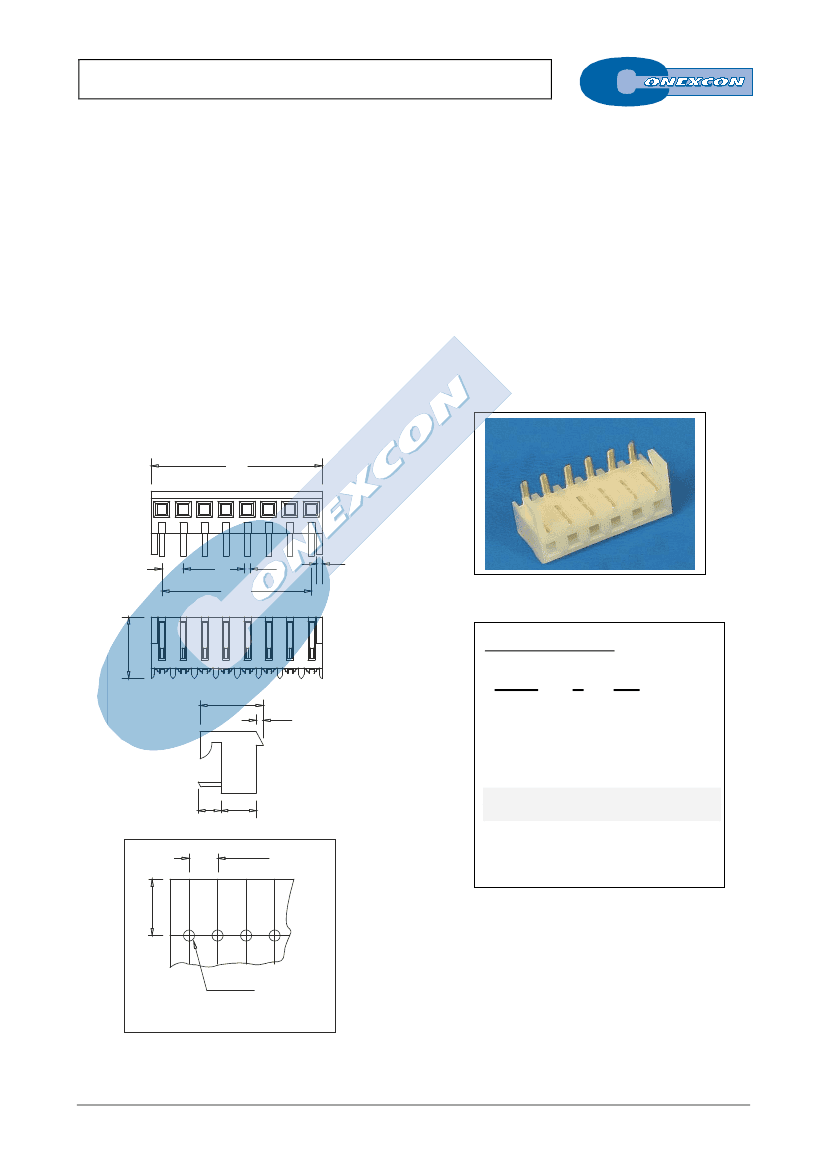

BOARD TO BOARD SIDE ENTRY CONNECTOR

3971 SERIES.

3.96 mm (0.156”) pitch.

General Features

Electrical Features



Available in 2 circuits through 25 circuits



Mates with 3.96 mm pin header 1.14 mm square/round

pin 3986, 3987, 3988, 3963, 3966, 3968, 3917, 3918, 3919

and 3920 Series



Flex contact PCB female terminal

Materials



Voltage rating: < 250V

Current rating: < 5 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 1500 V AC/minute

Insulation resistance: >1000 MΩ

Mechanical Features



Insulator: Nylon 66 UL 94 V-2

Contact: Tin plated brass

Operating temperature: -25ºC to +125ºC

RoHS compliant



Contact retention force to insulator: > 1.00 Kgf

Insertion force to header: < 1.00 Kgf/pin

Withdrawal force from header: < 0.15 Kgf/pin

Durability: 25 cycles

Dimension Information

Dim.B

3.96

.156

Dim.A

1.00

.040

1.05

.041

11.40

.448

Ordering Information:

3971 -

11.70

.460

1.30

.051

2-

2

XX

3

1

1. Connector Series

2. (T) Contact Plating

4.20

.165

6.50

.265



T =

2.

Tin plated

Recommended Finish

3. (XX) Number of circuits

3.96±0.10

.156±.004



Available in 2 through 25 circuits

7.78

.306

Dimensions:

(In mm.)

ø1.52±0.05

ø.060±.002

RECOMMENDED HOLE PATTERN

A

= 3.96 x (XX*-1)

B

= 3.96 x (XX)-0.06

* XX

(Number of circuits)

E-XX

FULL LINE CATALOGUE

3971-2-0911 Related Products

	3971-2-0911	3971-2-2411	3971-2-2111	3971-2-2011	3971-2-2311	3971-2-2211	3971-2-1711
Description	Board Connector, 9 Contact(s), 1 Row(s), Female, Right Angle, 0.156 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 24 Contact(s), 1 Row(s), Female, Right Angle, 0.156 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 21 Contact(s), 1 Row(s), Female, Right Angle, 0.156 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 20 Contact(s), 1 Row(s), Female, Right Angle, 0.156 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 23 Contact(s), 1 Row(s), Female, Right Angle, 0.156 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 22 Contact(s), 1 Row(s), Female, Right Angle, 0.156 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 17 Contact(s), 1 Row(s), Female, Right Angle, 0.156 inch Pitch, Solder Terminal, Locking, Receptacle
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown	unknow
body width	0.46 inch	0.46 inch	0.46 inch	0.46 inch	0.46 inch	0.46 inch	0.46 inch
subject depth	0.448 inch	0.448 inch	0.448 inch	0.448 inch	0.448 inch	0.448 inch	0.448 inch
body length	1.403 inch	3.742 inch	3.274 inch	3.118 inch	3.586 inch	3.43 inch	2.65 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN	SN	SN	SN	SN	SN	SN
Contact completed and terminated	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V
Durability	25 Cycles	25 Cycles	25 Cycles	25 Cycles	25 Cycles	25 Cycles	25 Cycles
maximum insertion force	9.7856 N	9.7856 N	9.7856 N	9.7856 N	9.7856 N	9.7856 N	9.7856 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
Manufacturer's serial number	3971	3971	3971	3971	3971	3971	3971
Plug contact pitch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1	1
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	5 A	5 A	5 A	5 A	5 A	5 A	5 A
Guideline	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch
Terminal pitch	3.9624 mm	3.9624 mm	3.9624 mm	3.9624 mm	3.9624 mm	3.9624 mm	3.9624 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	9	24	21	20	23	22	17
Evacuation force-minimum value	1.4734 N	1.4734 N	1.4734 N	1.4734 N	1.4734 N	1.4734 N	1.4734 N
Base Number Matches	-	1	1	1	1	1	-
