8366-16-23-21 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 8366-16-23-21

8366-16-23-21: DescriptionBoard Connector, 23 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size79KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

8366-16-23-21 Overview

Board Connector, 23 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator

8366-16-23-21 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknow
body width	0.087 inch
subject depth	0.203 inch
body length	1.166 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
maximum insertion force	2.4464 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYPHENYLENE SULPHIDE
Manufacturer's serial number	8366
Plug contact pitch	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	23
Evacuation force-minimum value	.3058 N

Preview

Download Datasheet

View All

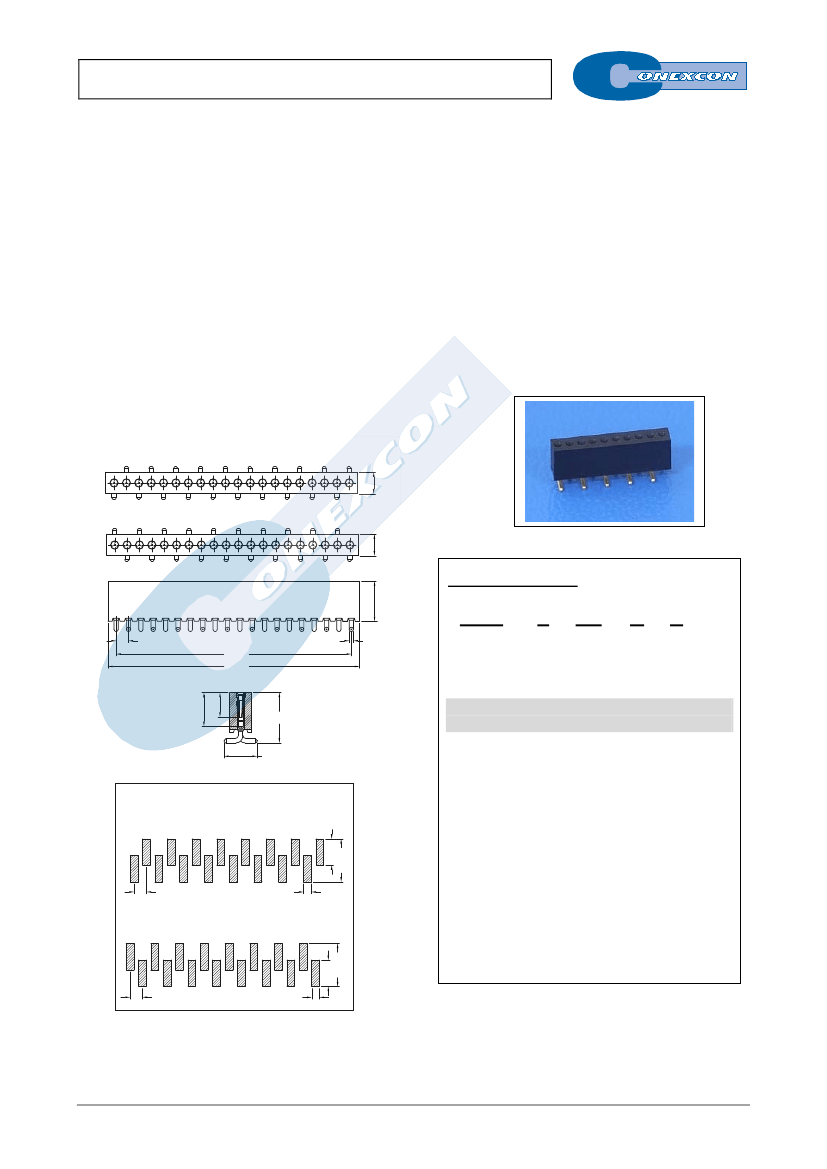

SINGLE ROW SMT VERTICAL SOCKET

8366 SERIES.

1.27 mm. (0.050”) pitch. Machined contact.

General Features

Electrical Features



Available in 2 through 40 circuits



Mates with Pin headers 1.27mm. pitch 8350, 8353 and

8356 series



Accept round pin 0.38 to 0.50 mm.



Low profile 5.15 mm. high

Materials



Voltage rating: < 100V

Current rating: < 1 A

Contact resistance: < 10 mΩ

Dielectric withstanding Voltage: 1000 V AC/minute

Insulation resistance: >1000 MΩ

Mechanical Features



Insulator: PPS black + 30% GF UL 94 V-0

Contact: Clip (3 fingers) in Beryllium copper

Sleeve: Brass

Operating temperature. -40ºC to +105ºC

RoHS compliant



Insertion force per pin: < 0.25 Kgf (round pin 0.41 mm)



Withdrawal force per pin: > 0.03 Kgf (round pin 0.41 mm)



Durability: 500 Cycles

Dimension Information

Type 1

2.20

Type 2

4.10±0.15

Ordering Information:

8366 -

T-

XX-

1.27±0.10

ø0.44

1. Connector Series

2. (T) Contact Plating

3.45

2.50

5.15±0.25



T =

13.

Selec. gold flash over 30-50µ" Ni overall

Recommended Finish

3.40±0.25



T =

15.

15µ" selec. gold over 30-50µ" Ni overall



T =

16.

30µ" selec. gold over 30-50µ" Ni overall

3. (XX) Number of circuits

RECOMMENDED PCB LAYOUT

(Tolerance ±0.05)

Type 1

2.70

4.40



Available in 2 through 40 circuits

4. C = Contacts Configuration



C = 1. Type 1



C = 2. Type 2

5. E = Packing Options

1.27

0.80

Type 2

2.70

4.40



E =

Tube + Pad



E =

Reel + Pad

1.27

0.80

Dimensions:

(In mm.)

= 1.27 x (XX*-1)

= 1.27 x (XX*)+0.41

* XX

(Number of circuits)

A-XX

FULL LINE CATALOGUE
