3072-305-3002 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3072-305-3002

3072-305-3002: DescriptionBoard Connector, 5 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Natural Insulator, Receptacle; CategoryThe connector The connector; File Size153KB，1 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

3072-305-3002 Overview

Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Natural Insulator, Receptacle

3072-305-3002 Parametric

Parameter Name	Attribute value
Maker	Methode Electronics Inc.
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	WITH HOOKS & LOCKING RAMP
Board mount options	PCB EDGE LOCKING HOOK
subject depth	0.45 inch
body length	0.774 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	5 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	LIF N
Insulation resistance	500000000000 Ω
Insulator color	NATURAL
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.156 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	7 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.165 inch
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	5
UL Flammability Code	94V-0
Evacuation force-minimum value	LIF N

Preview

Download Datasheet

View All

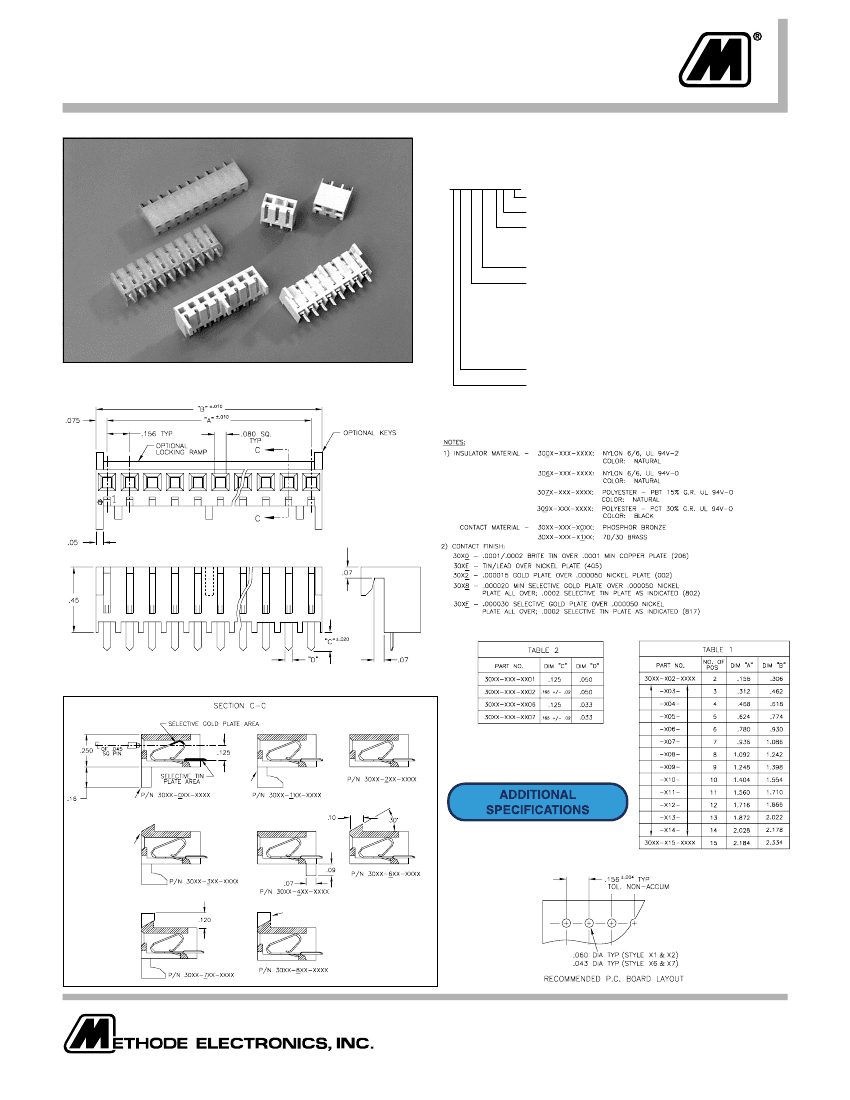

.156” (3.96mm)

Through Hole Vertical Mount Connector

3000 SERIES “TERMACON”

PART NUMBER LEGEND

30XX-XXX-XXXX

CONTACT TAIL DIMS (SEE TABLE 2)

CONTACT MATERIAL (SEE NOTE 1)

OPTIONS

2 - HIGH INSERTION FORCE CONTACT

3 - LOW INSERTION FORCE CONTACT

NO. OF POSITONS (SEE TABLE 1)

OPTIONS

WITH LEGS

WITH HOOKS

WITH HOOKS AND LOCKING RAMP

WITH LOCKING RAMP

WITH HOOKS, LOCKING RAMP AND POLARIZING KEY

WITHOUT HOOKS, W/ LOCKING RAMP AND POLARIZING KEY

CONTACT FINISH (SEE NOTE 2)

INSULATOR MATERIAL (SEE NOTE 1)

MATING HEADERS: 3100 SERIES

HOLE

LEG

LOCKING

RAMP

POLARIZING KEY &

LOCKING RAMP

Connector Products

1700 Hicks Road • Rolling Meadows, IL 60008 USA

Telephone: 847.392.3500 • Fax: 847.392.9404

email: mcpsales@methode.com • Web Page: www.methode.com
