33-1041-14.00 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 33-1041-14.00

33-1041-14.00: DescriptionFixed Attenuator,; CategoryWireless rf/communication Radio frequency and microwave; File Size41KB，2 Pages; ManufacturerSmiths Group

Download Datasheet Parametric Compare View All

33-1041-14.00 Overview

Fixed Attenuator,

33-1041-14.00 Parametric

Parameter Name	Attribute value
Maker	Smiths Group
Reach Compliance Code	unknow
RF/Microwave Device Types	FIXED ATTENUATOR

Preview

Download Datasheet

View All

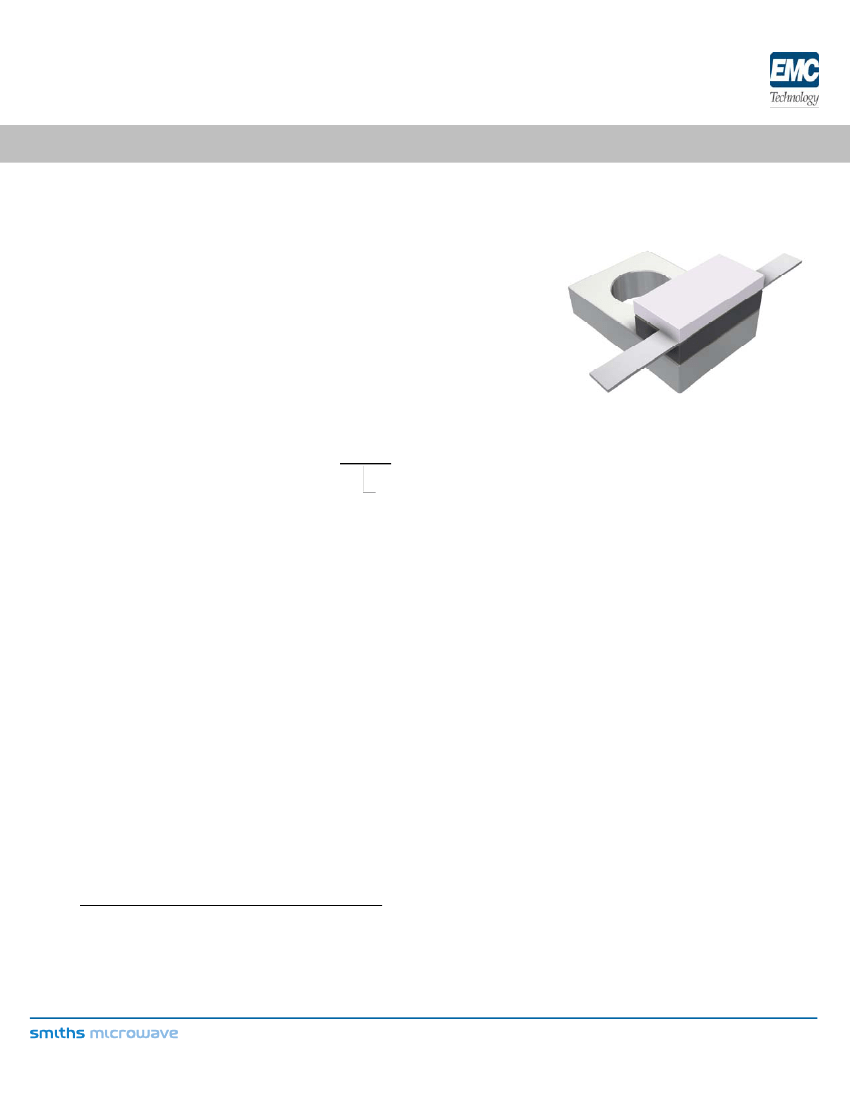

ATTENUATOR

FLANGE MOUNT 10 WATT

DATA SHEET

FEATURES

Tab Launch

High Power

Integrated Heat Sink

Low VSWR

Easy Installation

PART SERIES: 33-1041-XX.XX

APPLICATIONS

Mobile Networks

Broadcast

High Power Amplifiers

Isolators

Military

Instrumentation

SHEET 1 OF 2

Dwg 33-1041

EN 14-1323

Revision A

GENERAL DESCRIPTION

EMC Technology offers the widest selection of flange mount attenuators worldwide.

High power flange components offer excellent performance and the convenience of

bolt on installation.

ORDERING INFORMATION

Part Identifier:

33-1041-XX.XX

Attenuation Value

SPECIFICATIONS

1.0 ELECTRICAL

Nominal Impedance:

Frequency Range:

Attenuation Values Available:

Attenuation Accuracy:

Input Power CW:

Peak Power:

VSWR:

50 ohms

925 - 960 MHz

1 through 20 in 1 dB increments

1 through 10 dB ± 0.5 dB

11 through 20 dB ± 1.0 dB

10 watts @ 100˚C heat sink, derated linearly to zero power at 150˚C

100 watts (based on 10us pulse width and 1% duty cycle)

1.25:1 Max

2.0 ENVIRONMENTAL

Operating Temperature:

Non-operating Temperature:

Temperature Coefficient:

-55˚C to +150˚C

-65˚C to +150˚C

+/-200 PPM / ˚C max

3.0 MARKING

Unit Marking:

Attenuation value, legibility and permanency per MIL-STD-130

4.0 QUALITY ASSURANCE

Sample Inspect Per MIL-STD-105, Level II, 1.0% AQL.

Visual and Mechanical Examination for Conformance To Outline Drawing Requirements.

Measure Attenuation and VSWR

Data Retention – Standard

5.0 PACKAGING

Standard Packaging:

Tray

Form 423F108

Rev-

Cage Codes: 24602 / 2Y194

Specifications are Subject to Change Without Notice

www.emc-rflabs.com • +1 772-286-9300

AS 9100, ISO 9001 and 14001 Certified

33-1041-14.00 Related Products

	33-1041-14.00	33-1041-11.00	33-1041-12.00
Description	Fixed Attenuator,	Fixed Attenuator,	Fixed Attenuator,
Reach Compliance Code	unknow	unknown	unknown
RF/Microwave Device Types	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR
Base Number Matches	-	1	1
