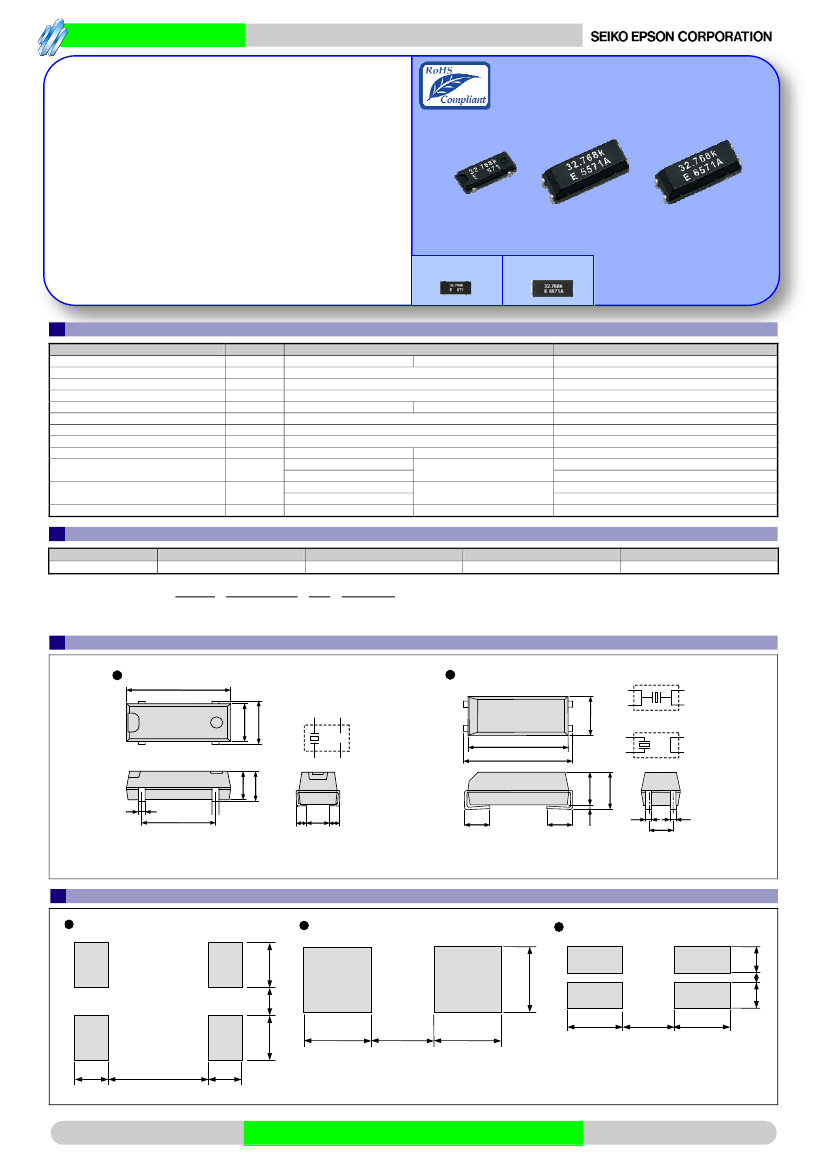

Crystal unit
Product Number (please contact us)
MC-306
: Q1xMC3062xxxx00
MC-405
: Q1xMC4052xxxx00
MC-406
: Q1xMC4062xxxx00
kHz RANGE CRYSTAL UNIT
MC - 306
MC - 405
/
MC - 406
Frequency
range
Thickness
Overtone
order
Applications
32.768 kHz (20 kHz to 120 kHz)
8.0 × 3.8 × 2.54 mm ···MC-306
10.41 × 4.06 × 3.6 mm ···MC-405
/
406
:
Fundamental
:
Clock and Microcomputer
:
:
Actual size
MC-306
MC-405
/
406
Specifications (characteristics)
Item
Nominal frequency range
Storage temperature
Operating temperature
Level of drive
Frequency tolerance (standard)
Turnover temperature
Parabolic coefficient
Load capacitance
Motional resistance (ESR)
Motional capacitance
Shunt capacitance
Frequency aging
Symbol
f_nom
T_stg
T_use
DL
f_tol
Ti
B
CL
R
1
C
1
C
0
f_age
Specifications
20 kHz to 120 kHz
-55
C
to +125
C
-40
C
to +85
C
1.0
W
Max.
20
10
-6
,
50
10
-6
50
10
-6
,
100
10
-6
+25
C 5 C
-0.04
10
-6
/ °C
2
Max.
6 pF to
(standard :12.5 pF)
50 k Max.
As per table below
1.8 fF Typ.
4.0 fF to 0.6 fF
2.0 fF Typ.
0.9 pF Typ.
2.0 pF to 0.6 pF
0.85 pF Typ.
-6
3
10 / year Max.
5
10
-6
/ year Max.
32.768 kHz
Conditions / Remarks
Please contact us about available frequencies.
Storage as single product.
+25
C,
DL=0.1
W
Please specify
MC-306
MC-405
/
406
MC-306
MC-405
/
406
+25
C,
First year
Motional resistance (ESR)
Frequency
Motional resistance
20 kHzf_nom< 31.2 kHz
55 k Max.
31.2 kHzf_nom< 40 kHz
35 k Max.
40 kHzf_nom< 90 kHz
20 k Max.
90 kHzf_nom120 kHz
12 k Max.
Product name
(Standard form)
MC-306 32.768000kHz 12.5 +20.0-20.0
①
②
③
④
①Model
②Frequency
③Load
capacitance(pF)
④Frequency
tolerance(
×
10
,
+25
C)
(Unit:mm)
MC-405
/
406
Internal connection in MC-405
(TOP VIEW)
#4
#3
#2
-6
.
External dimensions
MC-306
8.0 Max.
#4
#3
4.06 Max.
Internal connection
(TOP VIEW)
#3
#4
#4
#1
32.768 k
E
571
#1
#2
3.8 Max.
32.768 k
E
6571A
9.60
10.41 Max.
#3
#1
#2
Internal connection in MC-406
(TOP VIEW)
#4
#1
#3
#2
3.2
#1
2.54 Max.
#2
2.38
0.5
0.2 Min.
3.6 Max.
3.15
5.5
(0.9)
1.9
(0.9)
2.54
2.54
0.51
2.29
0.51
Do not connect #2 and #3 to external device.
The metal case inside of the molding compound may be exposed on the top or bottom of this product.
This purely cosmetic and does not have any effect on quality, reliability or electrical specs.
Do not connect #2 and #3 of MC-406 to external device.
The first digit of No. means:
5××××
6××××
MC-405
MC-406
Footprint (Recommended)
MC-306
MC-405
MC-406
(Unit:mm)
1.9
1.52
4.1
4.1
3.9
4.1
4.1
3.9
4.1
1.52
0.8
1.3
4.2
1.3
1.9
1.3
PROMOTION OF ENVIRONMENTAL MANAGEMENT SYSTEM
CONFORMING TO INTERNATIONAL STANDARDS
At Seiko Epson, all environmental initiatives operate under the
Plan-Do-Check-Action (PDCA) cycle designed to achieve continuous
improvements. The environmental management system (EMS)
operates under the ISO 14001 environmental management standard.
All of our major manufacturing and non-manufacturing sites, in
Japan and overseas, completed the acquisition of ISO 14001
certification.
ISO 14000 is an international standard for environmental
management that was established by the International
Standards Organization in 1996 against the background of
growing concern regarding global warming, destruction of
the ozone layer, and global deforestation.
WORKING FOR HIGH QUALITY
In order provide high quality and reliable products and services
than meet customer needs,
Seiko Epson made early efforts towards obtaining ISO9000 series
certification and has acquired ISO9001 for all business
establishments in Japan and abroad. We have also acquired ISO/TS
16949 certification that is requested strongly by major automotive
manufacturers as standard.
►Explanation
of the mark that are using it for the catalog
►Pb
free.
►Complies
with EU RoHS directive.
*About the products without the Pb-free mark.
Contains Pb in products exempted by EU RoHS directive.
(Contains Pb in sealing glass, high melting temperature type solder or other.)
►Designed
for automotive applications such as Car Multimedia, Body Electronics, Remote Keyless Entry etc.
►Designed
for automotive applications related to driving safety (Engine Control Unit, Air Bag, ESC etc ).
ISO/TS16949 is the international standard that added the
sector-specific supplemental requirements for automotive
industry based on ISO9001.
Notice
This material is subject to change without notice.
Any part of this material may not be reproduced or duplicated in any form or any means without the written permission of Seiko Epson.
The information about applied circuitry, software, usage, etc. written in this material is intended for reference only. Seiko Epson does
not assume any liability for the occurrence of infringing on any patent or copyright of a third party. This material does not authorize the
licensing for any patent or intellectual copyrights.
When exporting the products or technology described in this material, you should comply with the applicable export control laws and
regulations and follow the procedures required by such laws and regulations.
You are requested not to use the products (and any technical information furnished, if any) for the development and/or manufacture of
weapon of mass destruction or for other military purposes. You are also requested that you would not make the products available to
any third party who may use the products for such prohibited purposes.
These products are intended for general use in electronic equipment. When using them in specific applications that require extremely
high reliability, such as the applications stated below, you must obtain permission from Seiko Epson in advance.
/ Space equipment (artificial satellites, rockets, etc.) / Transportation vehicles and related (automobiles, aircraft, trains,
vessels, etc.) / Medical instruments to sustain life / Submarine transmitters / Power stations and related / Fire work equipment
and security equipment / traffic control equipment / and others requiring equivalent reliability.
All brands or product names mentioned herein are trademarks and/or registered trademarks of their respective.
Seiko Epson Corporation
Product Configuration System
kHz Range Crystals Units
MC‐405
32.7680K
‐
A
0
:
PURE SN
Frequency
32.7680kHz
K: In kHz
Frequency Tolerance@25C
Blank: +/‐20ppm (Standard)
Load Capacitance
A: 12.5pf
AC: 9pf
E: 6pf
Packaging
Tape & Reel Qty
Blank: Bulk
3: 250pcs/reel
0: 1000pcs/reel
5: 3000pcs/reel
(MC‐306 only)
PURE SN
ROHS
Blank = Not RoHs Compliant
32.7680kHz Crystal Package Type:
MC‐306: 4pin “J” lead SMD, 2.54mm Height
MC‐405: 4pin “J” lead SMD, 3.6mm Height
MC‐406: 4pin “J” lead SMD, 3.6mm Height
NOTES:
1)
F: Series
AG: 7.0pf
This product configuration guide is applicable only to 32.7680kHz
Crystals. For other frequencies, please reference the Standard kHz
Crystal Product Configuration System.
If you require a load capacitance other than the above listed, please
contact your EEA representative for assistance.
