Part Number

Search

PH1-34-SG-.117/.445-10

Description
Board Connector, 34 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle
CategoryThe connector    The connector
File Size70KB,1 Pages
ManufacturerAdam Tech
Environmental Compliance

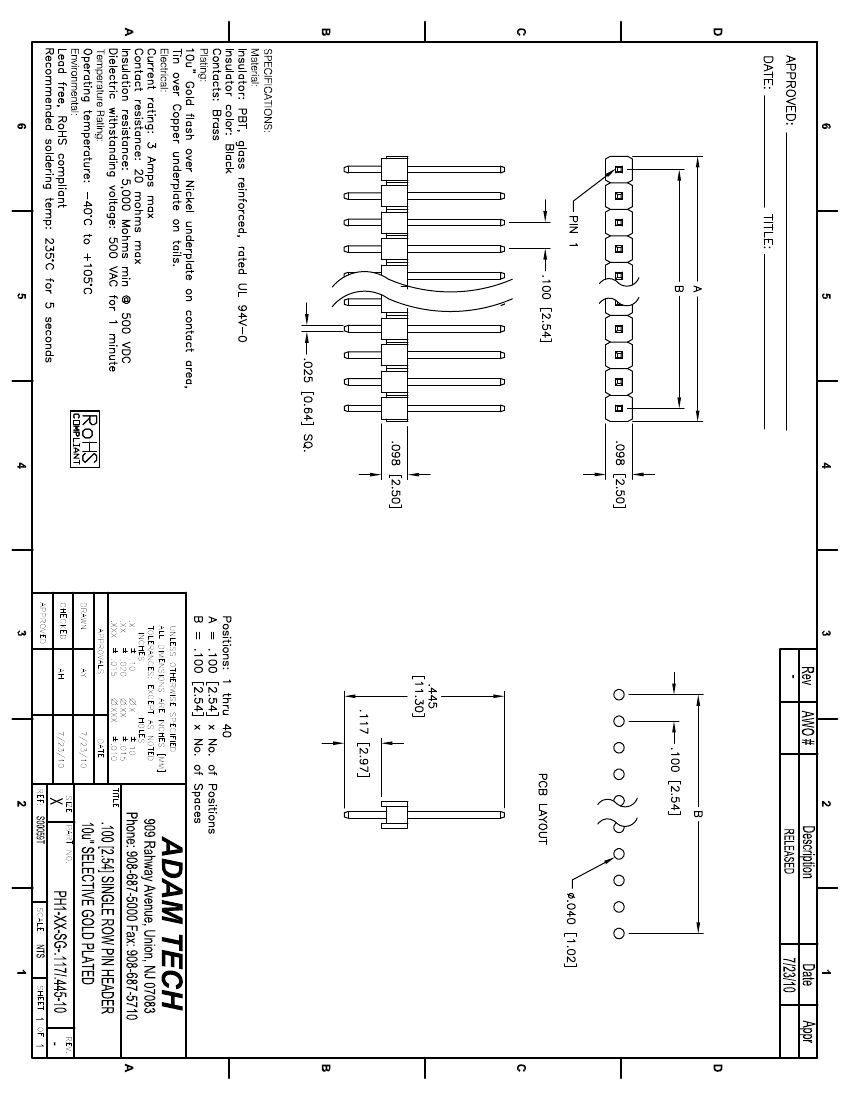

Download Datasheet Parametric View All

PH1-34-SG-.117/.445-10 Overview

Board Connector, 34 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle

PH1-34-SG-.117/.445-10 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerAdam Tech
Reach Compliance Codecompli
Other featuresROHS COMPLIANT
body width0.098 inch
subject depth0.098 inch
body length3.4 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedTin (Sn)
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage500VAC V
Durability1000 Cycles
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 codee3
Manufacturer's serial numberPH1
Plug contact pitch0.1 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
Plating thickness10u inch
Rated current (signal)3 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.117 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts34
