Part Number:
Status:
Overview:
Description:
0674910027
Active
Serial ATA Products
1.27mm (.050") Pitch Serial ATA High Speed Header, Through Hole, Vertical, 7
Circuits, 0.38µm (15µ") Gold (Au) Selective Plating, with 2.35mm (.093") PC Tail
Length, Lead-free
Documents:
3D Model

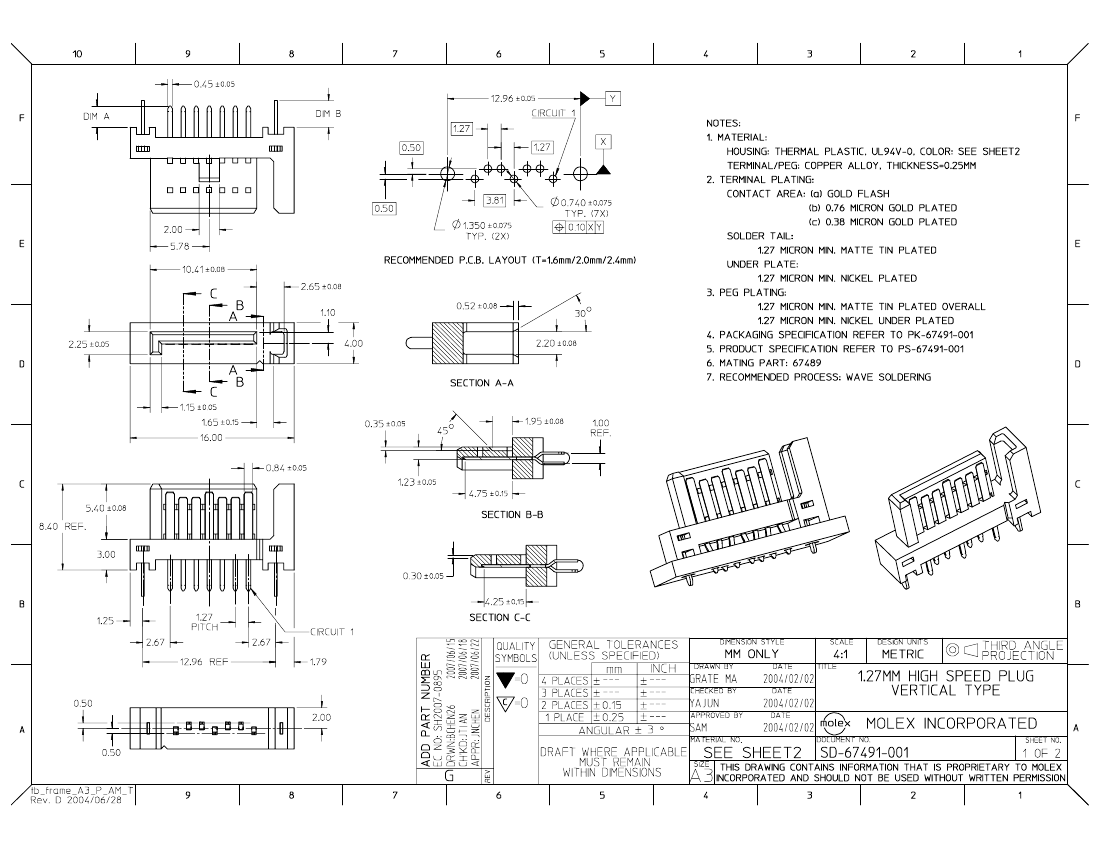

Drawing (PDF)
Product Specification PS-67491-001 (PDF)
RoHS Certificate of Compliance (PDF)
image - Reference only
Series
General
Product Family
Series
Application
Overview
Product Name
PCB Headers
67491
Board-to-Board, Wire-to-Board
Serial ATA Products
Serial ATA
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Breakaway
Circuits (Loaded)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Plating Mating
Material - Plating Termination
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
No
7
Black
50
Yes
No
No
Yes
Yes
Gold
Tin
1
Vertical
0.093 In
2.35 mm
Yes
Yes
0.062 In
1.60 mm
Tray
0.050 In
1.27 mm
0.050 In
1.27 mm
15
0.38
50.8
1.27
Yes
Yes
No
No
No
-35°C to +85°C
Through Hole
Search Parts in this Series
67491Series
Mates With
Serial ATA Signal Connector 67489 , 88755
Electrical
Current - Maximum per Contact
Voltage - Maximum
1.5A
15V DC
Solder Process Data
Lead-free Process Capability
Wave Capable (TH only)
Material Info
Reference - Drawing Numbers
Product Specification

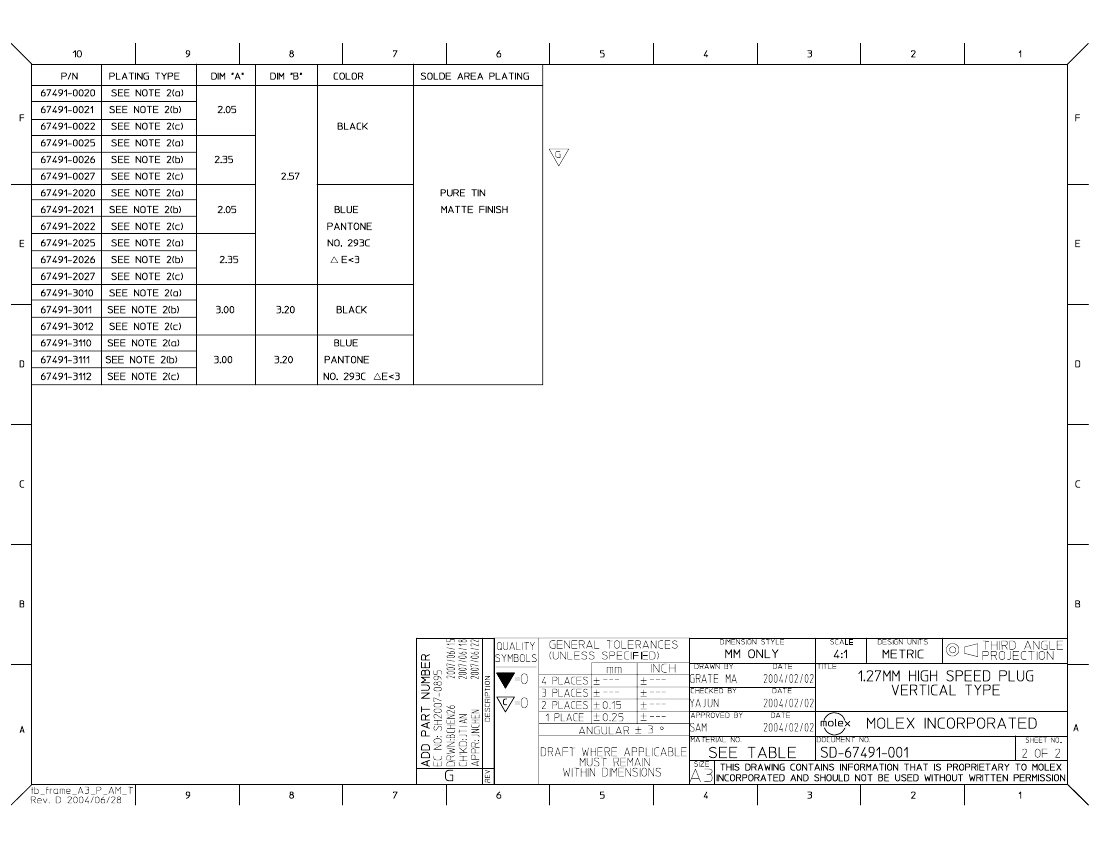

Sales Drawing
PS-67491-001
SD-67491-001
This document was generated on 04/07/2010
