0687860006 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 0687860006

0687860006: DescriptionHDMI Type D-to-Type A Cable Assembly, CAT 2, AWG 36, 1.5m (4.92), Lead free; CategoryThe connector The connector; File Size211KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

0687860006 Overview

HDMI Type D-to-Type A Cable Assembly, CAT 2, AWG 36, 1.5m (4.92), Lead free

0687860006 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Is Samacsys	N
Connector type	INTERCONNECTION DEVICE
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 05/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

Documents:

Drawing (PDF)

0687860006

Active

type_d_micro_connectors

HDMI Type D-to-Type A Cable Assembly, CAT 2, AWG 36, 1.5m (4.92' ), Lead free

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Connector to Connector

Overview

Product Name

Cable Assemblies

68786

HDMI* Type D-to-Type A

type_d_micro_connectors

HDMI*, Micro HDMI*

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Series

Physical

Cable Length

Circuits (Loaded)

Gender

Lock to Mating Part

Material - Resin

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Single Ended

Wire Size AWG

Wire/Cable Type

1.50m (4.92' )

Male-Male

Yes

Polyethylene, PVC

0.016 In, 0.039 In

0.40 mm, 1.00 mm

Round

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Electrical

Shield Type

Shielded

Voltage - Maximum

Full Shield

Yes

30V

Material Info

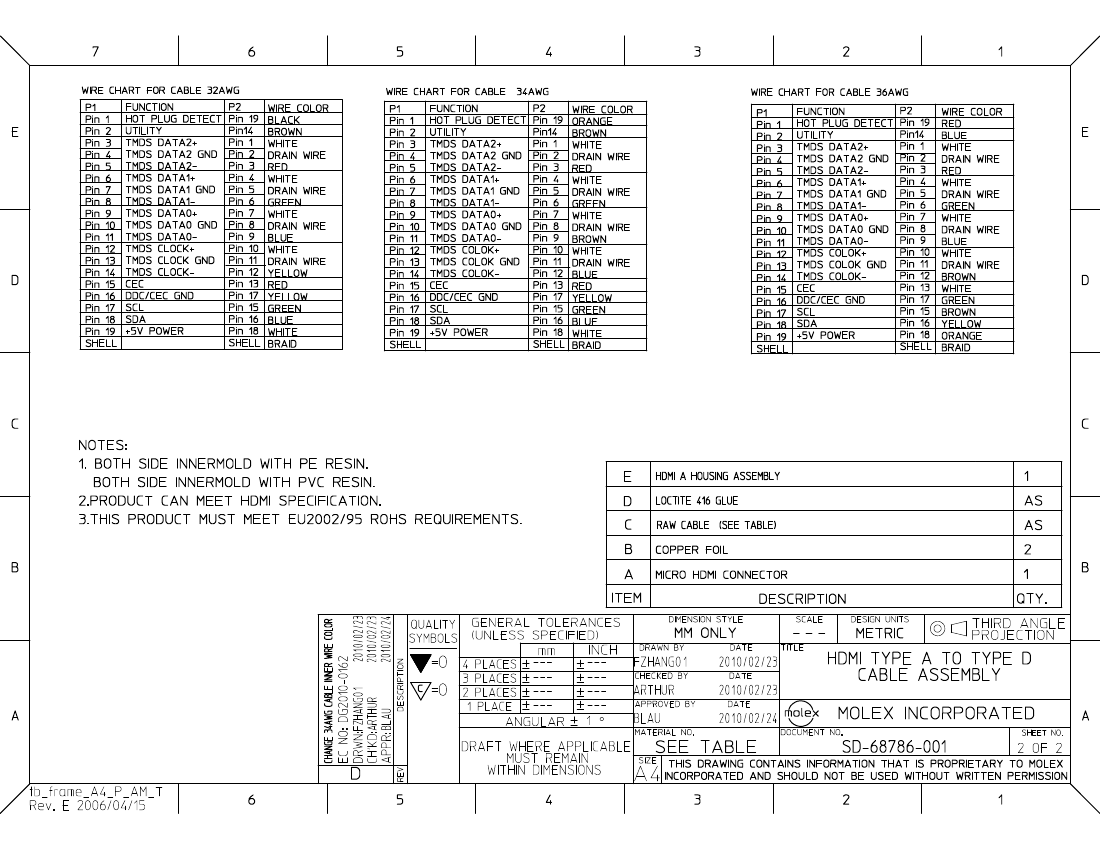

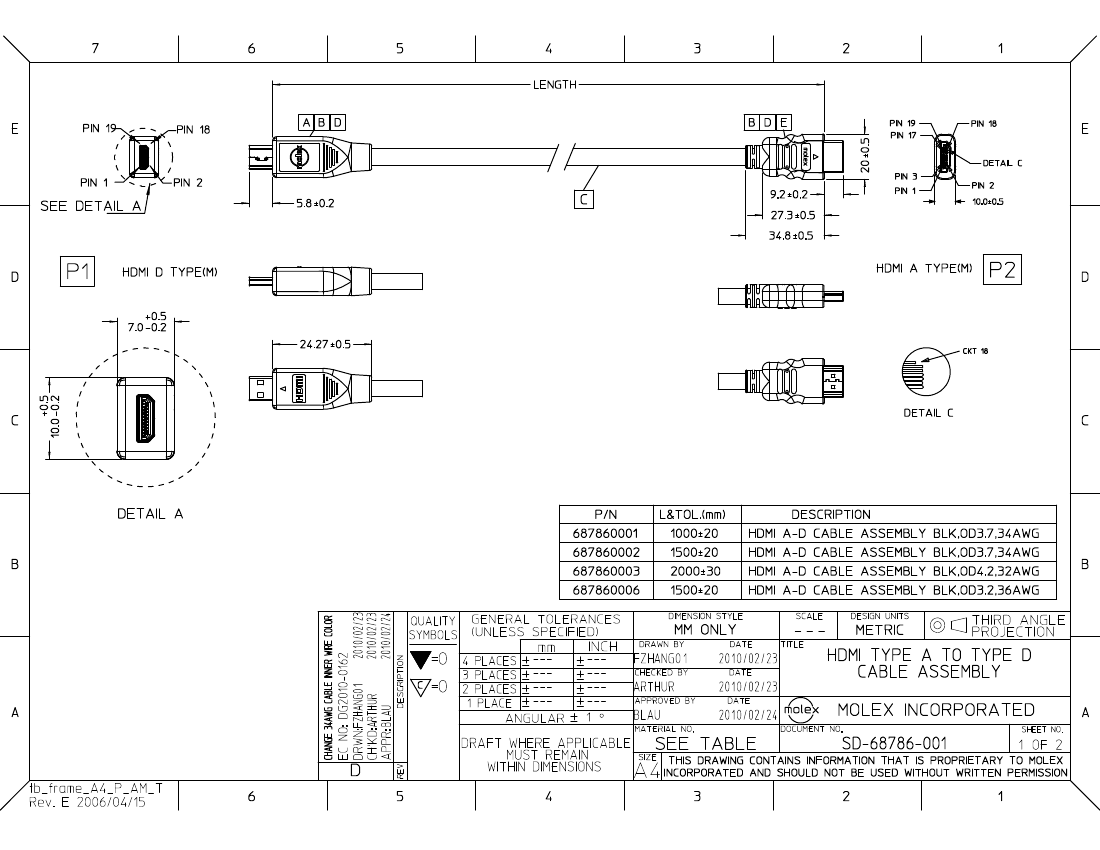

Reference - Drawing Numbers

Sales Drawing

SD-68786-001

* High Definition Multimedia Interface and HDMI are trademarks of HDMI Licensing, LLC.

Search Parts in this Series

68786Series

Mates With

46765 HDMI Type D Micro Connectors

This document was generated on 05/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
