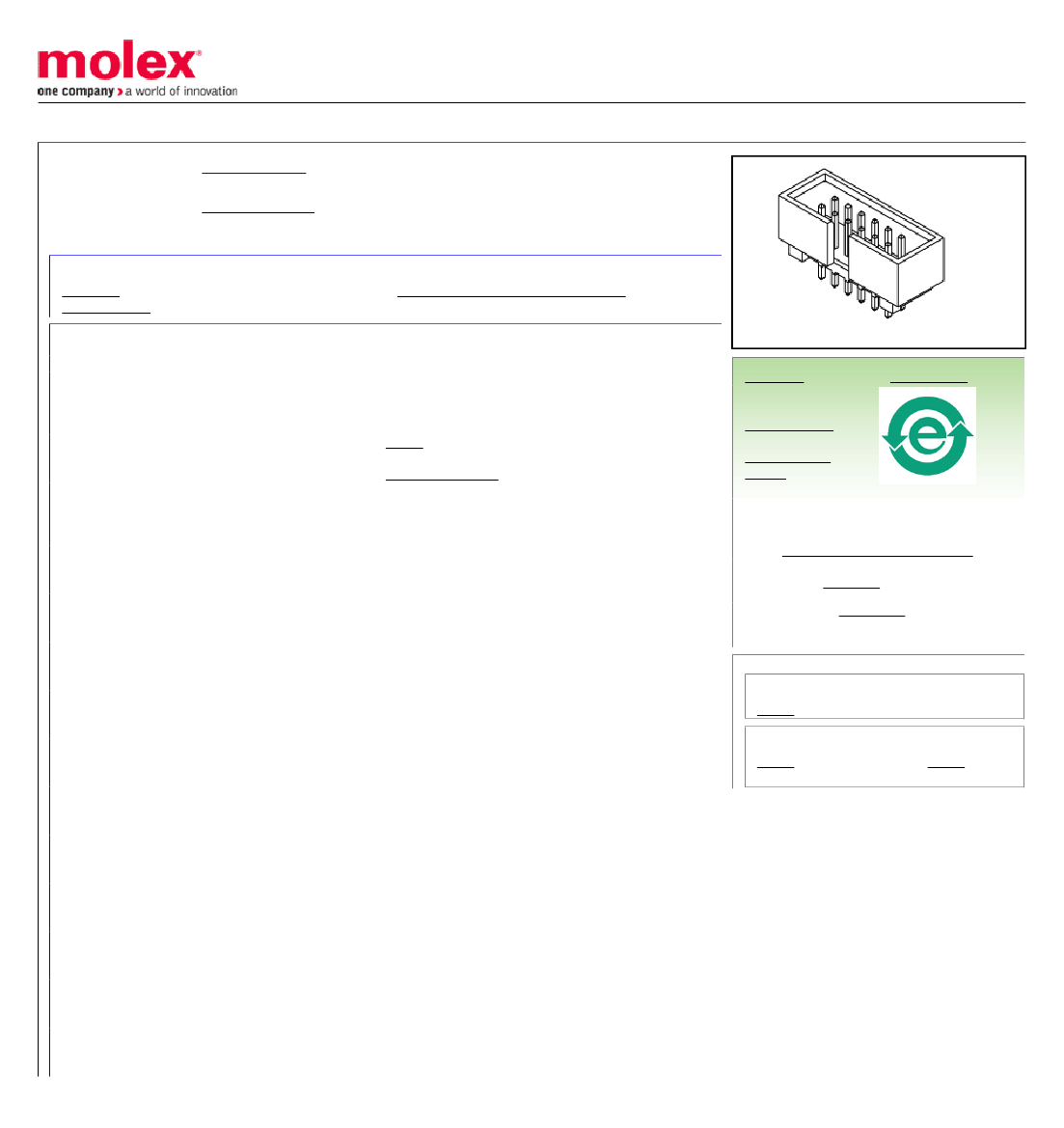

Part Number:
Status:
Overview:
Description:
0702464401
Active
cgrid__sl_products
2.54mm (.100") Pitch C-Grid® Header, Low Profile, Dual Row, Vertical, Shrouded, 44
Circuits, 0.38µm (15µ") Gold (Au) Selective Plating, Tin (Sn) PC Tail Plating
Documents:
3D Model
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
Series
Agency Certification
CSA
UL
LR19980
E29179
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Overview
Product Name
PCB Headers
70246
Wire-to-Board
cgrid__sl_products
C-Grid®
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Plating Mating
Material - Plating Termination
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
No
44
44
No
94V-0
No
No
None
None
Gold
Tin
2
Vertical
0.135 In
3.43 mm
No
None
0.062 In
1.60 mm
Tray
0.100 In
2.54 mm
0.100 In
2.54 mm
15.2
0.38
75.2
1.88
Center Slot
No
Fully
No
No
-55°C to +120°C
Search Parts in this Series
70246Series
Mates With
70450 SL™ Crimp Housing, 70058 SL™
Crimp Terminal
Termination Interface: Style
Through Hole
Electrical
Current - Maximum per Contact
Voltage - Maximum
2.5A
250V DC
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
10
Wave Capable (TH only)
1
265
Material Info
Reference - Drawing Numbers
Packaging Specification
Sales Drawing

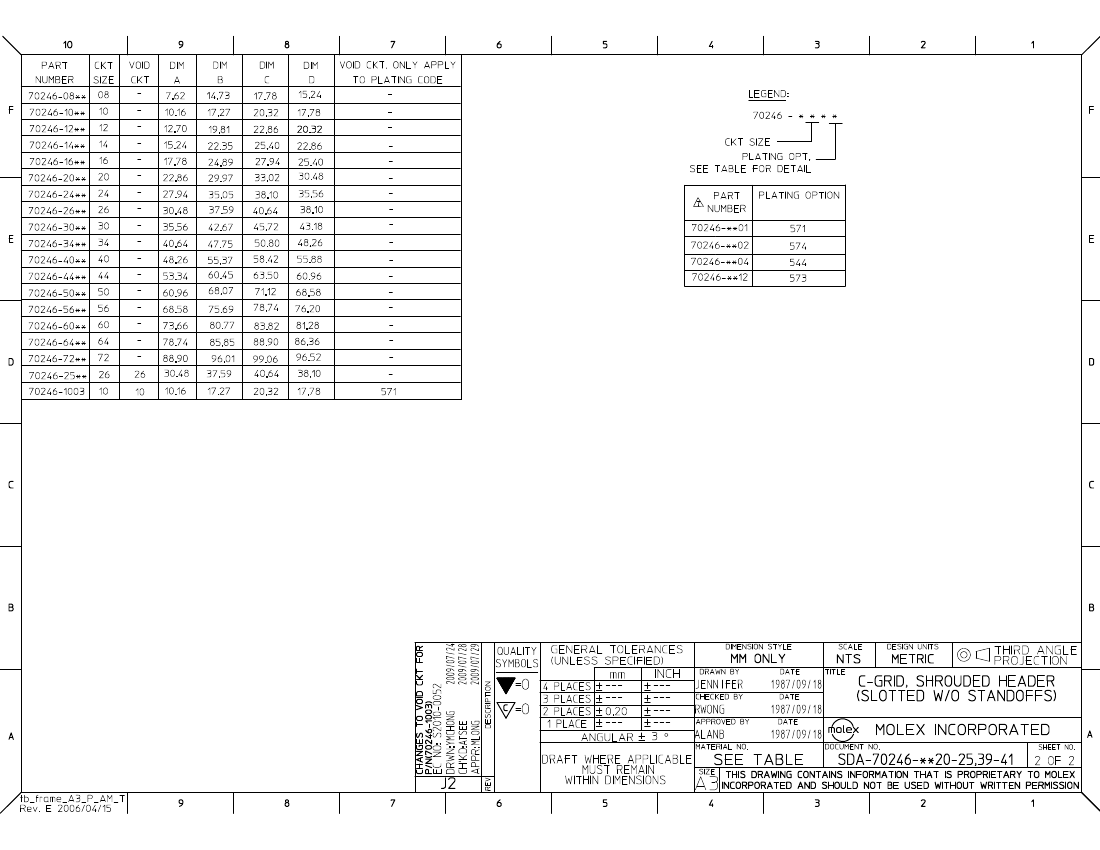

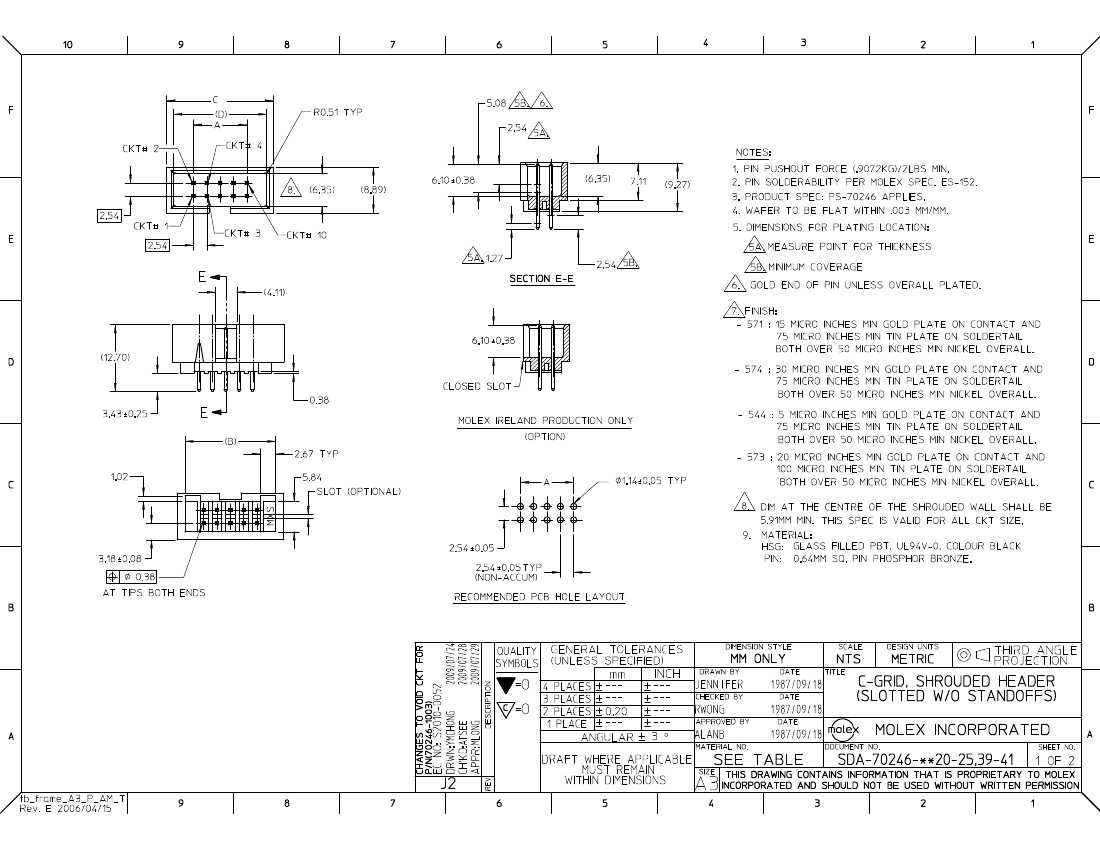

PK-87835-001
SDA-70246-**20-25,39
