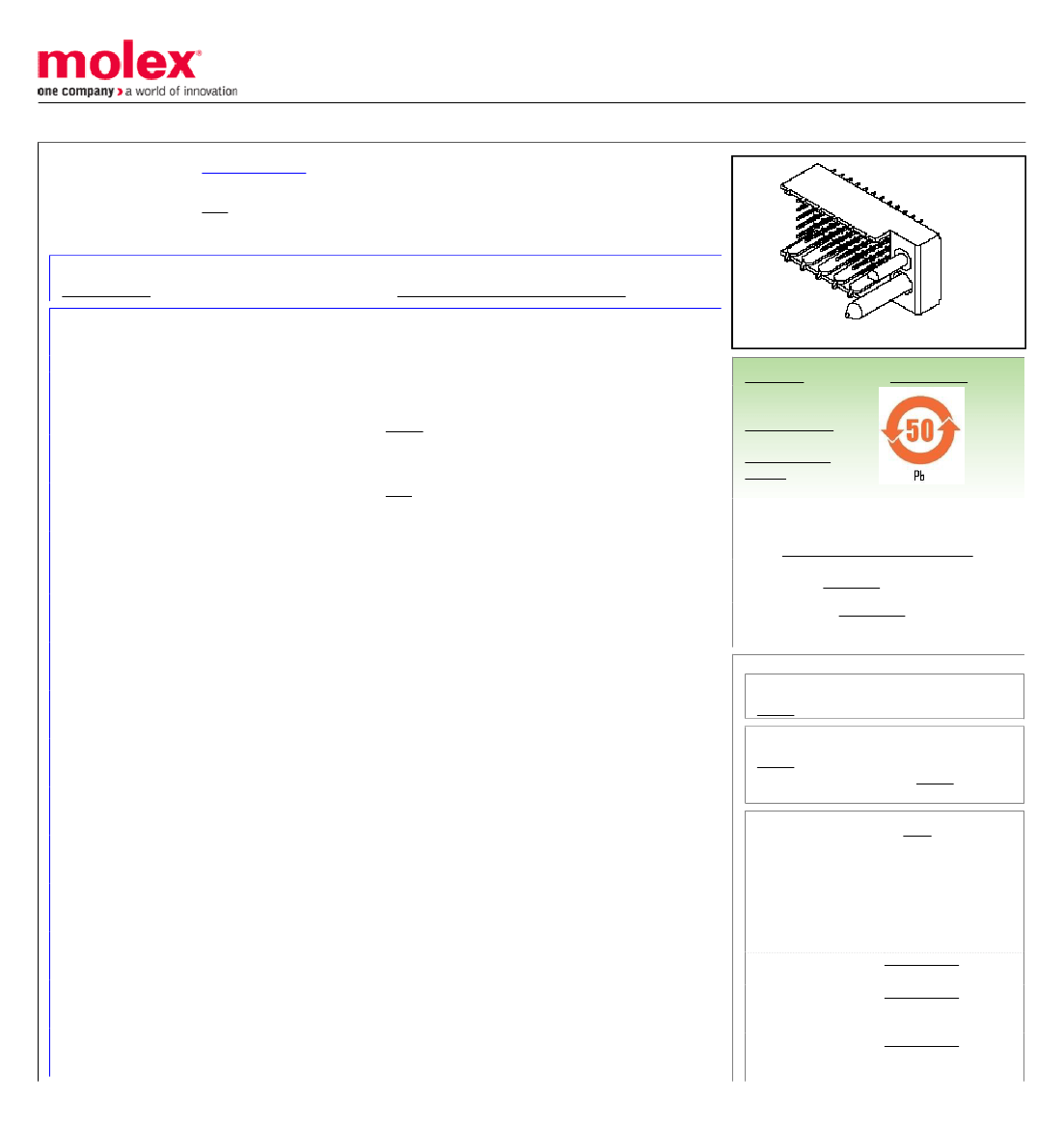

Part Number:
Status:
Overview:
Description:
0736443210
Active
hdm
2.00mm (.079") Pitch HDM® Board-to-Board Backplane Header, Vertical, SMC, Press-
Fit, Guide Post Location B, Polarizing Key Position F, 144 Circuits
Documents:
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
Series
LR19980
E29179
image - Reference only
EU RoHS
China RoHS
RoHS Compliant by
Exemption
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
UL
General
Product Family
Series
Application
Comments
Component Type
Overview
Product Name
Style
Backplane Connectors
73644
Backplane
Standard Press-Fit, Tin/Lead (SnPb)
PCB Header
hdm
HDM®
N/A
Physical
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Guide to Mating Part
Keying to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Columns
Number of Pairs
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to PCB
144
144
Black, Natural
250
No
94V-0
Yes
Yes
Phosphor Bronze, Stainless Steel
Gold
Tin
High Temperature Thermoplastic
24
Open Pin Field
6
Vertical
0.138 In
3.50 mm
No
Yes
0.098 In
2.50 mm
Tube
0.079 In
2.00 mm
0.079 In
2.00 mm
30
0.75
15
0.375
No
Search Parts in this Series
73644Series
Mates With
73632 HDM PLUS® Board-to-Board
Daughtercard Receptacle. 73780 HDM®
Board-to-Board Daughtercard Receptacle
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Flat Rock Tooling for 0622013700
Pneumatic Press
HDM® Backplane
0621001400
Insertion Signal
Contact Tool
HDM® Backplane
0622005703
Insertion Head for
144 Positions
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
No
Yes
-55°C to +105°C
Through Hole - Compliant Pin
Extraction Tool
0621001000
Electrical
Current - Maximum per Contact
Data Rate
Real Signals (per 25mm)
Shielded
Voltage - Maximum
1A
1.0 Gbps
75
No
250V AC
Material Info
Reference - Drawing Numbers
Packaging Specification
PK-70873-0818

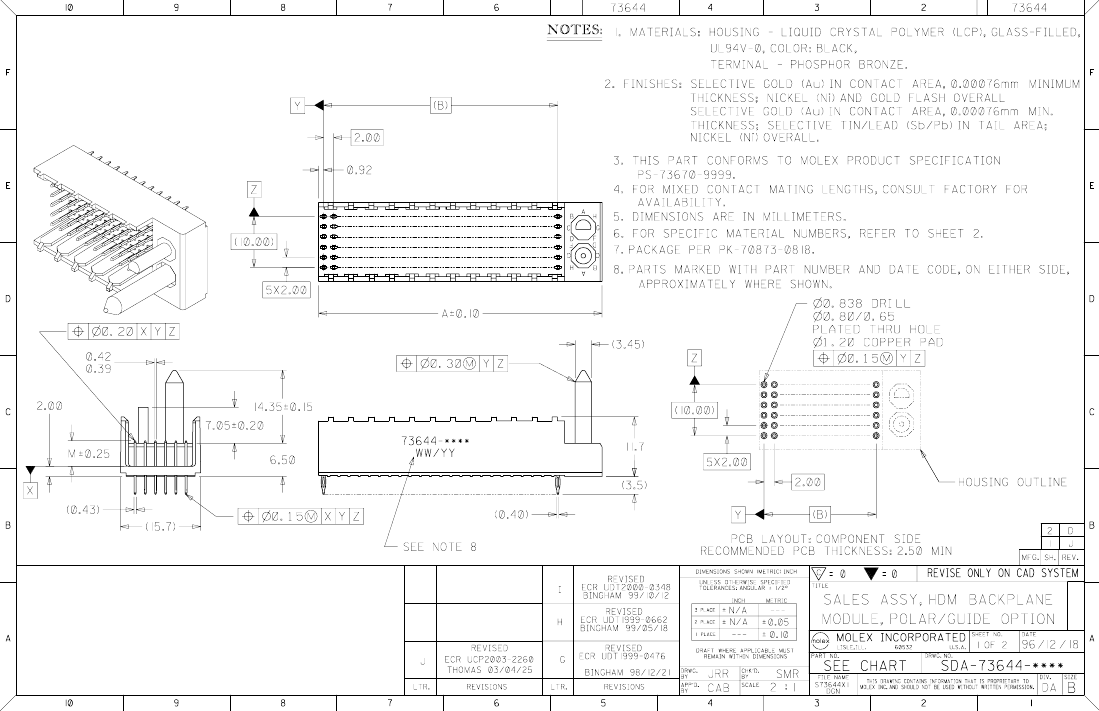

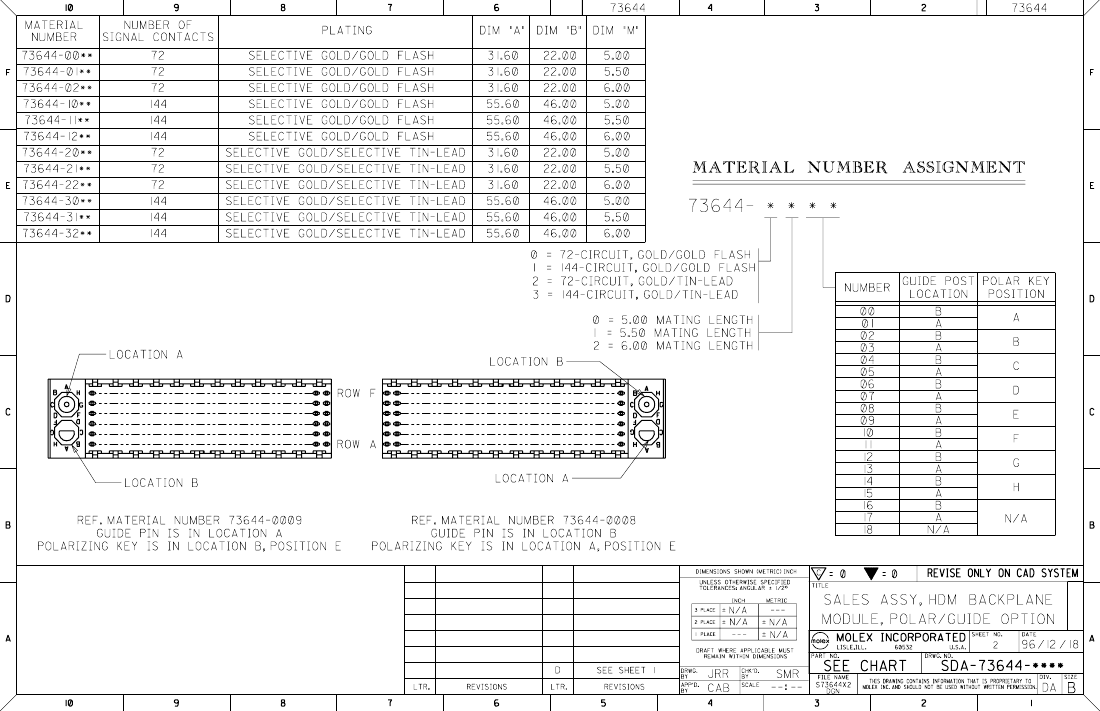

Sales Drawing
SDA-73644-****
