0741620410
Active
cgrid__sl_products
2.54mm (.100") Pitch C-Grid® Receptacle, Right Angle, Through Hole, Dual Row,
Shrouded, Version A, High-Temperature, 10 Circuits, 0.8µm (30µ") Gold (Au)
Documents:
3D Model

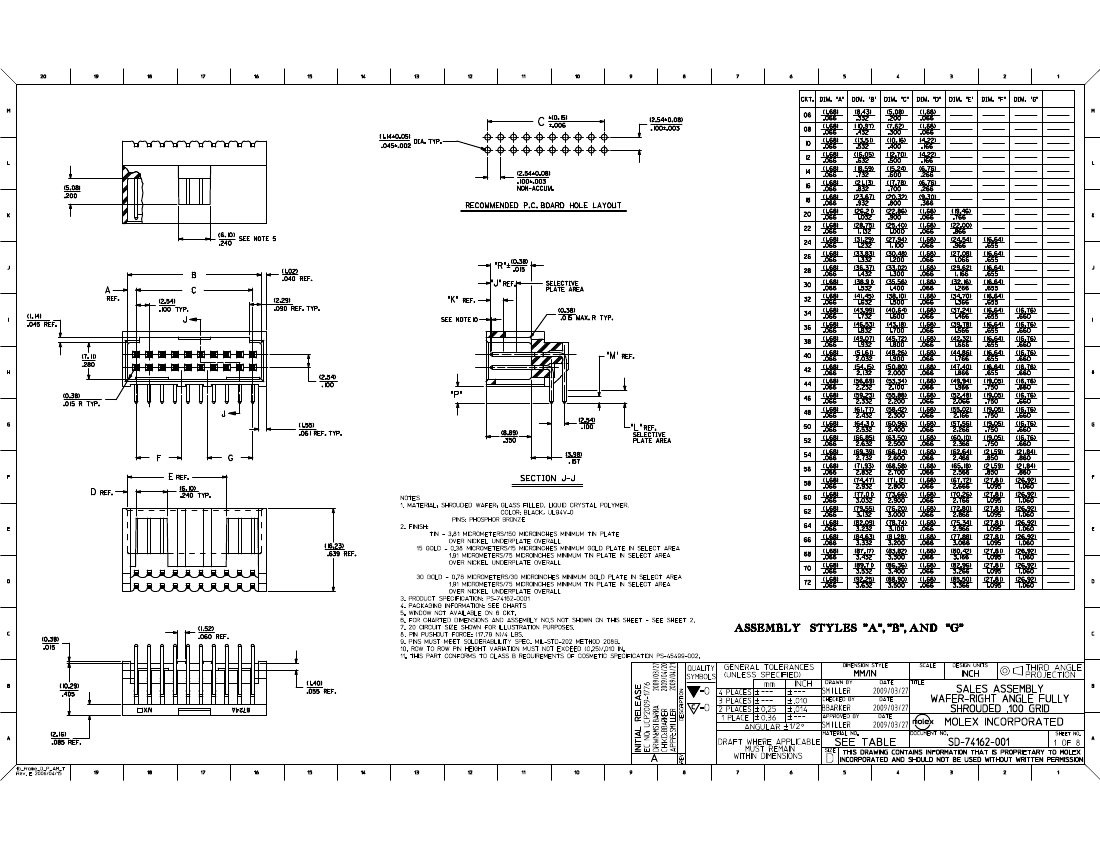

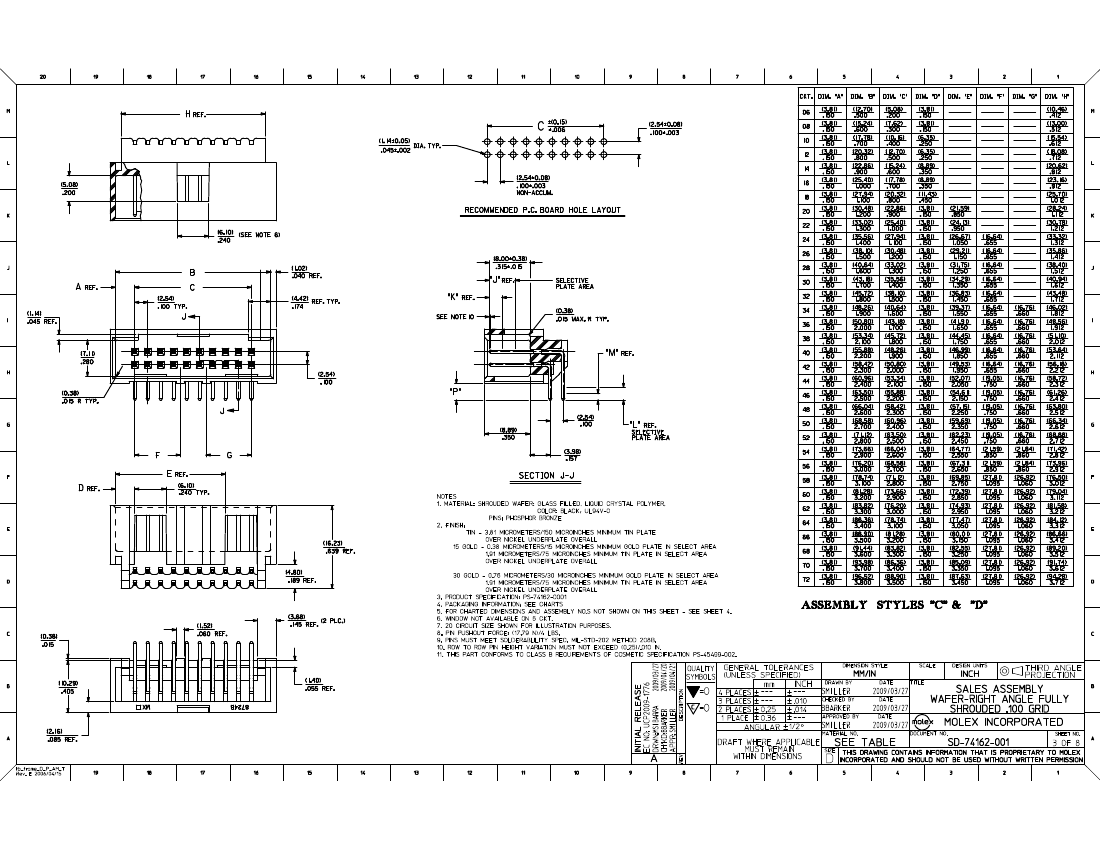

Drawing (PDF)
Product Specification PS-74162-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
UL
General
Product Family
Series
Application
Overview
Product Name
PCB Receptacles
74162
Board-to-Board
cgrid__sl_products
C-Grid®
Physical
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Polarized to Mating Part
Polarized to PCB
Robotic Placement
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
10
10
Black
50
94V-0
No
No
None
Yes
Phosphor Bronze
Gold
Tin
High Performance Thermoplastic
2
Right Angle
No
None
Tube
0.100 In
2.54 mm
0.100 In
2.54 mm
0.8
30
No
No
None
No
No
-40°C to +105°C
Through Hole
Search Parts in this Series
74162Series
Electrical
Current - Maximum per Contact
Grounding to PCB
2.5A
No
Voltage - Maximum
250V
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
5
Wave Capable (TH only)
1
260
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification

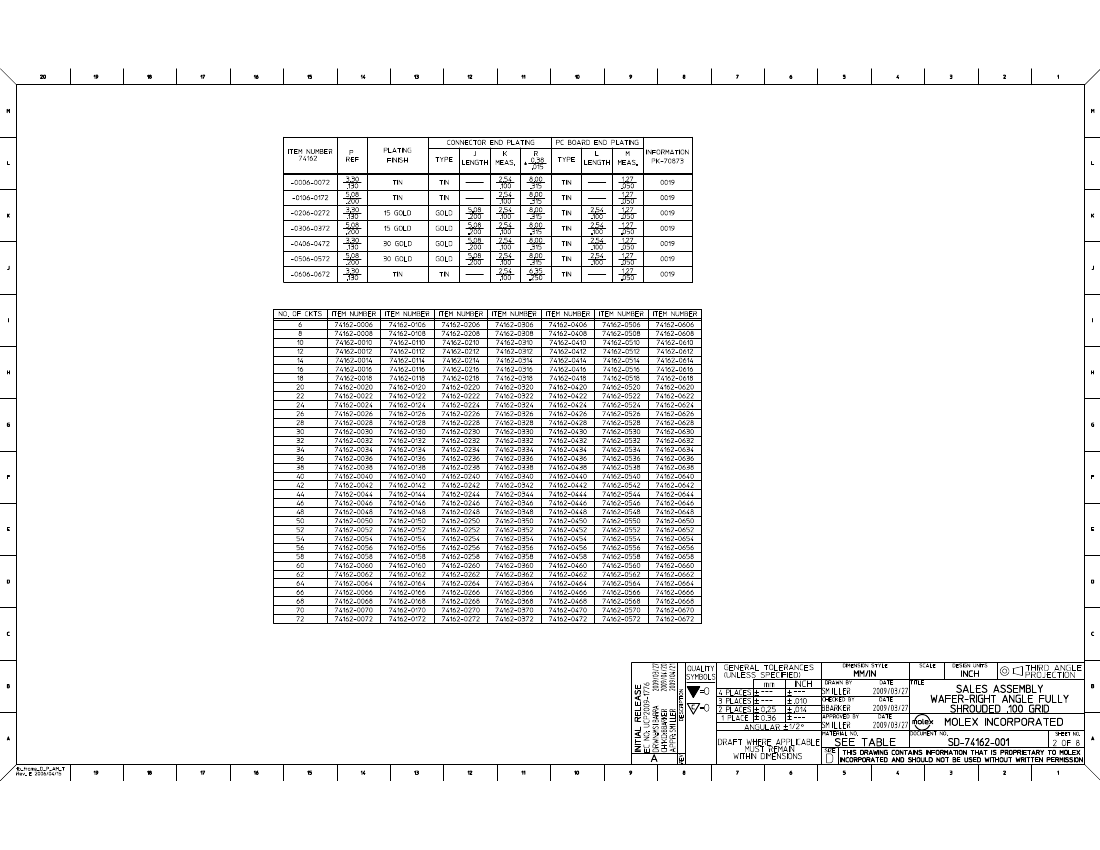

Sales Drawing
PK-70873-0019
PS-74162-001
SD-74162-001
